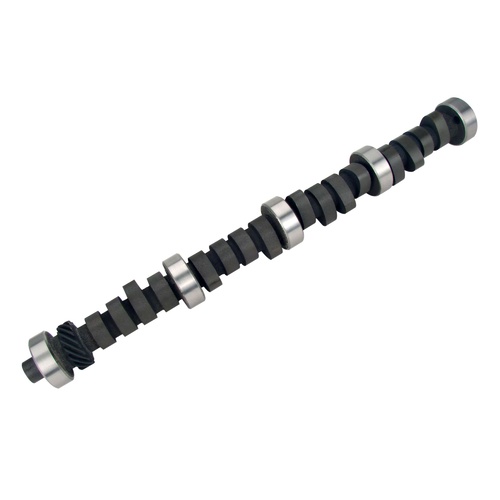

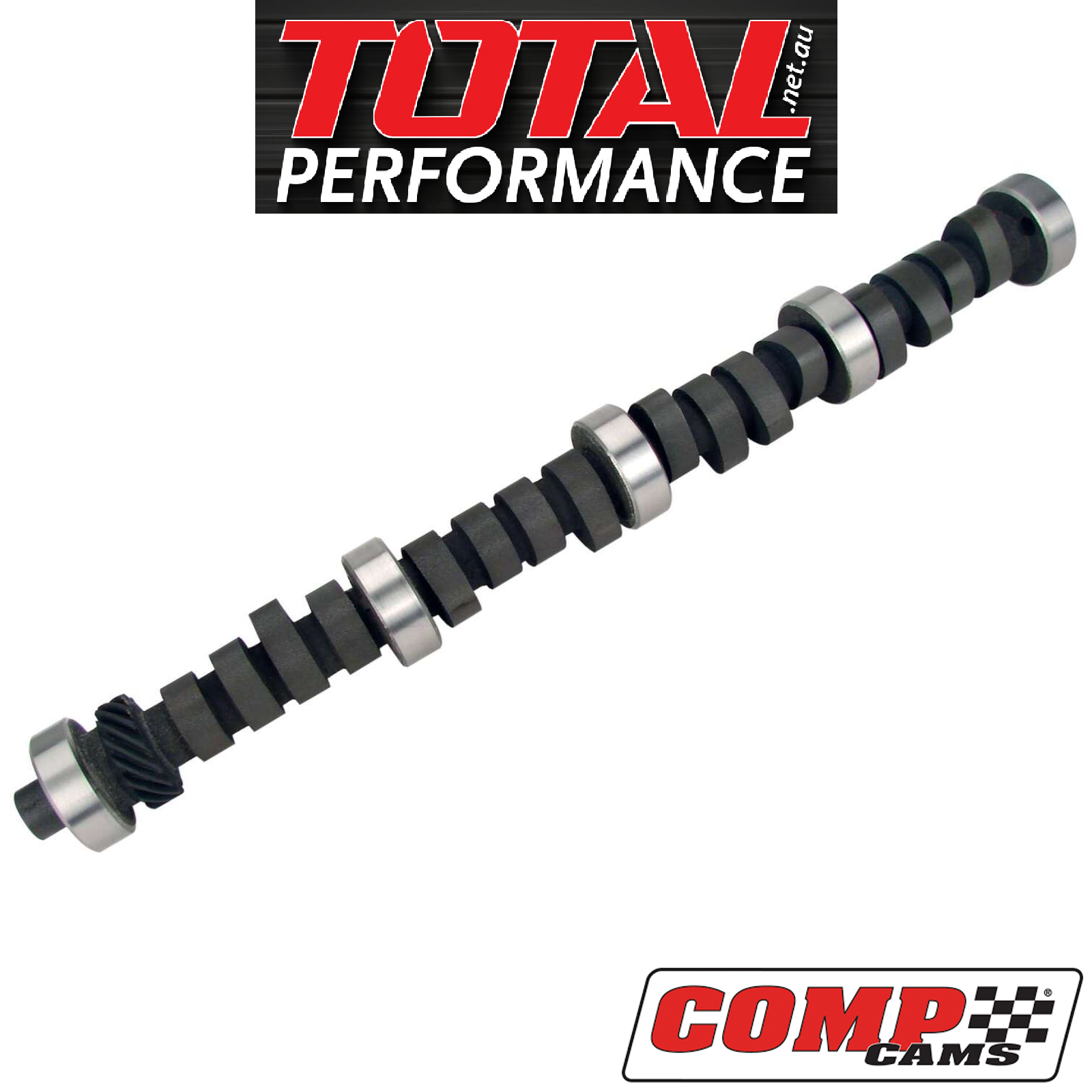

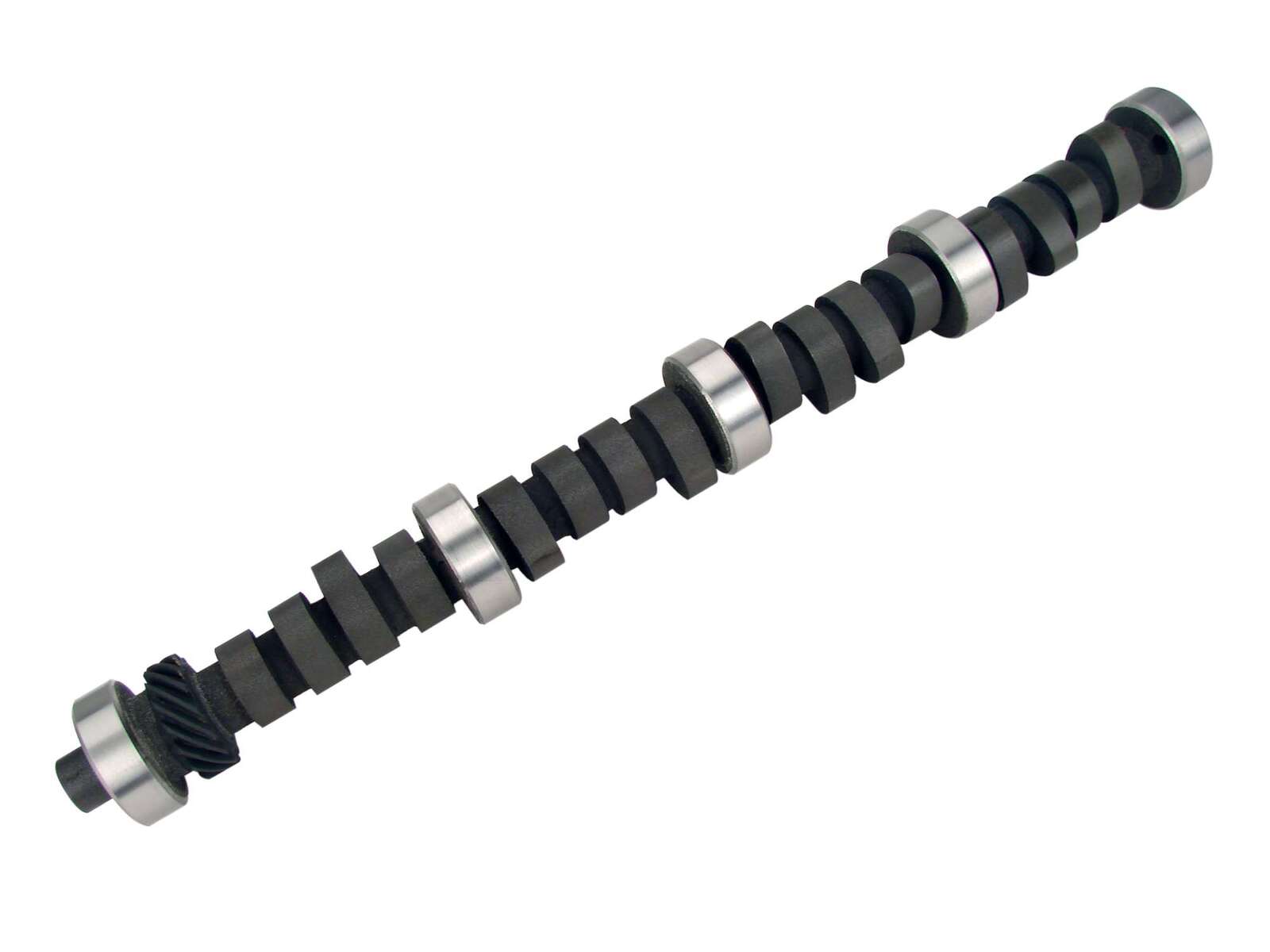

31-215-2 High Energy 252H 206/206 LSA 110 Hydraulic Flat Cam for Ford 221-302
RPM Operating Range: 800-4,800
Description
Comp Cams, 31-215-2, Ford, Windsor, 289, 302, Hydraulic Flat Tappet, Camshaft.
High Energy™ 206/206 Hydraulic Flat Cam for Ford 221-302 HYDRAULIC: Good for low RPM torque in 289-302. Good towing in 302 automatic. Smooth idle.
Good for low RPM torque in 289-302. Good towing in 302 automatic. Smooth idle.
Engine Family: Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995)
RPM Operating Range: 800-4,800
Grind Number: 252H
Cam Type: Hydraulic Flat Tappet
Lifter Style: Hydraulic Flat Tappet
Camshaft Series: High Energy
Usage:Street/Performance
Advertised Intake Duration: 252
Advertised Exhaust Duration: 252
Intake Duration at .050 Inch Lift: 206
Exhaust Duration at .050 Inch Lift: 206
Intake Valve Lift: 0.433
Exhaust Valve Lift:0.433
Lobe Lift Intake: 0.272
Lobe Lift Exhaust: 0.272
Lobe Separation: 110
Intake Centerline: 106
Exhaust Close ATDC: 12
Intake Open BTDC: 20
Exhaust Open BBDC: 60
Intake Close ABDC: 52
Camshaft Gear Attachment: 1-Bolt
Specifications
| SKU | 31-215-2 |
| Barcode # | 036584500179 |
| Brand | COMP CAMS |
| intake valve lift | 0.433 |
| Exhaust Valve Lift | 0.433 |
| Lifter Type | Hydraulic Flat Tappet |
| Advertised Exhaust Duration | 252 |
| Advertised Intake Duration | 252 |
| Cam Type | Hydraulic Flat Tappet |
| Exhaust Duration At .050 Inch Lift | 206 |
| Intake Duration At .050 Inch Lift | 206 |
| Lobe Separation | 110 |
| Camshaft Series | High Energy |
| Grind Number | 252H |
| Basic Operating Rpm Range | 800-4,800 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
