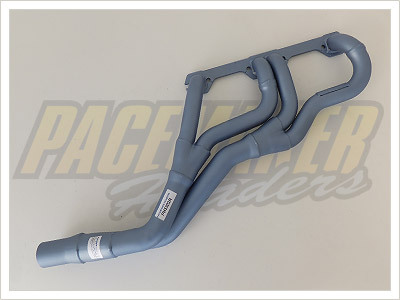

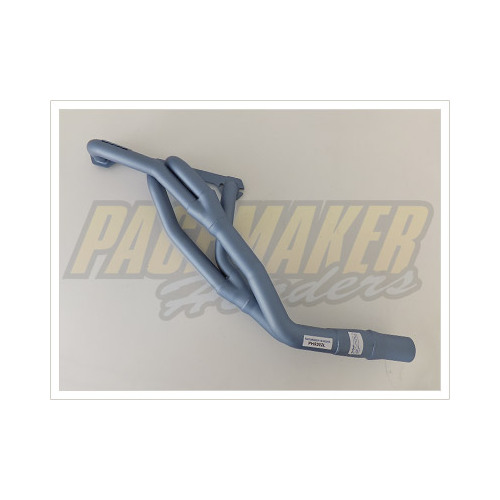

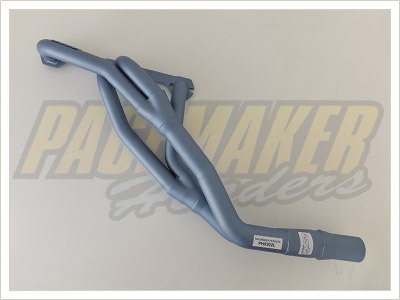

PACEMAKER, PH5302 HK HT HG 350 CHEV EXTRACTORS, HEADERS

283, 307, 327, 350, 400 SMALL BLOCK CHEVY V8 Extractors.

Fits Holden HG-HT Manual, Automatic, TRI-Y Design, with the Small Block Chev Motors.

MANUFACTURER: PACEMAKER

MODEL:  PH5302

TYPE: TRI Y, EXTRACTORS, HEADERS

MATERIAL: MILD STEEL

BENDS:    MANDREL BENT

PRIMARIES - 1 5/8"  (41MM)

SECONDARY PIPE: 2" (51MM)

OUTLET - 2 1/4" (57MM)

FINISH:  HIGH TEMP BLUE STEEL   (* CAN BE CERAMIC COATED)

O2 SENSOR:  NO

P/STEERING: will fit.

AIR CON:  N/A

GASKET:  DSF9

QUANTITY:  SOLD AS A PAIR

FITMENT NOTES:  APPROX 3 HRS Fitting Time.

Note:

• If required with alt. bracket on LH side order PH 5303
• Will fit slant plug heads
• Will fit Powerglide automatic
• Will fit Turbo 400 automatic if vehicles floor has been cut for correct fitment of automatic
• Will not fit column automatic unless linkages are modified
• Will fit with power steering
• Will only fit with original engine mounting spacers or; PACEMAKER spacers Part number PEMP 307
• Spacers must be fitted on correct side of vehicle (RH spacer is ¼" higher than LH spacer)

PH5302 & PH5303 headers are designed to fit with a genuine factory starter when fitting to a 153 tooth (10 1/2") flex plate (auto only) or a 153 tooth (13") ring gear (manual only).

PH5302 & PH5303 headers will not fit the genuine factory starter when fitting to 168 tooth (11") flex plate (auto only) or a 168 tooth (14") ring gear (manual only). Pacemaker recommends the use of an after market hi-torque starter. Please choose carefully as not all starter solenoids are in the same position.

PACEMAKER EXTRACTORS - PROUDLY AUSTRALIAN MADE
