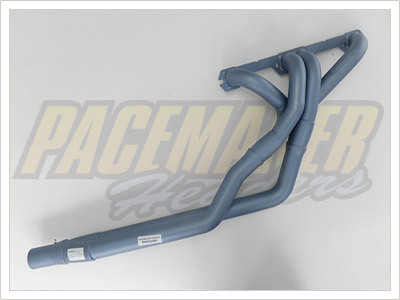

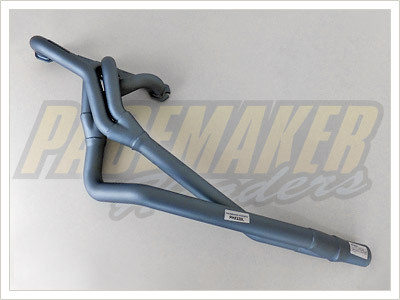

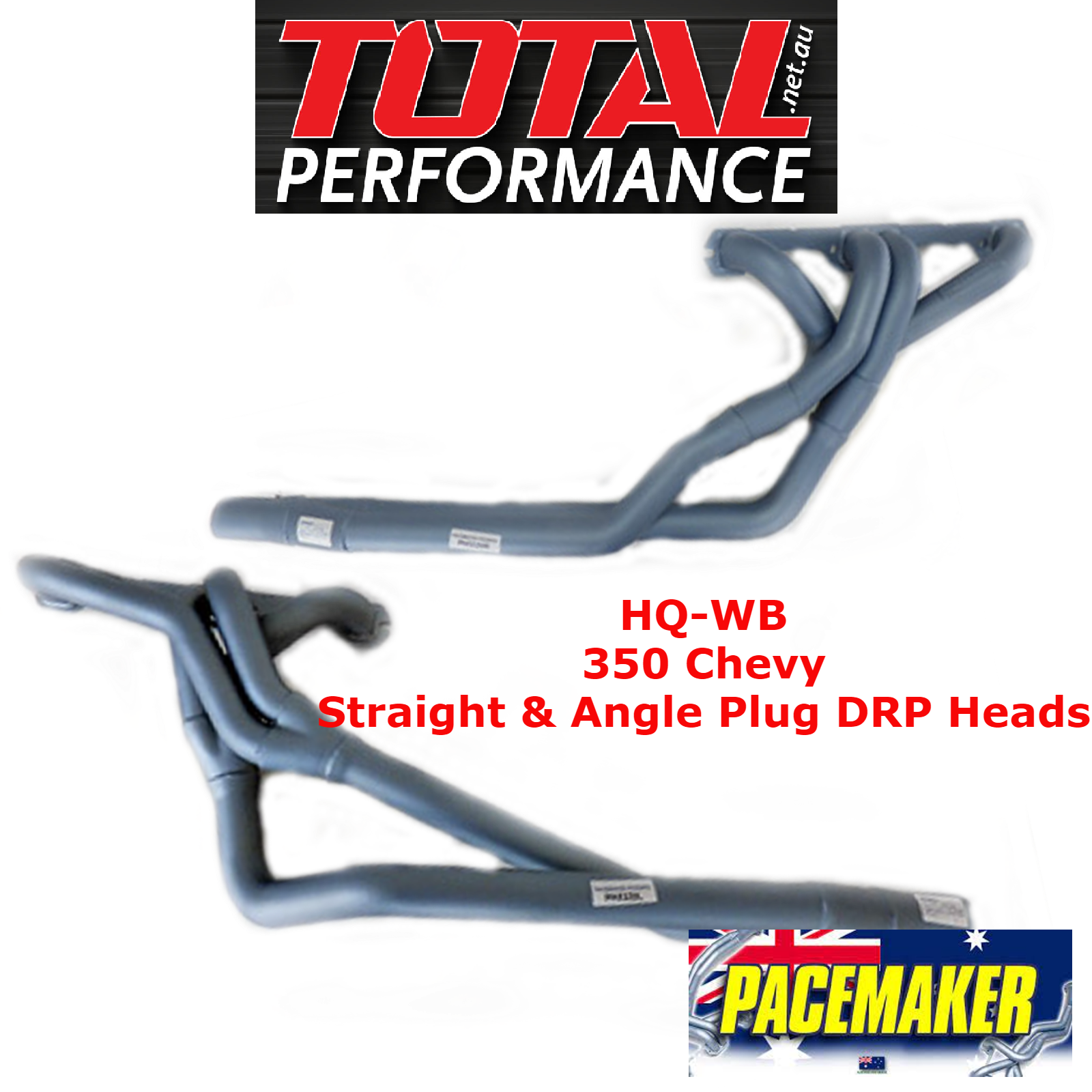

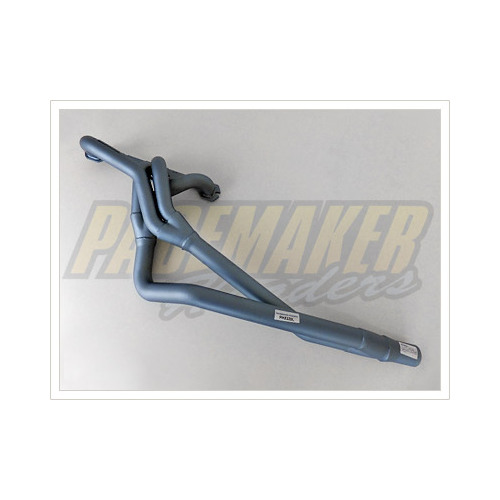

PACEMAKER, PH5320 HQ 350 CHEV EXTRACTORS, HEADERS

283, 307, 327, 350, 400 SMALL BLOCK CHEVY V8 Extractors.

Fits Holden HQ, HZ, HJ, HX, WB, Manual, Automatic, TRI-Y Design, with the Chev 350 Small Block Motors.

Fits DRP Straight & Angle Plug Cylinder Heads. * Tight fit of #4 spark plug boot on Angle Plug heads. See fitment notes.

MANUFACTURER: PACEMAKER

MODEL:  PH5320

TYPE: TRI Y, EXTRACTORS, HEADERS

MATERIAL: MILD STEEL

BENDS:    MANDREL BENT

PRIMARIES - 1.3/4"  (44MM)

SECONDARY PIPE: 2" (51MM)

OUTLET - 2 1/4" (57MM)

FINISH:  HIGH TEMP BLUE STEEL   (* CAN BE CERAMIC COATED)

O2 SENSOR:  NO

P/STEERING: YES

AIR CON:  YES

GASKET:  DSF9

QUANTITY:  SOLD AS A PAIR

FITMENT NOTES:  APPROX 2 HRS Fitting Time.

Note:

• Will not fit slant plug heads*  Fits DRP Straight & Angle Plug Cylinder Heads.
• Will fit Turbo 400 automatic
• Will fit Powerglide automatic
• Will only fit with original engine mounting spacers or; PACEMAKER spacers part number PEMP 350
• Spacers must be fitted on correct side of vehicle (RH spacer is 1¾" high LH spacer is 1¼" high)
• * Tight fit of #4 spark plug boot on Angle Plug heads. Pipe can be massaged or space header out off the cylinder head. Check clearance before Painting or Coating.

PACEMAKER EXTRACTORS - PROUDLY AUSTRALIAN MADE
