Hydraulic Flat Tappet Cam & Lifter kit, 204/214 LSA 112 Ford 302 351C Cleveland Performer RV camshaft
RPM Range 800-4800 Towing & Economy Cam & Lifter kit,
Description

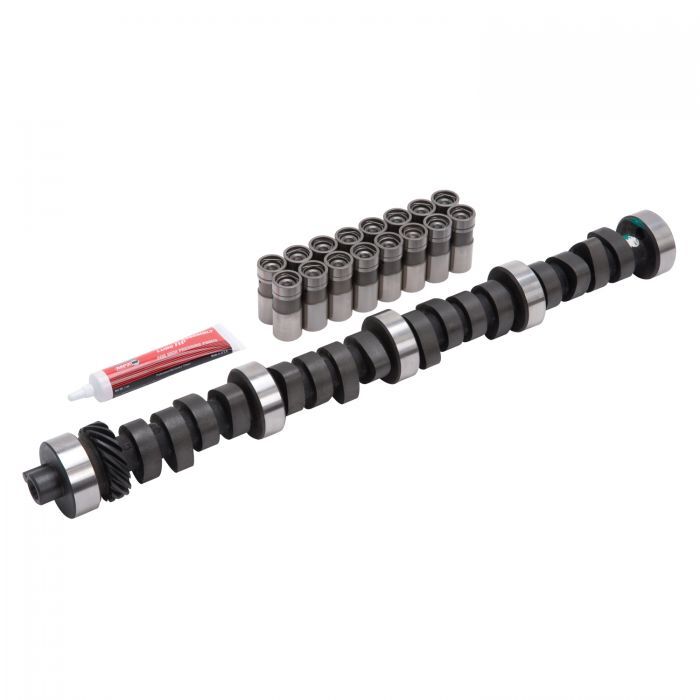

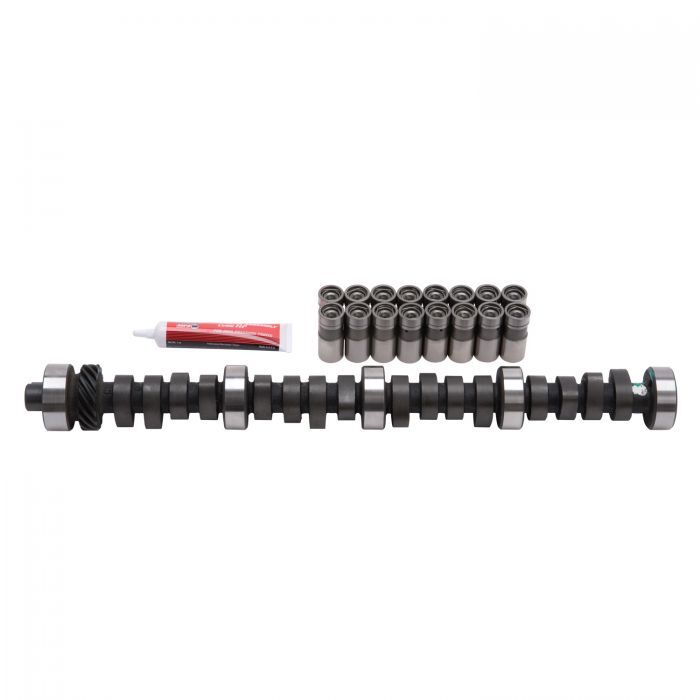

Ford 351 Cleveland, Hydraulic Flat Tappet Camshaft & lifters Kit - Towing / Economy
Edelbrock Performer-Plus camshaft & Lifter kit
Ford Cleveland 302 351C 351M-400 V-8 applications.

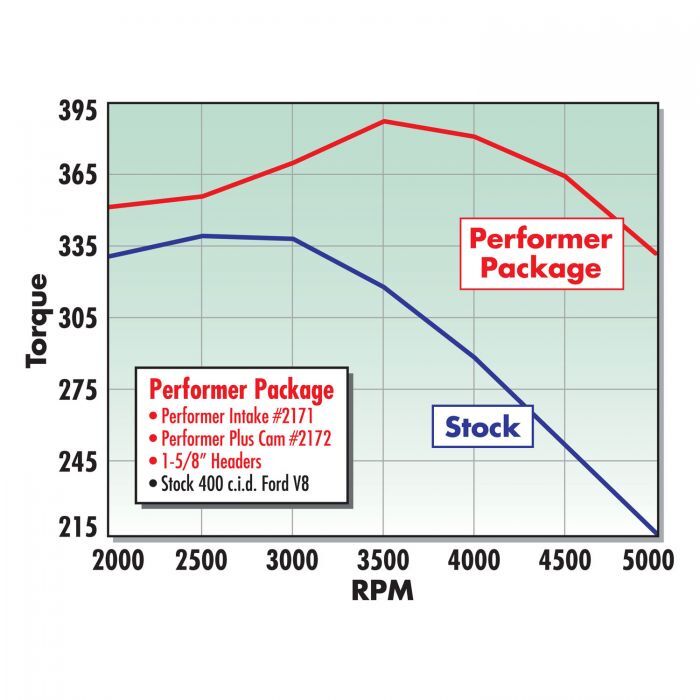

This Edelbrock cam kit produced 390 ft-lbs. of torque when used with #2171 intake and stock iron cylinder heads on a 400 engine.
The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions.
Camshaft Specifications: -
RPM Range: 800 - 5500 rpm
Duration @ .050 Intake: 204 degrees -
Duration @ .050 Exhaust: 214 degrees -
Lift @ Valve Intake: .484" -
Lift @ Valve Exhaust: .510" -
Lobe Separation: 112 Degrees -
Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 14"
Specifications
SPECS
| Grade Type | PERFORMANCE |
|---|---|
| Lifter Materials | Hardened Steel |
| Computer Controlled Compatible | No |
| Intake Duration .050 Inch Lift | 204 deg |
| Installation Notes |
|
| Advertised Exhaust Duration | 292 deg |
| Advertised Intake Duration | 282 deg |
| Cam Type | Cast |
| Exhaust Duration at .050 inch Lift | 214 deg |
| Exhaust Valve Lift | 0.510 in |
| Intake Valve Lift | 0.484 in |
| Lifter Type | Hydraulic |
| Lobe Separation | 112 deg |
| SKU | ED2172 |
| Barcode # | 00085347021727 |
| Brand | Edelbrock |
