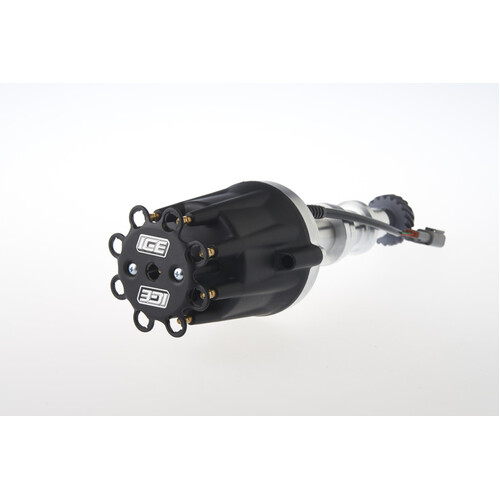

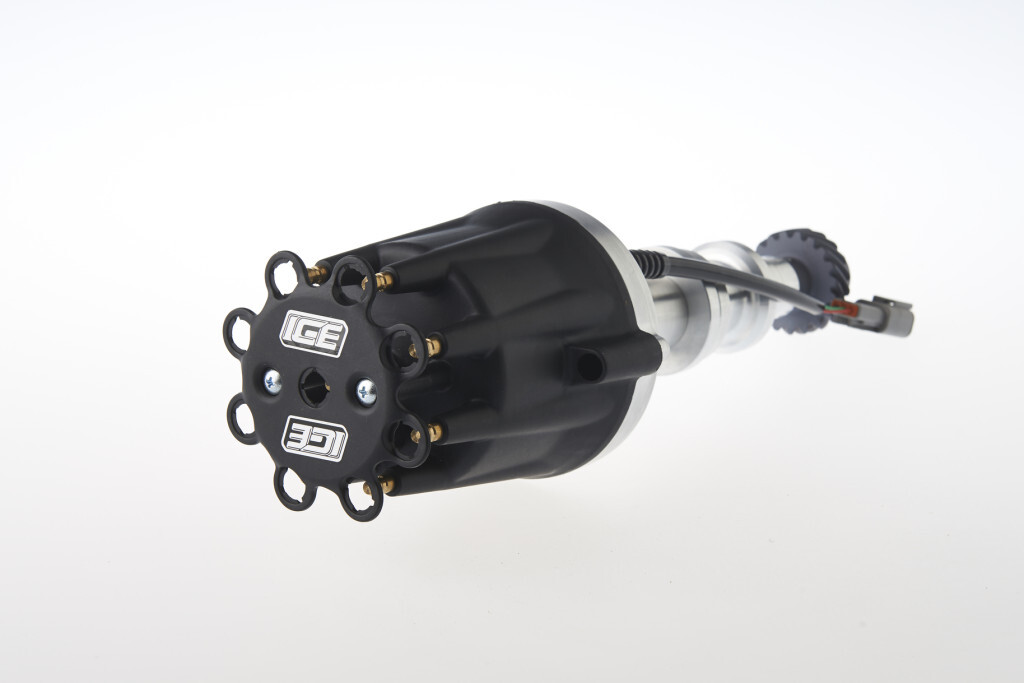

Discontinued cast gear SBF 289 302W FORD WINDSOR V8 BILLET DISTRIBUTOR SMALL CAP HEI - CAST GEAR

SMALL CAP DISTRIBUTOR

SUITS FORD SMALL BLOCK WINDSORS 289 -302W. USES HEI TERMINALS

GEAR TYPE:  SPHEROIDAL GRAPHIE CAST IRON (SG) IRON GEAR - SUITABLE FOR FLAT TAPPET CAMS AND SOME HYDRAULIC ROLLER CAMS.

NEEDS A CONTROL BOX :

• 7060MV - 7AMP STREET SERIES CONTROLLER (NO LIMITER)
• 7061MV - 1 LIMITER X  7 AMP  STREET SERIES CONTROLLER
• 7062MC - 2 LIMITERS X 7AMP  STREET/RACE CONTROLLER

ICE 8200 Series small cap billet distributors feature a compact cap design with screw on plug wire retainer and choice of distributor gears. Available for all popular V8 and 6cyl engine types and used when distributor clearance is tight or the look of a small distributor is preferred

ICE distributors are available for all popular V8 and 6 cylinder engines. Every ICE distributor features a CNC machined 6061 aircraft grade aluminium body, a hardened and precision centreless ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush. Triggering is via accurate and reliable Hall Effect vane sensor/sensors, unaffected by dirt, moisture or vibration.

HEI style distributor caps are used featuring brass terminals for long service life under extreme operating conditions.

Most distributors are available in a choice of large or small cap and with either Spheroidal Graphite Iron, Silicon Impregnated Bronze or Treated Steel drive gears.

.
