ELECTRONIC IGNITION KIT SBF 302W FORD WINDSOR BILLET DISTRIBUTOR SMALL CAP - STEEL GEAR 1 REV LIMITER

The 7061MV kit is a popular package aimed at mildly to highly modified street cars . It features 16 pre-programmed push button adjustable advance curves and vacuum advance via a built in MAP sensor as well as a single fully adjustable RPM limiter. This provides easy and effective tune-ability for all combinations with the added security of an RPM limiter to protect the engine. It results in excellent everyday drive ability and exceptional long term performance.

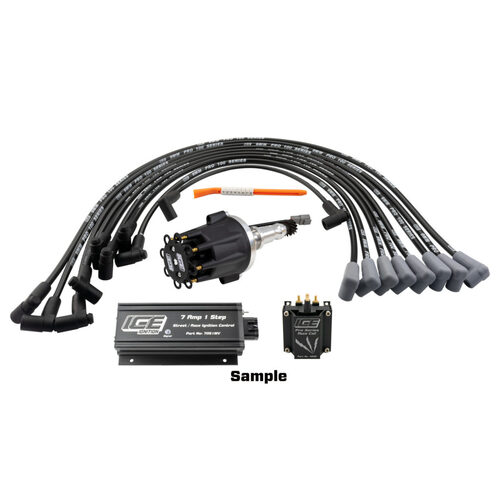

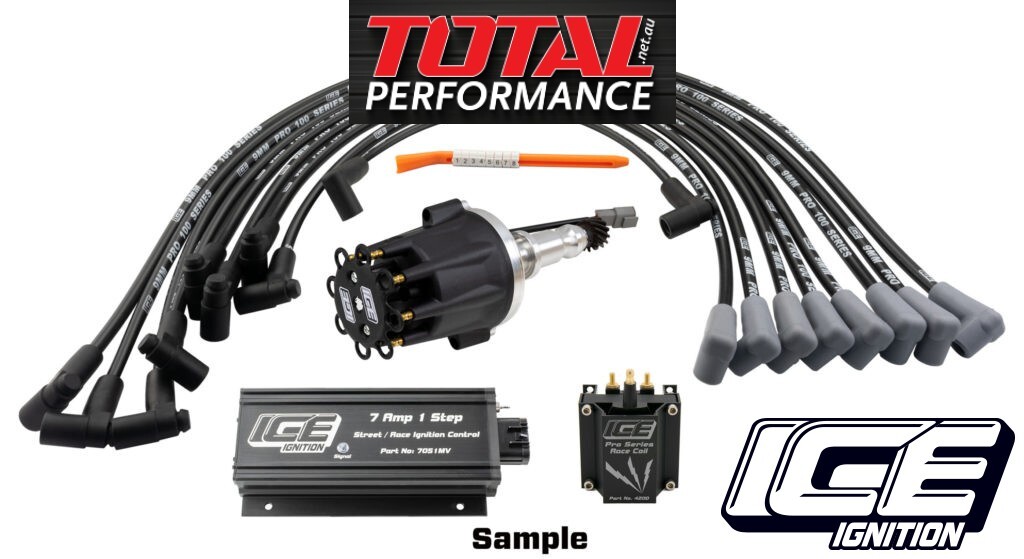

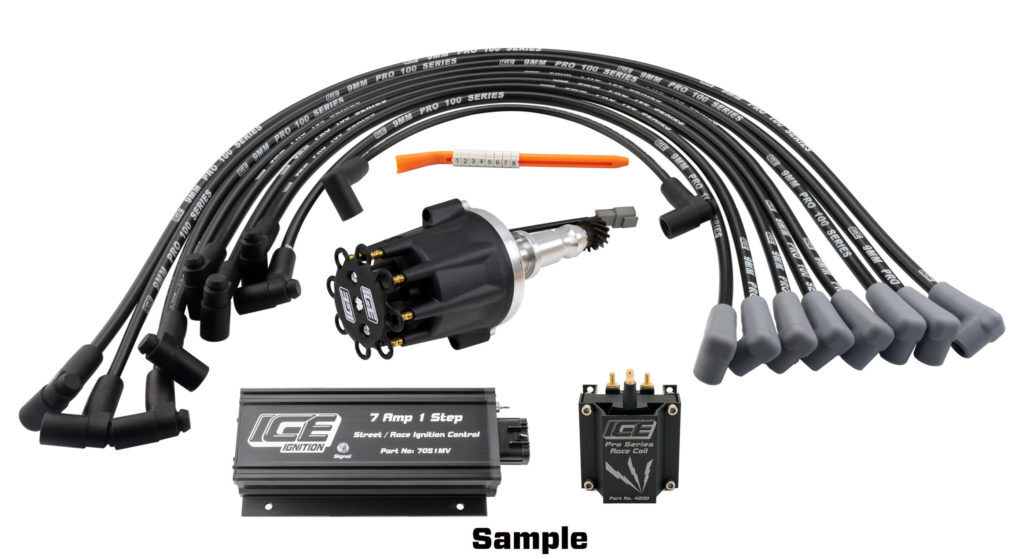

Kit includes:
ICE Billet 6061-T6 alloy distributor in small or large cap with either spheroidal graphite cast iron, silicon bronze or hardened steel gear.
7 Amp digital ignition control with signal LED indicator, dedicated tach output and an RPM limiter adjustable from 1000rpm through to 10900rpm in 100rpm increments.
Suitable for both 6cyl and 8cyl applications.
High voltage ICE Pro Series Race Coil.
9mm Pro 100 Series plug wire kit to suit your engine with numbers markers.
3 Year Warranty.

WHATS IN THE KIT:

DISTRIBUTOR:

• SUITS:  FORD SMALL BLOCK WINDSORS 289 -302W. USES HEI TERMINALS
• CAP: SMALL CAP HEI TERMINALS - BLACK
• GEAR TYPE: GEAR TYPE:  STEEL GEAR - SUITABLE FOR SOLID ROLLER CAMSHAFTS AND SOME HYDRAULIC ROLLER CAMSHAFTS.

CONTROL BOX: 7061MV 7AMP

•           REV LIMITERS: 1 REV LIMITER
•           TIMING CURVES: 16 PRE PROGRAMMED.

PLUG WIRES: HEI 9MM BLACK - AROUND COVERS (inc number marker kit)

COIL: PRO SERIES RACE COIL
