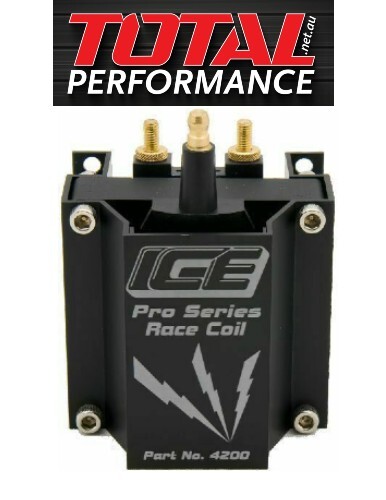

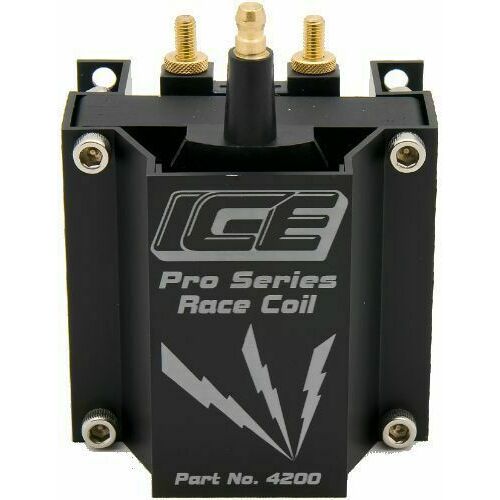

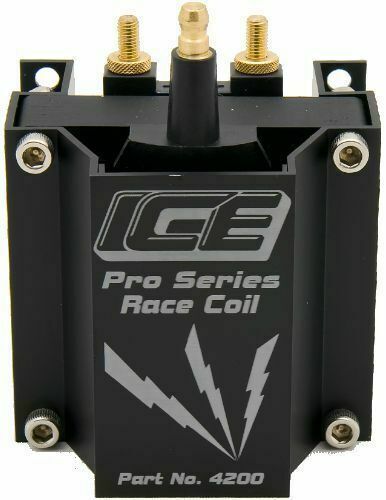

PRO SERIES, ICE Ignition Coil, Racing performance, HEI Male Post terminal - 12V, Square, Black
Description
ICE Ignition Coil, 4200 Pro Series Race Coil; Naturally Aspirated engines
Introducing the most powerful ignition coil on the market in one compact size. The ICE Ignition 4200 Pro Series Race Ignition Coil delivers twice the energy of a standard ignition coil. It delivers the highest possible intensity and duration to support the most demanding ignition systems. This coil is ideal for most street, strip, race and boating applications.
The ICE Ignition coil, Part# 4200 Coil is ideal for naturally aspirated engines.
KIT:
- 1 x ICE Ignition 4200 Pro Race Ignition Coil with HEI male terminal
- 1 x Black anodised protective cover with integrated mounting bracket
- Stainless steel mounting hardware
- 2 x ICE Ignition stickers
Suits:
- Holden 253, 304, 308
- Ford 351 Cleveland
- Ford Windsor
- Chevy Small Block, 350 400
- Chevy Big Block, 454
- Chrysler Small Block, 318, 340, 360
- Chrysler Big Block, 440, Hemi, 426
Warranty
12
Specifications
| SKU | ICE-4200 |
| Brand | ICE IGNITION |
| Spark Duration | 245 uS |
| Diameter | N/A |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Terminal Quantity | 1 |
| Leakage Inductance | .14 mH |
| Mount Type | Integral |
| Mounting Bracket Included | Yes |
| Oil Filled | No |
| Secondary Inductance | 6.8 H |
| Terminal Quantity | 2 |
| Mounting Position | Any |
| Ballast Resistor Included | No |
| Height | 3.25 |
| Title | E93 Racing Coil |
| Turns Ratio | 60:1 |
| Weight | 2.13 lbs |
| Secondary Resistance | 820 ohms |
| Primary Resistance | .20 ohms |
| Primary Inductance | 1.9 mH |
| Peak Current | 615 mA |
| Meets Or Exceeds Oem Specs | Yes |
| Maximum Voltage | 50,000 V |
| Coil Style | E-Core |
| Coil Internal Construction | Epoxy |
| Coil Color | Black |
| Coil Shape | Square |
| Coil Wire Included | No |
| Quantity | Sold individually |
| Width | 3.5 |
| Length | 4.25 |
