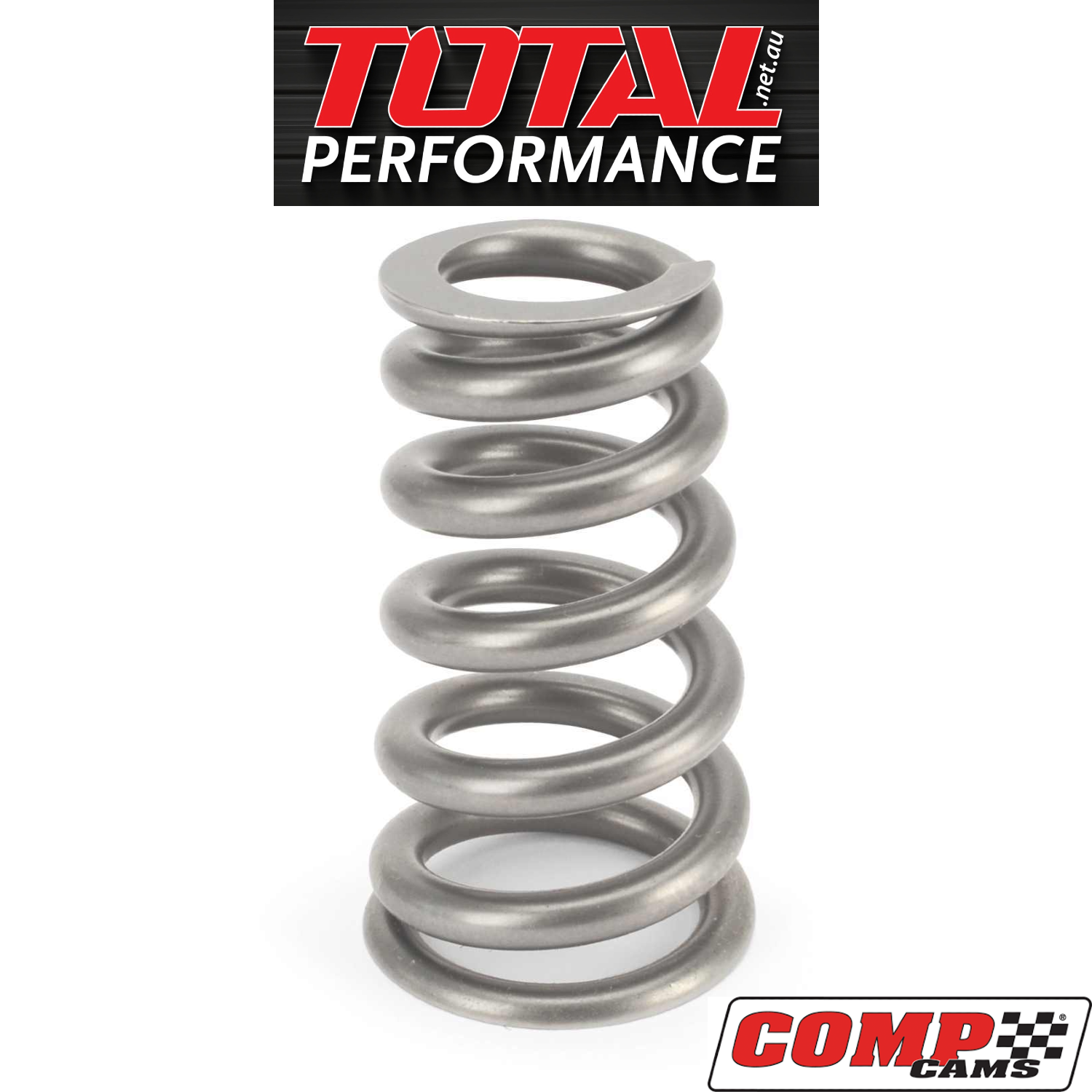

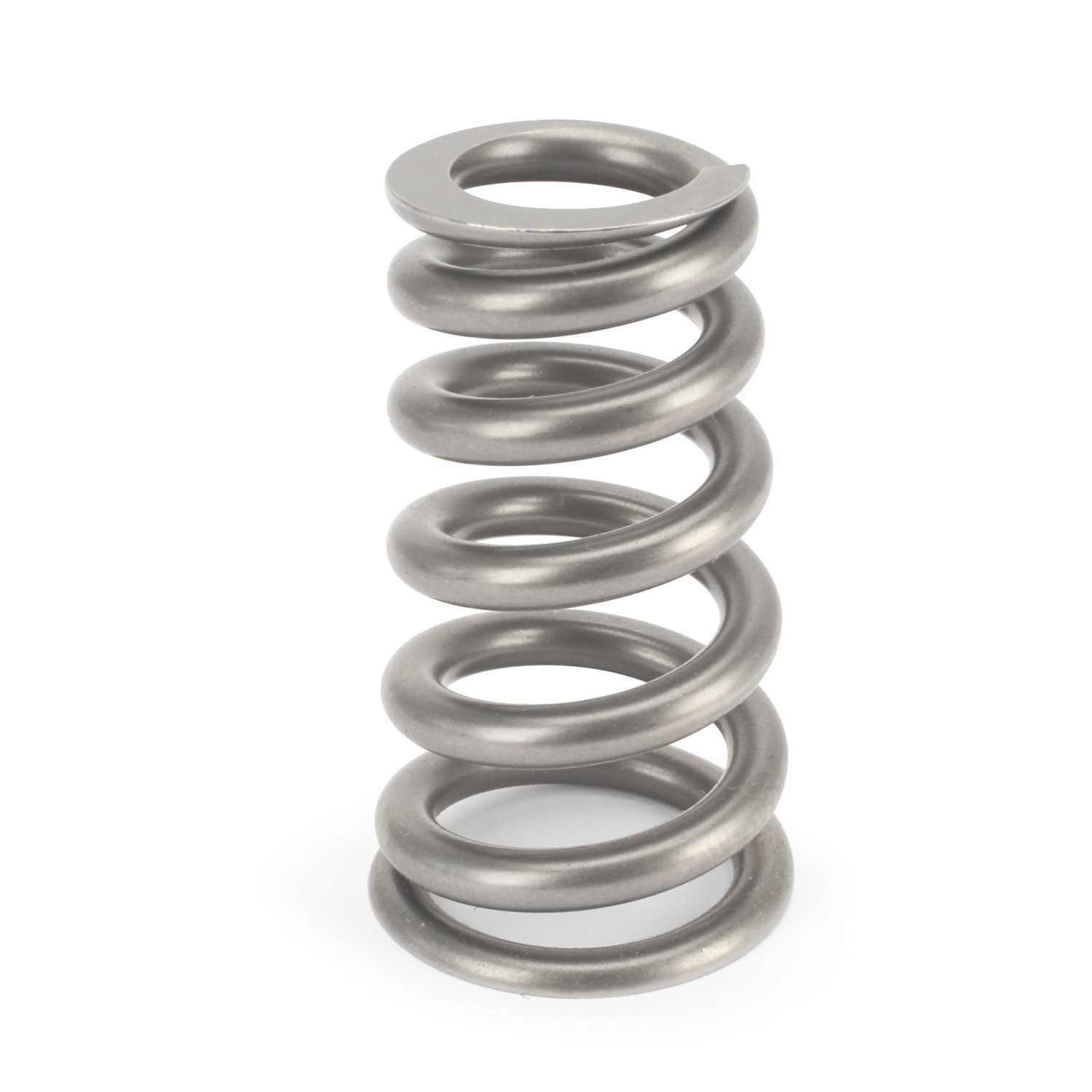

SKU: 7228-16

Conical Valve Springs, Dodge GEN 3 Hemi 5.7L, 6.4L 1.290" OD 136lbs@1.800" Installed, 438 lbs/inch rate,

.630" Lift Race Street Conical

$644.46

or 4 payments of $161.12 with Info

IN STOCK  FREE SHIPPING

Description

Revolutionary Advancement In High Performance Valve Springs Technology

Comp Cams Conical Valve Springs:

  • Reduced mass improves RPM stability

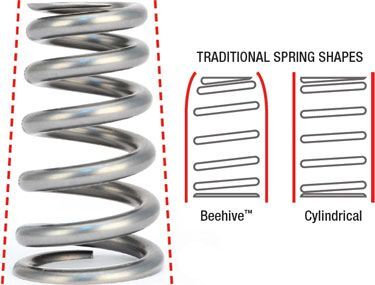

  • Conical design offers the best natural frequency damping

  • Dampens w/o wear, heat/friction or risk from interference contact

  • Progressive frequency increases RPM limit & allows for more aggressive cams

  • Superfinish surface processing increases both max lift capability & valve spring longevity

  • Constantly decreasing diameter from bottom to top reduces active mass & decreases applied forces; Result is longer valve train component life & less parasitic horsepower loss

 7228-16   Outer Dia.    Inner Dia.   Seat Load Open Load  Coil Bind    Rate
Top  1.020" .650"  136 @1.800"  412 @1.170" 1.125" 438
Bottom  1.290" .920"



Spring Style:    Conical

Max Lift:      0.615

Installed Height:    1.8

O.D. of Outer:     1.030/1.286

I.D. of Outer:   .622/.918

Spring Rate:    440

Seat Pressure:     136

Coil Bind Height:     1.125

Damper:     No

Chromemoly Steel Retainers:    761-16  /   774-16  /   783-16

Spring Seat (.570" Guide Dia.):   4677-16

Steel Retainers:    1787-16  /   787-16

Titanium Retainers:   762-16  /   772-16  /   788-16

Tool Steel Retainers:    1772-16

Specifications

SKU 7228-16
Barcode # 036584283157
Brand COMP CAMS
Seat Height 1.8
Damper No
Seat Pressure 136
Number Of Springs 1
Valve Spring Series Race/Street
Coil Bind Height 1.125
Spring Rate 440
Outer Top Spring Outside Diameter 1.03
Outer Top Spring Inside Diameter 0.662
Outer Bottom Spring Outside Diameter 1.286
outer bottom spring inside diameter 0.918
