Description

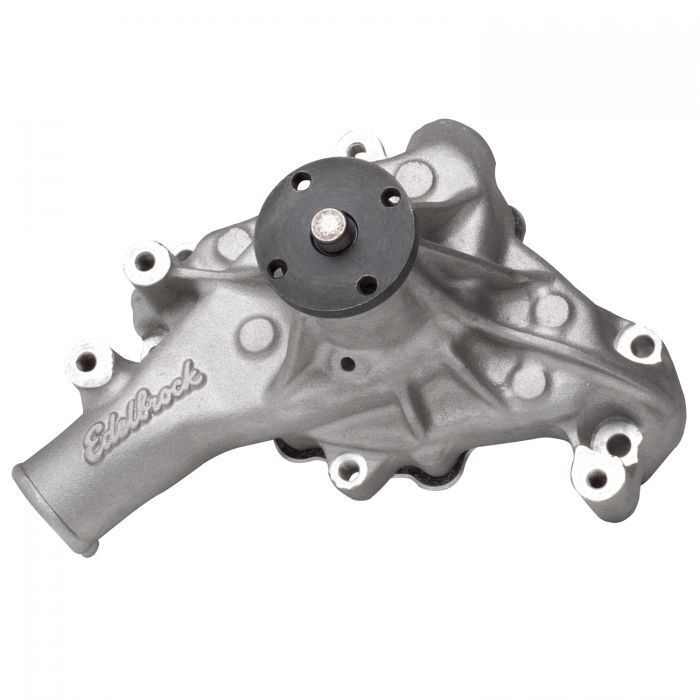

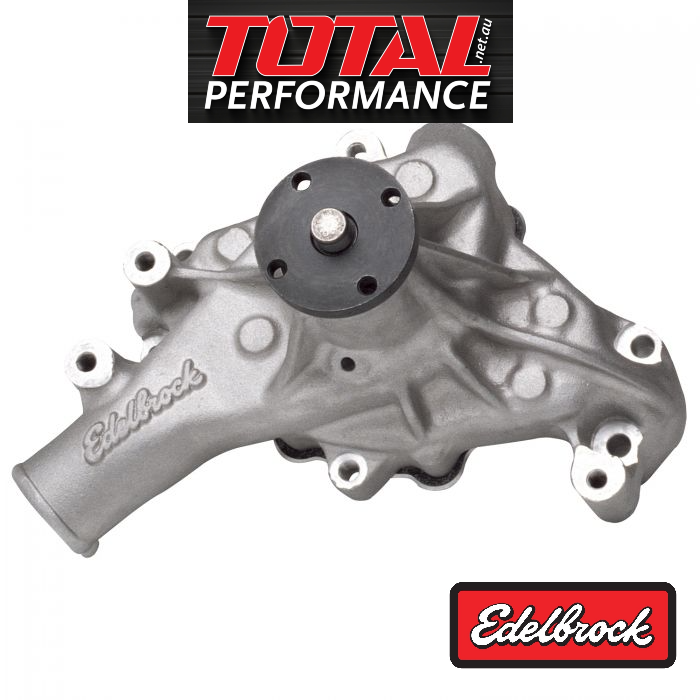

Edelbrock #8811 fits all 1955-65 SBC or 90 Deg V6 passenger cars and 1973-86 light duty trucks.
NOTE: Does not fit Corvettes or vehicles with serpentine accessory drive belts.
Edelbrock #8811 fits all 1955-65 SBC or 90 Deg V6 passenger cars and 1973-86 light duty trucks. Does not fit Corvettes or vehicles with serpentine accessory drive belts water pump for provides maximum cooling form the street and the race track. Water pump provide maximum flow, maximum pressure and equal distribution to both sides of the block with 1%.
Mounting Hole Quantity 4
Housing Material Aluminum
Impeller Material Powdered Metal
Installation Warnings Yes
Hub Hole Quantity 6
Fan Clutch Included No
Impeller Vane Quantity 6
Includes Back Housing Yes
Related Cooling Fan Components No
Hub Height 6.938 in
Impeller Rotation Standard
Outlet Quantity 1
Pulley Included No
Water Pump Drive Type V-Belt
1969-'76 vehicles (original pump casting #3853692) require the included spacer to be placed between the pump and the alternator bracket; Some applications (original pump casting #364790) require power steering bracket spacer (included); Some vehicles (original pump casting #6263701) require a through hole instead of the threaded hole for the power steering. If this is the case, drill out the threads with a 3/8" drill bit; Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications; Installation is the same as for original equipment water pumps. Consult service manual for specific procedures, if necessary; CAUTION: Be sure that fan bolts don't protrude through the hub so far that they hit the water pump housing; NOTE: Removal of backing plate is not recommended, as there are no user serviceable parts in the water pump. If backing plate is removed, use no sealer on O-ring equipped models, and use conventional gasket sealer (not RTV silicone) on gasketed models.
Specifications
Chevrolet:90 Deg V6:232 (3.8L)-262 (4.3L);Chevrolet:Small-Block:262 (4.3L)-400 (6.6L);Chevrolet:Small-Block Light Duty Trucks:262 (4.3L)-400 (6.6L)
SKU | ED88110 |
Barcode # | 00085347088119 |
Brand | Edelbrock |
