SKU: SCAT-2-ICR5700P

5.700" Chevy 350 Connecting Rods Press Fit, I Beam, 2.100" LJ Forged Conrod SBC Small Block Chevy 25700P

Press Fit Pin - 3/8 ARP rod bolts

$592.90

or 4 payments of $148.22 with Info

SOLD OUT

Description

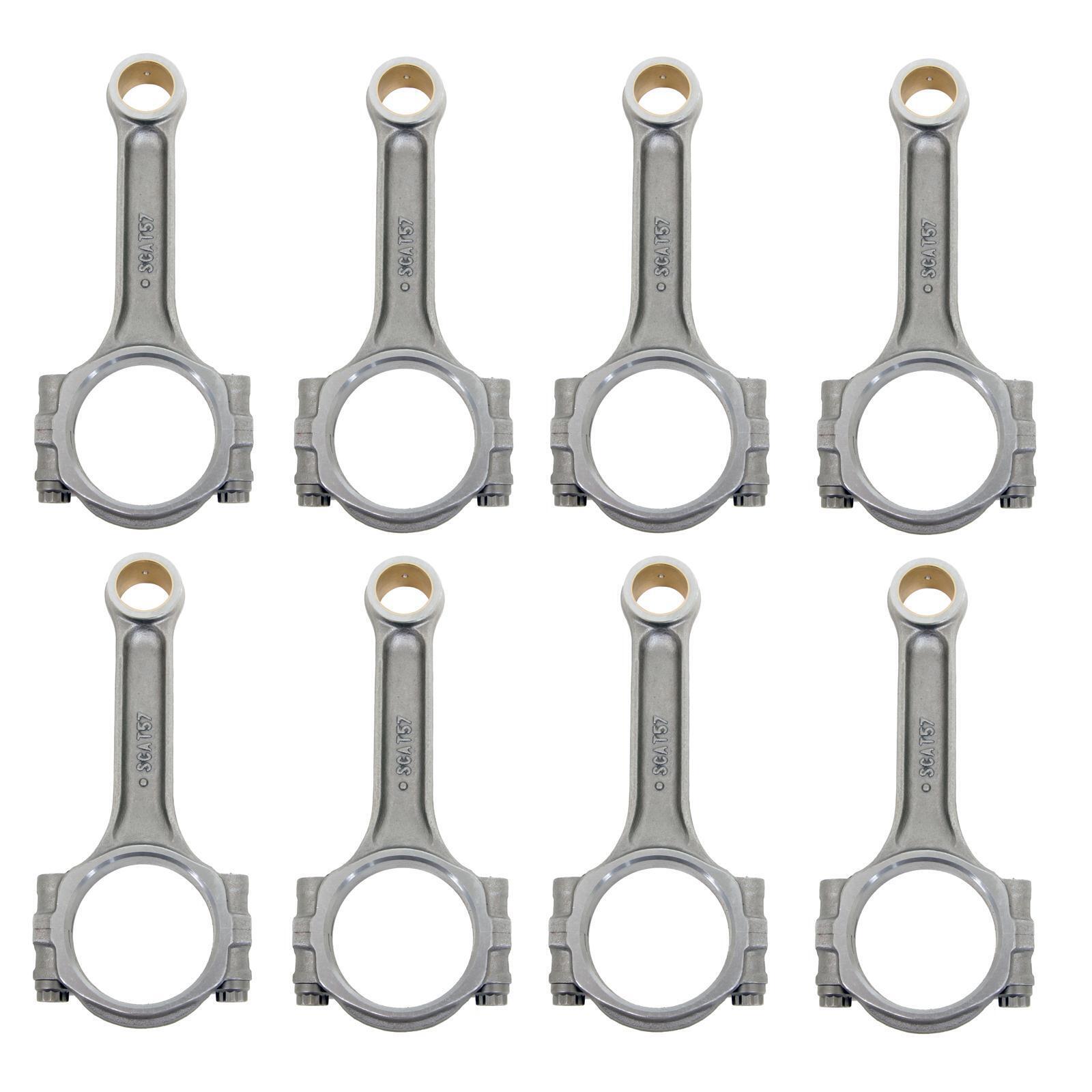

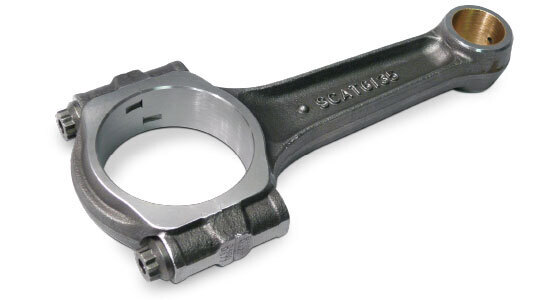

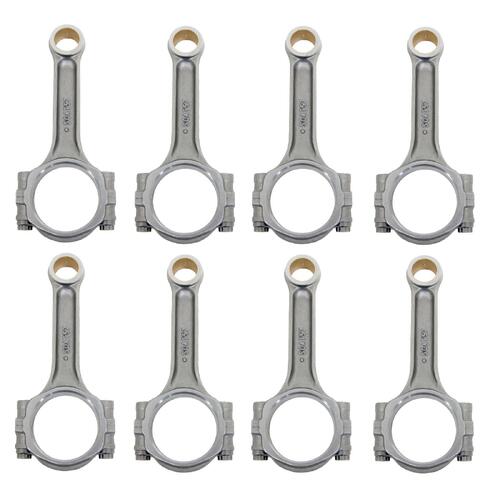

Scat 2-ICR5700 Pro Stock I-Beam Connecting Rods - Chevy 350

**Press Fit Gudgeon Pin**

These Scat 25700P Pro-Stock I-beam connecting rods suit Standard Chevy 350, Stroker 383 Chevy and the Holden 355 stroker kits. Scat Pro Stock rods incorporate all of the best features possible for an I-beam rod, including some strength-adders found in H-beam designs. They are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, and special hollow dowels with ARP cap screw bolts to greatly increase strength and horsepower capabilities.

Suits: Small Block Chevy 327 350

Connecting Rod Length Center to Center (in.):   5.700 in.

Connecting Rod Beam Style:       I-beam

Connecting Rod Material:             Forged 4340 steel

Connecting Rod Finish:  Natural

Wrist Pin Style:  Press fit

Rod Journal Diameter (in.):          2.100 in. Large Journal

Big End Bore Diameter (in.):        2.2250 in.

Big End Width (in.):         0.940 in.

Pin End Bore Diameter:  0.927 in.

Clearanced for Stroker: No

Cap Retention Style:       Cap screw

Connecting Rod Bolt Brand:         ARP

Connecting Rod Bolt Diameter:  3/8 in.

Connecting Rod Bolt Material:    8740 chromoly steel

Fastener Tensile Strength (psi): 180,000 psi

Connecting Rod Bolt Head Style:               12-point

Weight Matched Set:     Yes

Magnafluxed:    No

Quantity:             Sold as a set of 8.

Specifications

SKU SCAT-2-ICR5700P
Brand SCAT
