Description
Single Assembled Cylinder Head - Suits Small Block Chevy - Hydraulic Flat Tappet camshafts.

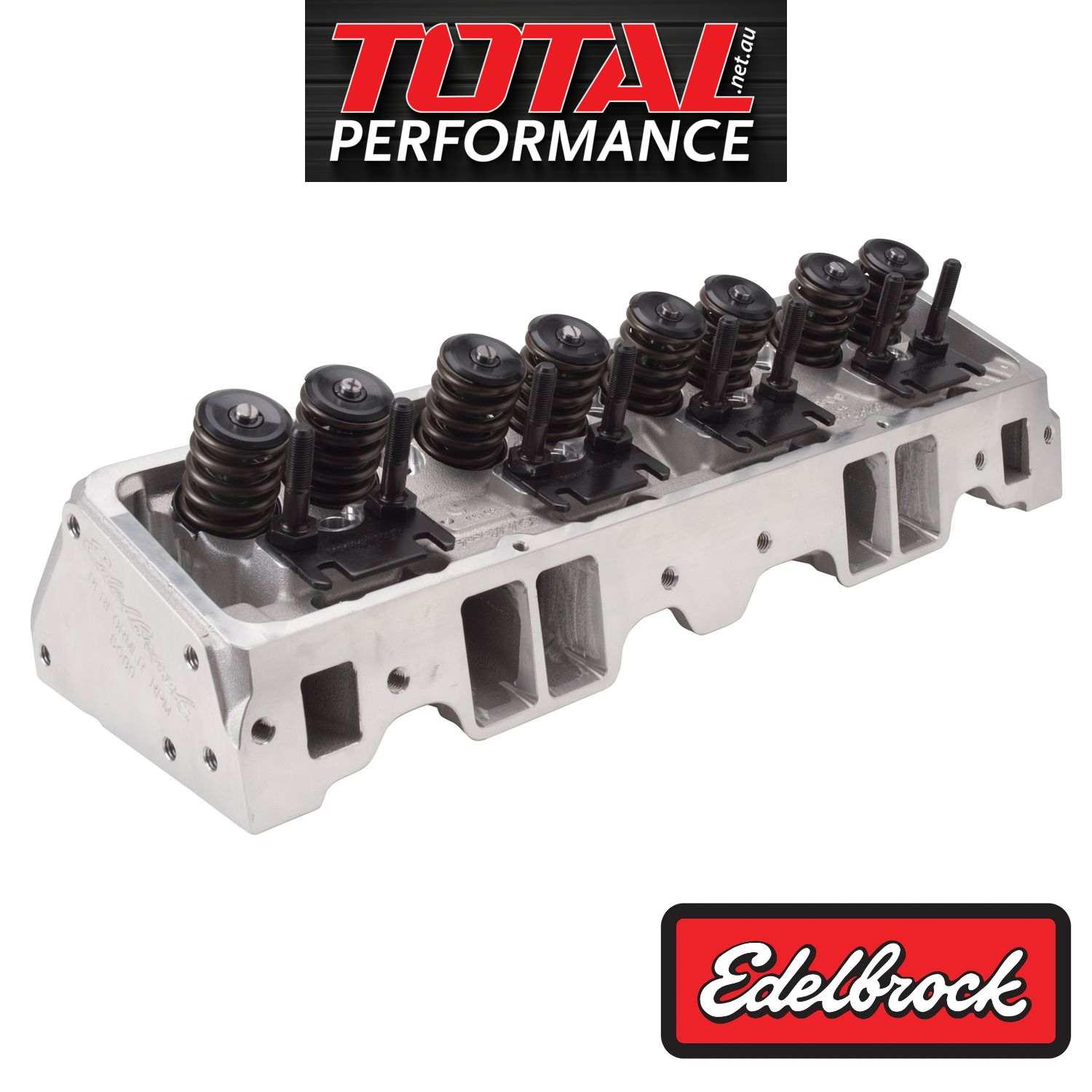

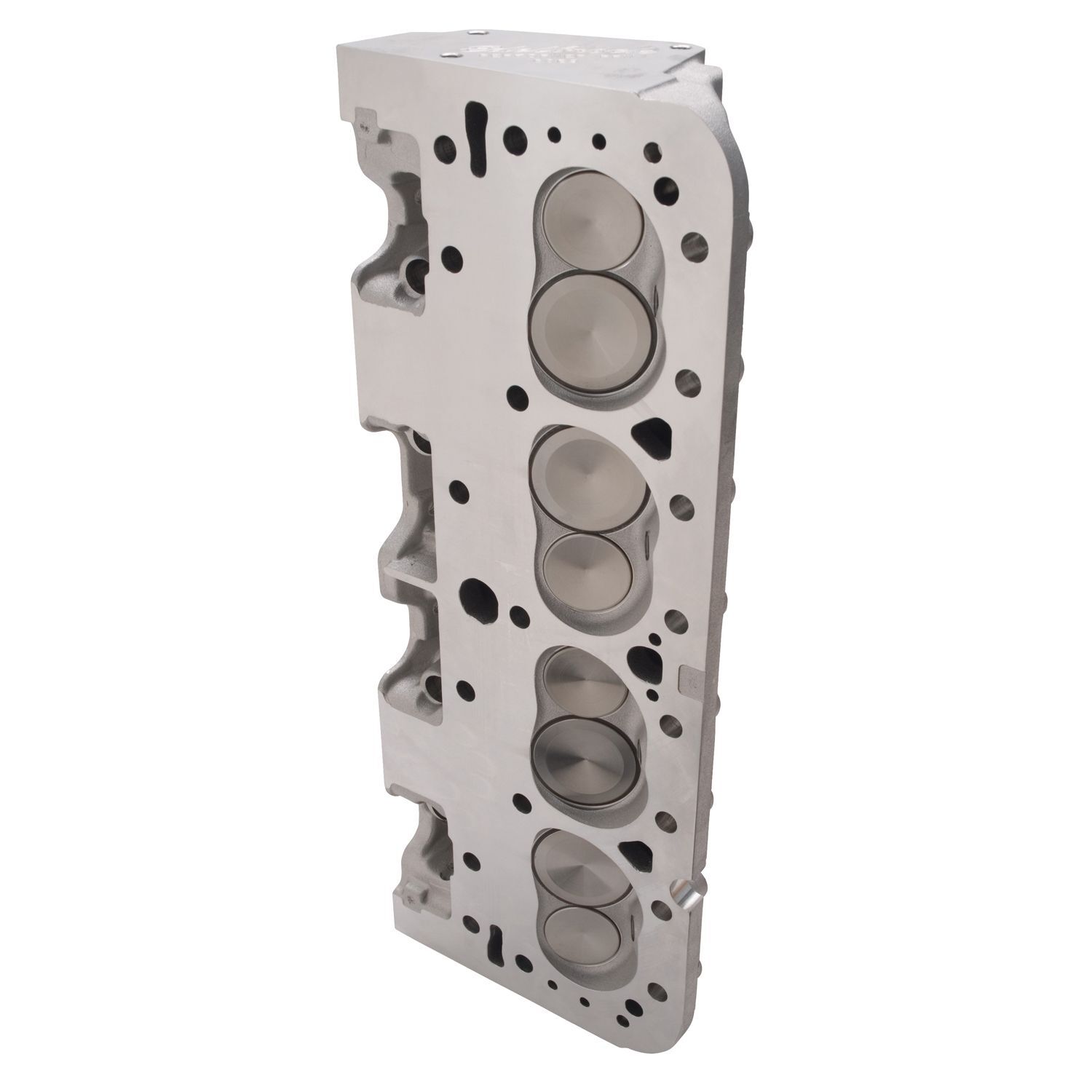

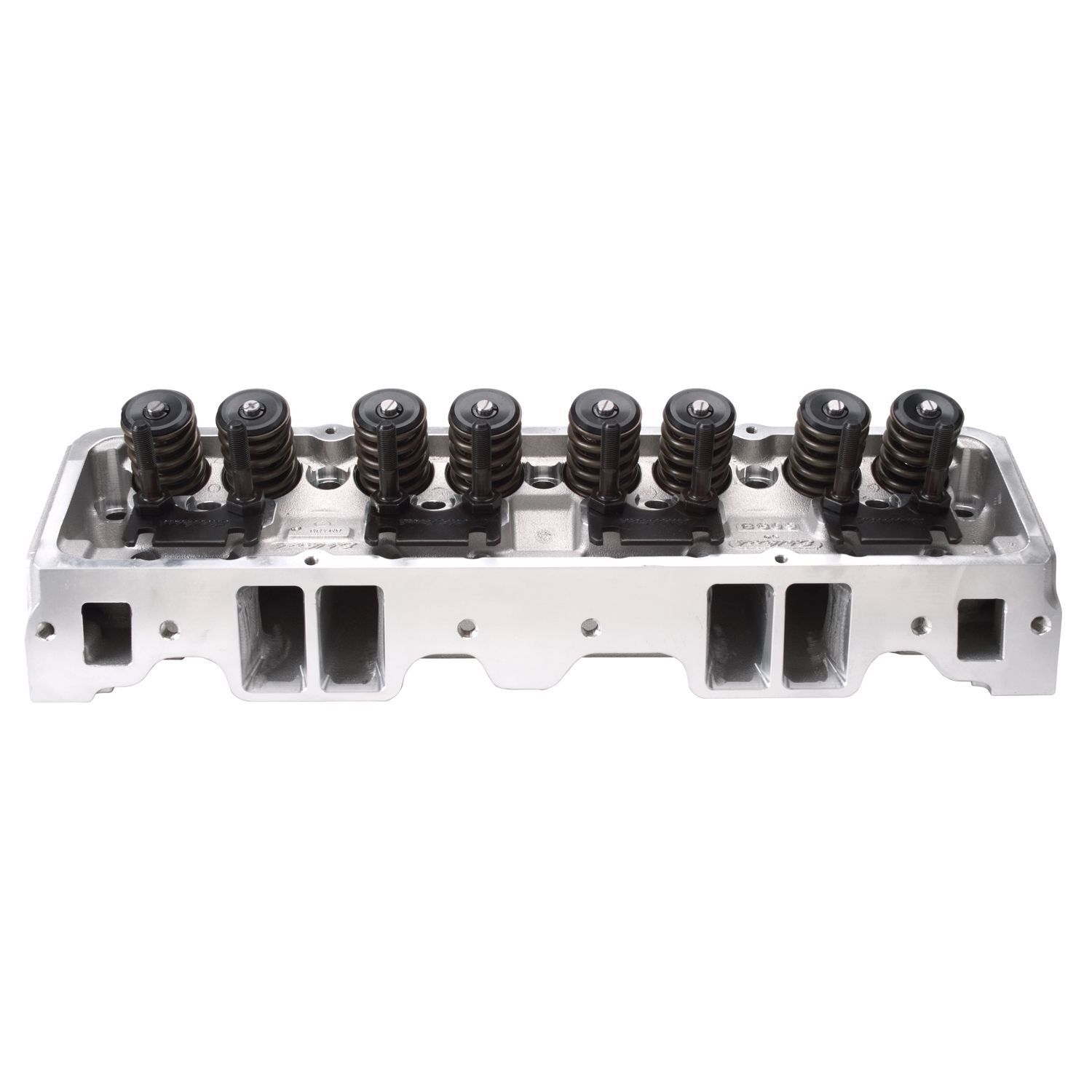

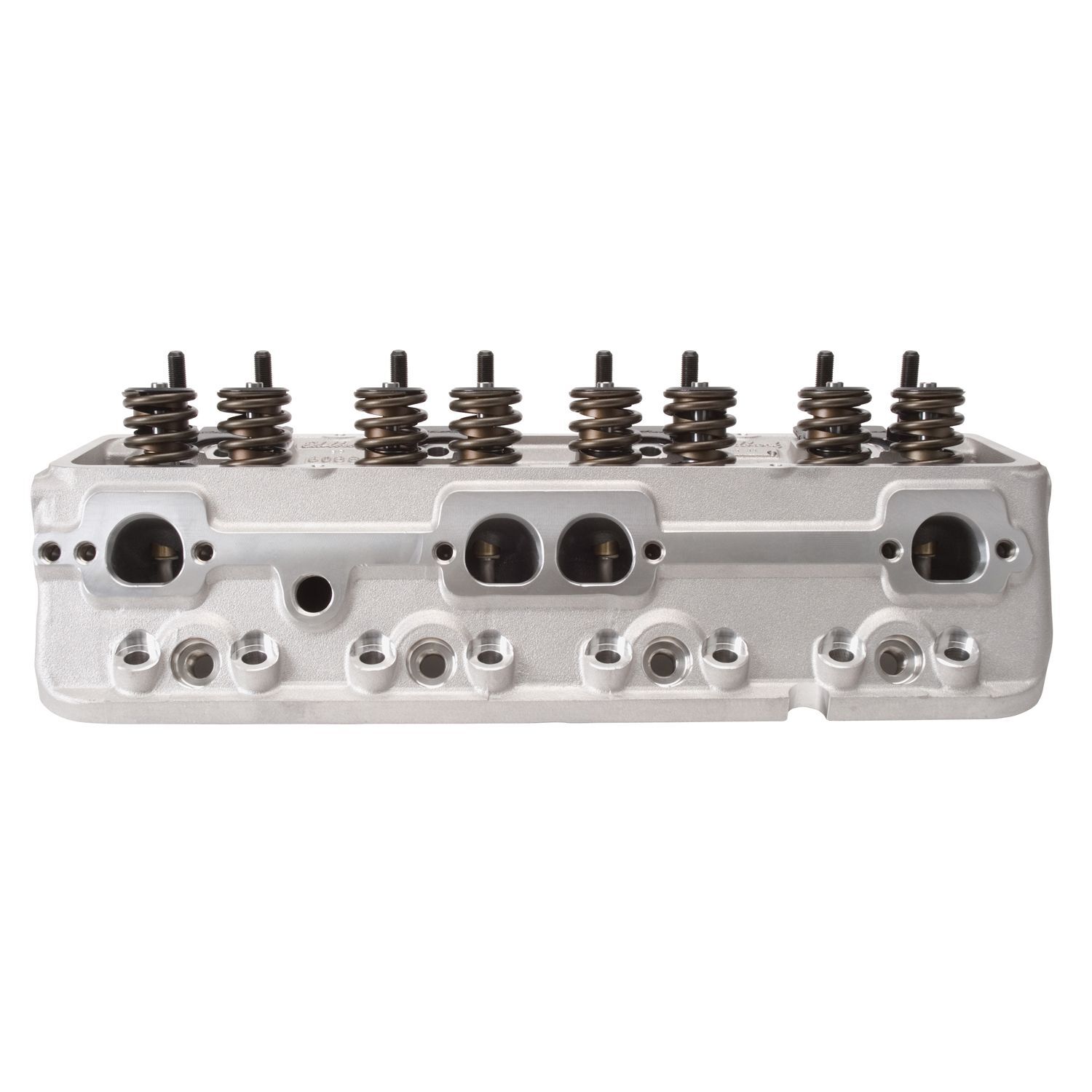

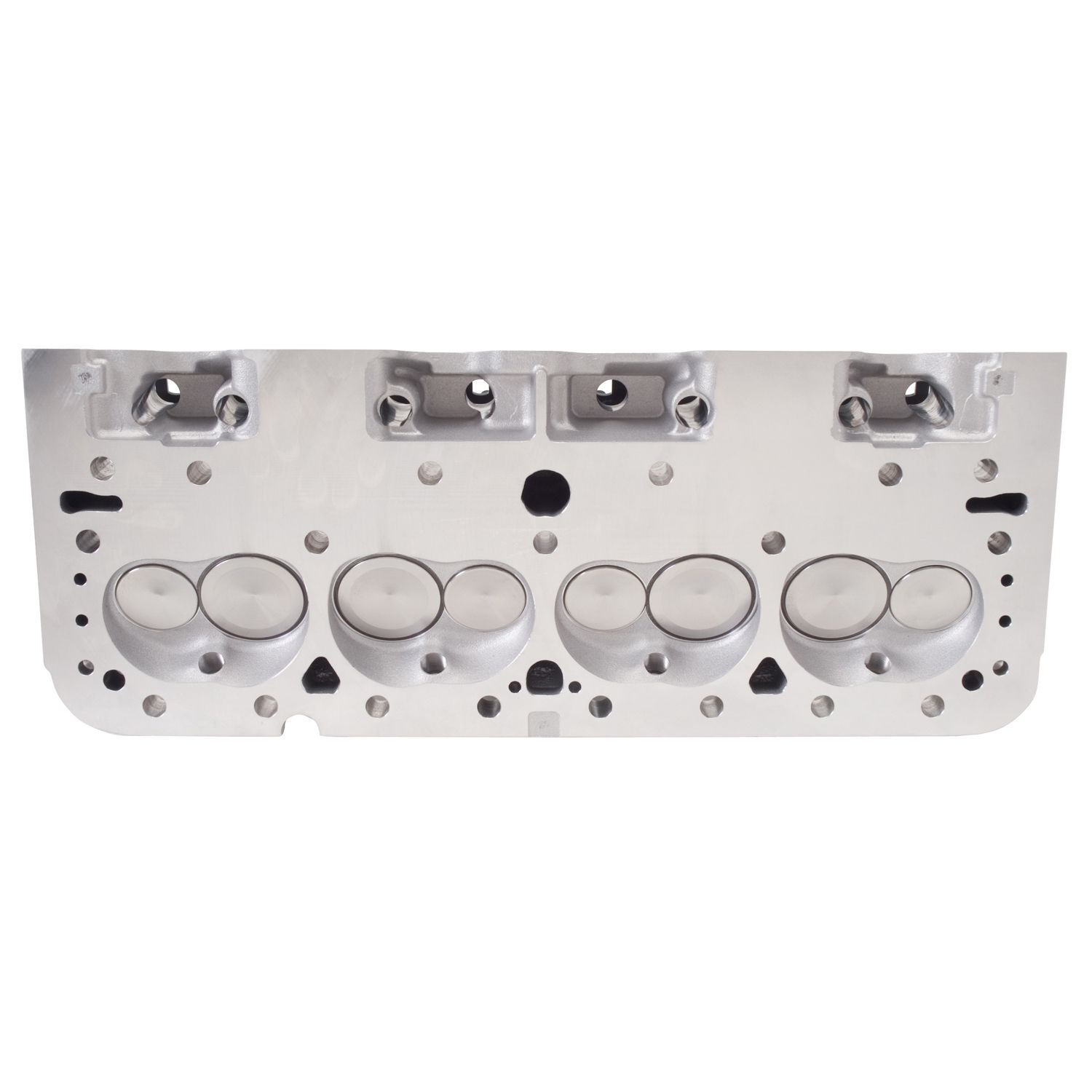

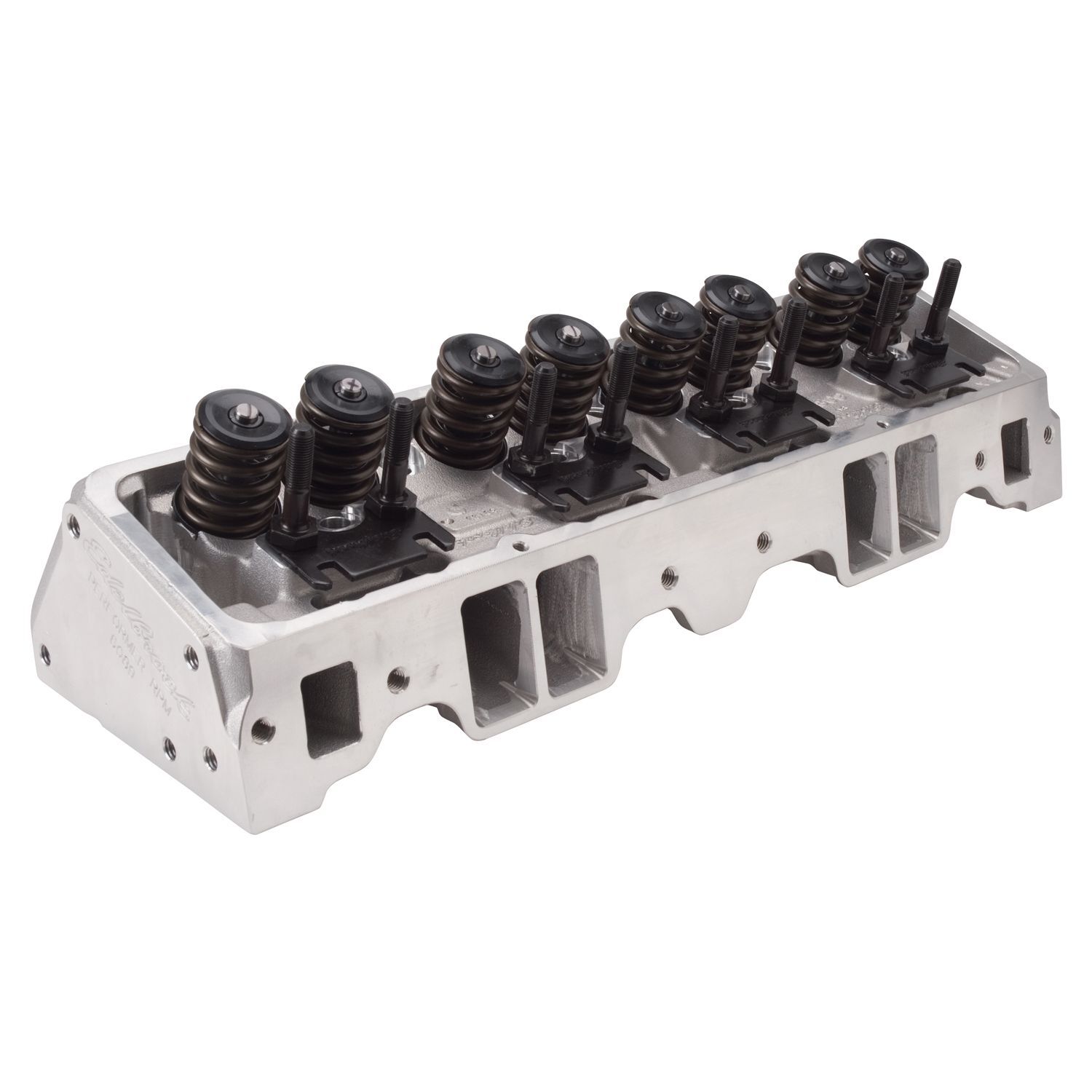

The Edelbrock #60899 Performer RPM cylinder head is designed for 1955-86 Small-Block Chevy applications. The Edelbrock #60899 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Series Performer RPM
Grade Type Performance
Quantity Sold Individually
Guide Plate Material Hardened Steel
Camshaft Type Flat Tappet
Horsepower 350-450 HP
Seat Angle Exhaust 45 deg/Intake 45 deg
CNC Ported No
Combustion Chamber Volume 64 cc
Deck Height 9.025 in
Deck Thickness 0.5625 in
Intake Valve Diameter 2.02 in
Exhaust Valve Diameter 1.60 in
Guide Plates Included Yes
Intake Runner Volume 195 cc
Material Aluminum
Push Rod Diameter (Suggested) 0.3125 in
Rocker Stud Diameter 0.375 in
Valve Angle 23 deg
Valve Spring Diameter 1.46 in
Valve Spring Maximum Lift 0.575 in
Valve Stem Diameter 0.3438 in
Installation Notes
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS; Match with Edelbrock head gasket sets.; To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended.; Use Head Bolt Kits for easy installation. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.; S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift.
Specifications
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
SKU | ED60899 |
Barcode # | 00085347608997 |
Brand | Edelbrock |
