Stainless Intake Inlet Valves +100" 2.020" Head, 5.011" Small Block Chevy Ford SBF Windsor
suits majority of aftermarket cylinder heads for SBC/SBF
Description
Suits: Chevrolet Small Block + Ford Small Block (Windsor with aftermarket heads)
2.02 Head 11/32 Stem and +0.100" longer for High Performance springs and larger lift camshafts.

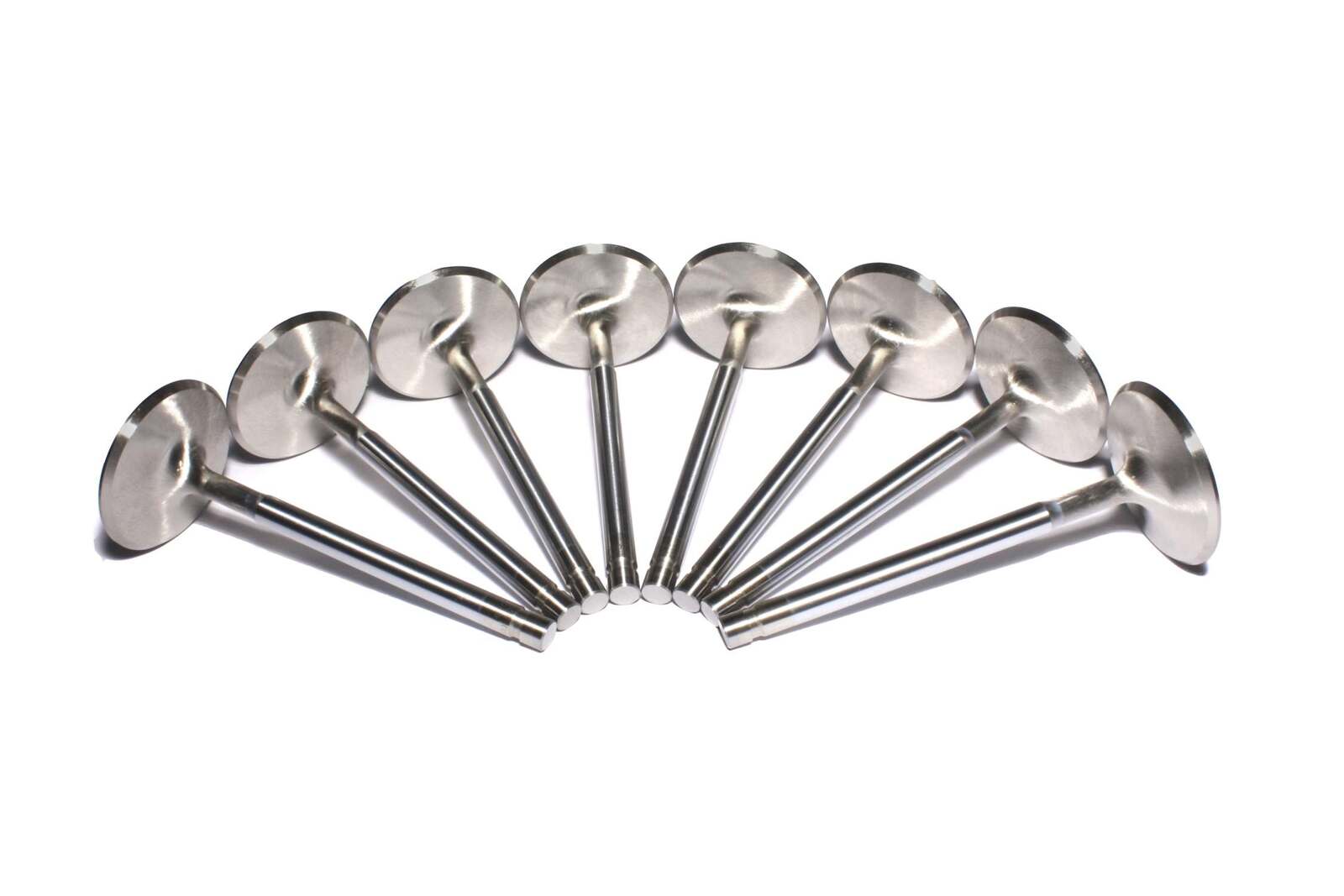

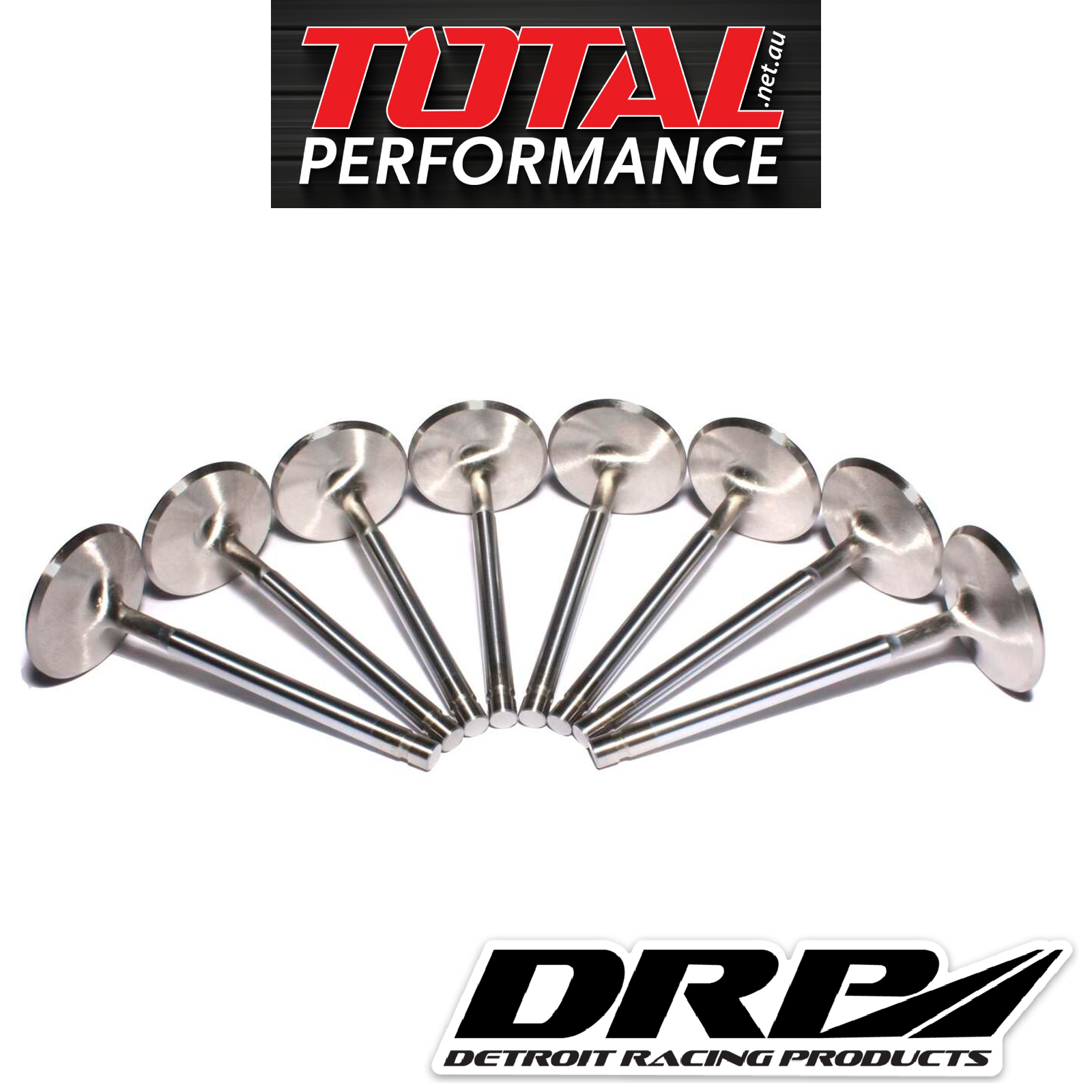

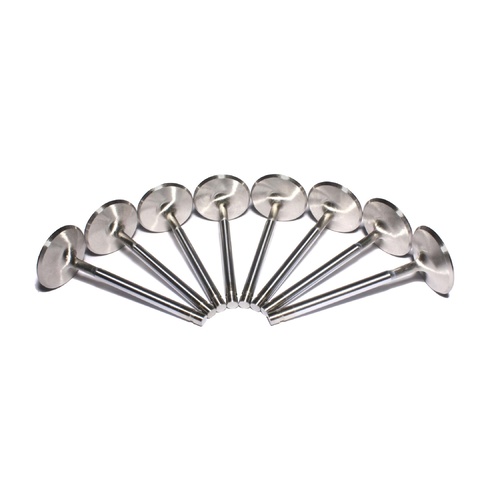

Performance Stainless Steel Intake Valves, sold as a set of 8
45° cut face with a 30° back cut for increased flow and performance oriented builds.
Intake, 2.020 Diameter, 11/32 Stem Diameter, 5.010 Overall Length, .256 Tip Length, 10 Degree Under Cut- Dish Head. +.100" over standard length*
*Gives an installation height of 1.800" on majority of aftermarket cylinder heads.
Hi quality Stainless Steel (214-N) with a hardened tip.
Note: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
Specifications
| SKU | DRP-5027-8 |
| Barcode # | 036584125402 |
| Brand | DRP |
| Material | Stainless Steel |
| Valve Stem Outer Diameter | 11/32 |
| Head Diameter | 2.02 |
| Number Of Grooves | Single |
| Overall Length | 5.011 |
| Valve Position | Intake |
| valve series | Sportsman |
