302 347 Harmonic Balancer, Ford 289 302 Windsor, 28oz External Balance 4 Bolt - Raised Face

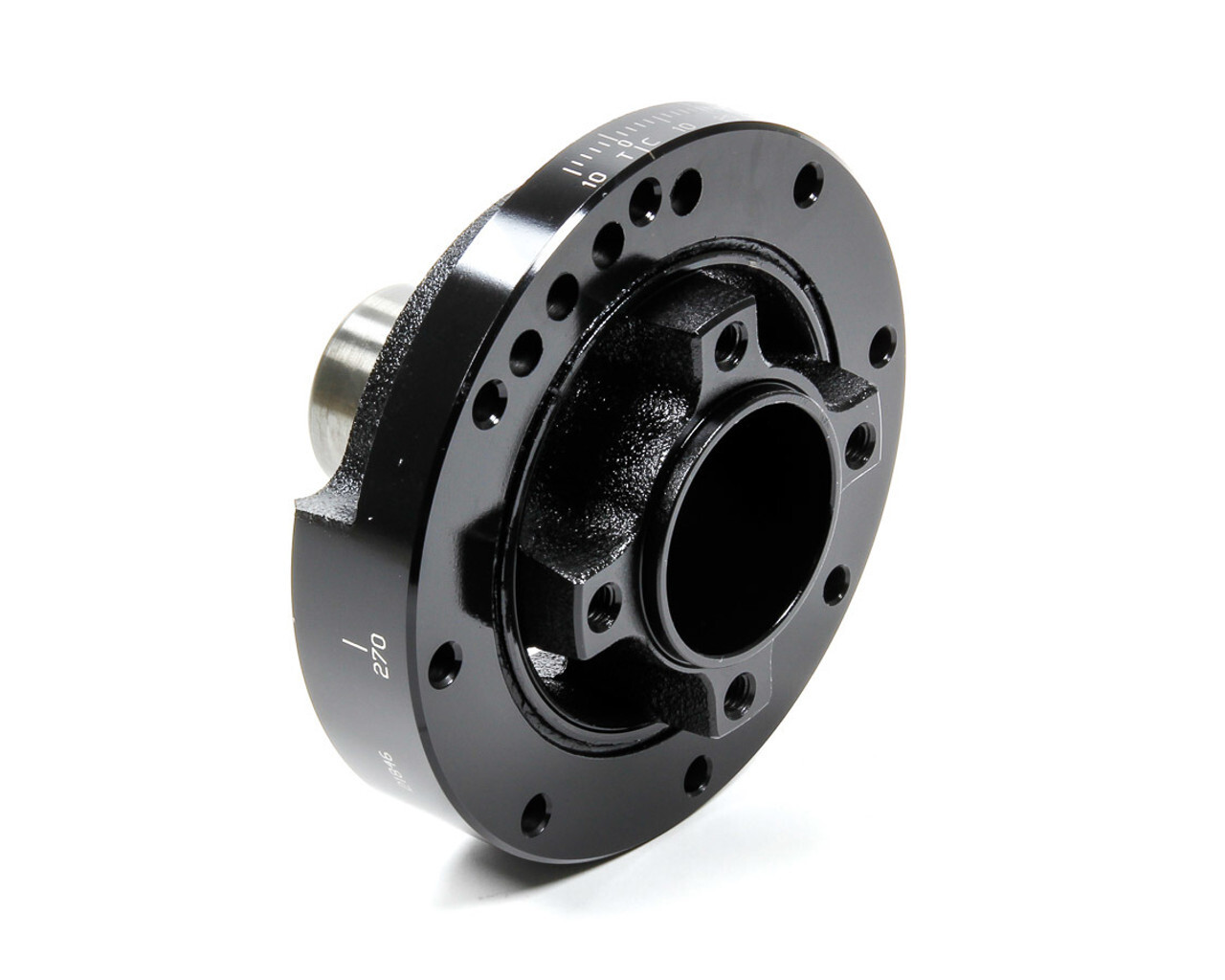

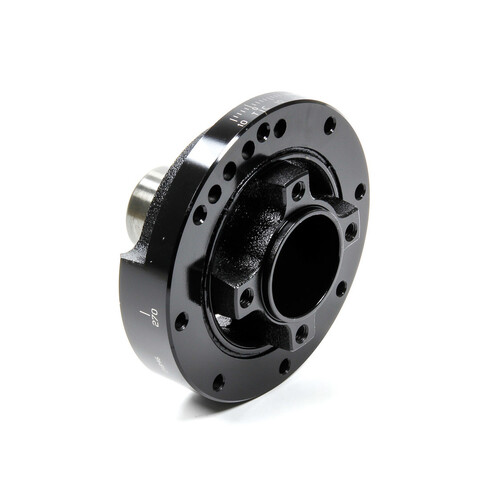

Powerbond PB1060ST Street Performance harmonic balancer, 4bolt c/sunk Ford 289-302w V8
PowerBond Street Performance harmonic balancers bring bonded balancer technology within the budget of every performance street engine builder. They are also perfect for limited spec race classes, such as late model stock that require an OEM-style balancer. The bonded dampening rubber in every balancer eliminates spinning and component separation giving reliable performance in engines used up to 6,500 rpm. PowerBond Street Series balancers use high-strength SG (Spheroidal Graphite) iron rings and hubs that are pressure-bonded, and high-pressure, low-cure that features a natural rubber developed in our laboratory. All PowerBond Street Series balancers feature an etched black primer with a 2-coat clearcoat and fully etched laser timing marks.

Counterweight hub - 4 bolt with counter sunk pulley locator
Crank bore 34.89mm nose diameter 47.65mm
Outside diameter 161.5mm overall width 36.14mm
Falcon XT/XW models 3/68-11/70

Compatible
289 302 347 5.0 Litre (EFI) Small Block Ford Windsor Performance 0L V8
289 Windsor 4.7L V8
302 Windsor 4.9L V8

Specifications
Brand: PowerBond
Product Line: PowerBond Street Performance Harmonic Balancers
Engine Balance: External, 28 oz. imbalance
Degree Markings: Yes
Outside Diameter (in.): 6.500 in.
Crankshaft Pulley Bolt Hole Quantity: Four
Keyway Quantity: None
Harmonic Balancer Material: Nodular iron
Harmonic Balancer Construction: Elastomer
Harmonic Balancer Color: Black painted
Mounting Hardware Included: No
Quantity: Sold individually.
