Description

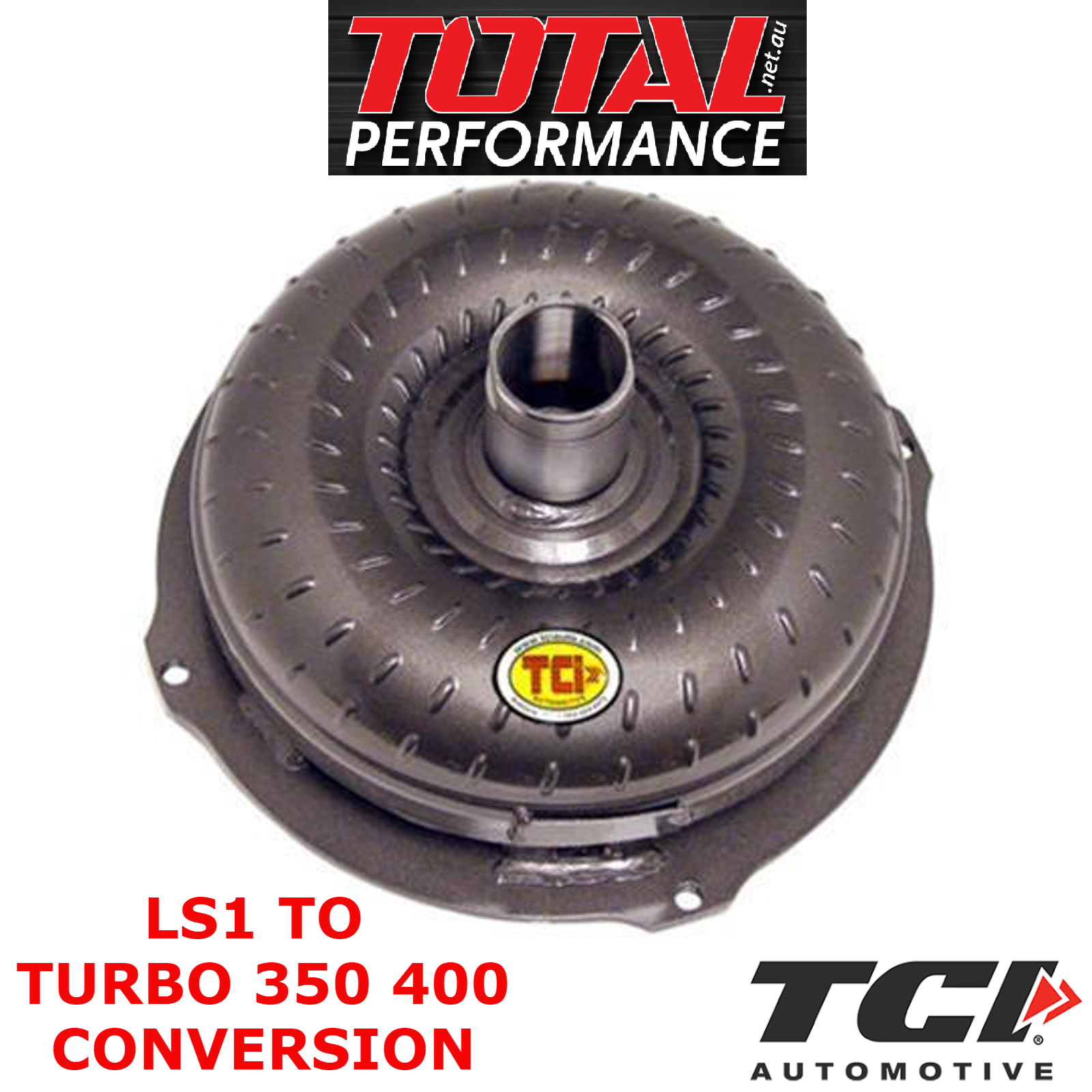

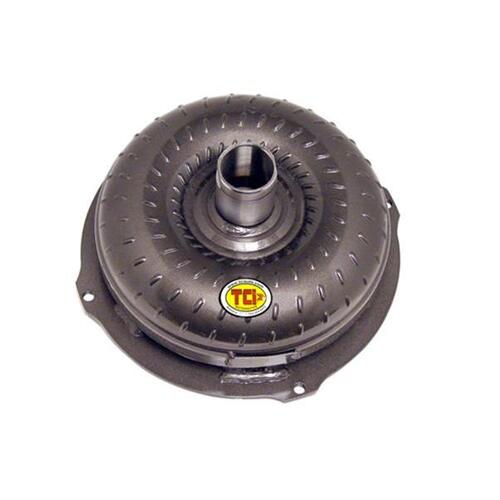

This 241005 TCI StreetFighter Torque Converter for LS1 to Turbo 350 & Turbo 400 Transmission conversions.
Built with Anti-Balooning plate
TCI Torque Converter is designed to provide
- 3000 to 3400 Stall for LS1 Motors
This TCI 241005 torque converter features the LS1 crankshaft pilot size/depth and allows the use/conversion of TH350 & TH400 non lock-up transmissions to bolt up to the LS1 Engines.
Perfect torque converters for the street & strip. These TH400 converters are "tight" which allows the best street manners and allows the engine to flare when standing on the accelerator peddle. Best of both worlds.
Notes: Designed to fit LS1 engines only DUE TO CRANK SPIGOT DEPTH. You will need a LS to TH400 conversion flexplate for the correct offset. You do not need the machined neck spacer as the neck extension has already been fitted to this converter.
Flexplate required: TCI 399853 or a DRP-LS-TH400
Pilot Size: 43.3mm or 1.705"
Anti-Ballooning Plate: Yes
Lockup Compatible: No
Diameter (in.): 10”
Furnace-Brazed: Yes
Balanced: Yes
Mounting Bolts Included: Yes
Torque Converter Stall Note: Actual stall speed may differ due to engine combination, gear selection, and vehicle weight.
Warranty
12
Specifications
SKU | 241005 |
Barcode # | 788120036962 |
Brand | TCI |
Torque Converter Series | StreetFighter |
Advertised Cam Duration | 280 to 300 Degrees |
Rear Gear Ratio | 3.55 to 4.56 |
Expected Stall Speed With Small Block | 3000 to 3400 RPM |
Expected Stall Speed With Big Block | 3400 to 3600 RPM |
