Ford C4 C10 PAN FILL 10" Torque Converter 2200-2500 RPM Breakaway 26 Spline, Cleveland Large Bellhousing.
Stall RPM: Small Block 2200-2400 / Strokers 2400 to 2600
Description

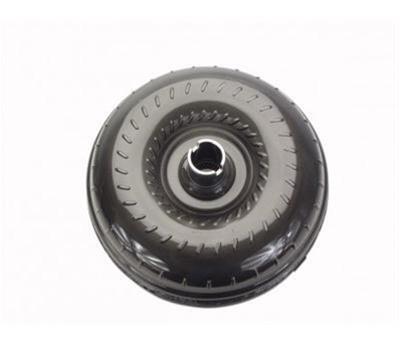

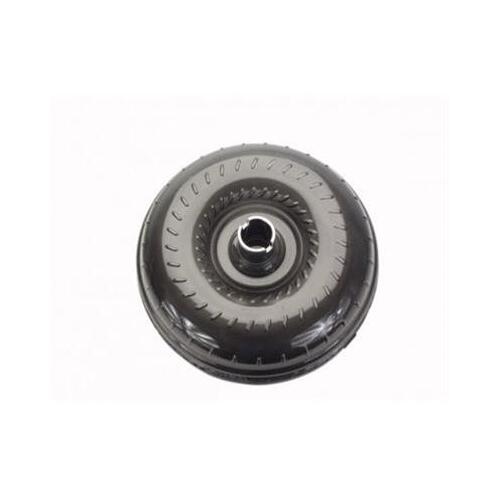

TCI Torque Converter, Ford C4, C10, Cleveland
SUITS THE 351C TYPE TRANSMISSIONS WITH THE LARGER BELLHOUSING AND LARGER FLEX PLATE.
This Breakway Converter is designed specifically for C4/C10 Transmissions from 70-79 with in-pan dipstick. Provides 2200 to 2400 Stall behind Small Blocks and 2400-2600 Stall behind Big Blocks. For 11.4" Bolt Circle.
Input Spline Quantity: 26
Anti-Ballooning Plate: No
Lockup Compatible: No
Diameter (in): 10” inch
Crank Pilot Diameter: 1.375 inch
Furnace-Brazed: Yes
Balanced: Yes
Mounting Hardware Included: Yes
Mounting Hardware Type: 7/16-20 studs and nuts
Mounting Hardware Quantity: 4
Torque Converter Stall Note:
Actual stall speed may differ due to engine combination, gear selection, and vehicle weight.
Notes:
Fits applications with dipstick mounted into the transmission pan.
Warranty
12
Specifications
| SKU | 451300 |
| Barcode # | 788120010092 |
| Brand | TCI |
| Torque Converter Series | Breakaway |
| Advertised Cam Duration | 265 to 280 Degrees |
| Rear Gear Ratio | 3.00 to 3.73 |
| Expected Stall Speed With Small Block | 2200 to 2400 RPM |
| Expected Stall Speed With Big Block | 2400 to 2600 RPM |
