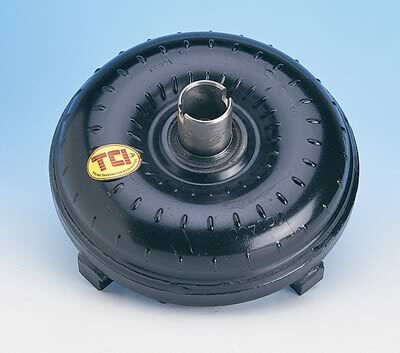

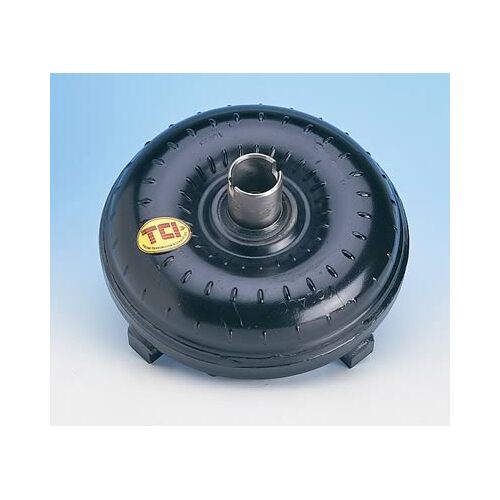

FORD C4 C10 Super StreetFighter 10" Torque Converter & Anti-Balloon Plate Pan Fill, Cleveland
Stall RPM: 3500-3800 / Strokers 3800-4000
Description
SUITS THE 351C TYPE TRANSMISSIONS WITH THE LARGER BELLHOUSING AND LARGER FLEX PLATE.
This Super StreetFighter Converter is designed specifically for C4 Transmissions w/ 11.4" Bolt Circles. Provides 3500 to 3800 Stall behind Small Blocks and 3800 to 4000 Stall behind Big Blocks.
Input Spline Quantity: 26
Anti-Ballooning Plate: Yes
Lockup Compatible: No
Diameter (in): 10” inch
Crank Pilot Diameter: 1.375 inch
Furnace-Brazed: Yes
Balanced: Yes
Mounting Hardware Included: Yes
Mounting Hardware Type: 7/16-20 studs and nuts
Mounting Hardware Quantity: 4
Torque Converter Stall Note:
Actual stall speed may differ due to engine combination, gear selection, and vehicle weight.
Notes:
Fits applications with dipstick mounted into the transmission pan.
NOTE: Image is a representation of this item.
Actual item may vary.
Warranty
12
Specifications
| SKU | 451902 |
| Barcode # | 788120010252 |
| Brand | TCI |
| Torque Converter Series | Super StreetFighter |
| Advertised Cam Duration | 280 to 310 Degrees |
| Rear Gear Ratio | 3.73 to 4.88 |
| Expected Stall Speed With Small Block | 3500 to 3800 RPM |
| Expected Stall Speed With Big Block | 3500 to 3800 RPM |
