Description

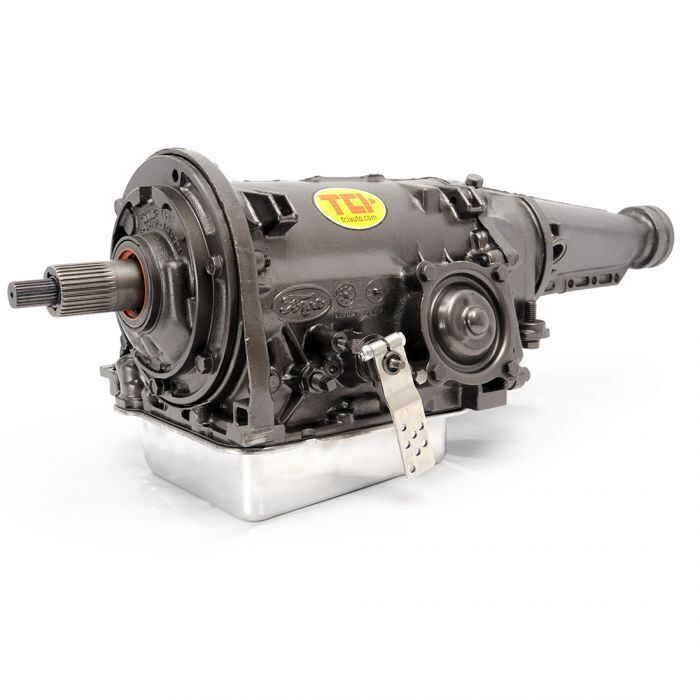

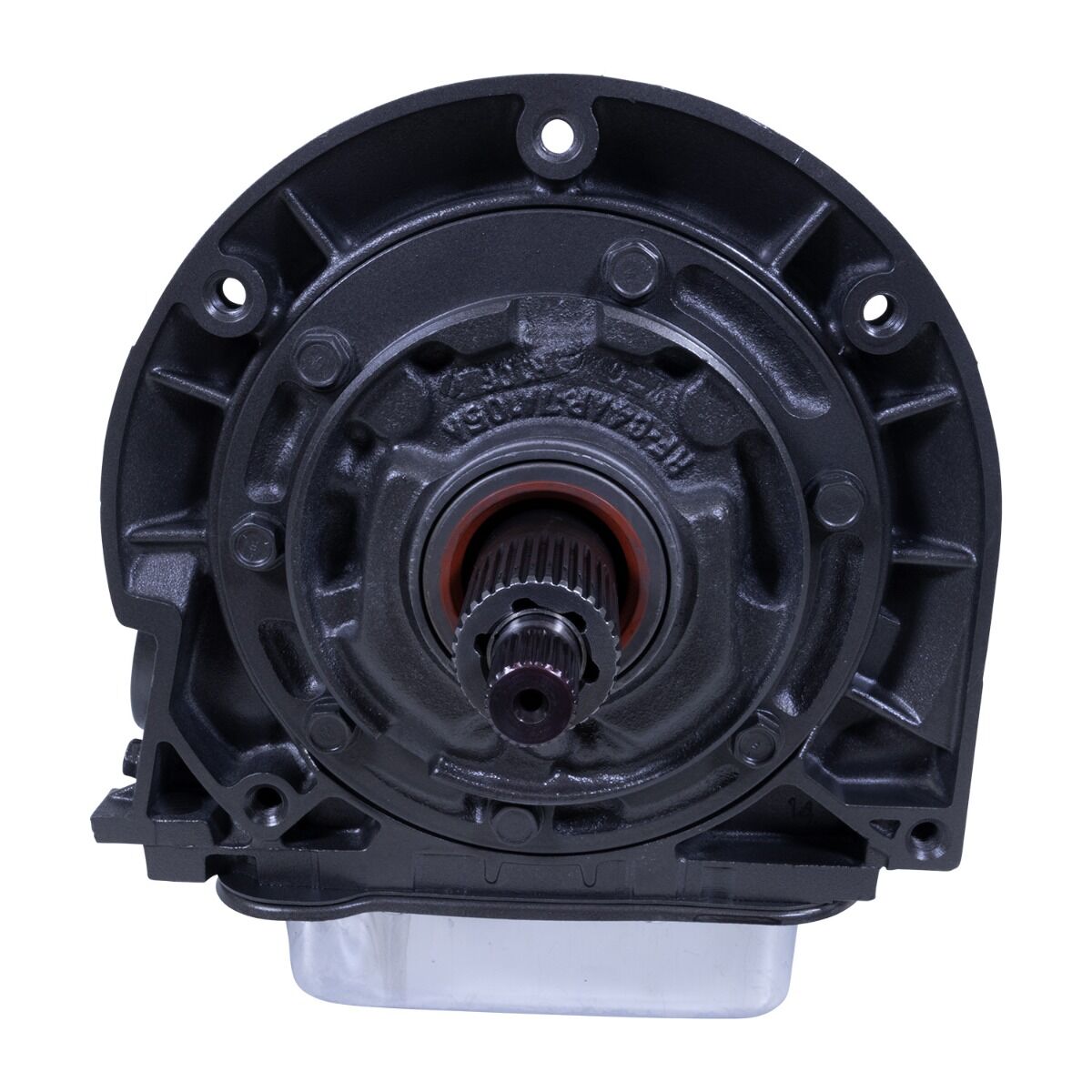

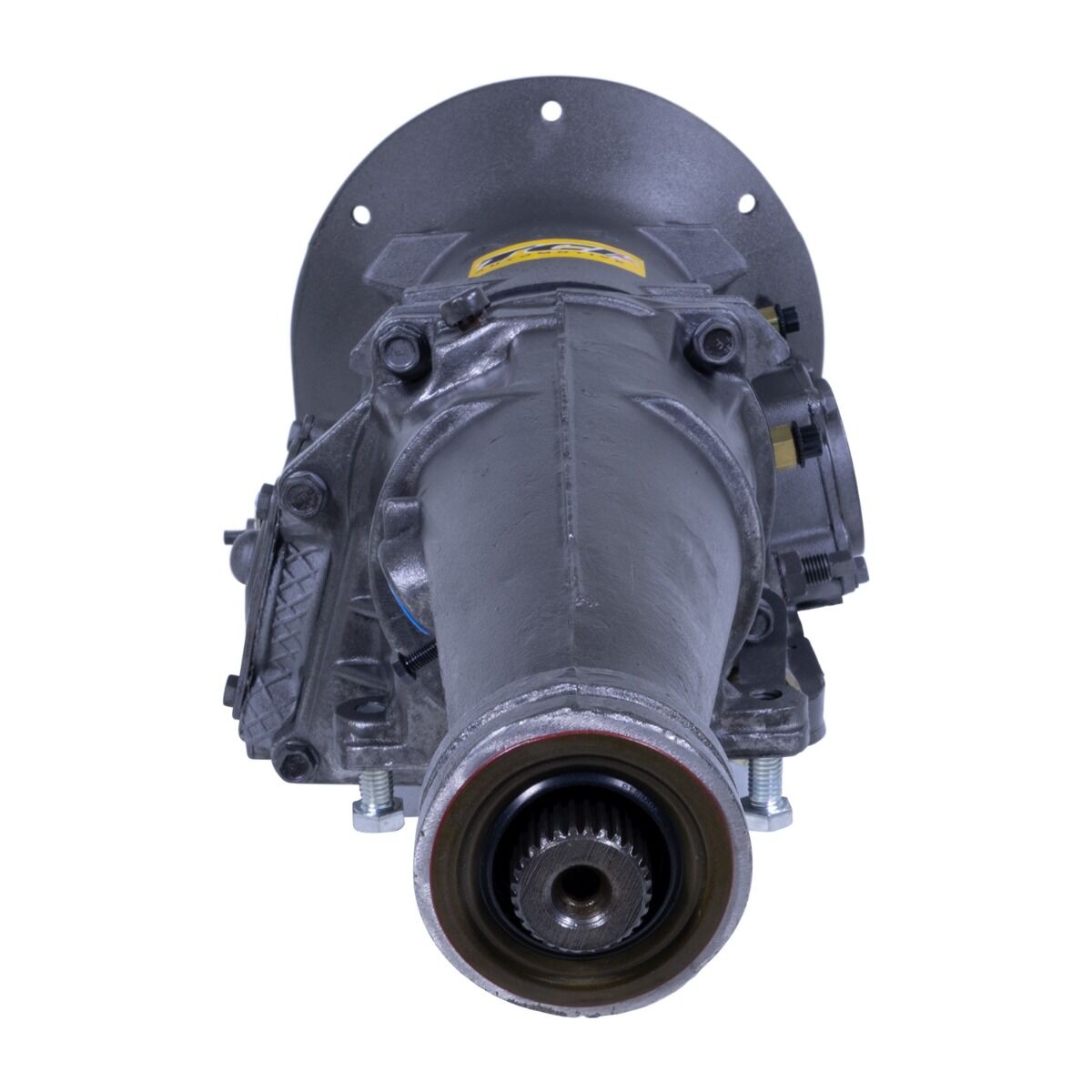

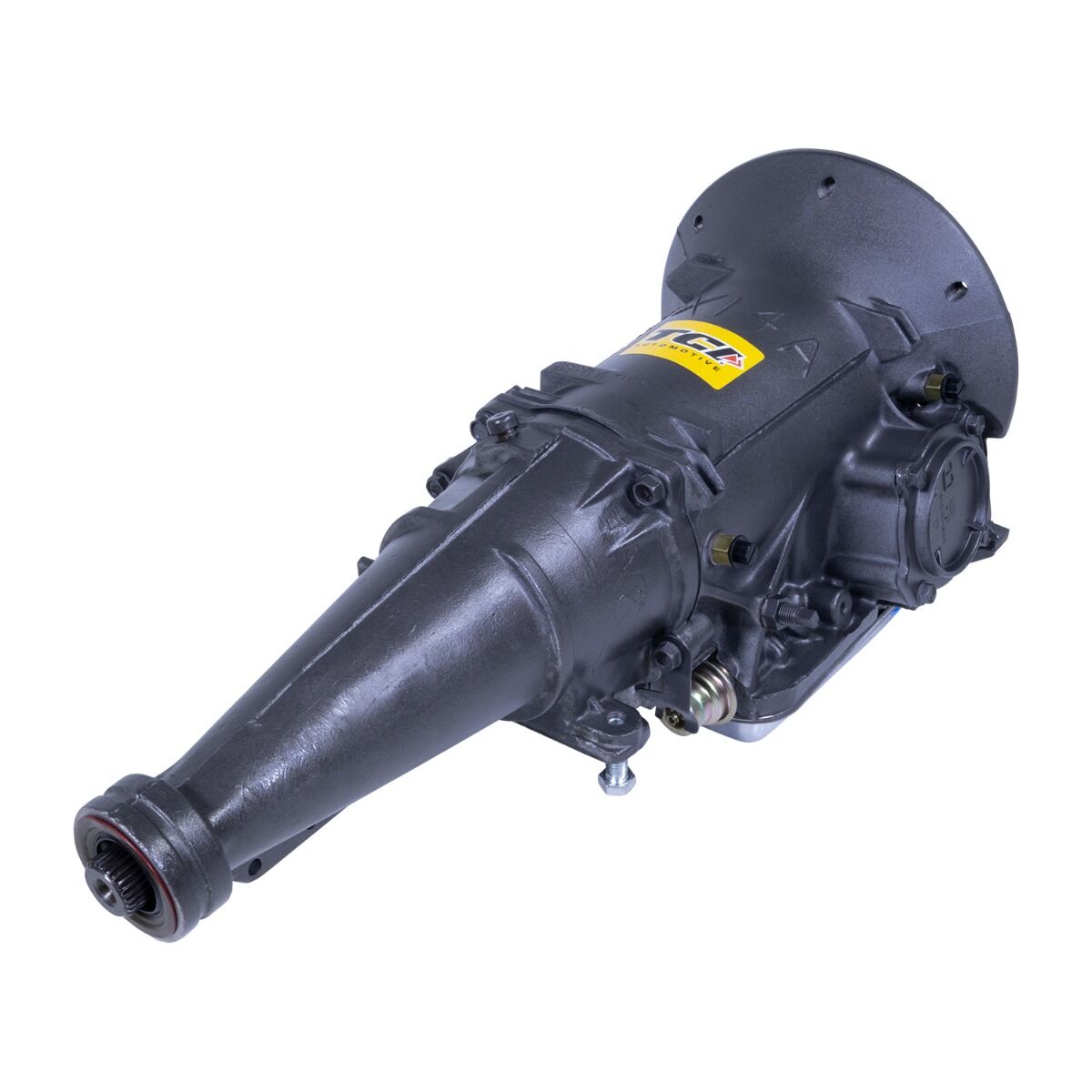

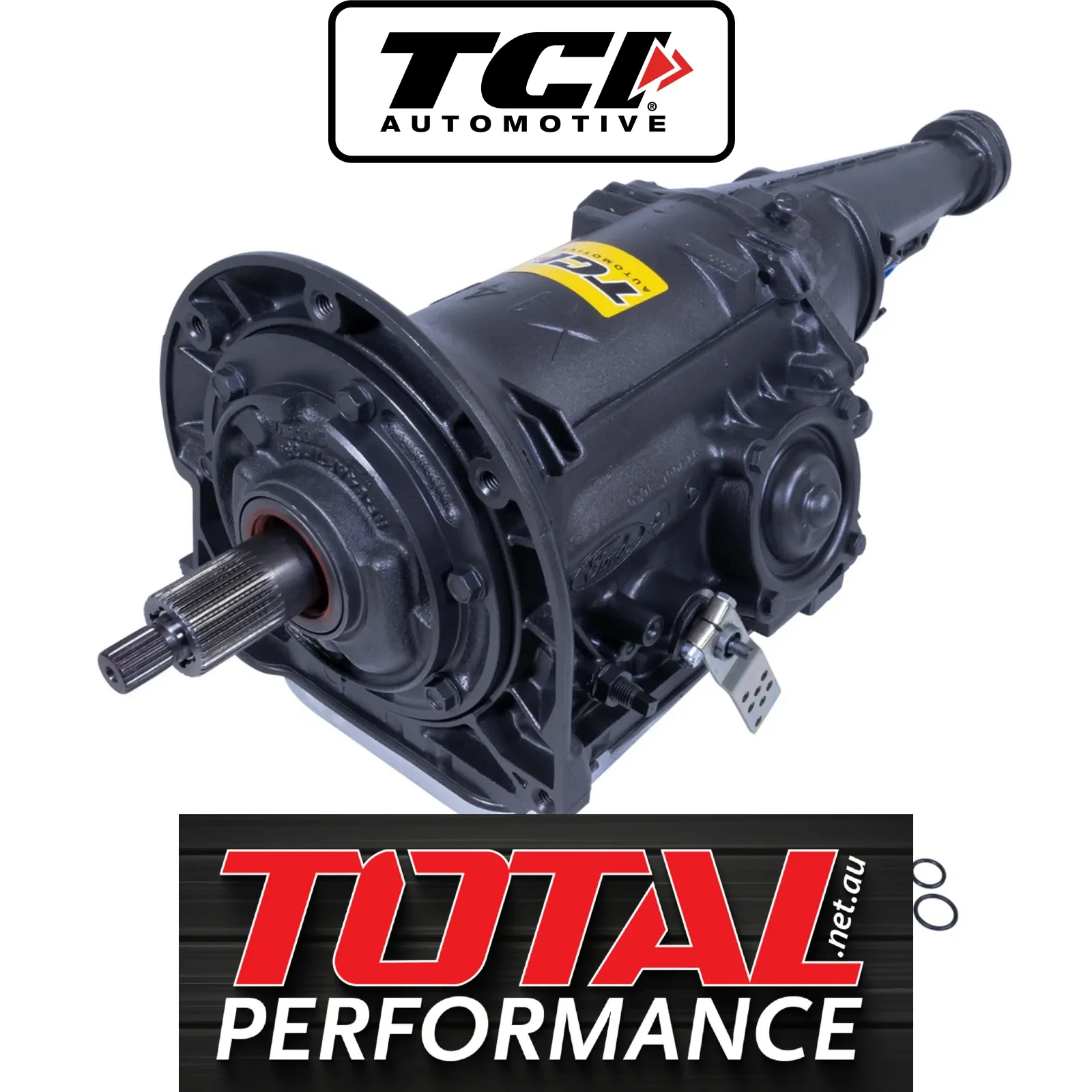

700HP TCI Stage 3 Built C4 Transmission gearbox - Competition Full Manual- Pan Fill type for Cleveland.
High Performance C10 transmission for sale. This TCI transmission is built to withstand 700 HP from Ford Small Blocks while providing full manual operation and increased lubrication to planetaries and internals. Reverse Pattern. For an In-Pan fill Dipstick.
Designed for the extreme high performance street or all out race car, these Full Manual Competition Transmissions will give you consistent shifts as well as complete control over shift points. This Built C4 Transmisisoni Gearbox they require no vacuum hookups or kickdown linkage. An added build feature is the increased line pressure which provides a harder, quicker shift and eliminates the lag time between shifts produced by automatic shift transmissions.
TCI C4 C10 Transmission Drag Race Transmissioin, Full-Manual Competition Transmission
TCI® has been building drag race transmissions for over 40 years, and we go the extra mile to ensure your transmission is superior in both form and function to what you would purchase at a local transmission shop. Beginning with a careful inspection of the transmission case and components, stock parts are replaced with high performance bands and components where applicable. We also increase fluid flow and improve the lubrication system and thrust capacity. Problematic hard parts are replaced with stronger ones, many of which are manufactured at TCI® in-house machining centers. Valve bodies are completely remanufactured and 100 percent tested prior to installation. Finally, each and every TCI® transmission must pass both a static hydraulic pressure test during assembly and a final dyno test prior to shipping. That's Triple Tested so you can be confident you're getting a transmission that's ready to perform.
Each and every TCI transmission must pass both a static hydraulic pressure test during assembly and a final dyno test prior to shipping! That's Triple Tested so you can be confident you're getting a transmission that's ready to perform.
These TCI Stage 3 C4 Transmissions - Pan Fill type have
-
Full manual valve body - Reverse Pattern
-
Vasco 300 Input Shaft - Billet
-
NO Transbrake
-
Red Eagle Clutches & Kolene Steels with Kevlar Bands
- Extreme Performance Clutches & Nitrided Steel Plates for Enhanced Performance
- High-Performance Powerbands Provide Greater Torque Capacity & More Positive Shifts & Band Apply
- Hardened Sprag Races Increases Durability & Strength
- Improved Lubrication System Increases Fluid Sent to Planetaries & Internals
- 3 Pinion Planetary
- Able to Handle Up-to-700 HP (Depending on Application)
Notes:
Bellhousing not included. These transmissions are shipped without the speedometer driven gear or it’s housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately. Will only fit models with large bellhousing.
Warranty
12
Specifications
SKU | TCI-C4PF-ST3 |
Barcode # | 788120010924 |
Brand | TCI |
Coating Type | HDT Coating |
Transmission Series | Full Manual Competition Drag Race Transmissions |
Number Of Gears | 3 |
Oem Model | C4 |
