460 Ford C6 Stage 3, Full Manual Competition Transmission Gearbox Big Block 429 460 -Reverse Pattern Drag Race Competition

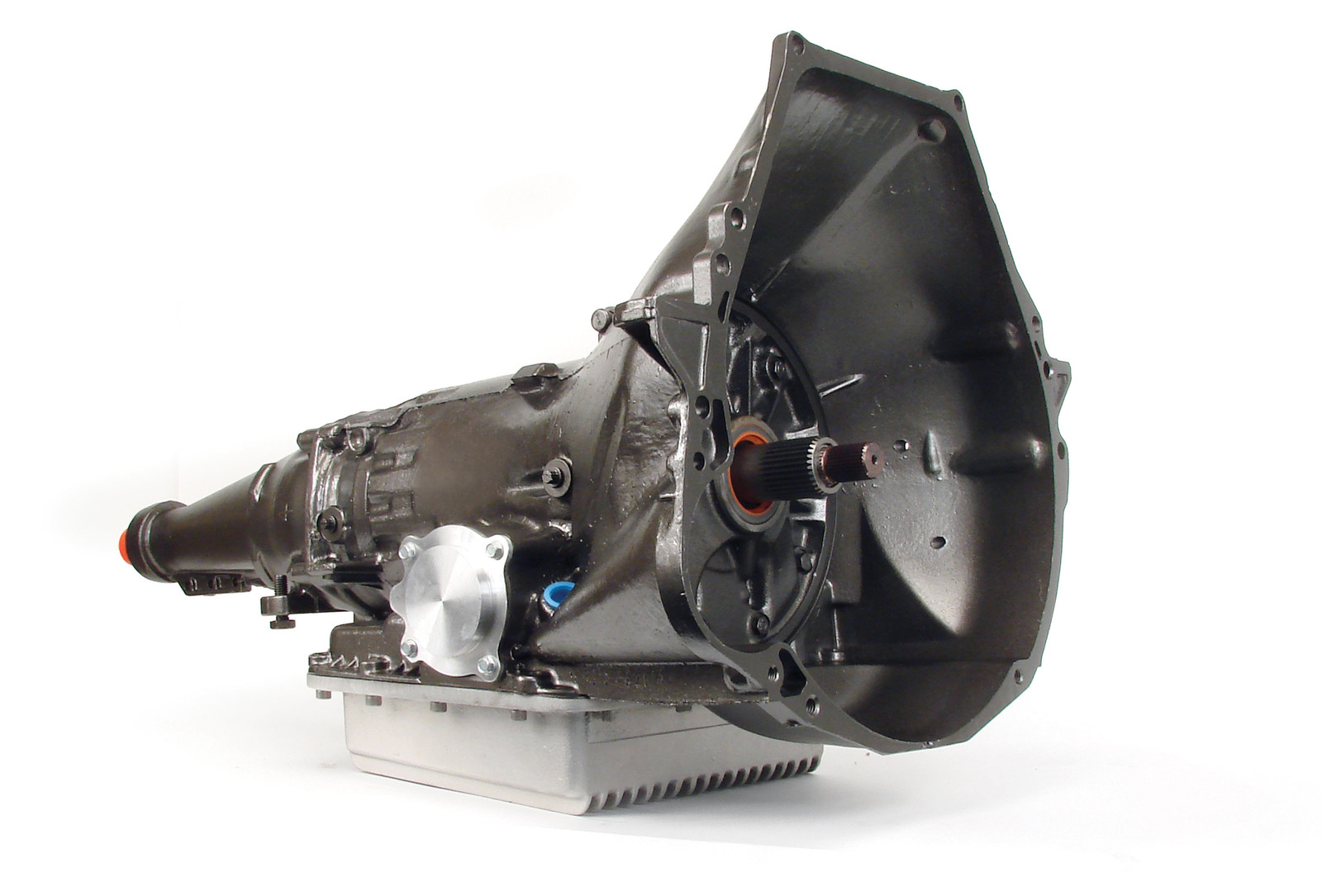

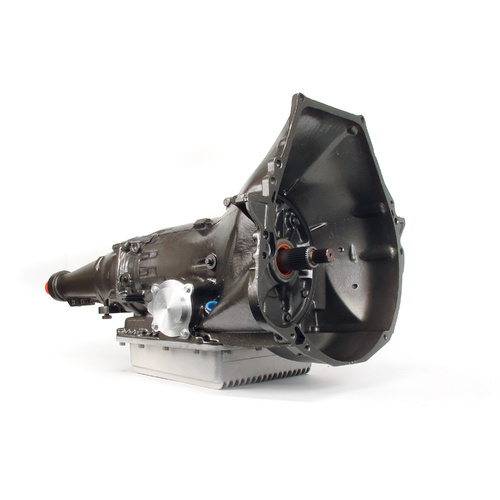

Ford C6 Transmission - 750HP Suits Ford 429 460 Big Block

Full Manual & Reverse Pattern + Aluminium Deep Pan

This Super Tough Ford C6 Transmission comes with a Reverse Shift Pattern, Full Manual operation. This C6 Transmission is built to withstand 750 HP from a naturally aspirated Ford Cleveland or Ford 460 Big Blocks. When shifting under heavy power, you need the full manual operation for all the line pressure to positivly change the gears. This C6 also has increased lubrication to the planetaries gears. Reverse Pattern.

Upgrades include: Red eagle clutches, Kolene steels and Alloy Deep Pan

Features

• Perfect for normally aspirated Ford Big Blocks
• Manual/automatic valve body means most units allow you to manually shift the vehicle into each gear change or remain fully automatic
• Upshifts and downshifts right when you move the lever, with no lag or governor override to shave time off your ETs
• When you select the normal drive position, the transmission retains positive, automatic shifts for the ease of driving

Number of Gears:  3

Valve Body Style:  Full manual - Reverse Pattern

Trans-Brake Included:  No

Lockup Compatible:  No

Transmission Pan Style:  Deep Pan

Tailshaft Length (in.):  13.500 in.

Yoke Style:  Slip-on

Input Spline Quantity:  31

First Gear Ratio (Automatic Transmissions): 2.46

Transmission Case Material: OEM Aluminium

Fluid Fill Location:  Case

Dipstick Included:  No

Pan Type: Aluminium Deep Pan.

Quantity:  Sold individually.

Notes:  These transmissions are shipped without the speedometer driven gear or it’s housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately.
