SKU: 54103

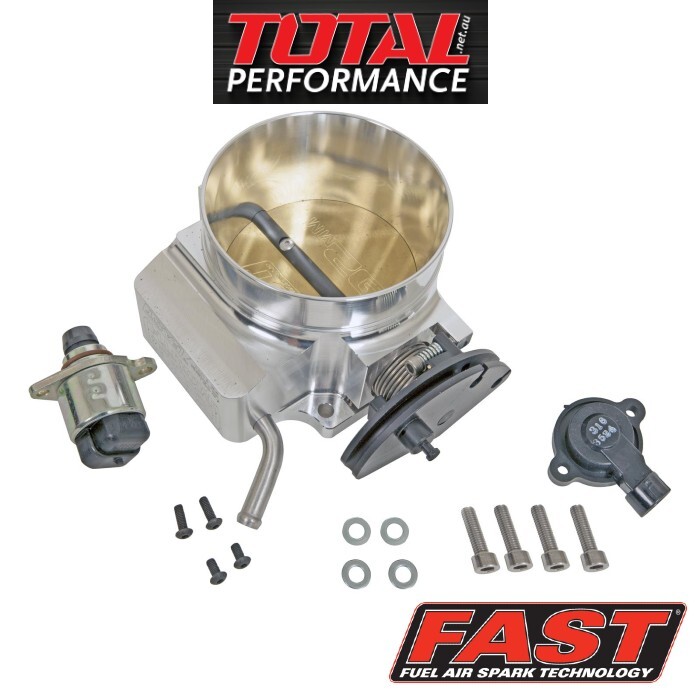

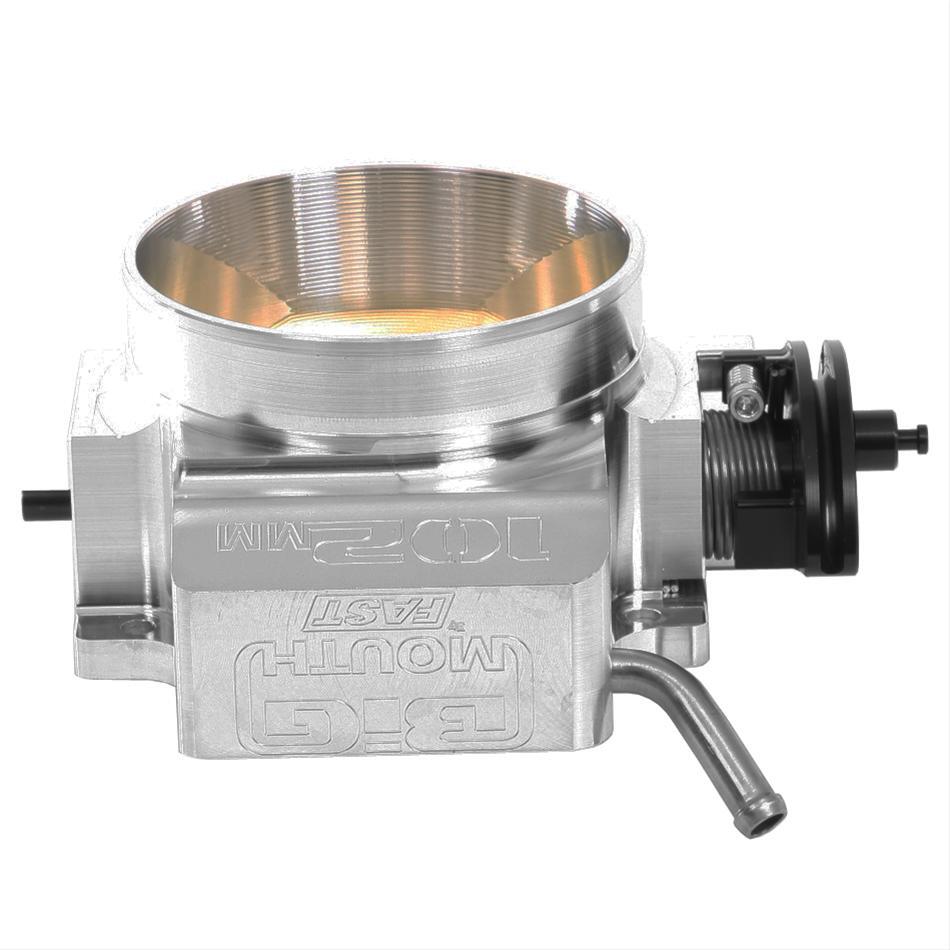

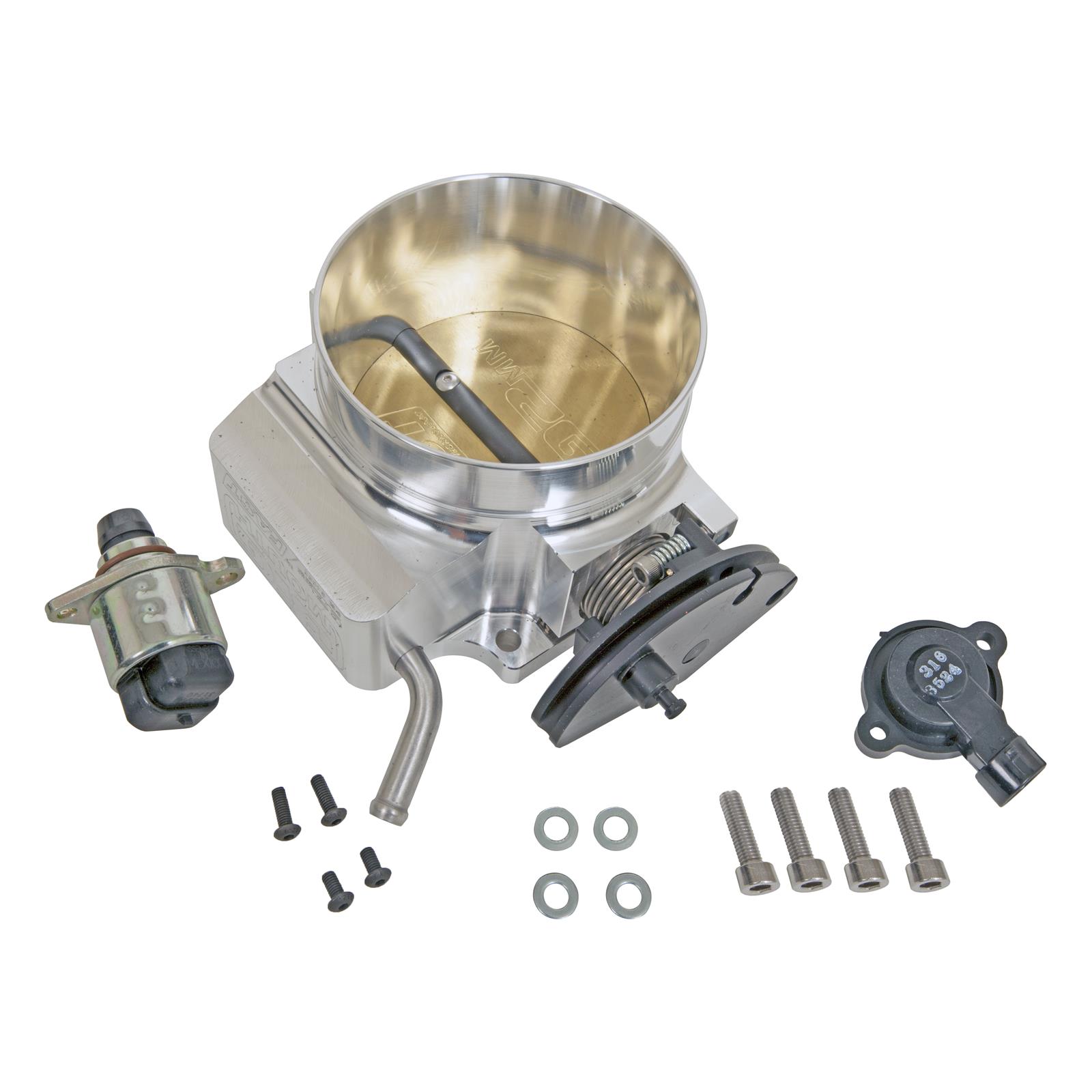

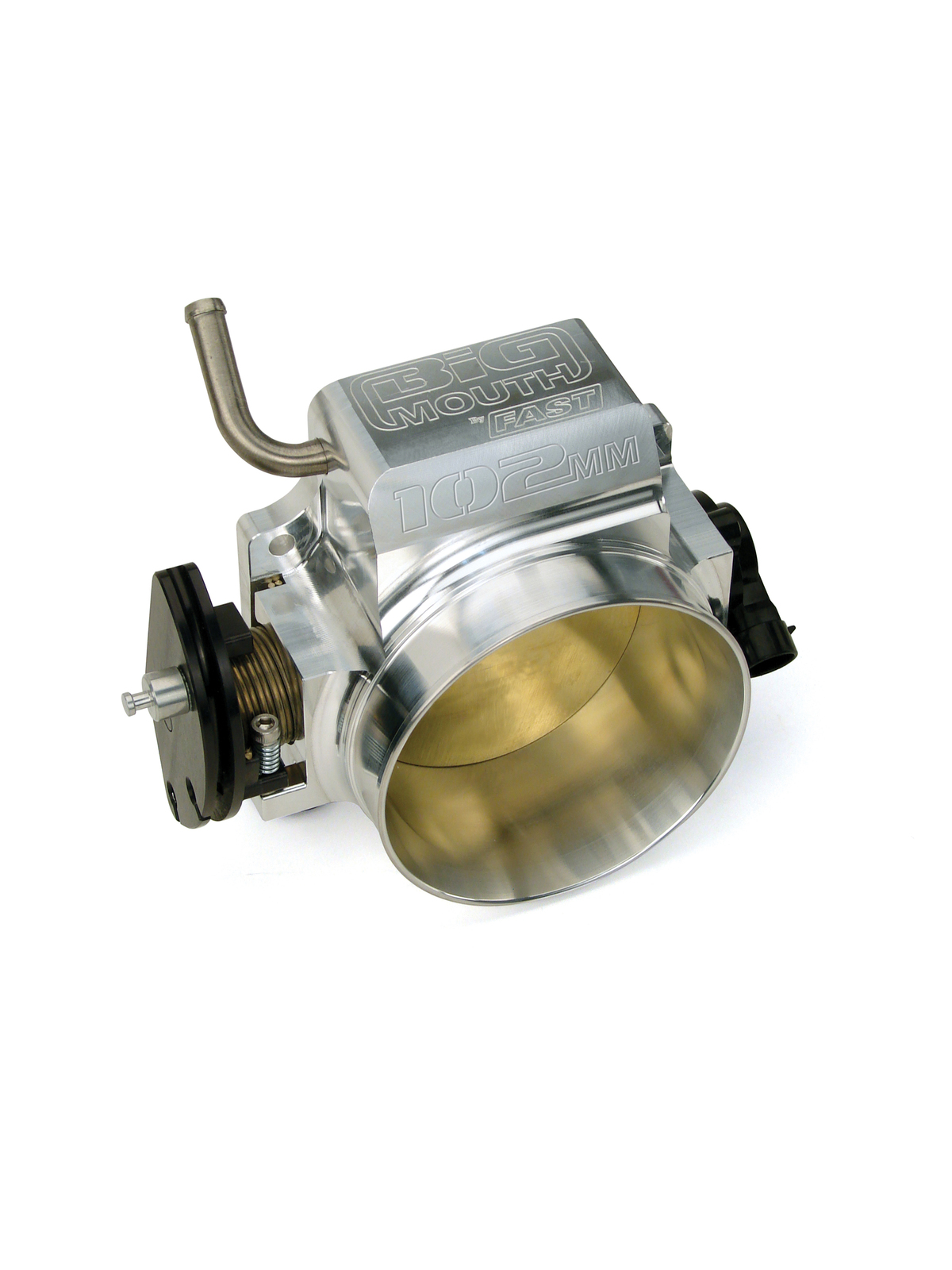

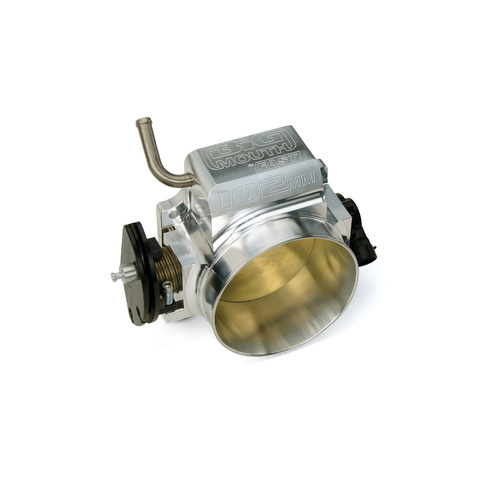

Billet 102mm Throttle Body Big Mouth LS1 LS2 LS3 L98 w/ TPS & IAC switches, Silver Mill finish

With TPS Sensor & IAC motor

$600.07

or 4 payments of $150.02 with Info

IN STOCK  FREE SHIPPING

Description

FAST 102mm Big Mouth Billet Throttle Body 54103 - W/ IAC & TPS

(Includes TPS Sensor + IAC Valve)

When it comes to improving your engine’s performance, increased airflow is a key ingredient. The FAST™ Big Mouth Throttle Bodies™ for the FAST™ LSX™ 92mm & LSXR™ 102mm Intake Manifolds increase airflow through a series of innovative design changes and a slightly enlarged throttle opening. FAST™ also invested significant testing & engineering resources into optimizing cross-sectional flow and eliminating airflow turbulence, especially at part throttle operation.

In addition, these throttle bodies offer increased throttle blade thickness to eliminate deflection commonly found with other throttle bodies, especially those in boosted applications. A smoother operating offset blade pivot improves throttle response, and a beefed up linkage and dual throttle spring mechanism ensure total throttle control. The FAST™ Big Mouth 92mm Throttle Body™ will deliver bolt on GM Gen III (LS1, -2 & -6) horsepower while the LSXR™ is designed to maximize potential performance upgrades on L92/LS3/LS7 engines.

Type:            102mm Throttle Bodies

Material:        Billet Aluminum

Bore Size:      102mm

Finish:           Clear Anodized

TPS Included:        Yes

IAC Valve Included:   Yes

Gasket Included:   No

Mounting Hardware: Yes included – Hex bolts to mount the Throttle Body and screws for the sensors.

Warranty

12

Specifications

SKU 54103
Barcode # 036584398967
Brand FAST
Title Big Mouth Billet 102mm Big Mouth Throttle Body for GM LS w/ TPS and IAC
