Turbo 700 Stall Torque Converter 304 Holden, Lock-Up, TH700, 4L60E (not LS) 12" Breakaway, 5.0L Holden Commodore VN VP VR VS
Stall RPM: Small Block 2200-2400 / Strokers 2400 to 2600
Description

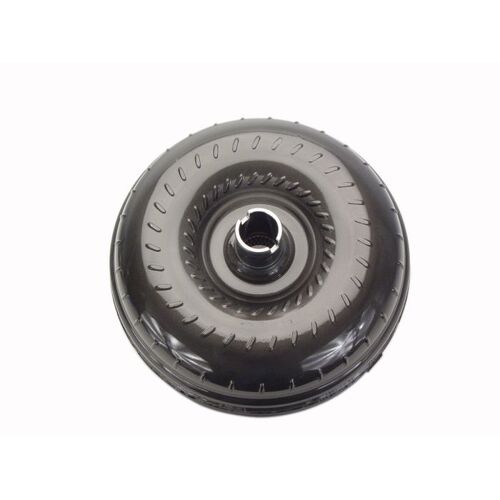

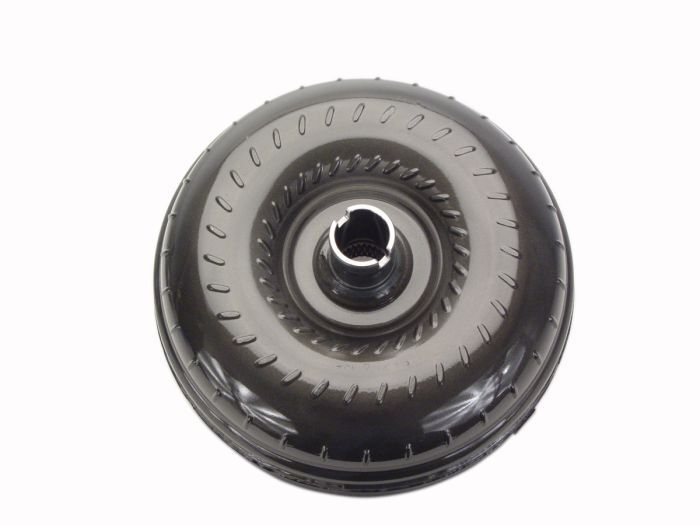

TCI 242800 HI Stall Torque Converter for the Turbo TH700R and 4L60E transmissions. 30 Spline & 1.703" Crank Pilot.
12" Converter Suitable for a nice cruiser and driveablility.
Stall Speed RPM: Small Block 2200-2400 / Strokers 2400 to 2600
This Breakaway Converter is designed specifically for '84-'97 700R4, '93-'97 4L60E and '97-'05 Corvette.
Provides 2200 to 2400 Stall behind Small Blocks and 2400 to 2600 Stall behind Big Blocks.
Converter Suits the TH700 5.0L 304 Holden Commodore VN VP VR VS
The first step into serious high performance, the Breakaway is a great torque converter for moderately modified street machines and weekend racers that are also used as daily drivers. It provides approximately 2400 to 2600 RPM flash stall without negatively affecting part throttle driving. Designed for both efficiency at highway cruising speeds and to launch hard at wide open throttle, the Breakaway is a fantastic all-around torque converter featuring furnace-brazed fins, needle bearings, a hardened, pre-ground pump hub and computer balancing.
NOTE: Will NOT fit LS1 or LS2 engines due to the crank pilot size
Warranty
12
Specifications
| SKU | 242800 |
| Barcode # | 788120003711 |
| Brand | TCI |
| Torque Converter Series | Breakaway |
| Advertised Cam Duration | 265 to 280 Degrees |
| Rear Gear Ratio | 3.00 to 3.73 |
| Expected Stall Speed With Small Block | 2200 to 2400 RPM |
| Expected Stall Speed With Big Block | 2400 to 2600 RPM |
| Lock Up Type | Yes |
