SKU: TCI-C4PF-ST4

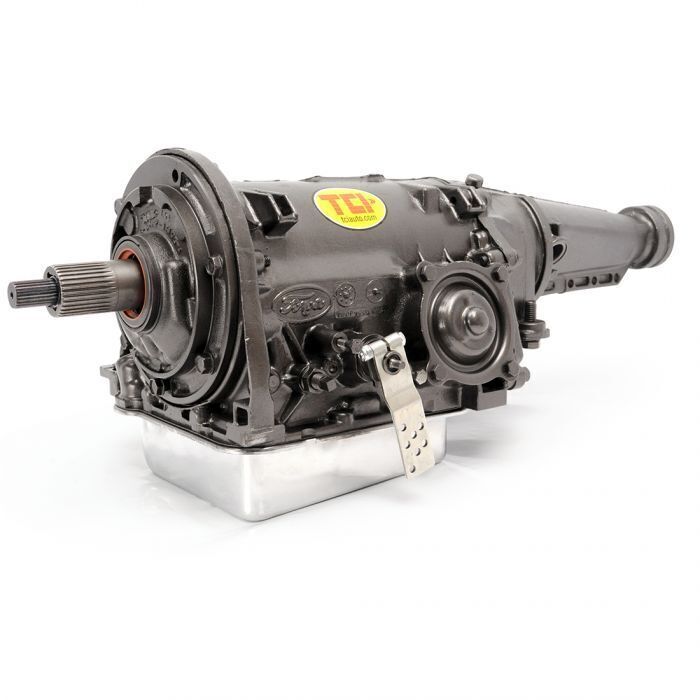

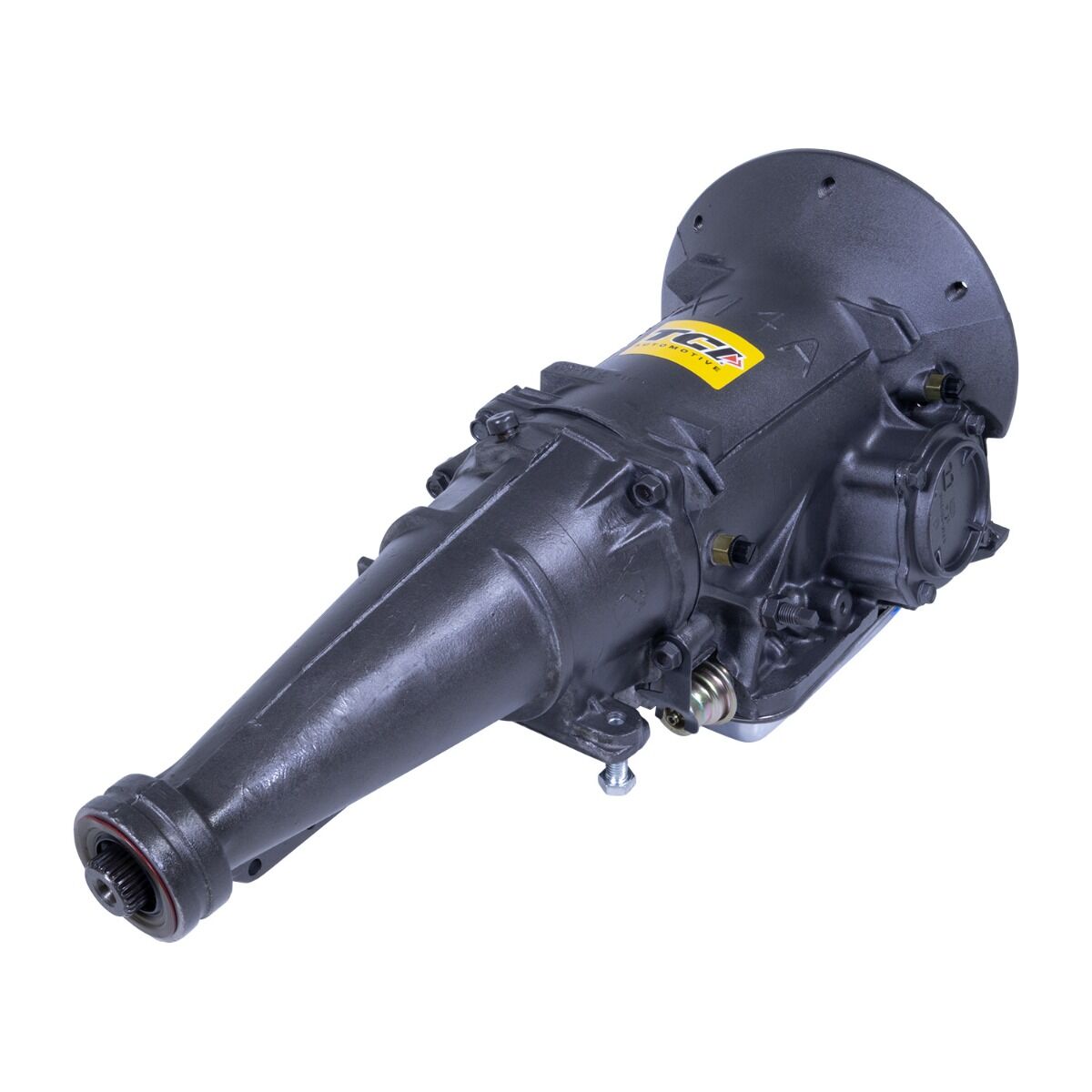

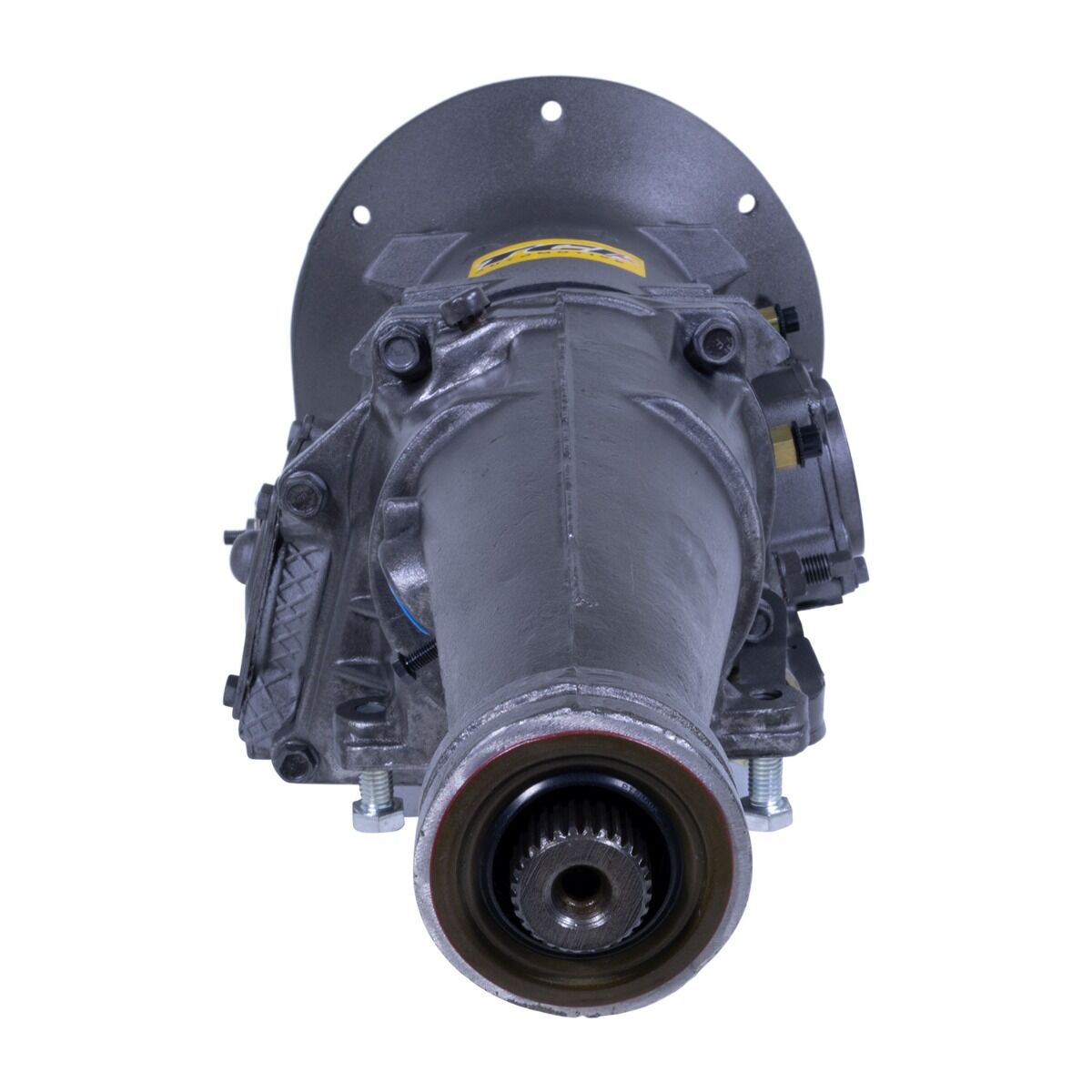

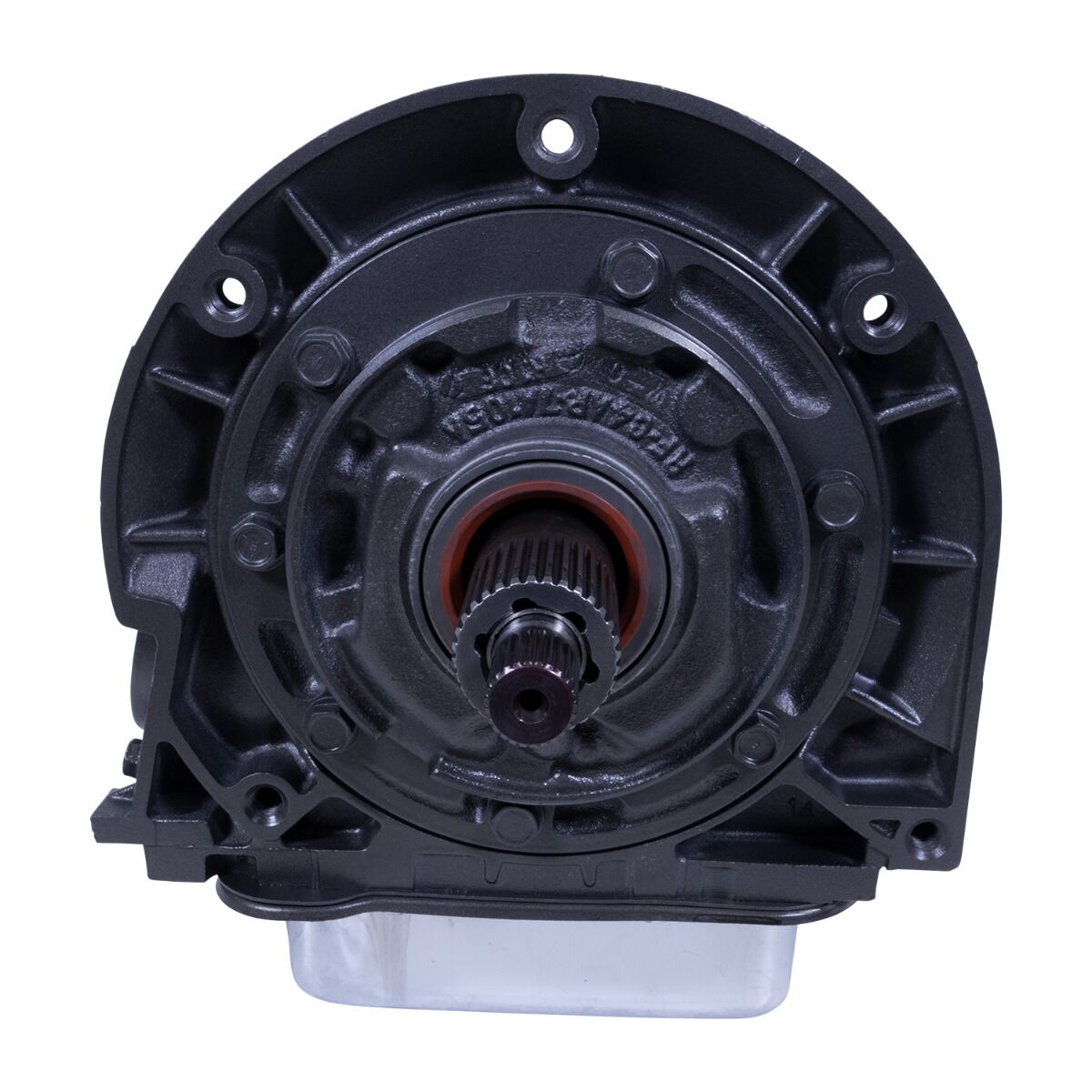

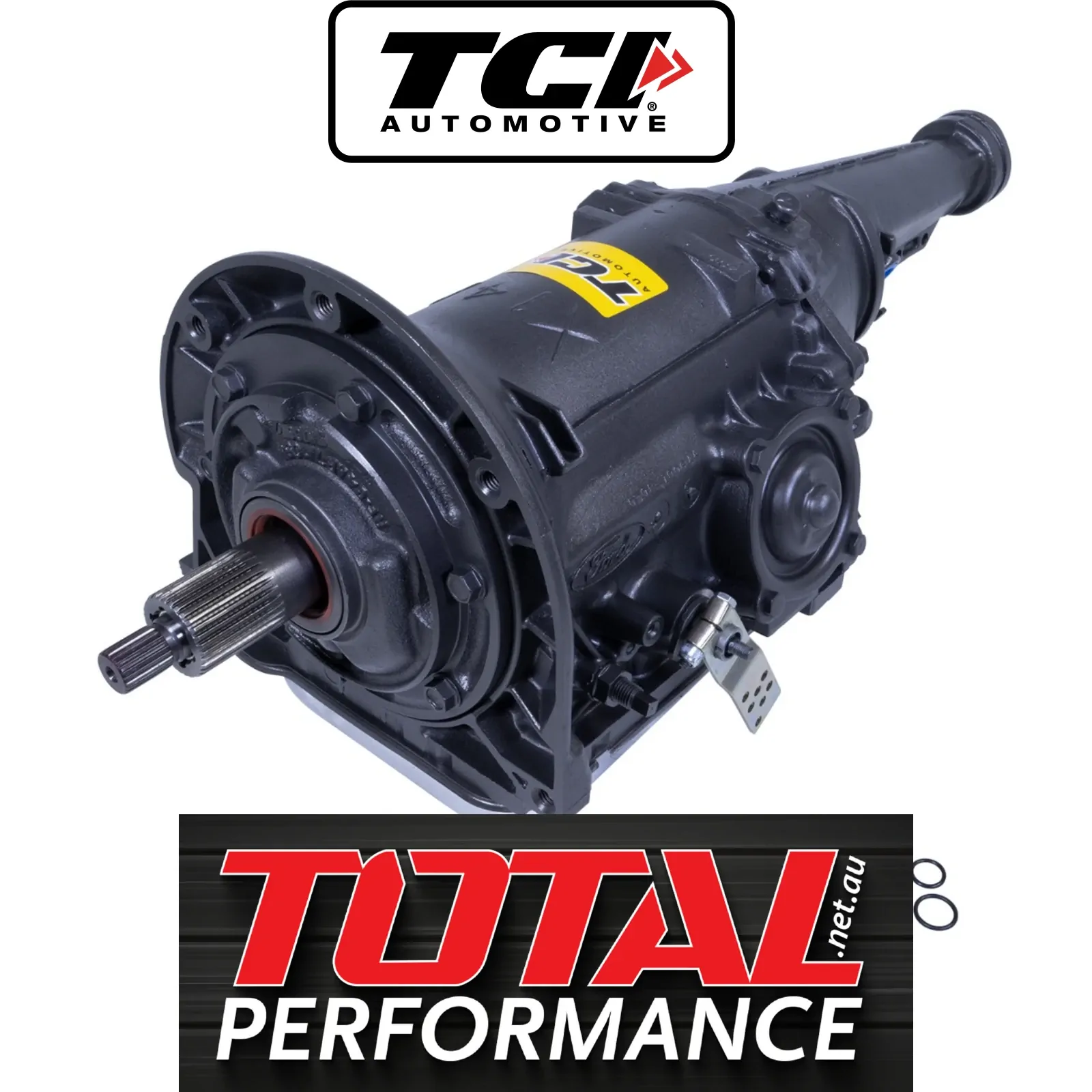

875HP C4 C10 Full Manual Transbrake Competition Transmission, Reverse Shift Pattern. Pan Fill Cleveland Large Bellhousing 6 Pinion planetary, billet

STAGE 4 - Transbrake, 6 Pinions, Full Man, Billet input

RRP $5,687.00 SAVE $517.00 (9%)
$5,170.00

IN STOCK  FREE SHIPPING

Description

STAGE 4 TCI Built C4 Competition Full Manual Transbrake C4 Transmission gearbox is built to handle up to 875 HP from Ford Clevelands while providing full manual operation and increased lubrication to planetaries and internals. Reverse Pattern.

No Bellhousing - sold separately

  • Fits '70-'82 Ford Pan Fill C4-Equipped Vehicles - Cleveland 164T Large bellhousing type.

    • Large Bellhousing Pattern (bellhousing sold separately)
    • Pan Fill - Dipstick Goes in Transmission Pan
    • 26-Spline Input Shaft (V300 Vasco Billet)

DRAG RACE C4
TRANSMISSION OVERVIEW

TCI has been building drag race transmissions for over 40 years, and we go the extra mile to ensure your transmission is superior in both form and function to what you would purchase at a local transmission shop. Beginning with a careful inspection of the transmission case and components, stock parts are replaced with high performance bands and components where applicable. We also increase fluid flow and improve the lubrication system and thrust capacity. Problematic hard parts are replaced with stronger ones, many of which are manufactured at TCI in-house machining centers. Valve bodies are completely remanufactured and 100 percent tested prior to installation. Finally, each and every TCI® transmission must pass both a static hydraulic pressure test during assembly and a final dyno test prior to shipping. That's Triple Tested so you can be confident you're getting a transmission that's ready to perform.

Designed for the serious full-tree bracket racer, TCI Transbrake Transmissions deliver the quickest and most consistent reaction times in the business. These transmissions are blue-printed and built one unit at a time to ensure that you get quality parts. Designed for horsepower ranges of up to 750 horsepower, they are able to withstand the rigorous use of week-to-week racing and back-to-back passes. Available in both reverse and standard patterns (on select models only); Pro Tree versions are available and have a “neutral” reverse for safety.

Each and every TCI transmission must pass both a static hydraulic pressure test during assembly and a final dyno test prior to shipping! That's Triple Tested so you can be confident you're getting a transmission that's ready to perform.



These TCI Stage 4 Built C4 Transmissions have

  • Upgraded planetary gears

  • Vasco 300M Input Shaft

  • Red Eagle Clutches & Kolene Steels with Kevlar Bands

  • Full Manual - Reverse pattern

  • Transbrake

  • Deep Alloy pans

  • Full manual valve bodies with full race clutches & bands allow for quicker shift timing and the ability to run higher line pressures than possible with an automatic shift transmission

  • Higher line pressure makes it more difficult for clutches to slip under high loads

  • Oversized sprags & races (where applicable) increase holding capacity; steel hubs increase durability and strength

  • Improved lubrication system increases fluid sent to planetaries and internals

  • Designed to handle up to 875 HP

  • Notes:

    Bellhousing not included. These transmissions are shipped without the speedometer driven gear or it’s housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately. Will only fit models with large bellhousing.

Warranty

12

Specifications

SKU TCI-C4PF-ST4
Barcode # 788120026086
Brand TCI
Transmission Series Transbrake Drag Race Transmissions
Oem Model C4
Number Of Gears 3
Coating Type HDT Coating
