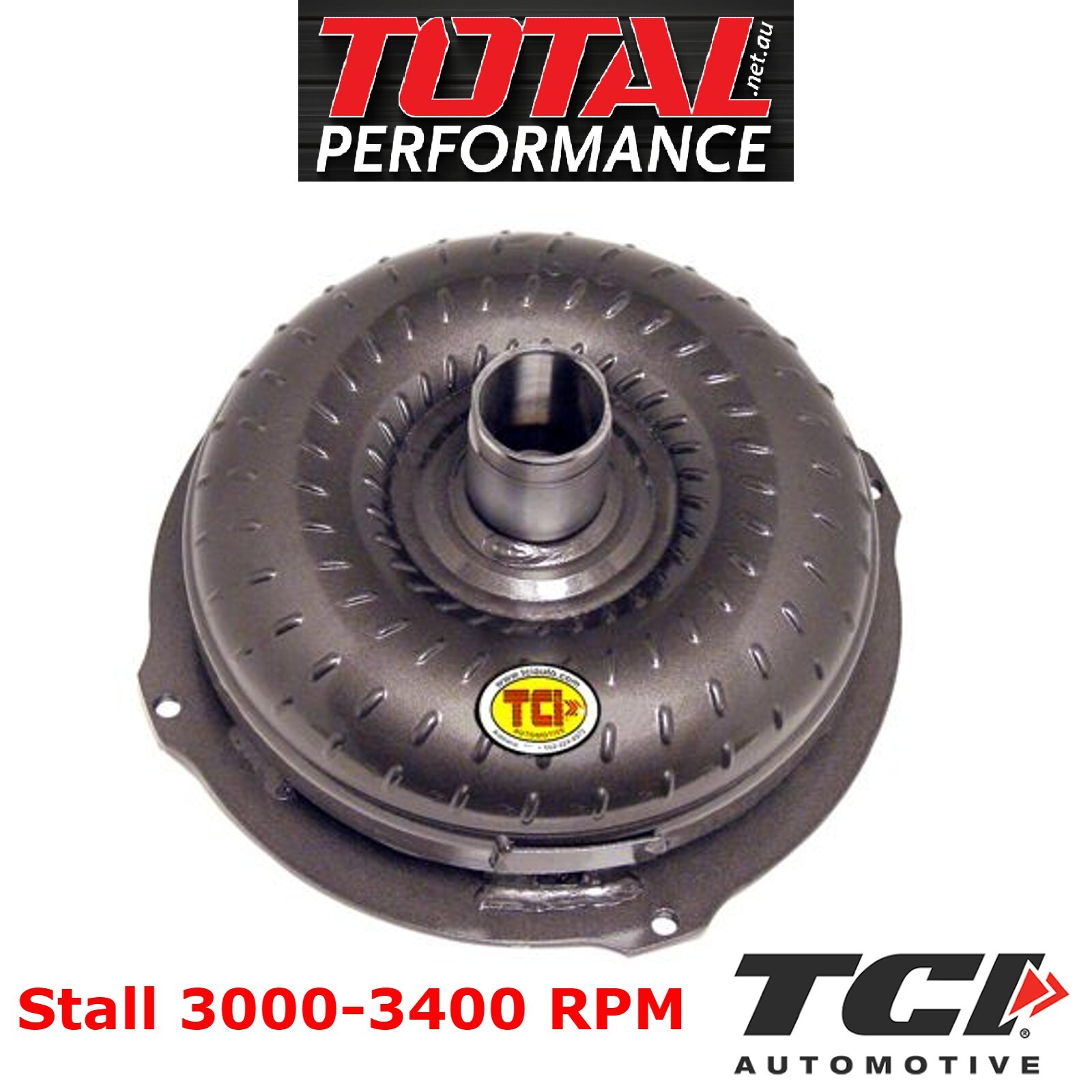

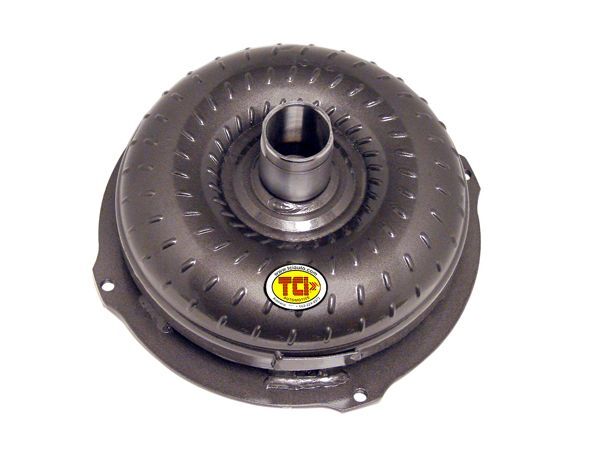

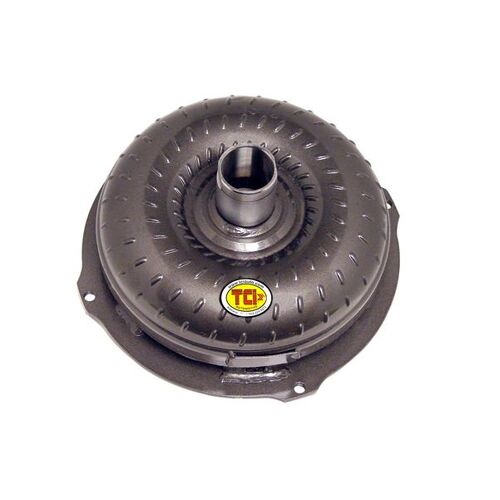

C4 C9 3500 High Stall Torque Converter, 10.5" Ford Windsor StreetFighter 26-Spline w/ Anti-Balloon Plate.
Stall RPM: 3000-3400 / Strokers 3400-3600
Description
TCI 451502 Hi Stall Torque Converter, Ford Windsor C4 C9. 26 Spline, Case Fill Windsor Transmission & Anti Balloon Plate.
Provides 3000 to 3400 RPM Stall behind Small Blocks and 3400-3600 RPM Stall behind Big Blocks.
For 10.5" Bolt Circle. W/ Anti-Balloon heady duty plate (for hard hitting NOS applicatioins)
This TCI StreetFighter Converter is designed specifically for 26 Spline Ford C4 Transmissions with in-case dipsticks. (Small Bellhousing Windsors)
Designed with the street/strip application in mind, this torque converter benefits more radically prepared street machines (those with performance cams, aftermarket carbs and higher compression ratios) to bring the launch RPM in line with the performance enhancements. The StreetFighter® lets you take advantage of horsepower gains found in higher RPM ranges.
Features: Furnace-brazed fins, Needle bearings, hardened pre-ground pump hub, computer balanced, installation hardware included
Benefits: Higher RPM launches, quicker reaction times, lower elapsed times, better low- and mid-range power, 1500+ RPM increase in stall over stock
Flexplate must be drilled for 7/16” bolts
Dipstick Goes into Transmission Case
With heavy-duty front anti-ballooning plate for nitrous applications
Warranty
12
Specifications
| SKU | 451502 |
| Barcode # | 788120010177 |
| Brand | TCI |
| Torque Converter Series | StreetFighter |
| Advertised Cam Duration | 280 to 300 Degrees |
| Rear Gear Ratio | 3.55 to 4.56 |
| Expected Stall Speed With Small Block | 3000 to 3400 RPM |
| Expected Stall Speed With Big Block | 3400 to 3600 RPM |
