C4 C9 Hi Stall Torque Converter, Ultimate StreetFighter Ford Windsor Case Fill w/ Anti-Balloon 26-Spline, 10.5 in Bolt
Stall RPM 3800 + RPM
Description

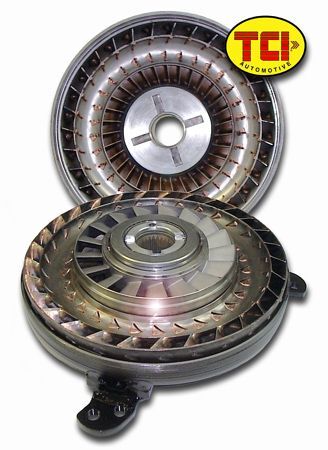

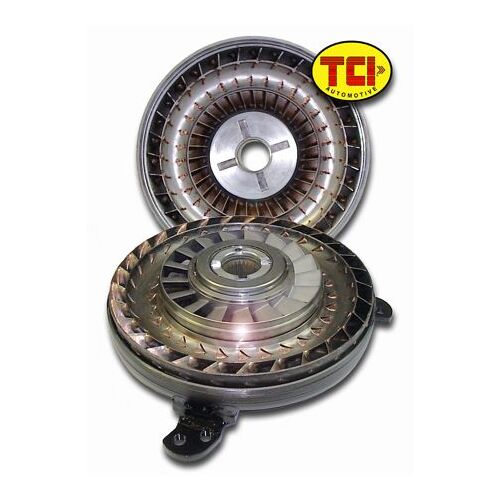

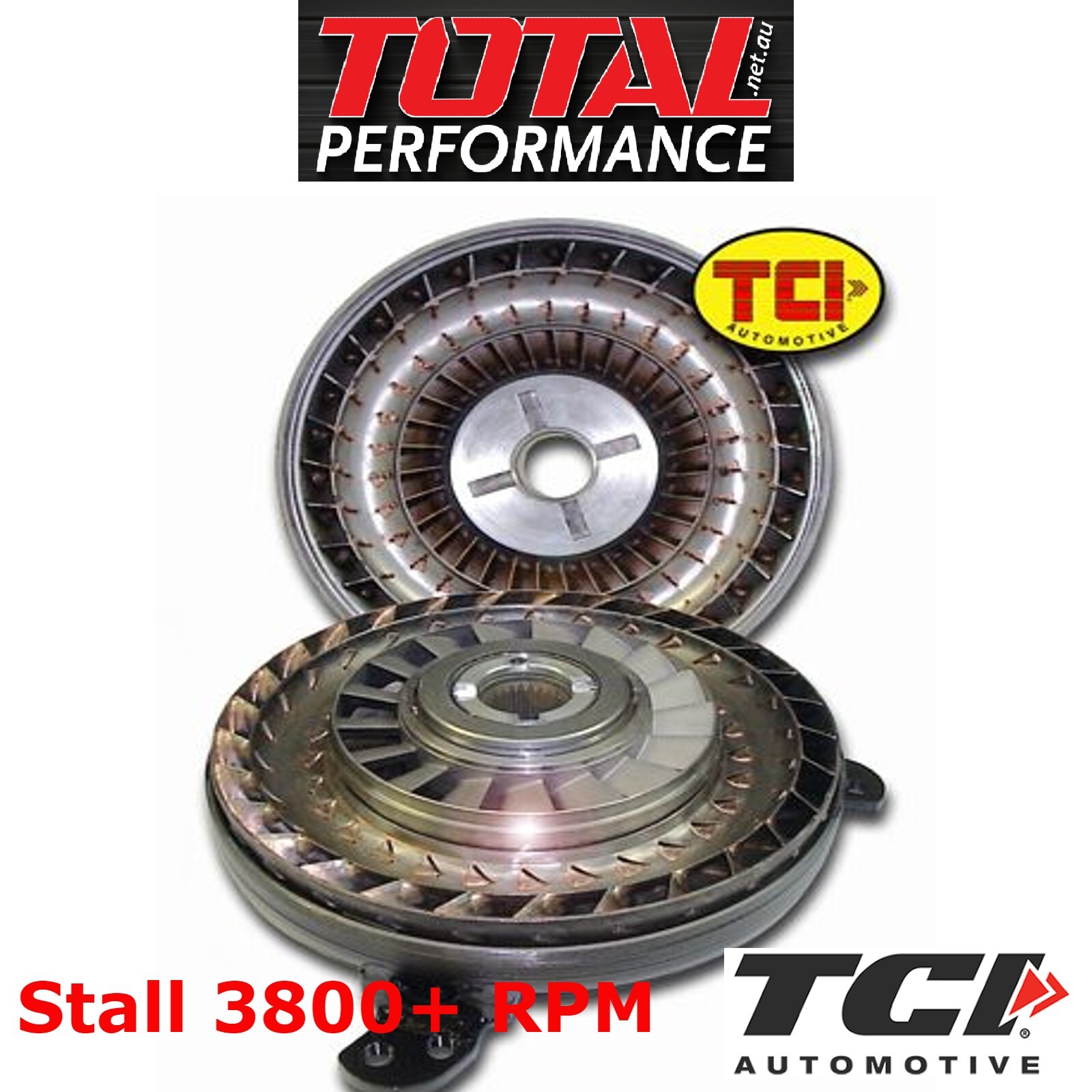

TCI 451506, 1970-79 C4, C9 10.5" Bolt Circle, 26-Spline, Ford Windsor Torque Converter, Hi Stall.
Stall RPM: 3800+
Dipstick Goes into Transmission Case Ultimate StreetFighter™ Torque Converter With Anti-Ballooning Plate
NOTE; Flexplate must be drilled for 7/16" bolts. Dipstick goes into transmission case.
This Ultimate Street Fighter Converter features an anti-balloon plate, with a 10.5" bolt circle and 26-Spline configuration. Provides 3500 + Stall behind Small Blocks and 3800+ Stall behind Big Blocks.
Bridging the gap between our full competition series units and our Super StreetFighter™ converters, the Ultimate StreetFighter™ series of torque converters is designed specifically for extreme street machines.
Features: Furnace-brazed & hand welded fins, cast steel stator, needle bearings, dual bolt pattern, hardened pre-ground pump hub, computer balanced, installation hardware included
Benefits: High torque multiplication, higher RPM launches, lower elapsed times, suited for street/strip applications up to 1200 HP
Flexplate must be drilled for 7/16" bolts. Dipstick goes into transmission case.
Warranty
12
Specifications
| SKU | 451506 |
| Barcode # | 788120035057 |
| Brand | TCI |
| Torque Converter Series | Ultimate StreetFighter |
| Advertised Cam Duration | 290 Degrees + Up |
| Rear Gear Ratio | 3.73 and Up |
| Expected Stall Speed With Small Block | 3500 and Up |
| Expected Stall Speed With Big Block | 3500 and Up |
