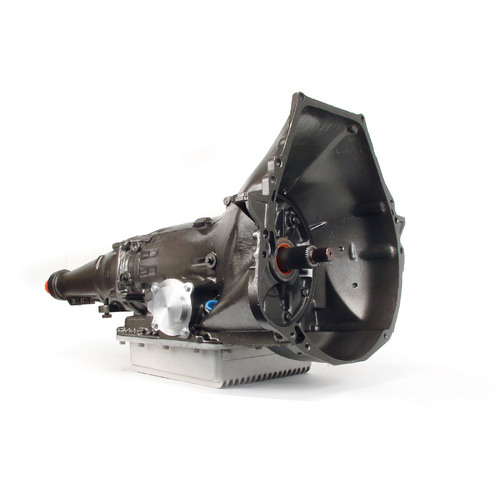

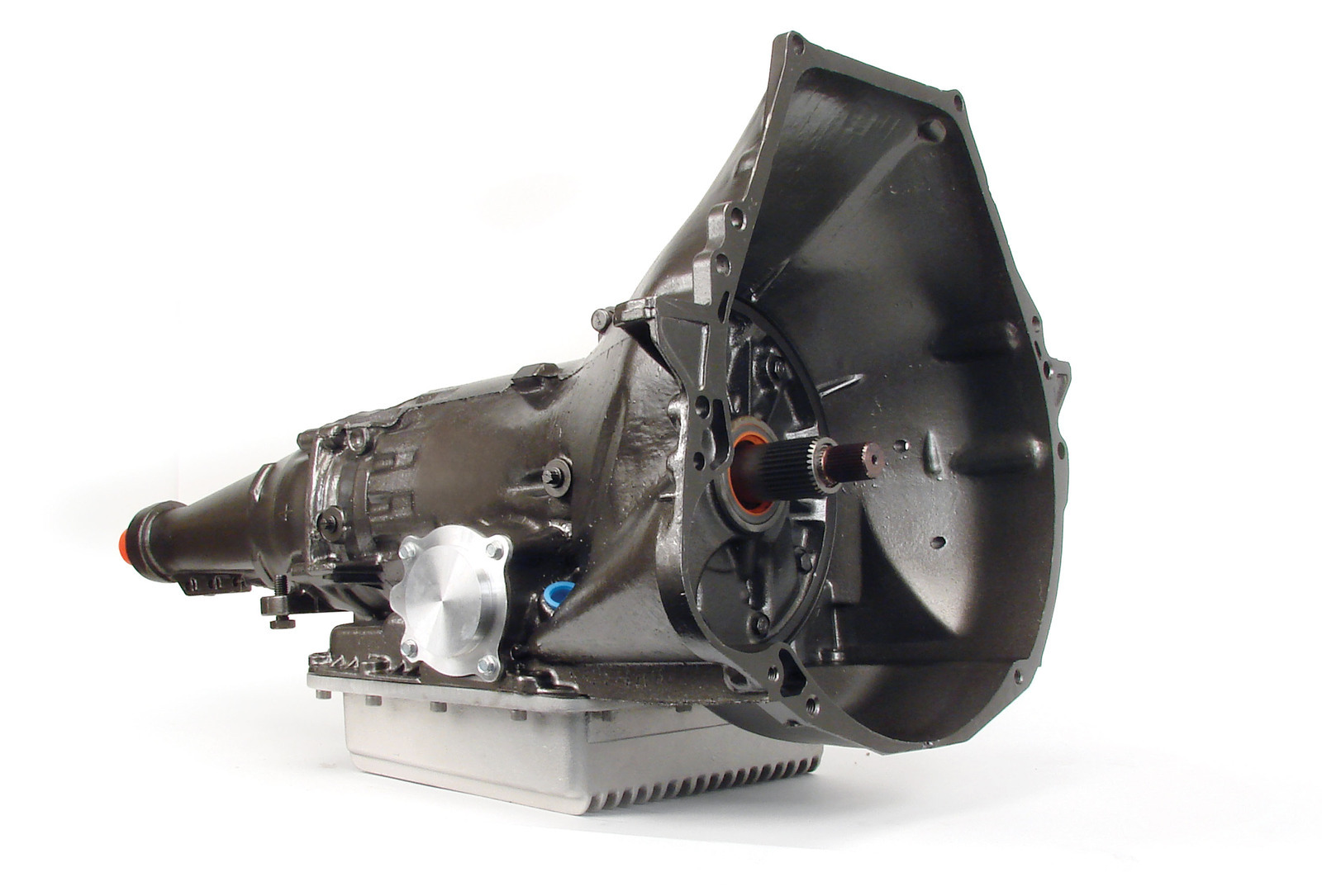

460 Ford C6 Stage 4, Full Manual Competition Transmission with Transbrake fits Ford Big Block 429 460.

This C6 Competition Full Manual Transbrake Transmission is built to withstand 750 HP from Ford 351M/400/429/460 while providing full manual operation and increased lubrication to planetaries. Reverse Pattern.

Designed for the serious full-tree bracket racer, TCI Transbrake Transmissions deliver the quickest and most consistent reaction times in the business. These transmissions are blue-printed and built one unit at a time to ensure that you get quality parts. Designed for horsepower ranges of up to 750 horsepower, they are able to withstand the rigorous use of week-to-week racing and back-to-back passes. Available in both reverse and standard patterns (on select models only); Pro Tree versions are available and have a “neutral” reverse for safety.

Number of Gears:  3

Bellhousing Bolt Pattern Manufacturer:  Ford

Transmission Shift Pattern:  Reverse

Valve Body Style:  Full manual - Reverse Pattern

Torque Converter Included:  No

Flexplate Included:  No

Transmission Cooler Included:  No

Trans-Brake Included:  Yes

Lockup Compatible:  No

Transmission Pan Style:  Stock

Tailshaft Length (in.):  13.500 in.

Yoke Style: OEM Slip-on style

Input Spline Quantity: C6 31 Spline

First Gear Ratio (Automatic Transmissions):2.46

Transmission Case: OEM Ford - Aluminum

Fluid Fill Location:  Case

Transmission Fluid Included:  No

Dipstick Included:  No

Remanufactured:  Yes - new parts - OEM Case

Quantity:  Sold individually.

Notes:

These transmissions are shipped without the speedometer driven gear or it’s housing. If replacing the same model of transmission, these may be re-used from existing. If not, they must be purchased separately.
