Description

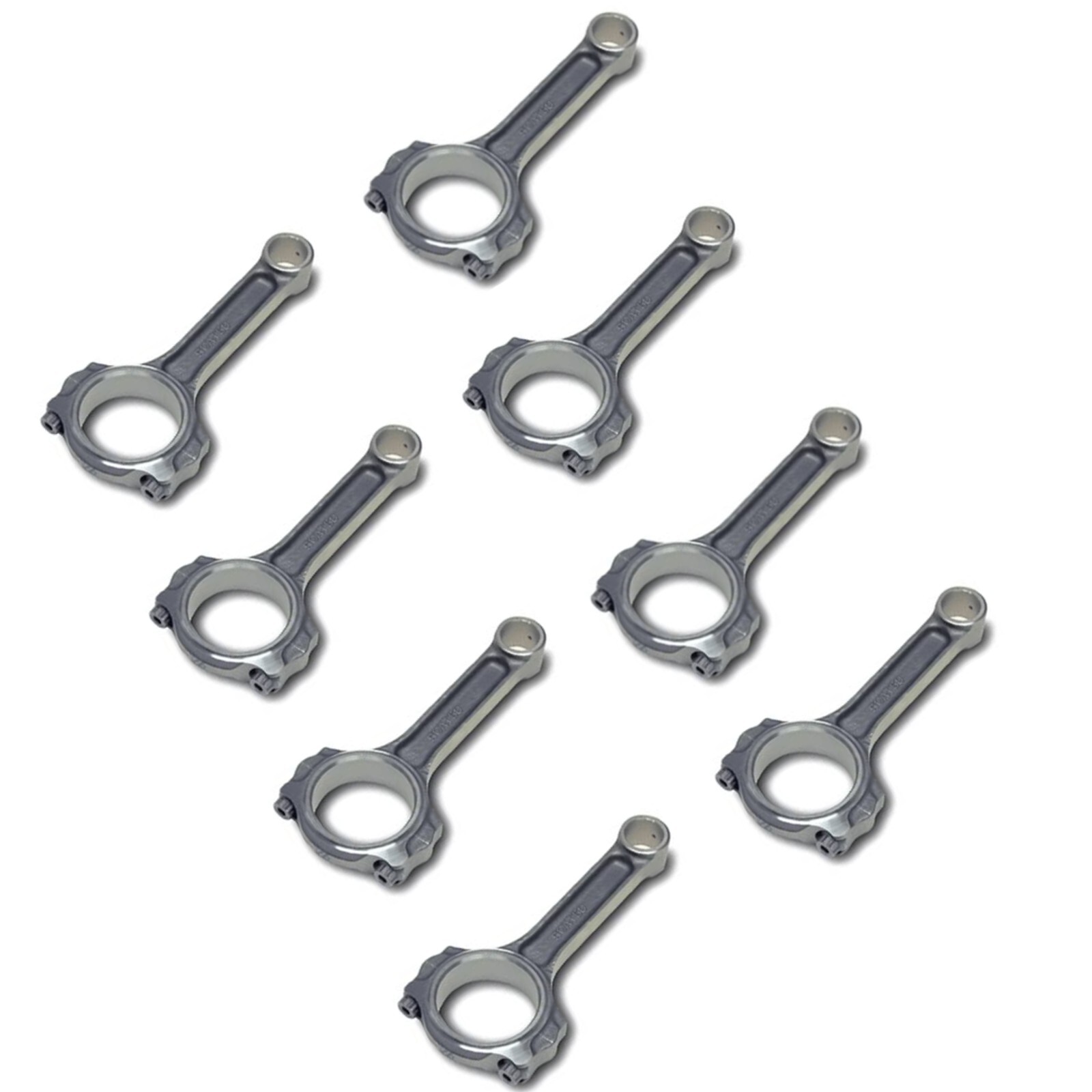

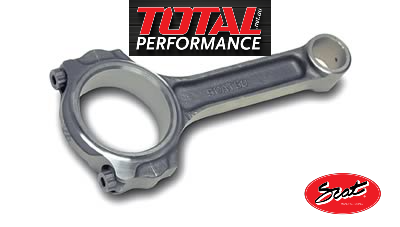

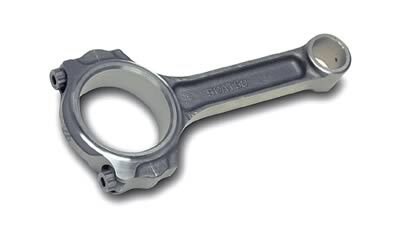

Scat 2-ICR5700-716 Pro Series I-Beam Connecting Rods with 7/16 ARP Rod bolts - Chevy 350 & Holden 355 Stroker
**Stroker Clearanced & Bushed Pin
CHEVY SMALL BLOCK PRO SERIES 4340 FORGED I-BEAM CONNECTING RODS WITH ARP 7/16″ CAP SCREW BOLTS
These Scat 25700716 Pro Series I-beam connecting rods suit Chevy 350, Stroker 383 Chevy and the Holden 355 stroker kits. Scat Pro Series rods come standard with upgraded 7/16 ARP Rod bolts, they also incorporate all of the best features possible for an I-beam conrod, including some strength-adders found in H-beam designs. They are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, and special hollow dowels with ARP cap screw bolts to greatly increase strength and horsepower capabilities.
Chevy Small Block Pro Series 4340 Forged I-Beam Connecting Rods with ARP 7/16" Cap Screw Bolts are the strongest I Beam Conrod available. They're cut for cam clearance on longer stroke. The single rib cap design ensures added strength and bearing support, and the polished and shot-peened beams eliminate stress risers. The special hollow doweled cap offers accurate cap-to-rod beam alignment.
Suits: Chevy 383 & Holden 355 Stroker kits
Connecting Rod Length Center to Center (in.): 5.700 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Connecting Rod Finish: Natural
Wrist Pin Style: Floating / Bushed
Rod Journal Diameter (in.): 2.100 in. Large Journal
Big End Bore Diameter (in.): 2.2250 in.
Big End Width (in.): 0.940 in.
Pin End Bore Diameter: 0.927 in.
Clearanced for Stroker: YES
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Weight Matched Set: Yes
Magnafluxed: No
Quantity: Sold as a set of 8.
Specifications
SKU | SCAT-2-ICR5700-716 |
Brand | SCAT |
