SKU: PTS516A3W

454 BBC Chevy Big Block Stroker Forged Flat Top Pistons 4.280" 1.270" CH -3cc .990" GP 4032 forged

Suits 4.250" stroke & 6.385 Conrod. Rings Included

$1,298.00

or 4 payments of $324.50 with Info

SOLD OUT

Description

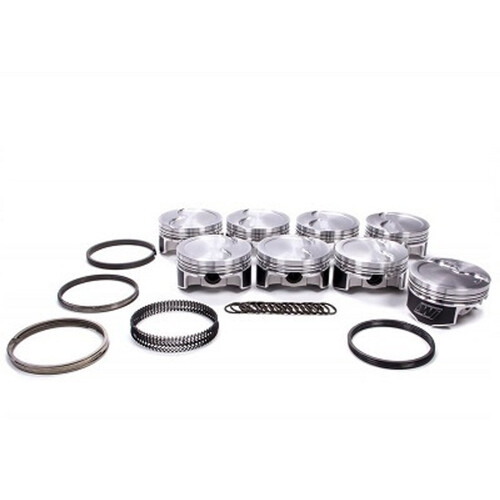

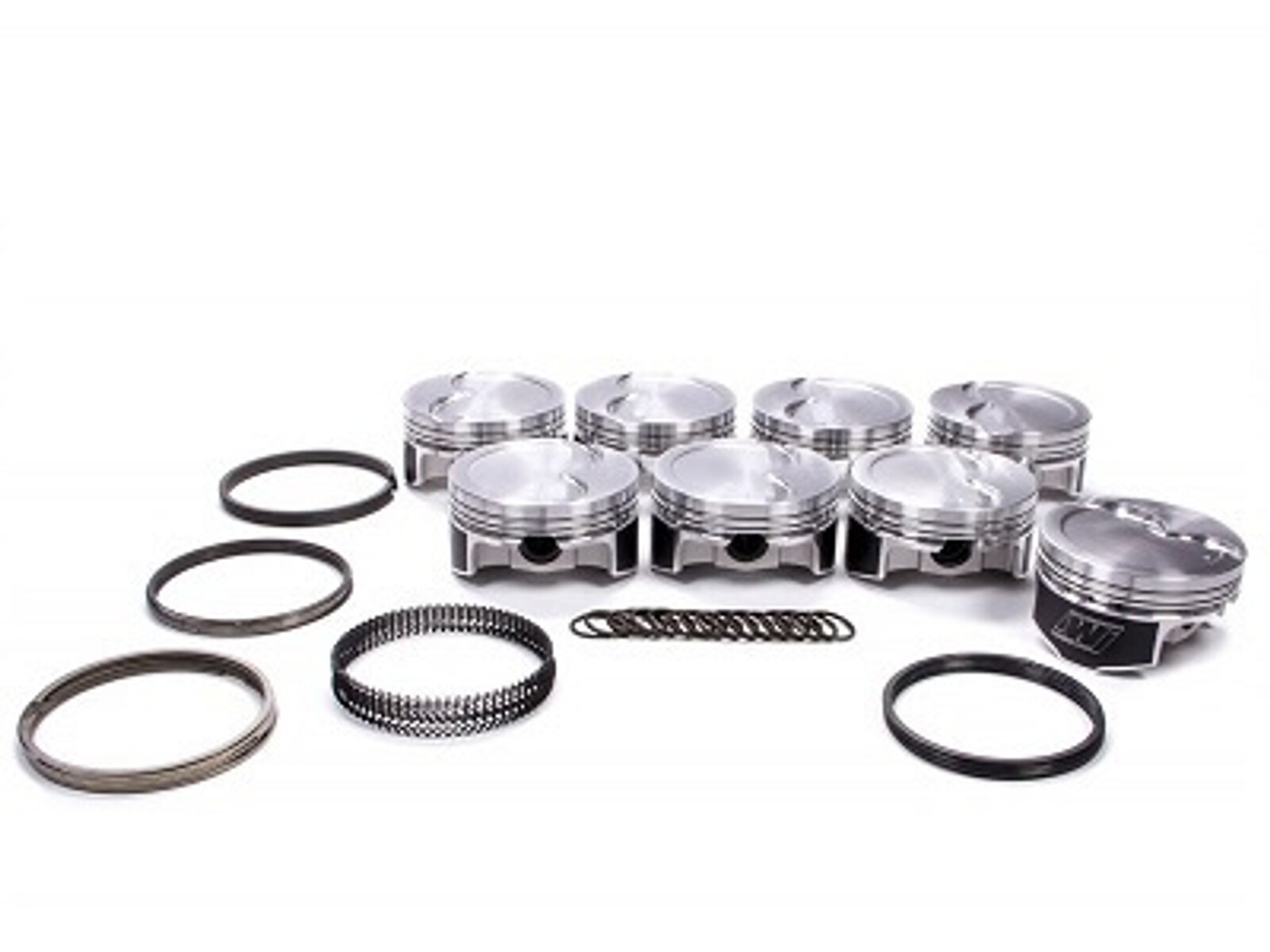

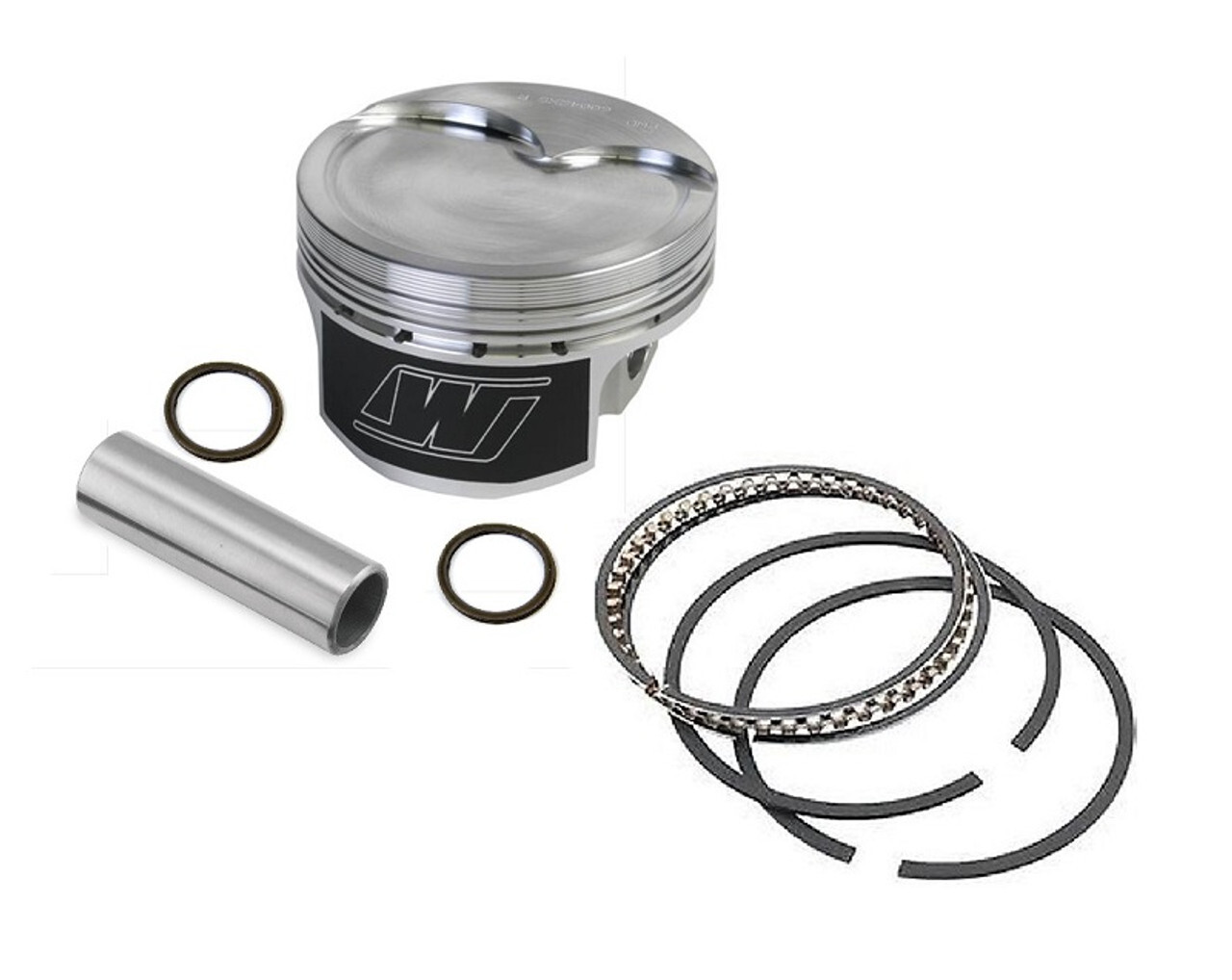

Wiseco 4032 Forged Flat Top Pistons, 454 Big Block Chevy Stroker pistons.  Performance Claimer Pistons - Chevy

Big Block Chevy, 4.250" Bore x 1.270" Compression Height (4.250" stroke x 6.385" Rod)

Pro Tru Street

Piston Rings included

Bore Diameter  4.280

Compression Height       1.270

Forging Type      Slab Side

Oil Ring Thickness            3/16

Piston Material  2618

Piston Pin Included         Yes

Piston Pin Material          5115

Piston Volume   -3.00

Product Series   Pro Tru Street

Product Types   Piston Kits

Ringset Included               Yes

Second Compression Ring Thickness        1/16

Skirt Coating       Y

Top Compression Ring Thickness               1/16

Wrist Pin Diameter          0.990

Wrist Pin Style   Floating

Notice:  Product Images may differ from the actual product.  Image may be a representation of this item.

Specifications

SKU PTS516A3W
Brand Wiseco
Bore 4.280
Piston Top Flat Top
Compression Height 1.130"
Rod Length 6.000
Piston Material Hypereutectic
PISTON PIN 0.927
Piston Pin Family Chevy
