SKU: DRP-SBM170-FVLSHR

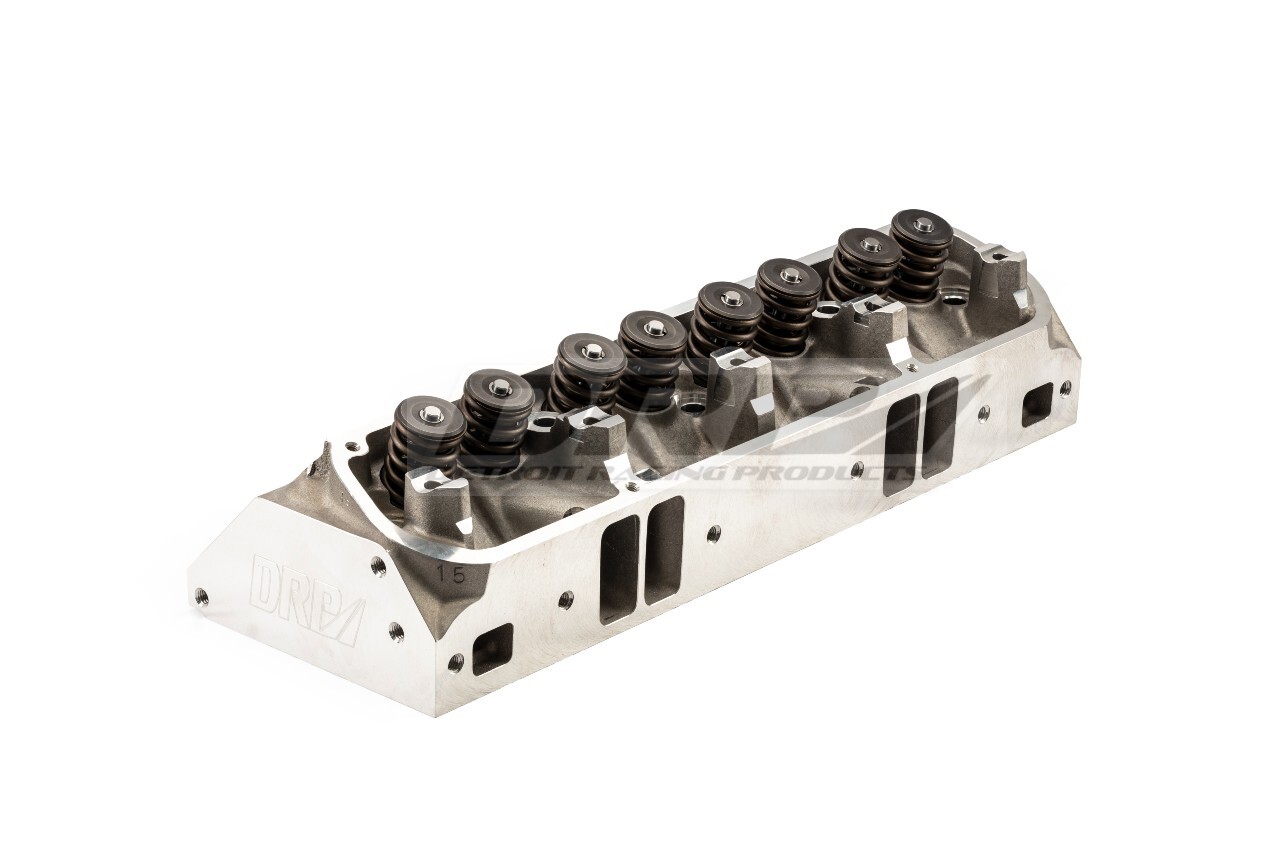

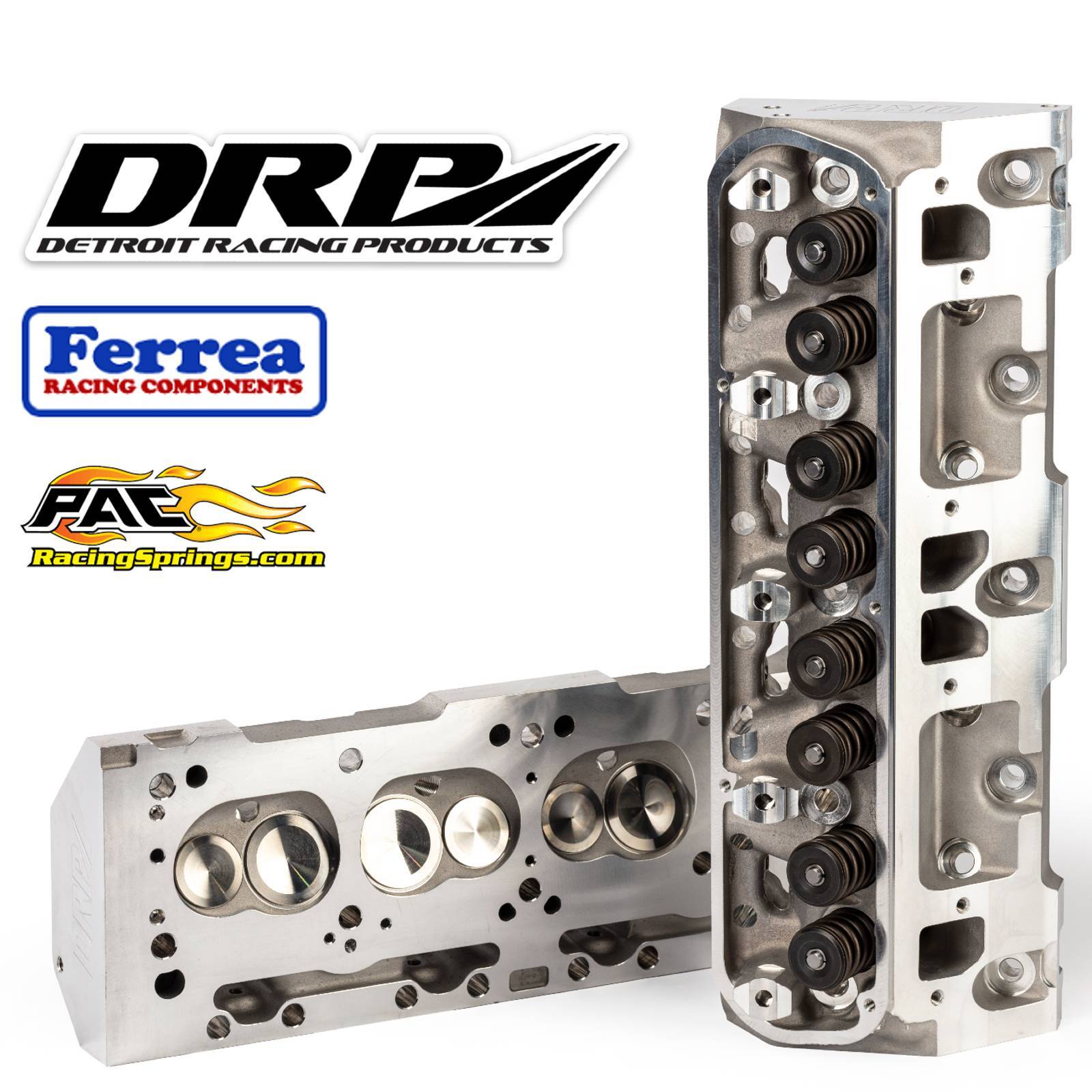

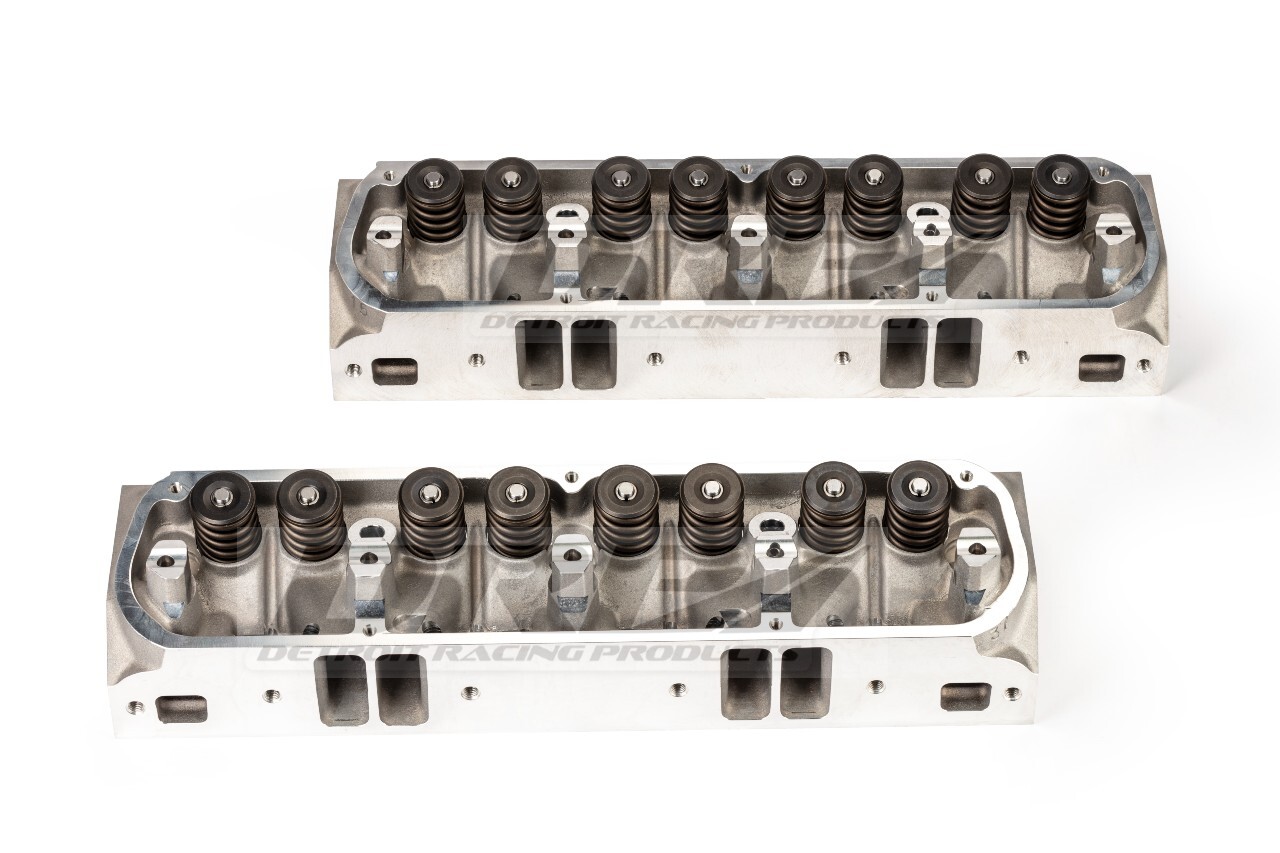

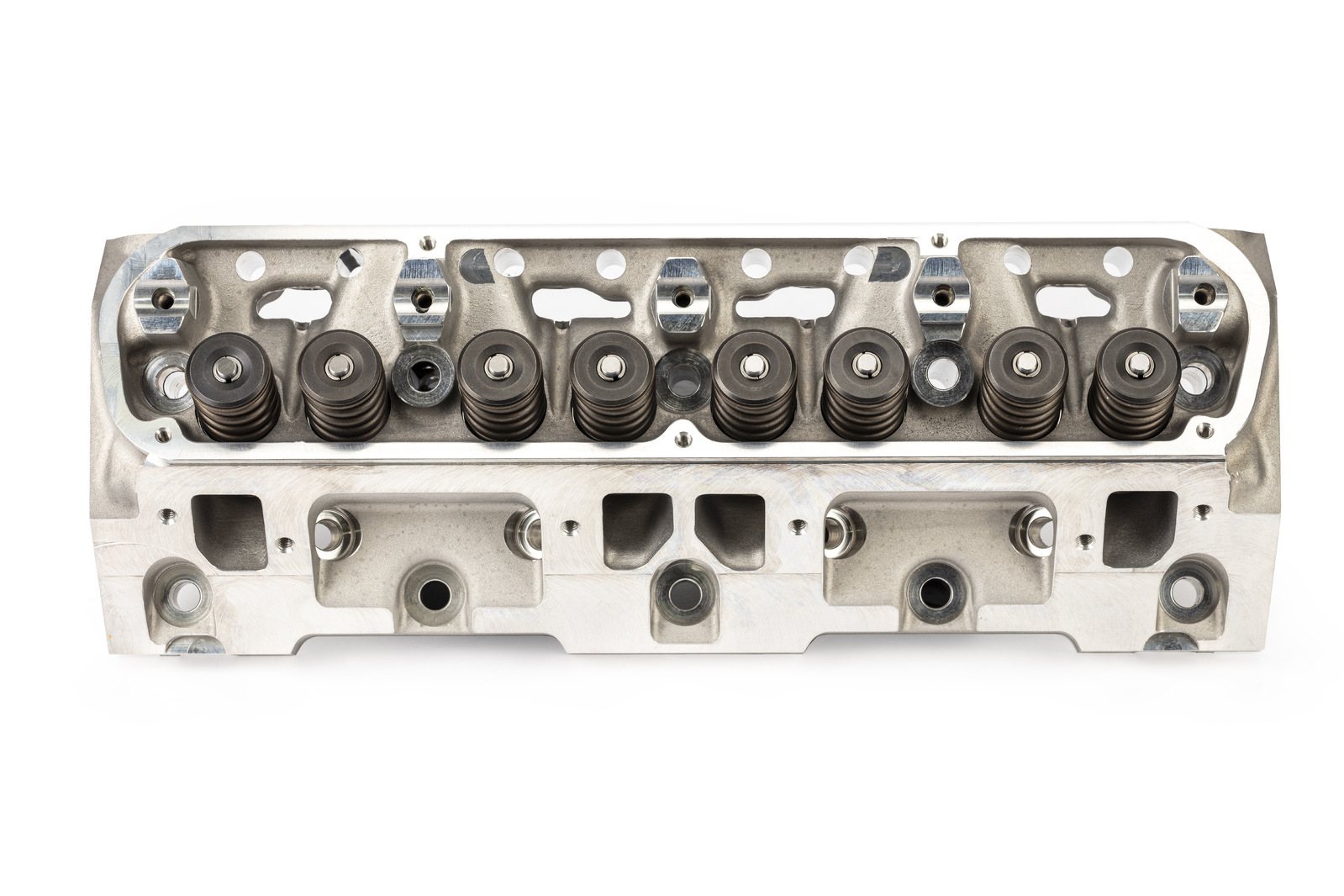

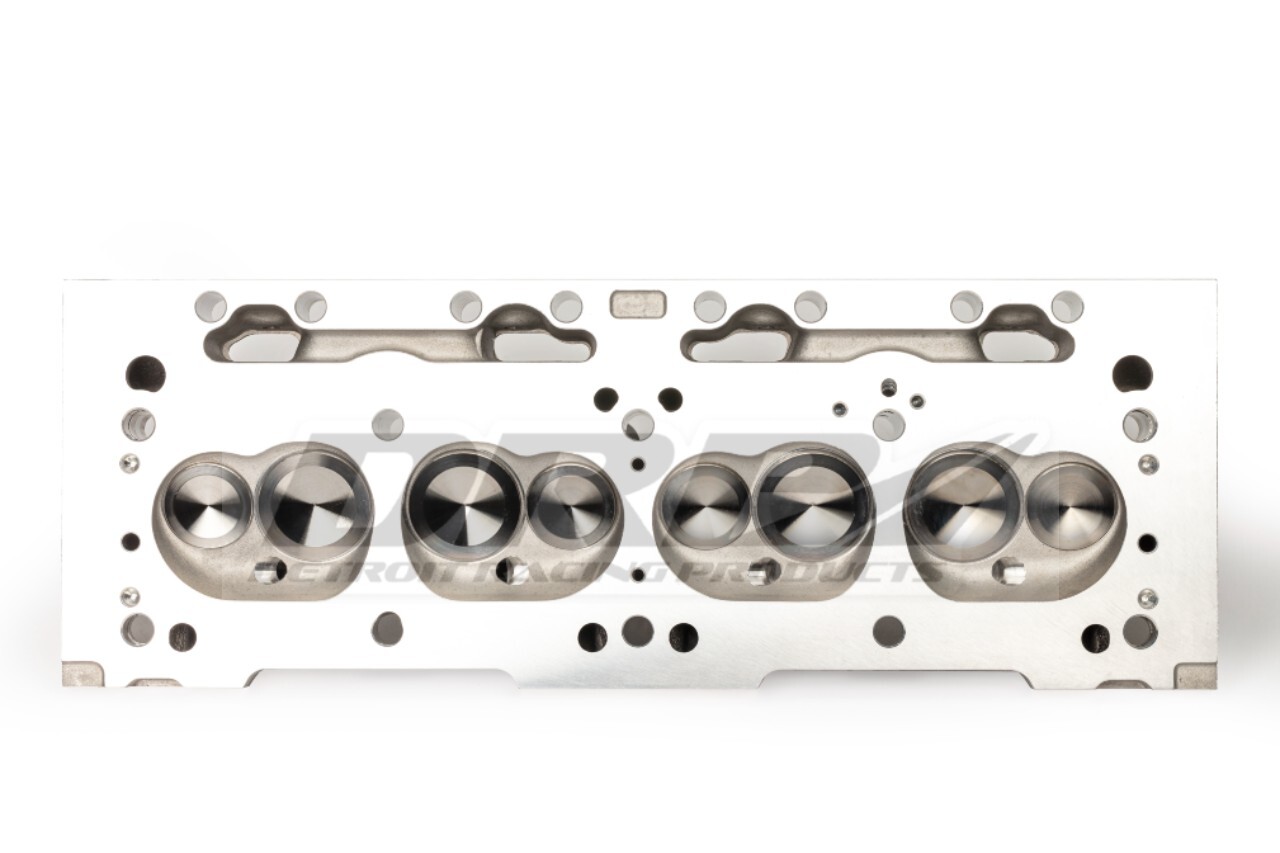

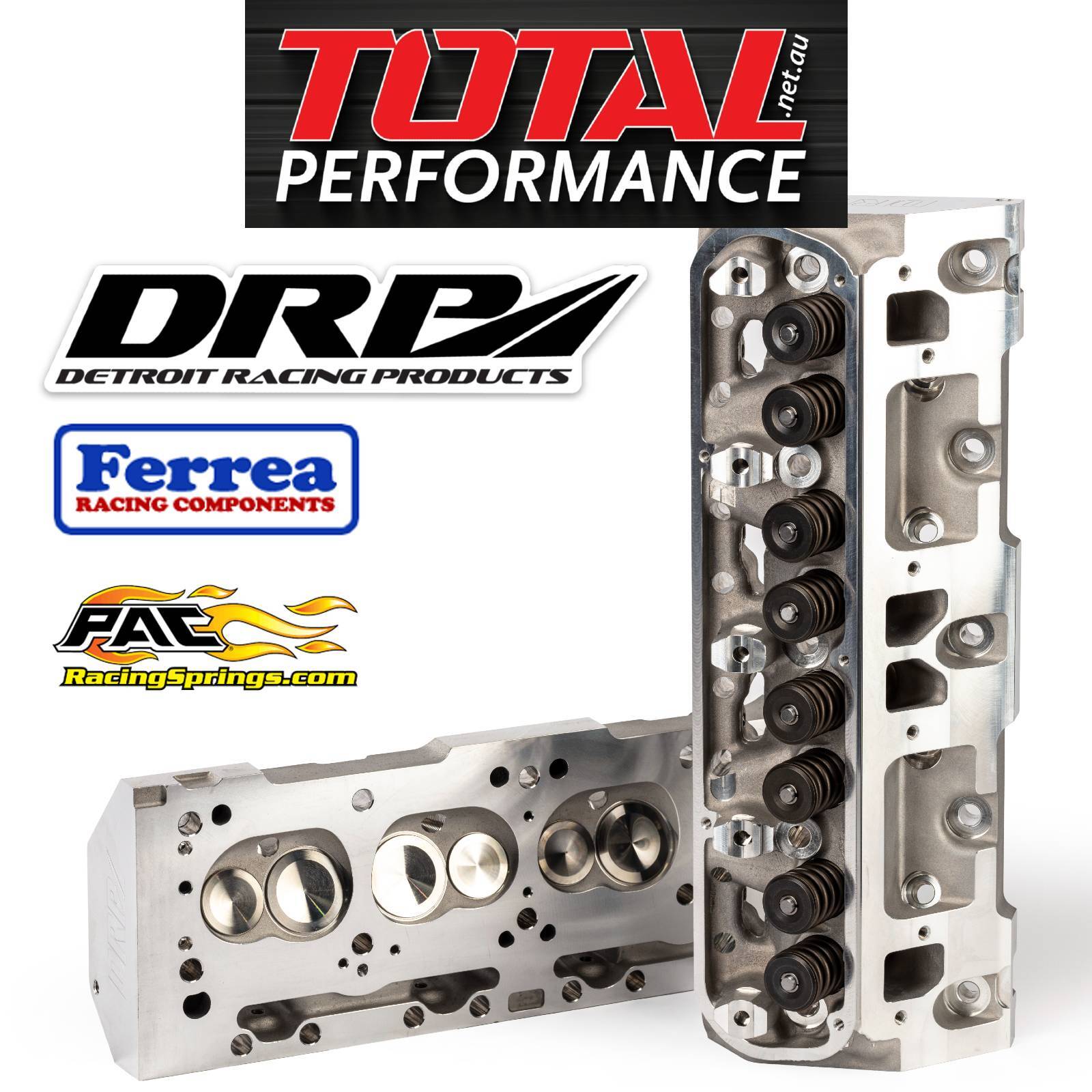

Chrysler Mopar Small Block V8 Cylinder Heads 318 340 360 170cc Runner 63cc Chamber Assembled Complete Hydraulic Roller / Solid Flat Tappet

Hydraulic Roller with PAC LS Springs & Ferrea Valves

$2,750.00

IN STOCK  FREE SHIPPING

Description

Small Block Chrysler Cylinder Heads. - Sold as a Pair.

Chrysler 1967 onwards LA 318-340-360 c.i.d. engines

Complete - set up for Hydraulic Roller and Solid Flat Tappet.

Assembled with Ferrea Valves and PAC polished LS Dual springs*

(picture shown with Comp Springs)

Valves:                                        Ferrea 5000

Springs:                                      PAC 1905 - Polished Dual Springs

Cylinder Head Material:                Aluminium A356.2 T6

Combustion Chamber Volume:    63cc

Intake Runner Volume:                 170cc

Exhaust Runner Volume:              77cc

Intake Valve Diameter:                 2.02''

Exhaust Valve Diameter:              1.60''

Valve Stem Diameter:                  11/32''

Valve Guides:                               Manganese Bronze

Deck Thickness:                           5/8''

Valve Spring Diameter:                xxx

Valve Spring Maximum Lift:       xxxx

Valve Angle:                                 18°

Exhaust Port Location:                 Stock

Spark Plug Fitment:                     14mm x 3/4'' Reach, Gasket Seat

Head bolts:                               use ARP 144-3601

Recommended Rockers:  Comp Cams part #1622-16

Disclaimer

We have described the product to the best of our knowledge. It is up to the purchaser to ensure it is suitable for their application. Some products require specialised fitting and additional parts.



Specifications

SKU DRP-SBM170-FVLSHR
Brand DRP
Unit Of Measure ea
Custom Bundle Yes
Bundle Description PAIR
