SKU: AT-1000550

4.040" +040" Chrysler 360 V8 Pistons, Forged Flat Tops - Suits standard stroke & rods. CH 1.667", 0.984" pin.

+ 040" | Standard Stroke & Factory Conrod.

$1,155.00

or 4 payments of $288.75 with Info

SOLD OUT

Description

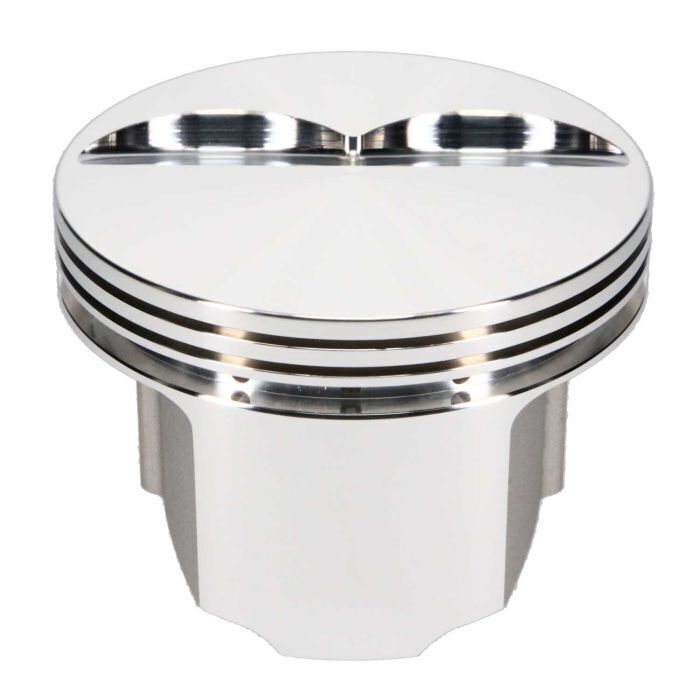

Racetec / Autotec Forged Pistons - Chrysler Pistons.

Forged Pistons

Suits:  360 Chrysler V8 with a Standard Stroke & Factory Conrod

Combination: 3.580" Stroke x 6.123" conrod.

Compression Height CH: 1.677"

Piston Top: Flat Top.

Piston Relief: -5cc

Piston Bore Size:  4.040"

Piston Overbore Size: + 040"

Rings Size:  1.5mm, 1.5mm, 3.0mm rings

Piston Rings included:  NO

Gudgeon Pins included: YES

Piston Wire Locks included: YES

Racetec / Autotec Forged Pistons

  • Manufactured on forged side relief, 4032 low expansion, high silicon material excellent for street or strip applications.
  • Diamond turned skirts.
  • CNC Precision machined ring grooves for 1.5mm, 1.5mm, 3.0mm rings.
  • Top ring land gas distribution groove to enhance performance and improve ring seal.
  • wrist pins, pin fitting, wire locks, broached pin oilers, and accumulator groove are included at no extra charge.

Specifications

SKU AT-1000550
Brand AUTOTEC
