SKU: CROW-PUG001

LS Oil Tube Pick Up Brace Girdle Billet Hold down clamp for LS1 LS2 LS3 oil pumps

$44.37

or 4 payments of $11.09 with Info

IN STOCK

Description

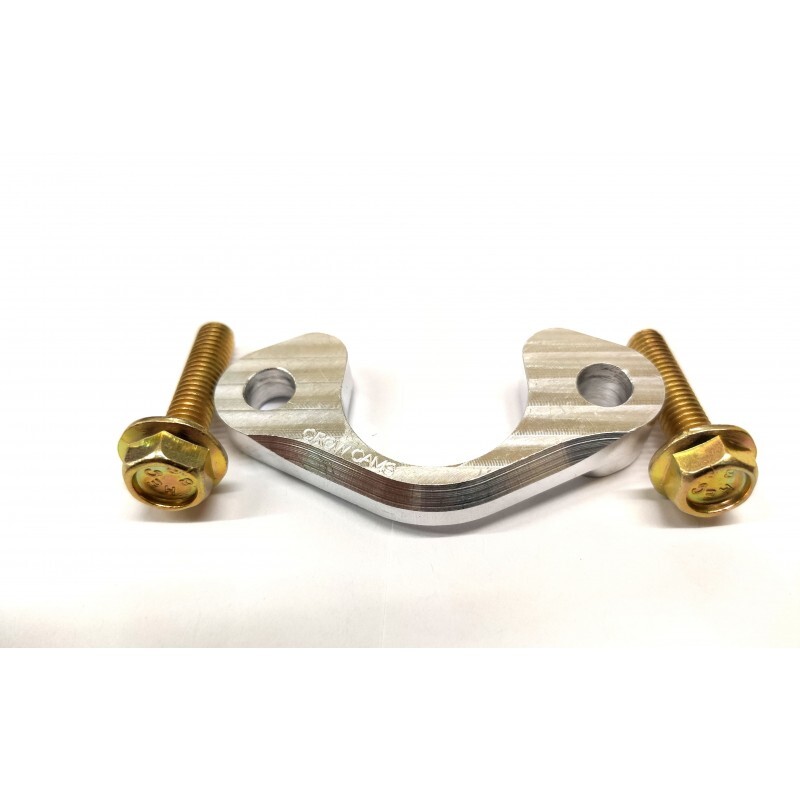

Crow Cams PUG001 LS Oil Tube Pick up Brace Girdle Hold down clamp for LS oil pumps

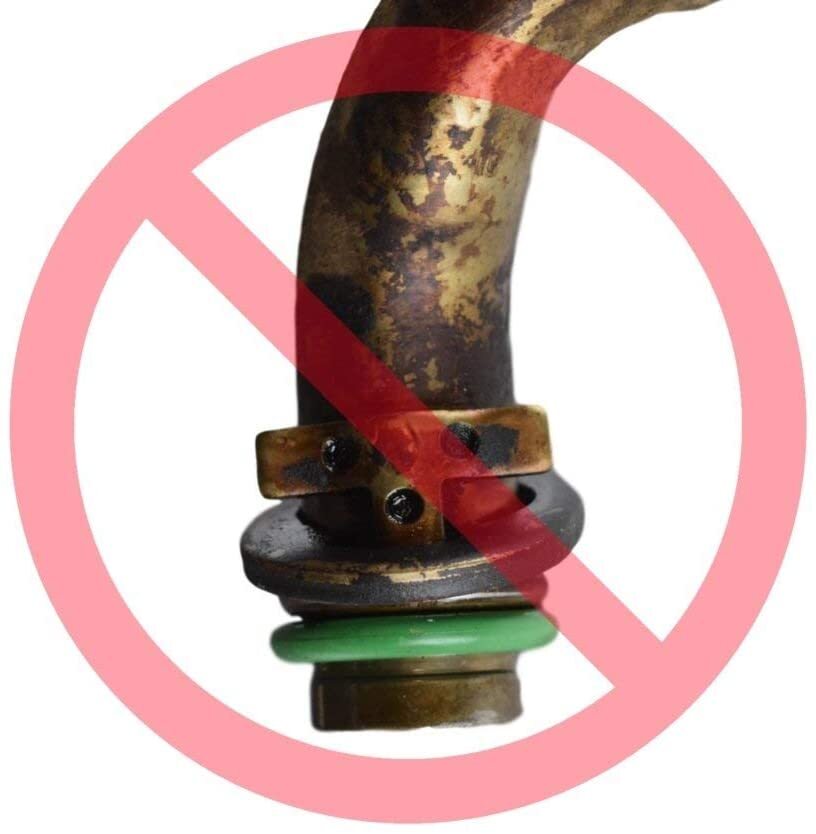

One small downside to the LS engines design is the single screw oil pickup tube which has been known to result in poor sealing of the O'ring seal, which results in causing issues with oil pressure and starvation.

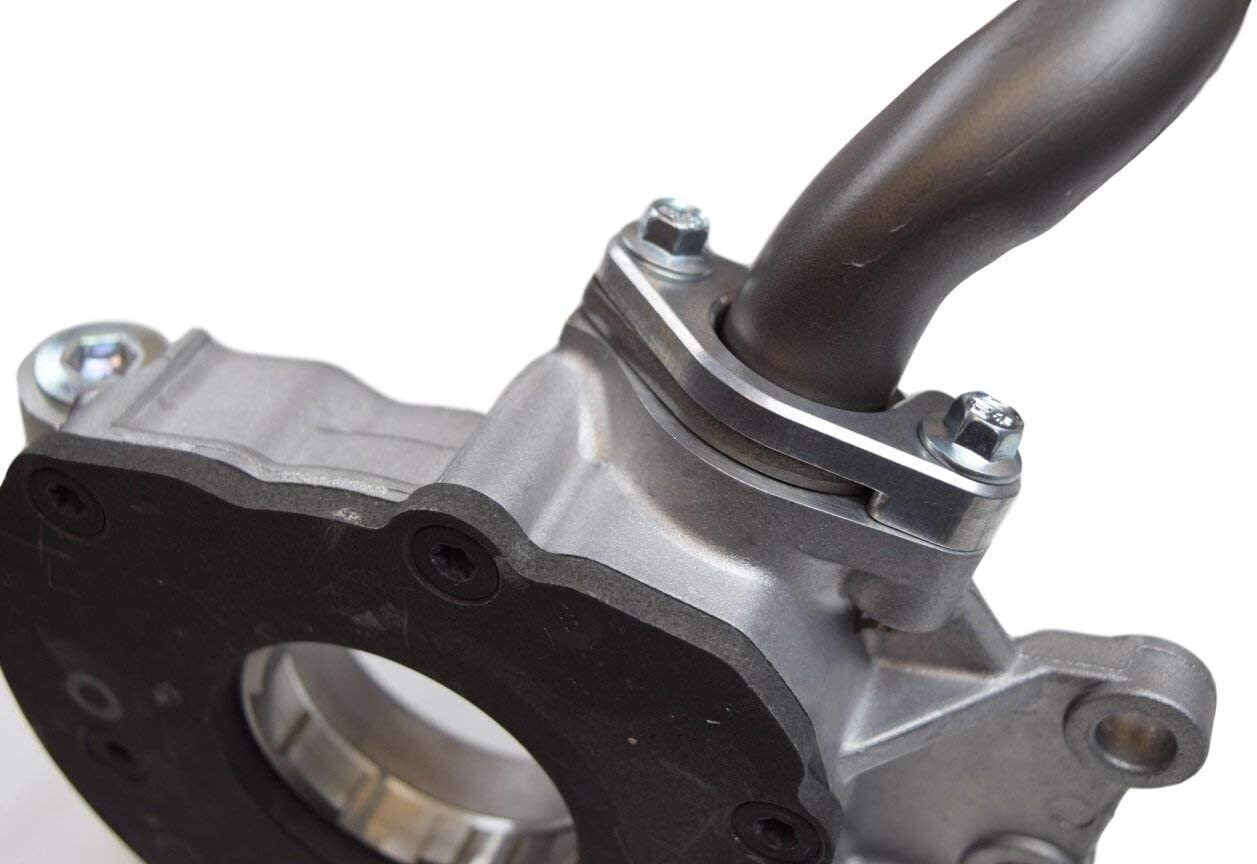

This brace is the solution to that problem! By making using of the un-used bolt hole to evenly clamp both sides of the brace around the tube, eliminating movement of the tube so there is no oil leaks or cavitation issues.


Will suit the following engines

  • 4.8L / 293ci L20, LR4, LY2
  • 5.3L / 325ci L33, L59, LC9, LH6, LH8, LM4, LM7, LMG, LY5
  • 5.7L / 346ci LS1, LS6 (also referred to as 350)
  • 6.0L / 364ci L76, L96, LFA, LQ4, LQ9, LS2, LY6
  • 6.2L / 376ci L92, L99, LSA, LS3

NOTE: WILL NOT WORK with tubes fitted with a retainer plate or fit GM pickup tubes for rear facing sump # 12608593

Warranty

12

Specifications

SKU CROW-PUG001
Brand CROW CAMS
