SKU: 32-642-5

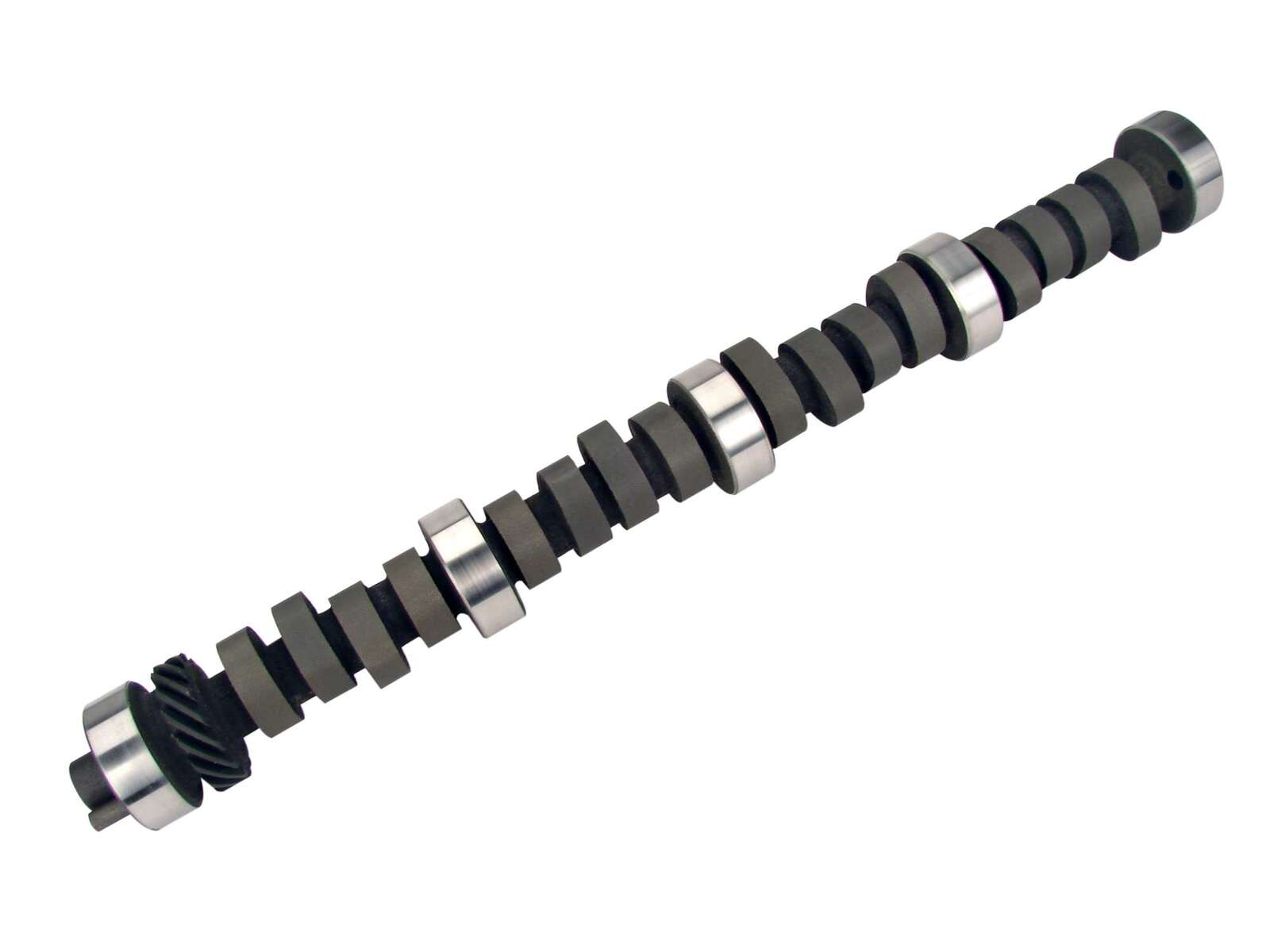

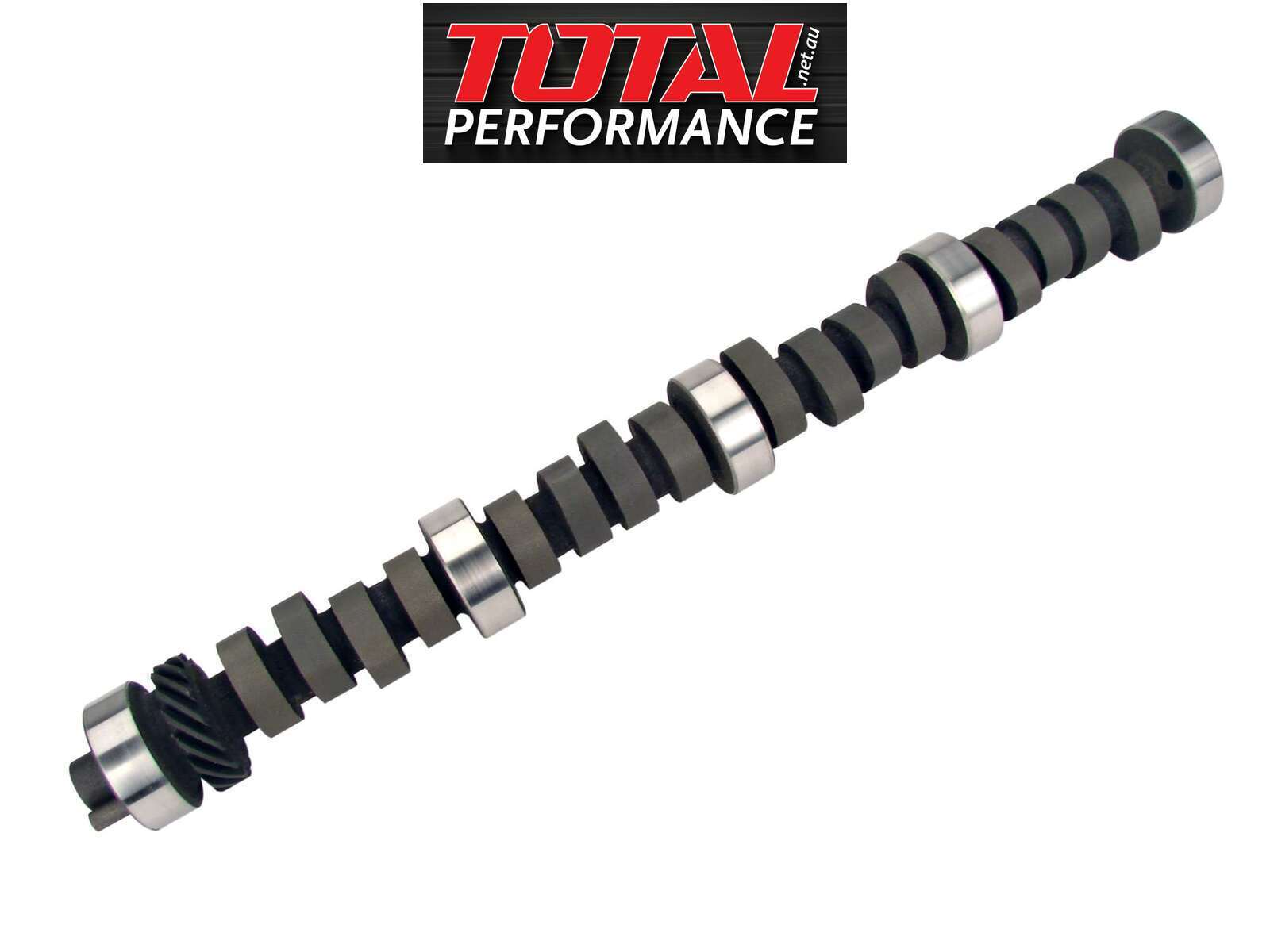

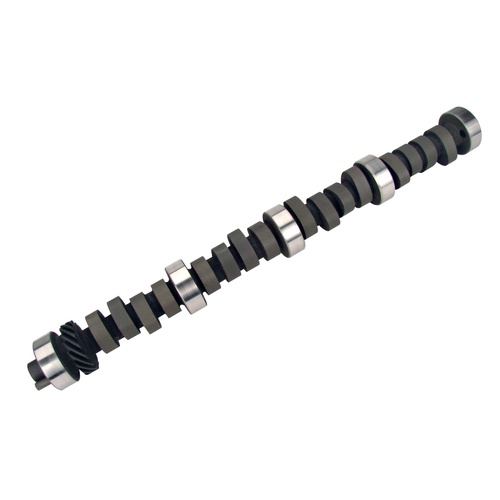

285B Oval Track 250/260 Solid Flat Tappet Camshaft LSA 106 Ford 351C, Cleveland 393 408
Description
Ford 351C, 351M-400M 8 Cylinder (1970-1983)
Best for 1/4-3/8 mile track, broad torque range.
Recommended springs: Comp cams: 930-16
Engine Family:Ford 351C, 351M-400M 8 Cylinder (1970-1983)
RPM Operating Range:3,500-6,500
Grind Number:285B-6
Cam Type:Solid Flat Tappet
Lifter Style:Solid Flat Tappet
Camshaft Series:Oval Track
Camshaft Gear Attachment:1-Bolt
Usage:Strip
Valve Springs Required:Yes
Camshaft Material:Cast Iron
California Proposition 65:WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Advertised Intake Duration:285
Advertised Exhaust Duration:295
Intake Duration at .050 Inch Lift:250
Exhaust Duration at .050 Inch Lift:260
Intake Valve Lift:0.614
Exhaust Valve Lift:0.645
Lobe Lift Intake:0.356
Lobe Lift Exhaust:0.37
Lobe Separation:106
Intake Centerline:106
Assembly Lubricant Included:Yes
Valve Timing @ 0.02 Lift:
Exhaust Close ATDC: 42
Exhaust Open BBDC: 74
Intake Open BTDC: 37
Intake Close ABDC: 69
Specifications
| SKU | 32-642-5 |
| Barcode # | 036584641049 |
| Brand | COMP CAMS |
| intake valve lift | 0.614 |
| Exhaust Valve Lift | 0.645 |
| Lifter Type | Solid Flat Tappet |
| Advertised Exhaust Duration | 295 |
| Advertised Intake Duration | 285 |
| Cam Type | Solid Flat Tappet |
| Exhaust Duration At .050 Inch Lift | 260 |
| Intake Duration At .050 Inch Lift | 250 |
| Lobe Separation | 106 |
| Camshaft Series | Oval Track |
| Grind Number | 285B-6 |
| Basic Operating Rpm Range | 3,500-6,500 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
