Ford Barra Flexplate, Neutral Balance, 160T Tooth, DOHC 4.0l Turbo XR6

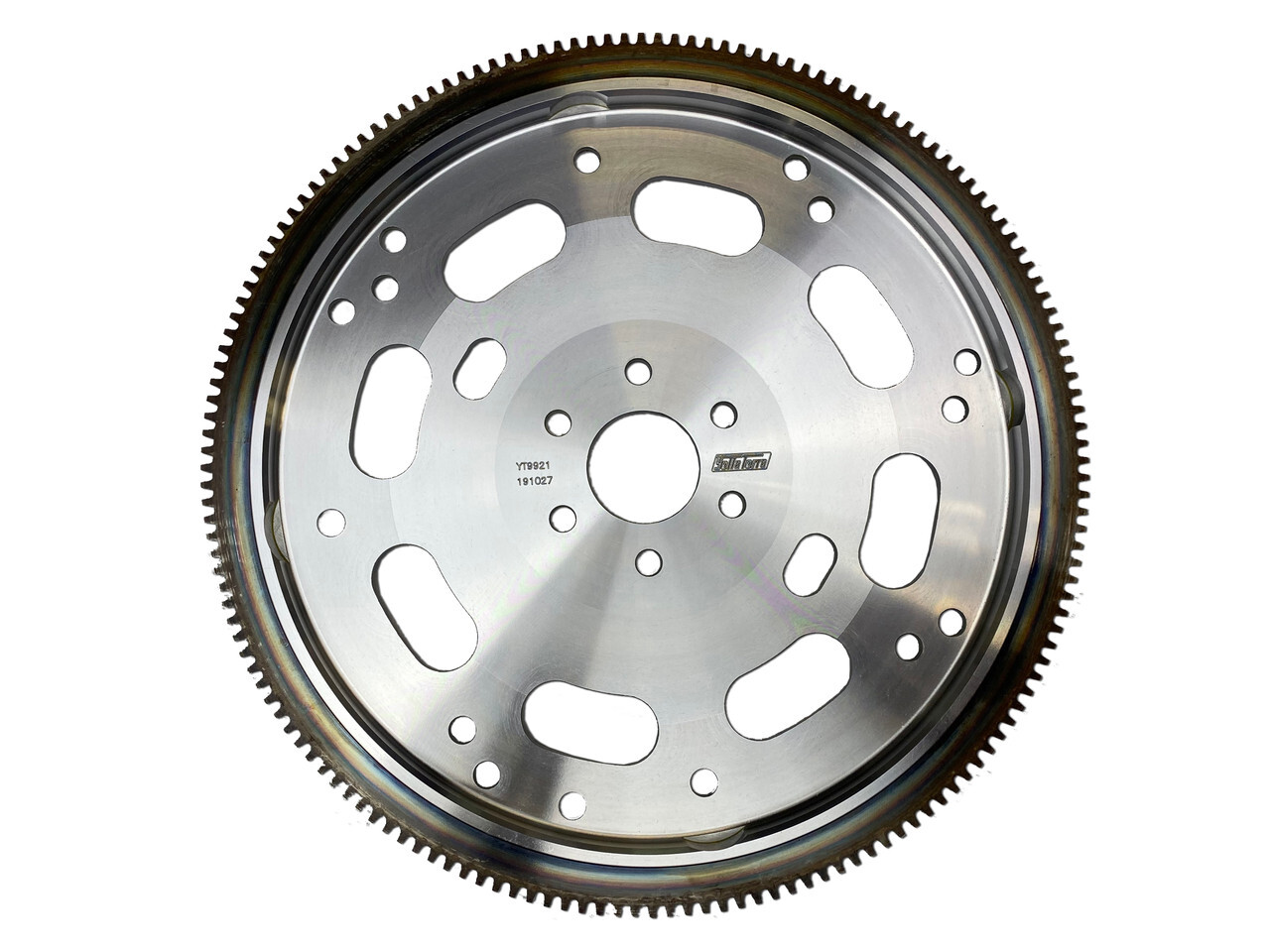

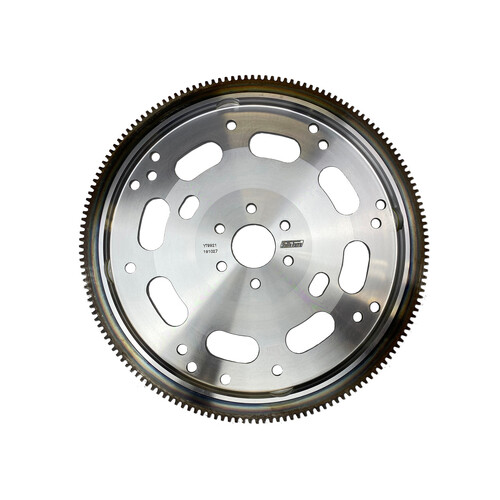

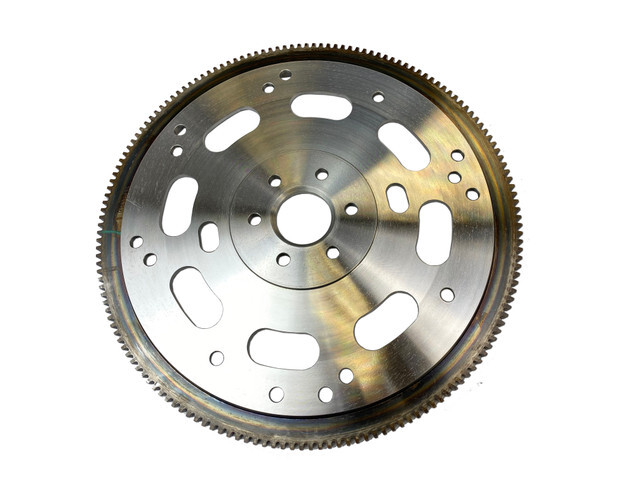

Yella Terra YT9921 Flexplate - Ford XR6 Barra 6 Cylinder
Yella Terra has been designing and manufacturing CNC billet Steel Flywheels for the Performance and Race Industry for the past 25 years.
Applying this experience, Yella Terra are proud to announce the release of our New Ford 6cyl. DOHC 4.0L Flexplate.
With Ford 6cyl turbocharged engines now capable of producing over 1000+ HP the thin factory sheet metal flexplates are failing or fretting loose due to the enormous torsional loads channeled through them.
Yella Terra has engineered an ANDRA specified, Billet Steel Flexplate designed for these performance applications.
Yella Terra's flexplate is CNC Machined to OE specs and drilled with multiple bolt patterns to accommodate a number of torque converters.
Eight machined slots reduce rotating mass and provide extra airflow around the torque converter.
Yella Terra Billet flexplates come ready to bolt on with a new factory spec ring gear, with an assembled weight of just 5.3Kg.


CLASSIFICATION: HEAVY DUTY
FLYWHEEL BALANCE: NEUTRAL
ENGINE BALANCE STATUS: 0
WEIGHT KG: 5.3kg
NO. OF TEETH: 160
ENGINE APPLICATION: 6CYL
ENGINE TYPE: DOHC BARRA I6
ENGINE CAPACITY: 4.0L TURBO
MODEL APPLICATION: FORD FALCON 2002 onwards
BA – BF
FG - FG/X
TORQUE CONVERTER PATTERN:
FACTORY BTR 4sp / 5sp / ZF 6sp
HUGHES Performance 8 Bolt Converter
CLUTCH DIAMETER: N/A
CLUTCH NOTES: Heavy Duty Flex Plate
CRANK REGISTER DIAMETER: 44.46mm
CRANK BOLT HOLES: 6
PRESSURE PLATE BOLT HOLES: 0
NOTES:
10mm longer crank / converter bolts required (NOT INCLUDED)
Thickness of Flex plate at Crank Mounting Point: 7.8-8 mm
By enlarging crank holes to 15/32" flex-plate will suit early model Ford 6cyl. engines (144, 170, 221, 250ci)

FEATURES

• Explosion Proof Billet Steel.
• CNC machined accuracy to factory specs.
• Offers exceptional Power and Torque holding capacity.
• 10mm material thickness around mount holes to prevent fretting & cracking.
• 8 machined slots to reduce mass and create airflow around converter.
• Meets ANDRA flexplate requirements
