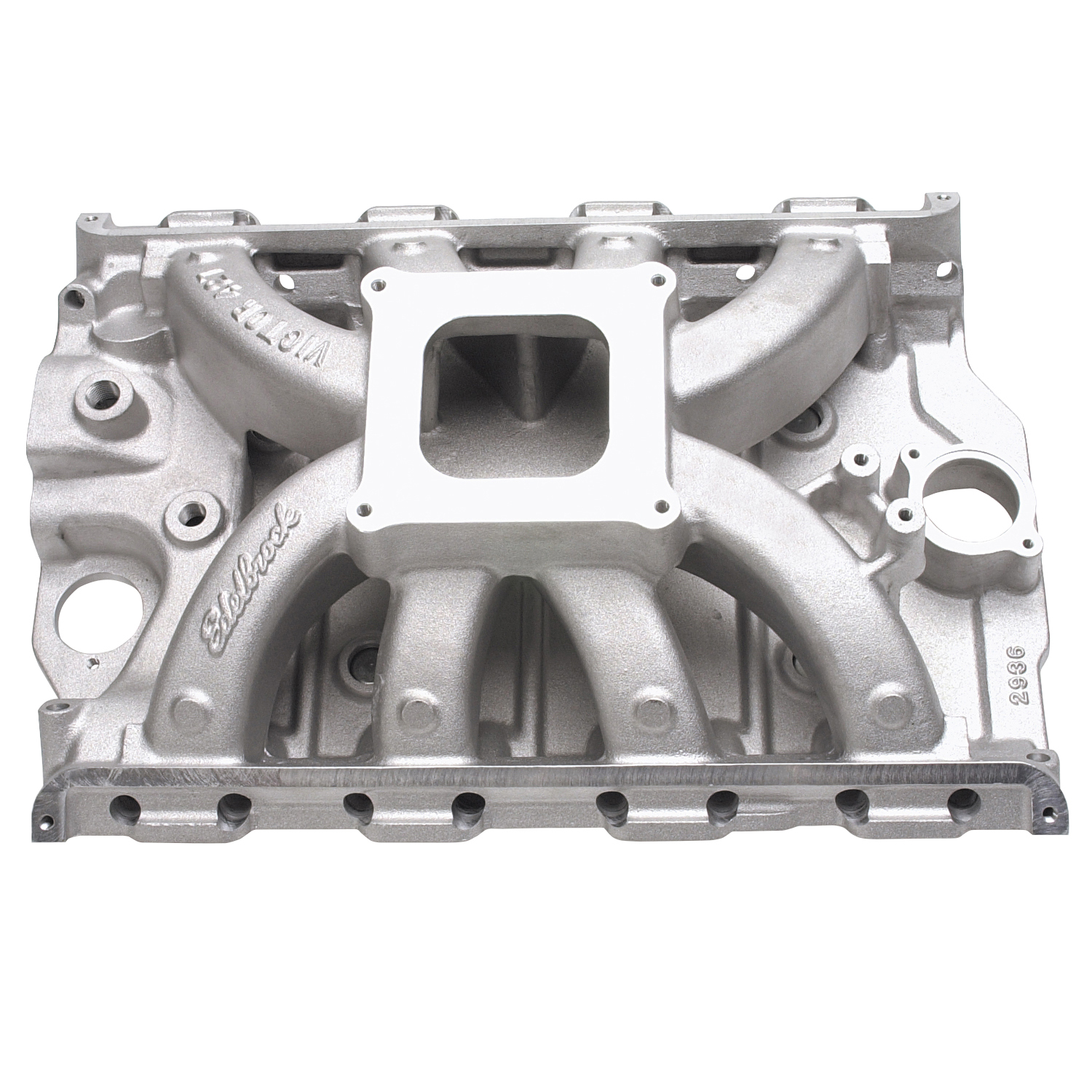

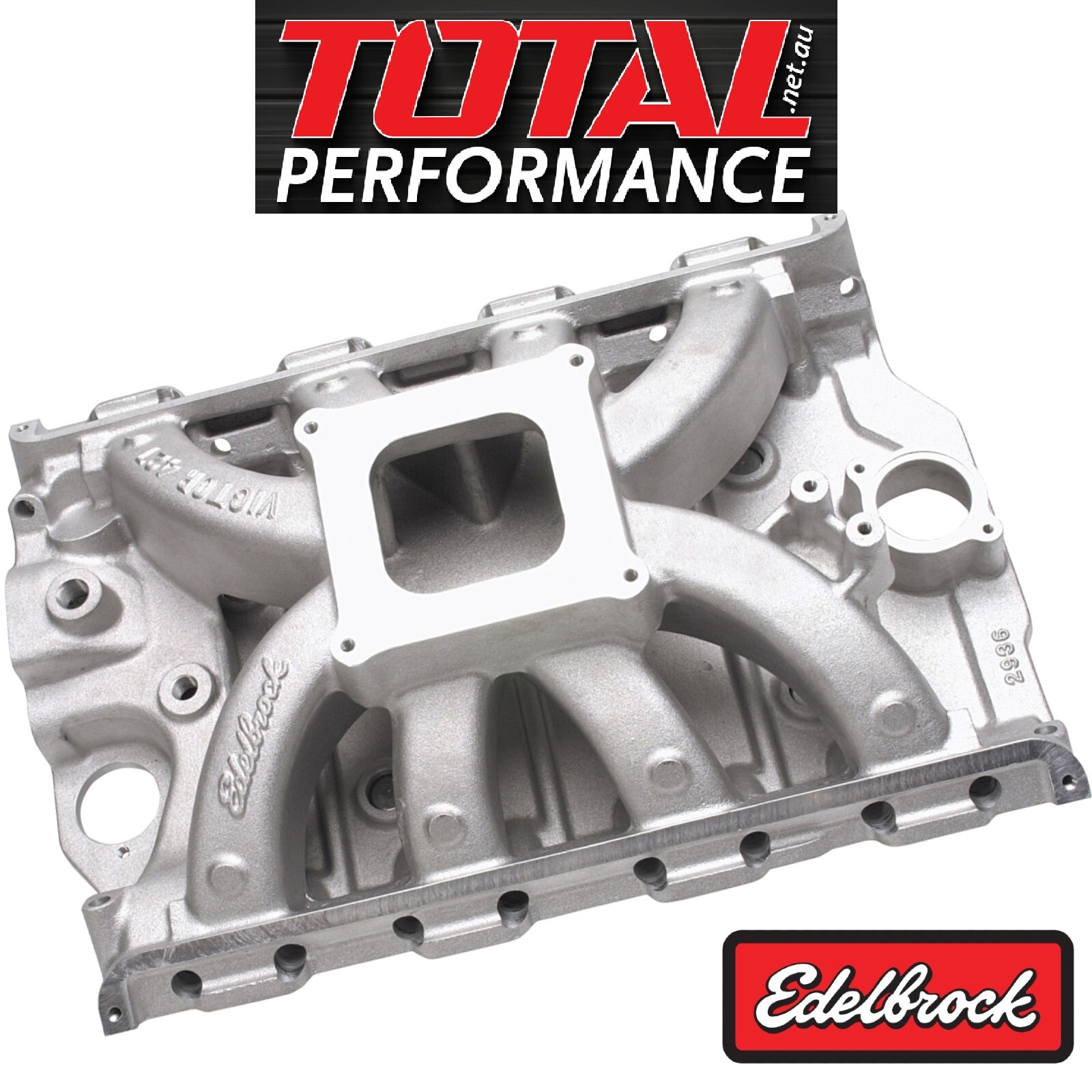

Edelbrock Victor FE Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8

ED2936 Edelbrock Victor FE Intake Manifold for 1958-1976 Ford 390 428 FE Big-Block V-8

Edelbrock Single Plane 2936 Victor FE 390 428 intake manifold is designed for high performance 390-406-410-427-428 c.i.d. Ford FE engines. This single-plane inlet manifold design provides race-winning power for many types of competition FE Big Blocks. The 4150 Carb flange height is equal to the Ford high-riser manifold #C4AE-9424-G to fit under 427 Cobra Jet hoods. Inlet Runners have plenty of material for port matching to low- or medium-riser style FE heads. Machined rear breather flange is included with unmachined nitrous bosses and front oil fill tube boss. Will not fit 427 high-riser and tunnel-port heads. Match with our Edelbrock FE Cylinder heads.

Part Type: FE Big Block Intake Manifolds, Carbureted

Product Line: Edelbrock Victor Intake Manifolds

Intake Section Included: Complete

Engine Block Deck Height: Standard deck

Carburetor Quantity: One

Intake Manifold Style: Single plane

Basic Operating RPM Range: 4,500-8,500

Intake Manifold Height: 6.490 in.

Intake Finish: Natural

Intake Material: Aluminum

EGR: No

Quantity: Sold individually.

Notes: Has Bosses for rear breather, front oil-fill tube, and nitrous. Extra material for port matching to low and medium-rise heads.

Intake Gasket Recommendation:  Fel Pro 1247
