Description

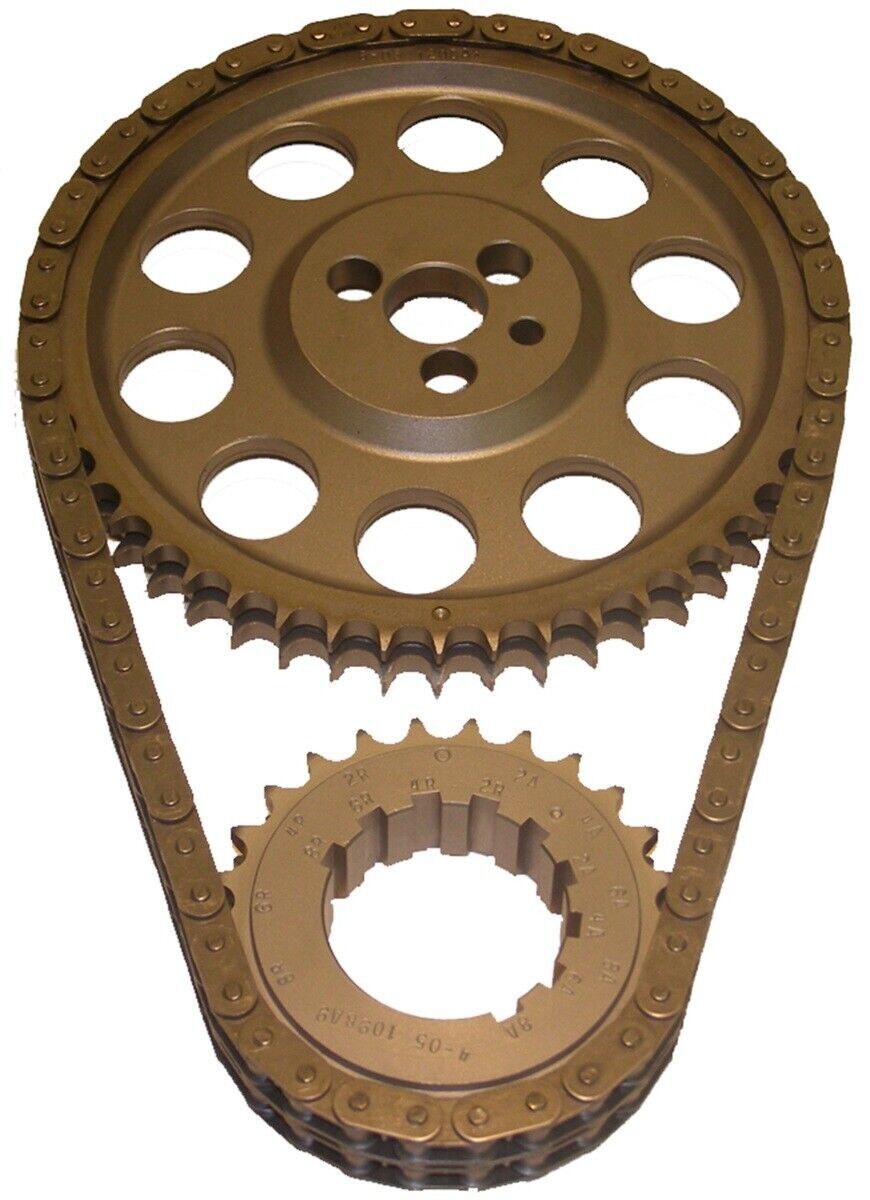

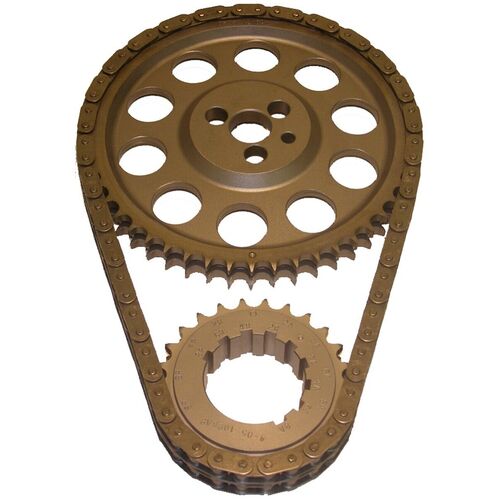

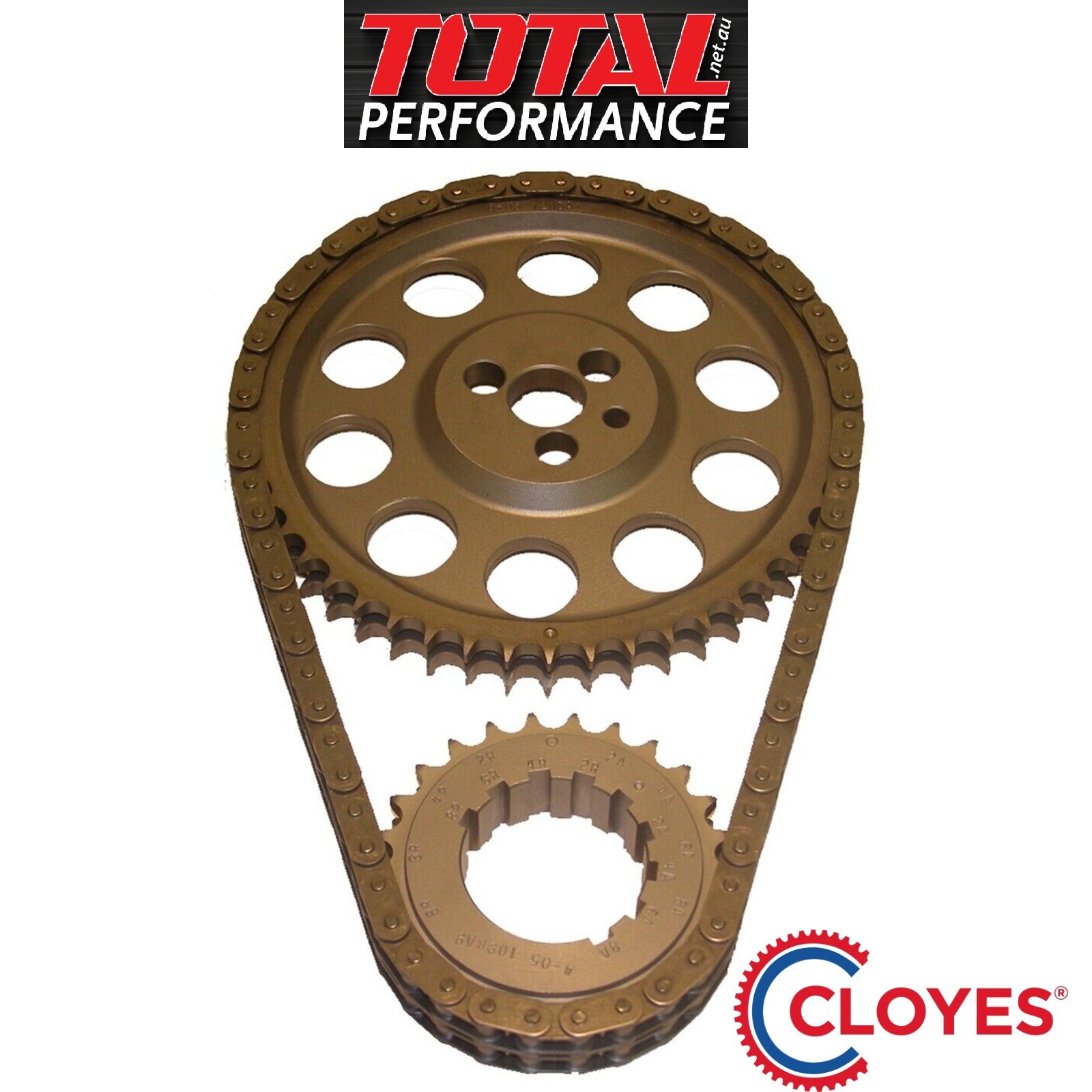

9-3535X9 FORD WINDSOR TIMING CHAIN - DOUBLE ROLLER, Cloyes Street Billet True Roller Timing Sets -
Offering a level of True Roller advantage for the value-racer, Cloyes upgraded the cam sprockets to feature the strength of billet steel and added critical functioning features. The billet steel durability, 9-keyway induction-hardened crank sprocket, .250 True Roller chain, and precise CNC machining together offer quality and adjustability unmatched in their class.
Features include:
• Billet steel cam sprocket
• Induction heat-treated billet steel crank sprocket
• 9 keyways allow +/- 8 degrees
• Adjustability in 2 crank degree increments
• True Roller chain with .250 in. diameter rollers
Timing Chain Included: Yes
Timing Chain Style: Double roller
Maximum Advance/Retard at Camshaft: 4 degree
Maximum Advance/Retard at Crankshaft: 8 degree
Cam Gear Included: Yes
Cam Gear Material: Billet steel
Crank Gear Included: Yes
Crank Gear Material: Billet steel
Thrust Bearing Included: No
Bolts/Studs Included: No
Gaskets Included: No
Notes:
Standard centre distance of 4.804 in. 9 Keyway. Designed to work with 1-piece eccentric.
Specifications
SKU | CLOY-9-3535X9 |
Barcode # | 036584340416 |
Brand | CLOYES |
chain type | Double Roller |
Camshaft Gear Material | Cast Iron |
Crankshaft Gear Material | Billet Steel |
Maximum Advance | 4 |
Maximum Retard | 4 |
Number Of Crankshaft Keyways | 3 |
Replacement Chain Part Number | 3038 |
Timing Set Series | Hi-Tech |
