SKU: 35-420-8

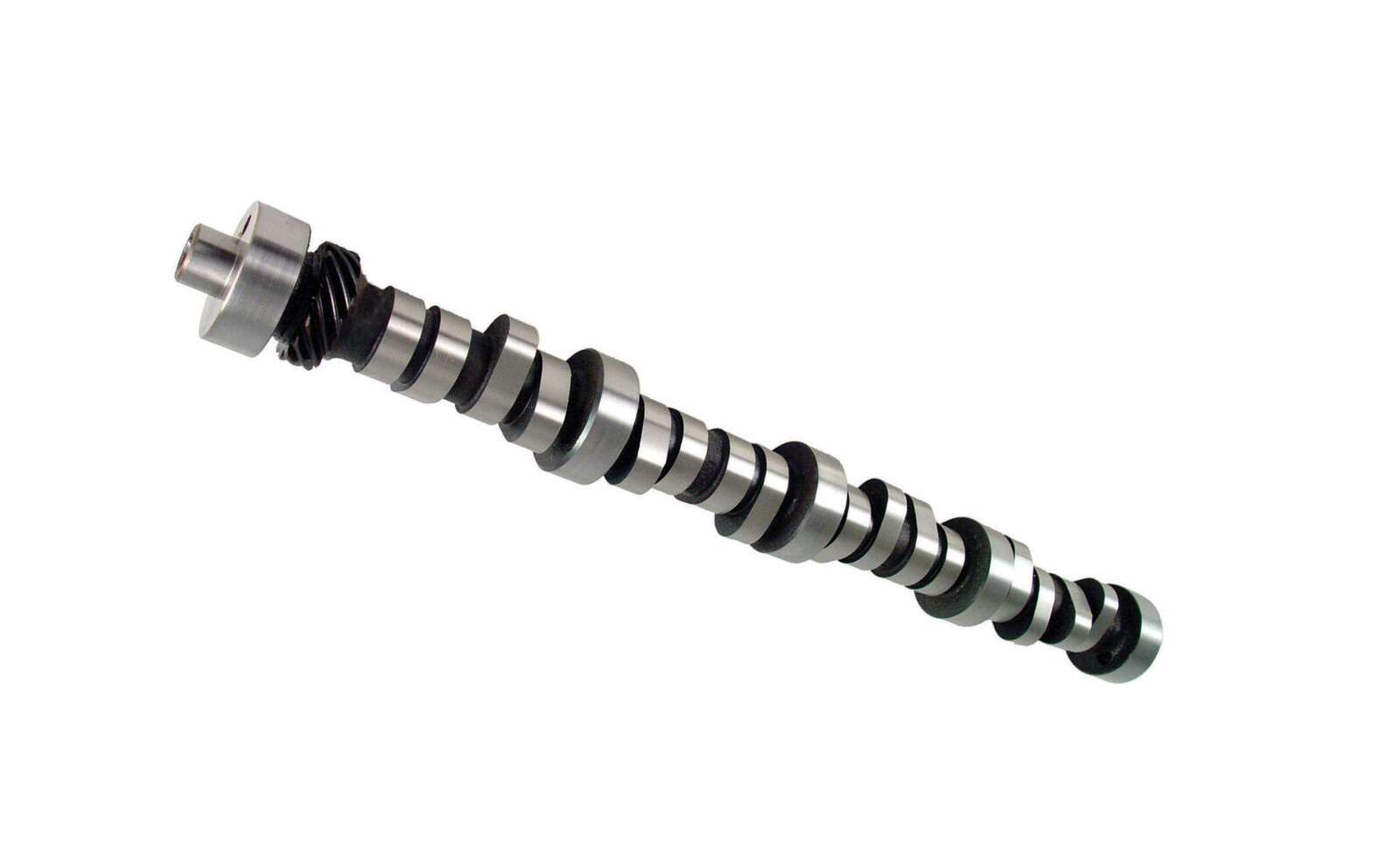

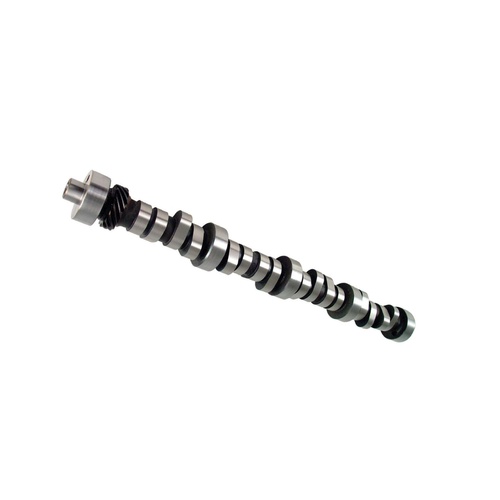

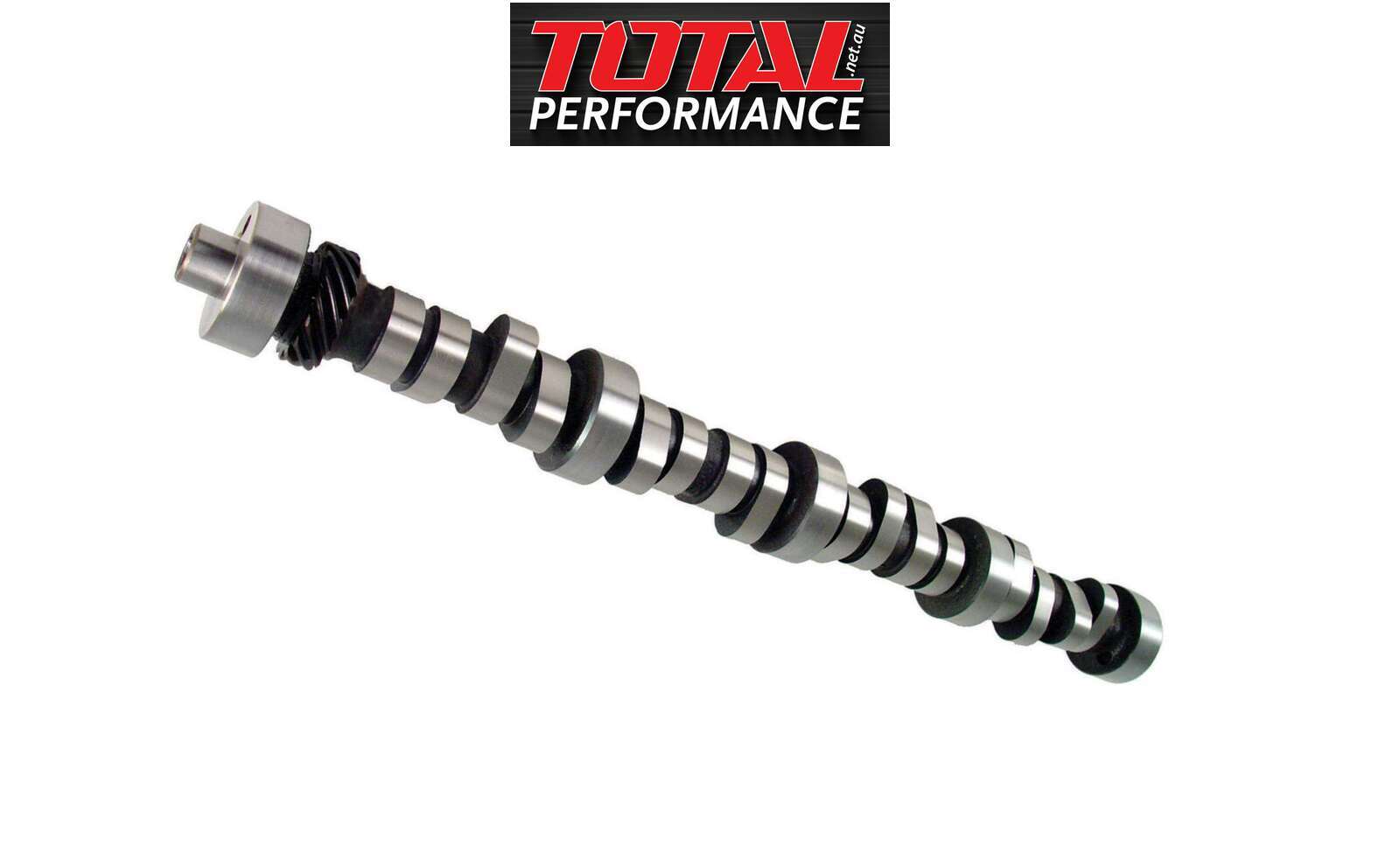

270HR Magnum 215/215 LSA 110 OEM Hydraulic Roller Camshaft Ford 5.0L (Carb only) 302W 351W Windsor SBF

RPM Range: 1800-5000 + OEM Large Base Circle

$948.02

or 4 payments of $237.00 with Info

IN STOCK  FREE SHIPPING

Description

Mild street performance. Slight lope at idle. Stock converter ok but best with 1800+ stall. Needs lower gears.

HYDRAULIC ROLLER: Mild street performance. Slight lope at idle. Stock torque converter & gears. Good stock HO replacement.

Grind Number:270HR
Engine Family:Ford 5.0L (1985-2002)
RPM Operating Range:1,800-5,000
Cam Type:Hydraulic Roller
Lifter Style:Hydraulic Roller
Camshaft Series:Magnum
Camshaft Gear Attachment:1-Bolt
Usage:Street/Strip
Valve Springs Required:Yes
Camshaft Material:Austempered Ductile Iron
California Proposition 65:WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov
Advertised Intake Duration:270
Advertised Exhaust Duration:270
Intake Duration at .050 Inch Lift:215
Exhaust Duration at .050 Inch Lift:215
Intake Valve Lift:0.533
Exhaust Valve Lift:0.533
Lobe Separation:110
Assembly Lubricant Included:No
Intake Centerline:106
Lobe Lift Intake:0.333
Lobe Lift Exhaust:0.333
Valve Timing @ 0.006 Lift:
Exhaust Close ATDC: 21
Exhaust Open BBDC: 69
spec-card-valve-timing
Intake Open BTDC: 29
Intake Close ABDC: 61

Specifications

SKU 35-420-8
Barcode # 036584780076
Brand COMP CAMS
intake valve lift 0.533
Exhaust Valve Lift 0.533
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 270
Advertised Intake Duration 270
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 215
Intake Duration At .050 Inch Lift 215
Lobe Separation 110
Camshaft Series Magnum
Grind Number 270HR
Basic Operating Rpm Range 1,800-5,000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 1-Bolt
Camshaft Material Austempered Ductile Iron
