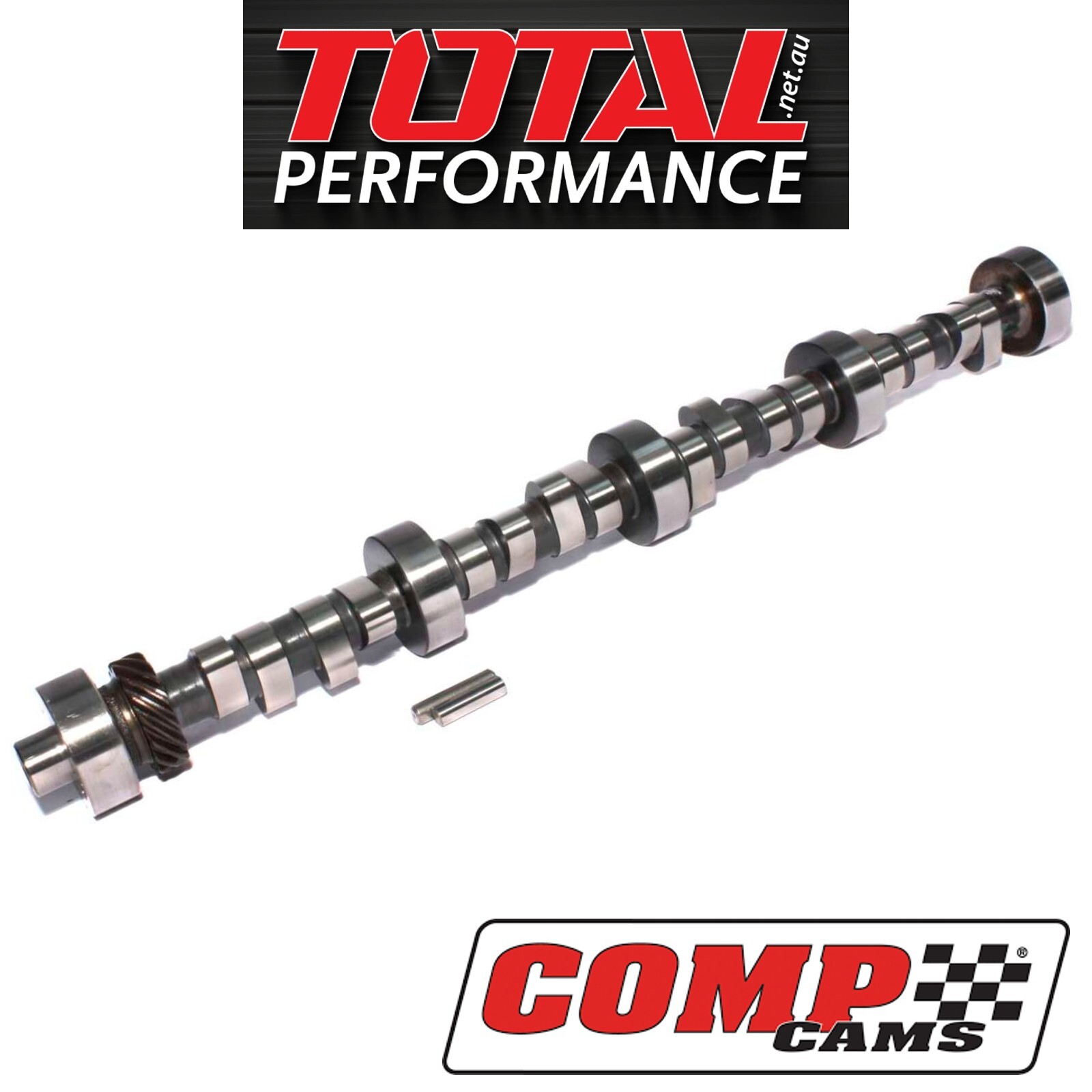

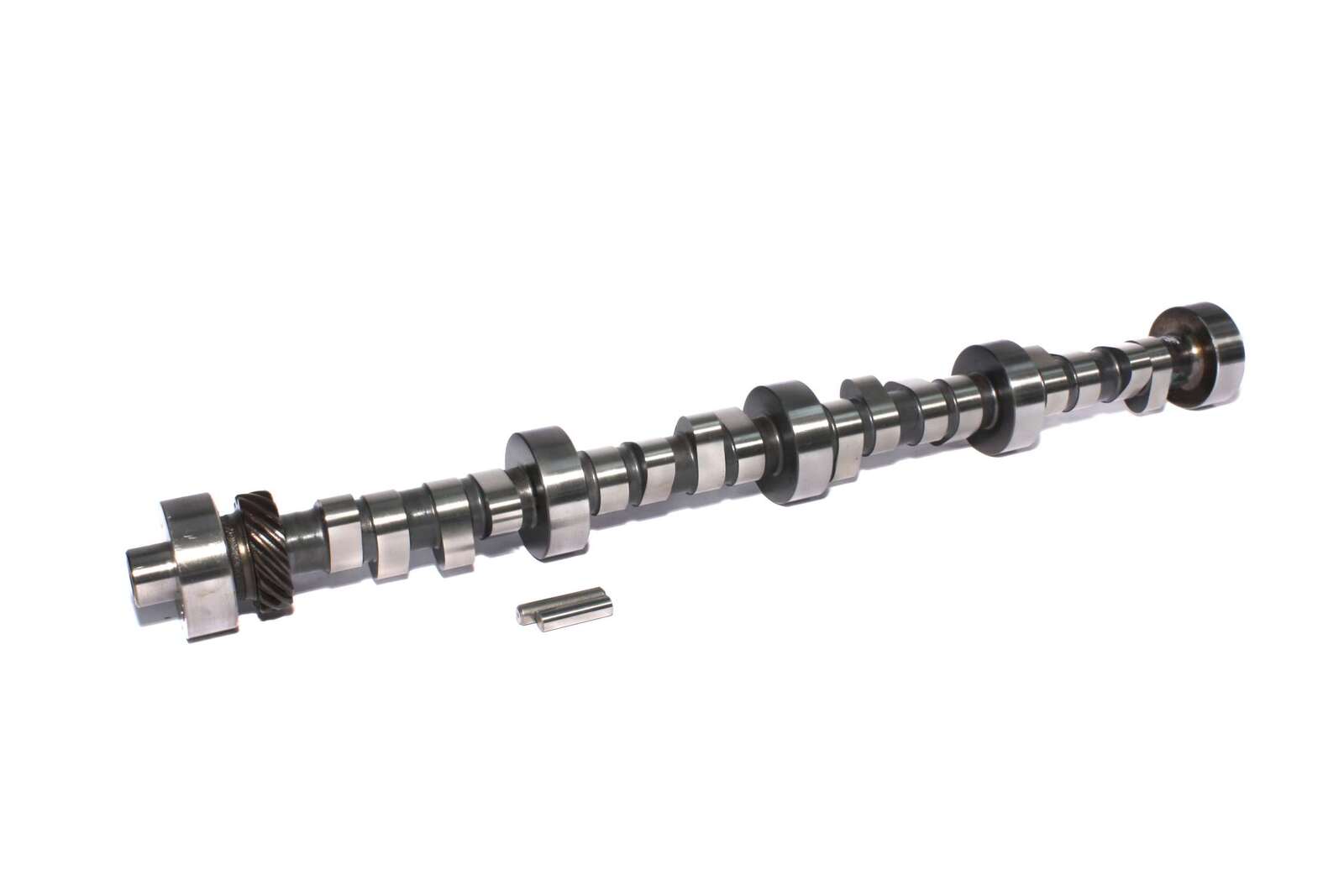

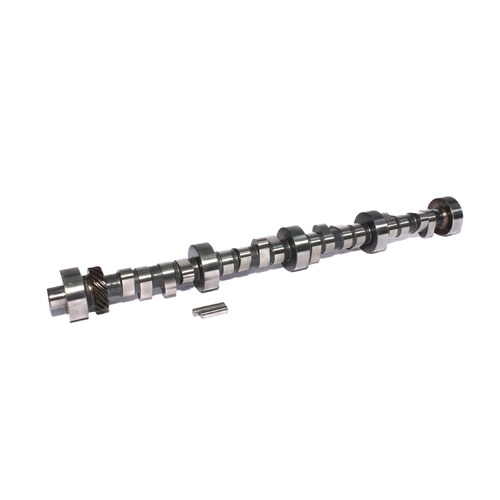

35-427-8 Xtreme Energy Retro-Fit 242/248 Hydraulic Roller Cam Ford Windsor 351W RETO FIT SMALL BASE

**Free Freight on orders over $200**

XR294RF-HR Xtreme Energy Retro-Fit 242/248 LSA 110 Hydraulic Roller Camshaft Ford Windsor 351W RETO FIT SMALL BASE CIRCLE

Description

COMP CAMS XR294RF-HR 35-427-8 Xtreme Energy 242/248 Hydraulic Roller Retro Fit - Small Base Circle Camshaft Ford 302W 351W Windsor
Street/strip, 9.5:1 compression, intake, headers, 3000+ converter, 4.10+ gears, rough idle.

Cam Specs

Base Circle Size: 1.026"
Grind Number:XR294RF-HR

RPM Operating Range:2,500-6,500

Advertised Duration: 294/300

Duration @ .050 Inch Lift: 242/248

Valve Lift: 0.576" /0.600" (with 1.6:1 rockers)

Lobe Lift: 0.36/0.375

Lobe Separation:110

Intake Centerline:106

Exhaust Close ATDC:36

Intake Open BTDC:41

Exhaust Open BBDC:84

Intake Close ABDC:73

Specifications

SKU	35-427-8
Barcode #	036584082132
Brand	COMP CAMS
intake valve lift	0.576
Exhaust Valve Lift	0.6
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	300
Advertised Intake Duration	294
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	248
Intake Duration At .050 Inch Lift	242
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR294RF-HR
Basic Operating Rpm Range	2,500-6,500
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Austempered Ductile Iron
