GM LS1 LS2 LS3 to TH400 Conversions Flexplate Internal Balance Small & LS Pattern, 168T SFI, CNC MACHINED LS1 LS2 LS3 5.7L 6.0L 6.2L

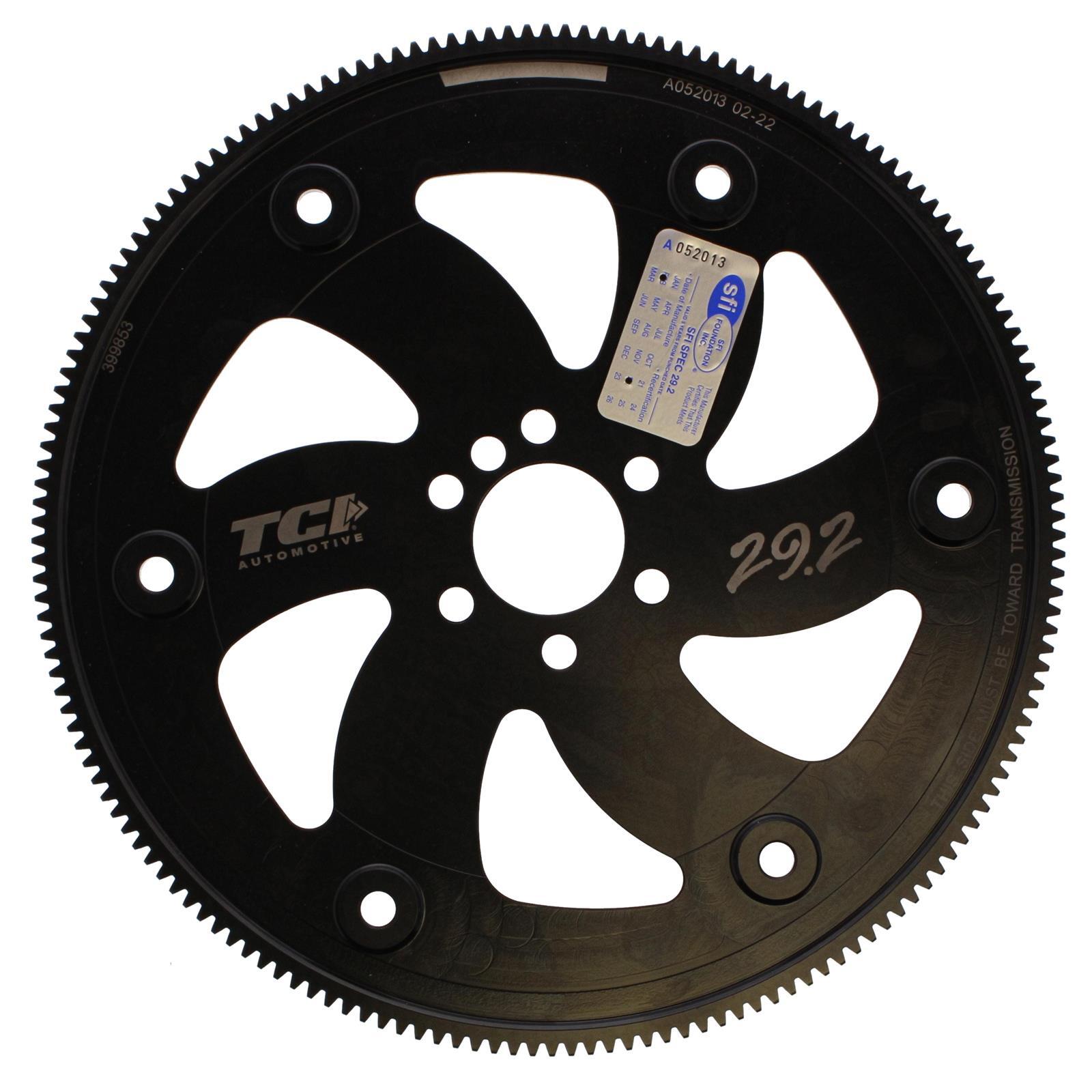

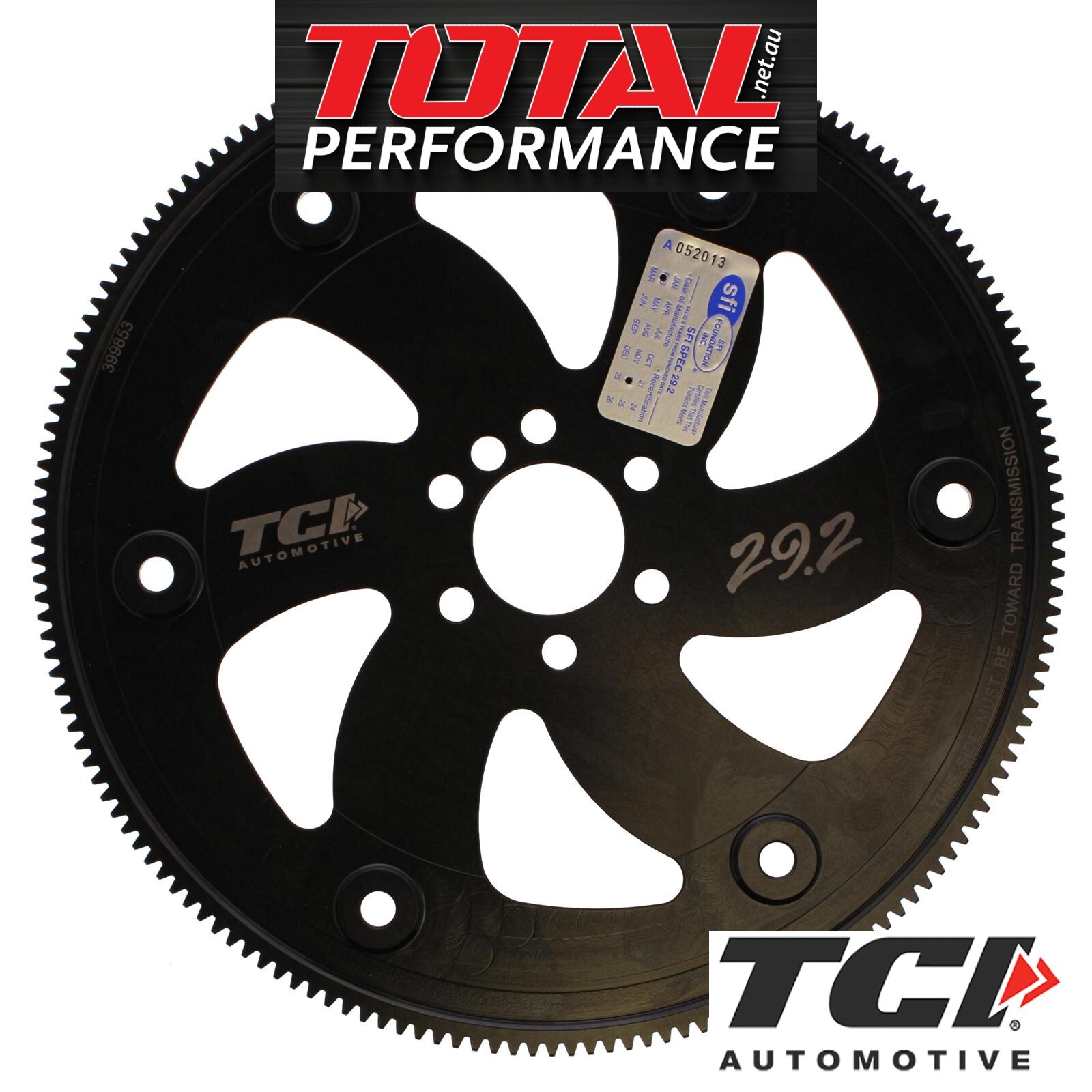

TCI 399853 LS Conversion Flexplate to TH400 Transmissioin - Machined Flexplates

This forged flexplate is for LS1 LS2 LS3 4.8L, 5.3L, 5.7L 6.0L 6.2L LS series engines.

SFI 29.2 approved and internally balanced. Small and LS Bolt pattern with 168 tooth count.

Heavy-duty billet flexplates from TCI® are like no other option on the market. This SFI 29.2 certified, one-piece LS version is designed for GM Gen III and Gen IV engines. It is made from a CNC-machined 4140 forging with a hobbed-on ring gear and laser-welded converter spacers and can withstand more than 12,000 RPM. The flexplate is gas-nitrided for extra surface hardness and strength, and then e-coated for corrosion protection. Lightening holes reduce rotating mass and drop the overall weight to 7.6 pounds. The design features multiple bolt patterns and is exclusive to TCI®

For serious performance, TCI machined SFI-approved flexplates are a "must have". These .140 in. thick flexplates are constructed of A514 Blanchard ground steel and are SFI 29.1 approved. TCI offers a complete line of Chrysler and Ford flexplates with GM and Ford bolt patterns for use with their adapter plate kits as well as neutral balanced flexplates with 168-tooth and 166-tooth starter rings for Chevy and Pontiac applications. Now you can speed down the track with the confidence of TCI machined SFI-approved flexplates.

Ring Gear Tooth Quantity:   168-tooth

Flexplate Diameter:  14” in.

Rear Main Seal Style:  1-piece

Engine Balance:  Internal

Flexplate Material:  Steel

SFI Rating:   SFI 29.2

Quantity:   Sold individually.

Notes:

This will not fit 1999-2000 6.0L applications with 0.400 in. extended crank flange and came with flat flexplate. This will not fit 1999-2000 4.8L applications that originally came with a manual transmission.
