LSXHR Intake Manifold Intercooler, Air to Water Heat Exchanger, FAST LS3 High RAM Superchargers & Turbo Boost,

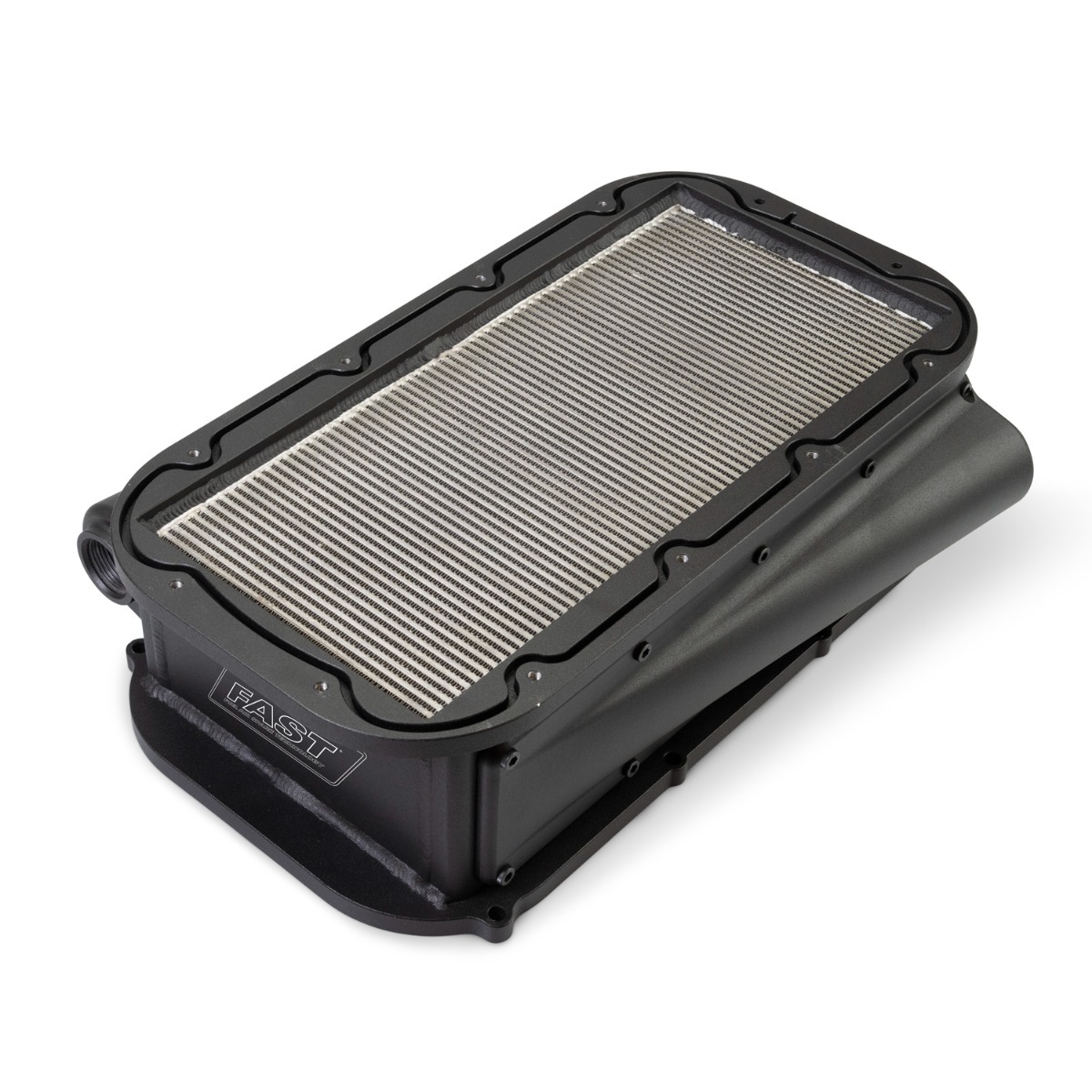

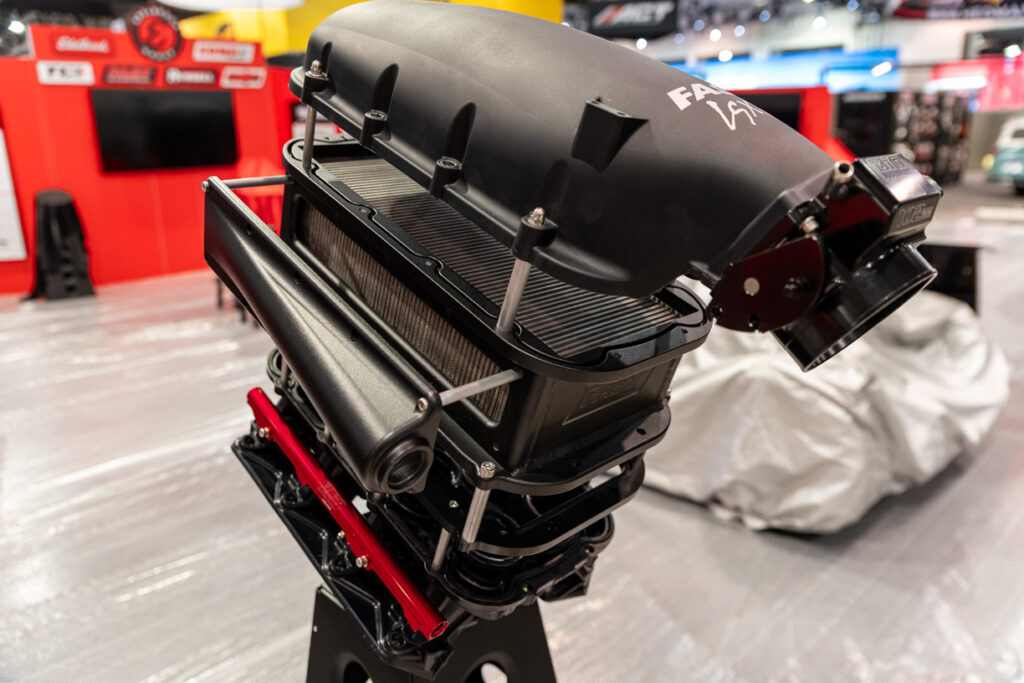

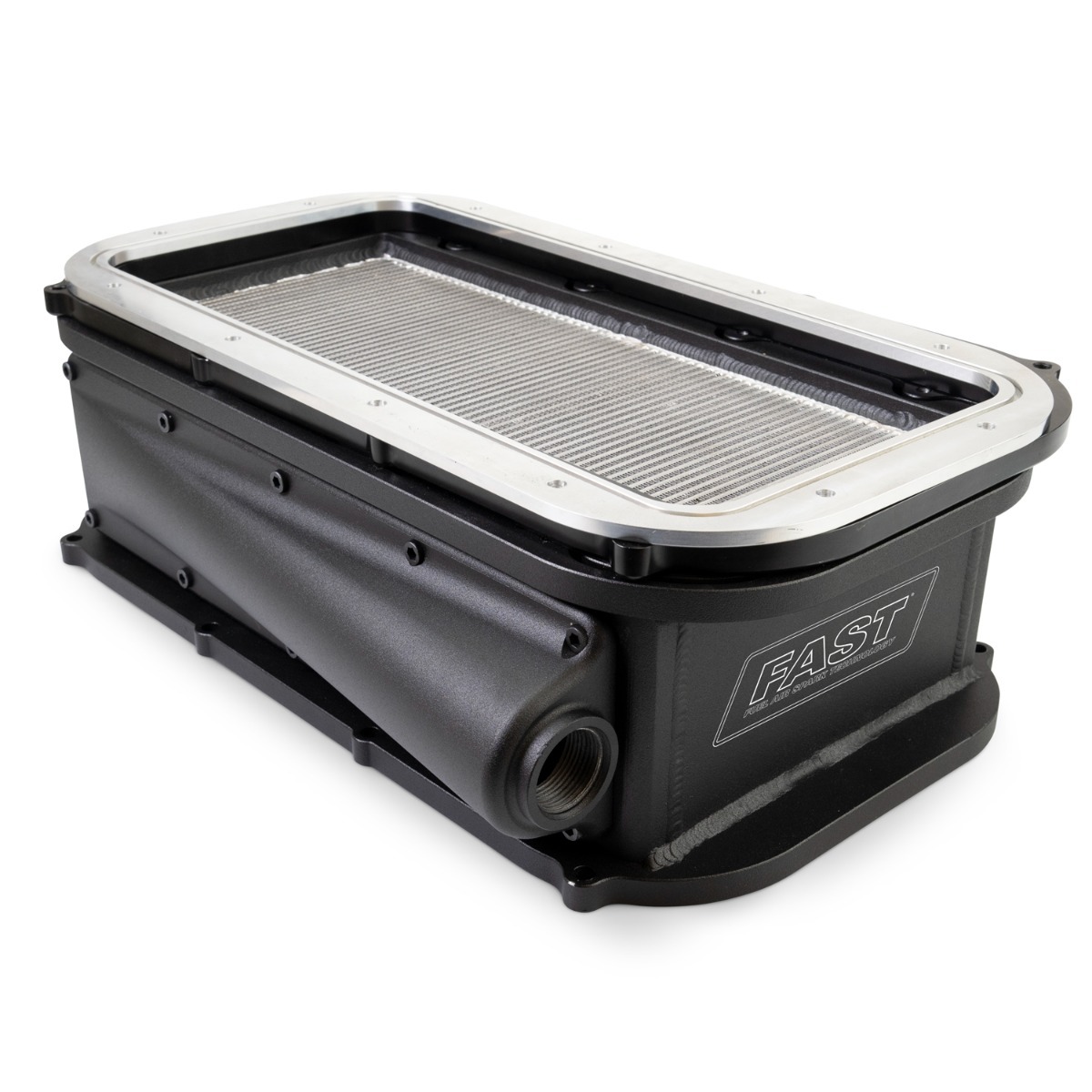

The FAST LSXHR Intercooler is a perfect solution to cool the air charge on a centrifugal-supercharged or turbocharged engine using one of the popular high-ram style intake manifolds such as the FAST LSXHR composite manifold. This air-to-water intercooler conveniently fits between the upper and lower intake manifold, simplifying the installation, while saving space, time, and cost. Testing conducted on a 1,350 HP/20psi turbocharged-LSX application showed a 198-degree/F drop in temperature and less than 1psi loss across the intercooler.

Features Include:

• Convenient placement minimizes underhood piping fabrication
• Large -16AN water inlet/outlets
• Welded billet construction
• O-ring sealing on both air and water sections • Necessary hardware included
• Durable black powder coated finish
• Designed to work with the LSXHR 103mm Intake Manifold

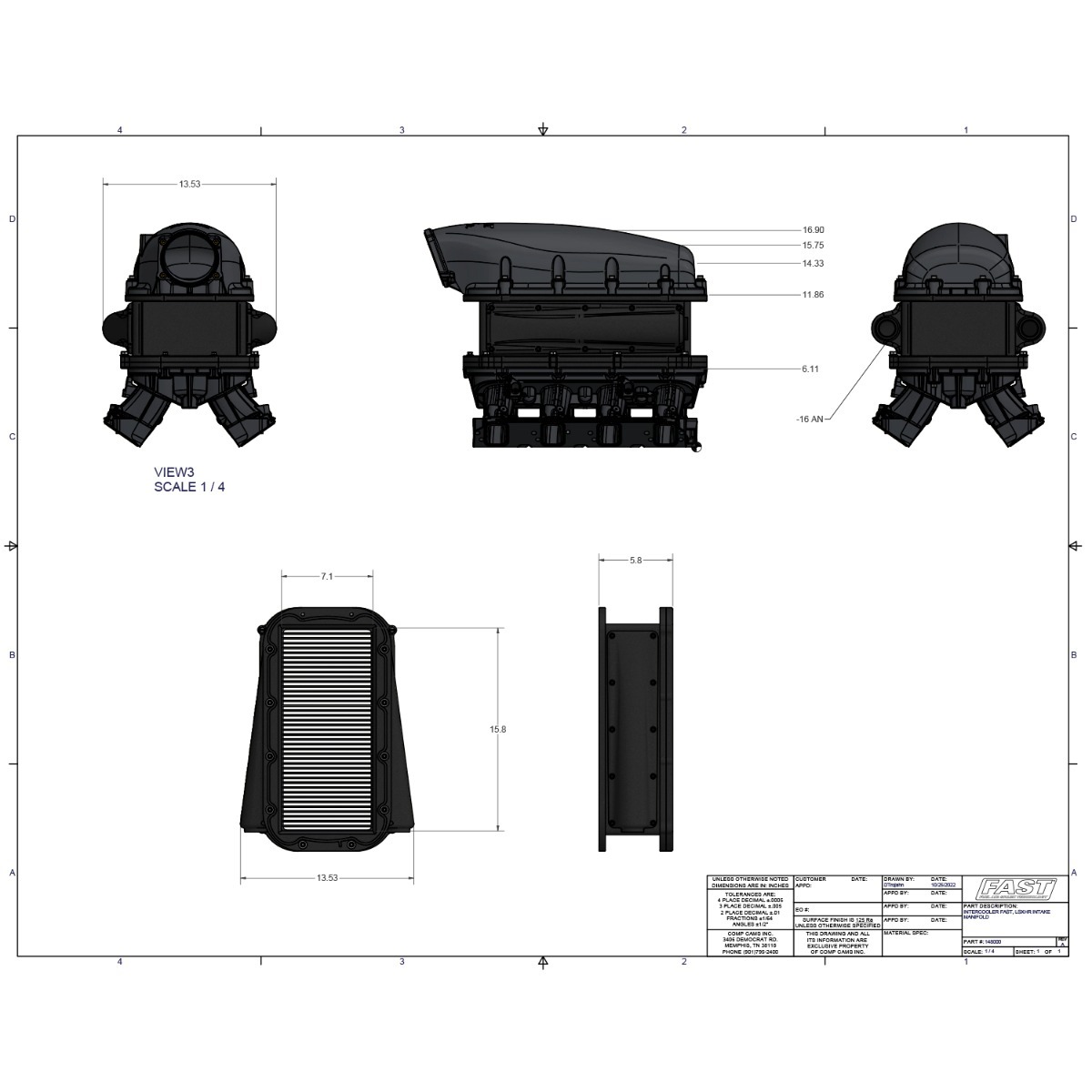

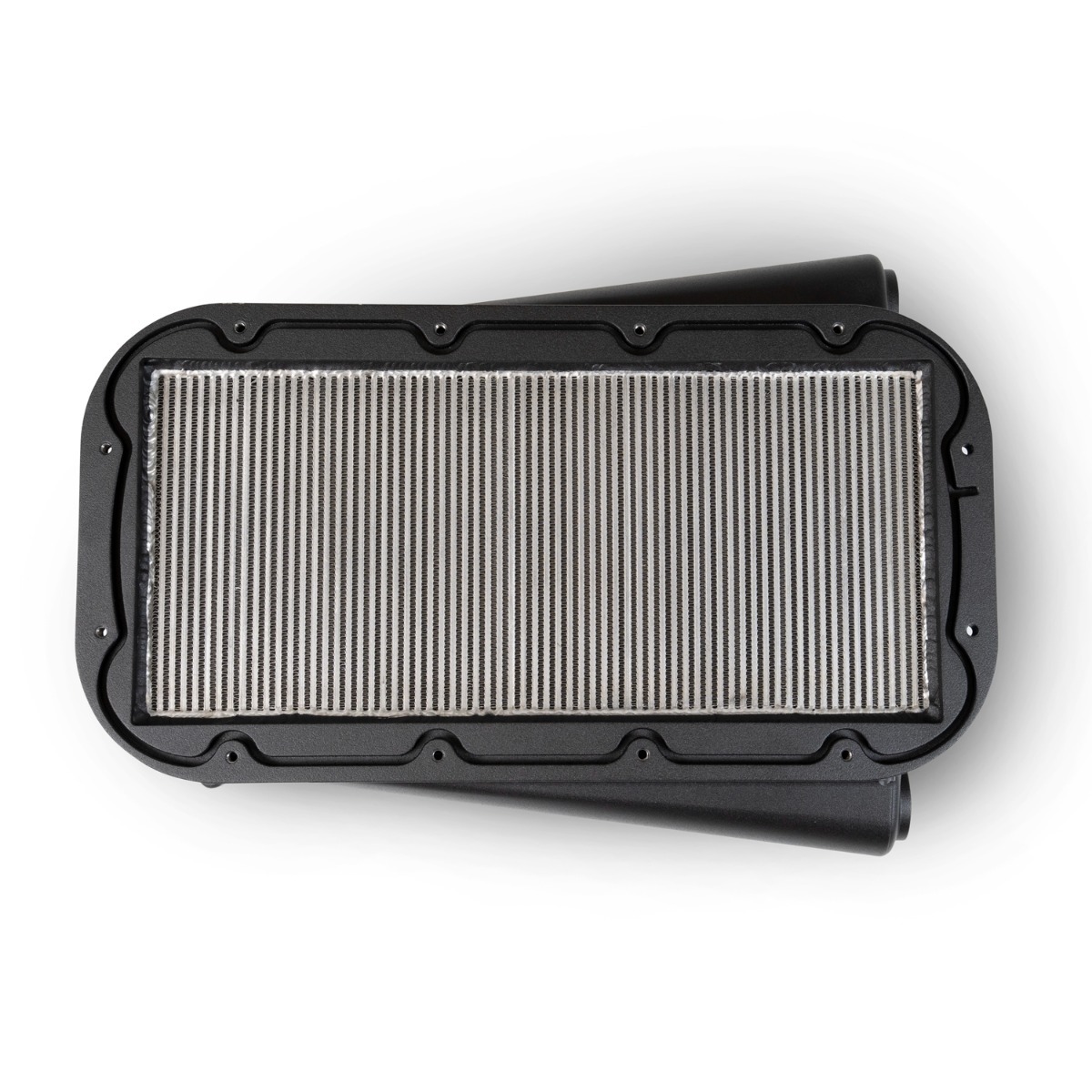

• Core Height:                         7.4 in.
• Core Length:                        16.4 in.
• Core Material:                      Aluminum
• Core Row Quantity:             69
• Core Thicknes:                     4.2 in.
• Height:                                   5.75 in.
• Inlet Fitting Gender:            Female
• Outlet Fitting Gender:         Female
• Outlet Thread Diameter:    16AN
• Universal or Specific:          Universal
• Color:                                     Black
• Hardware Included:            Yes
• Finish:                                    Powder coat
