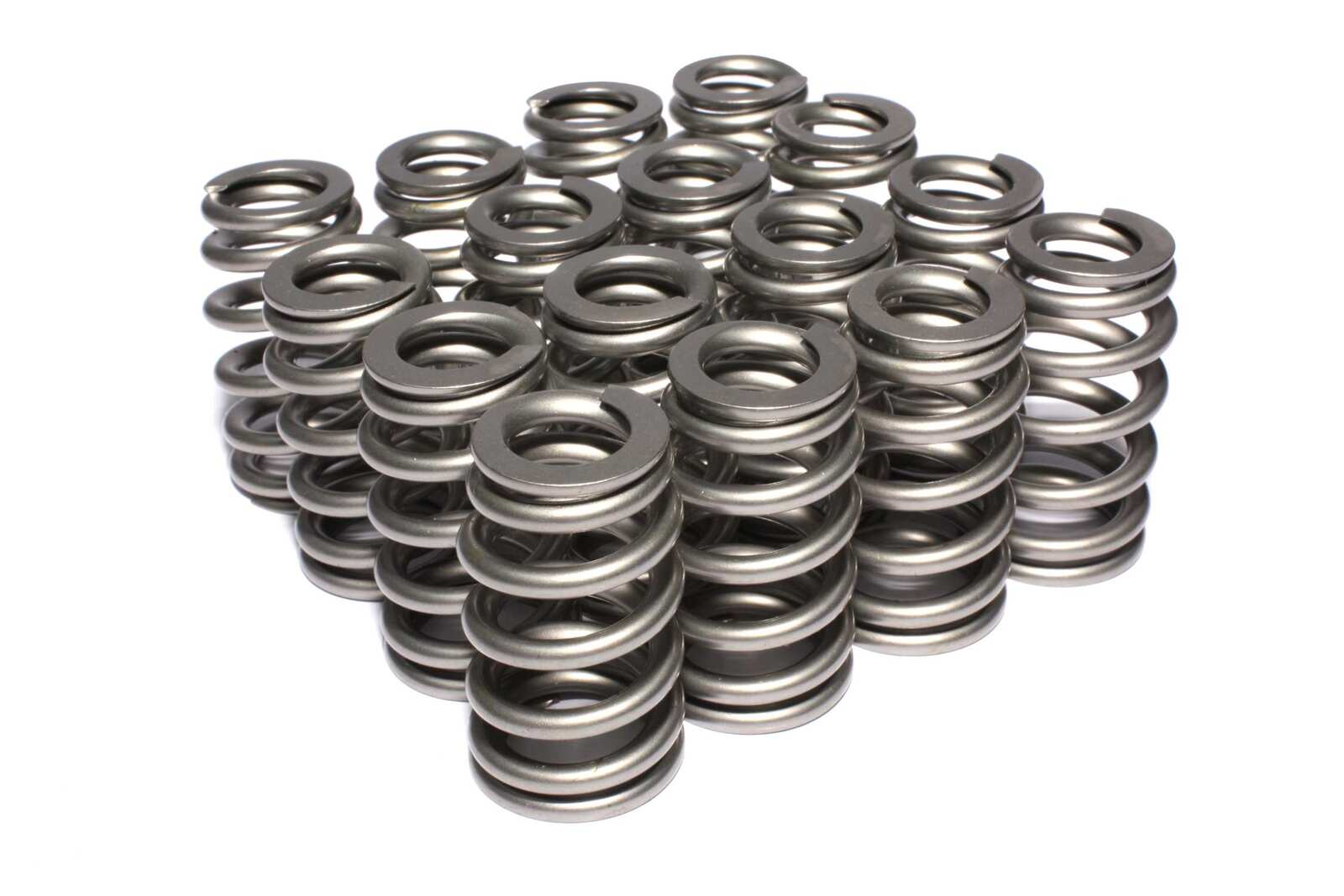

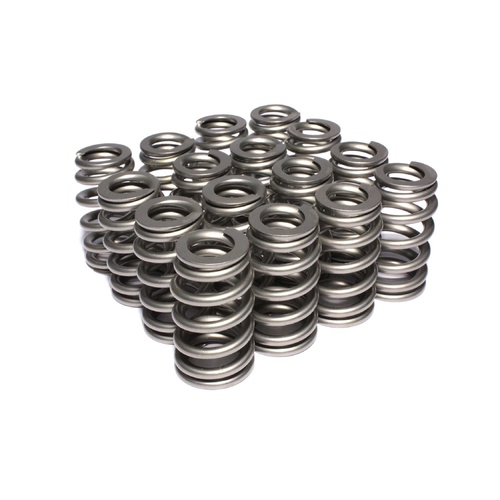

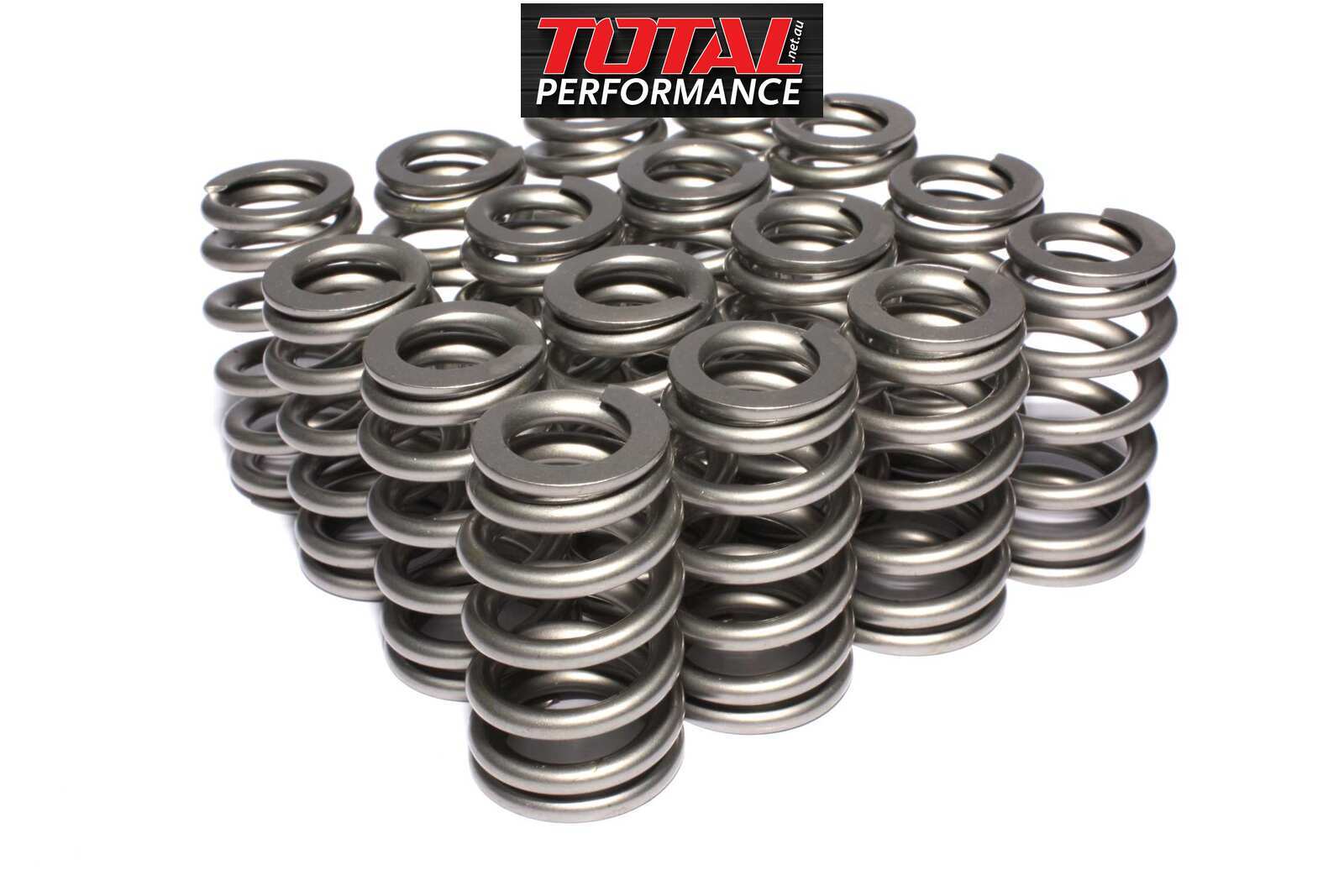

High Performance Beehive Valve Springs

PSI Springs - 1500 Series - 1511ML
This series has all the benefits of the 1200’s plus an additional nitriding operation. The nitriding process, which is also done in-house, increases the strength at the surface of the wire and at the same time causes a slight softening of the core material. This trade-off in hardness results in a gain in endurance for the Circle Track and Road Circuit teams who are limited by the onset of fatigue at the wire surface. Since Drag racers are not limited by endurance, the loss of core hardness does not make nitriding suitable for their applications.

PSI Springs - Max Life Surface Preparation (ML)
A proprietary, multi-step surface enhancement process that has been proven to increase spring endurance, Max Life processing is available for any level of PSI spring and is very beneficial for those looking for increased endurance while maintaining their existing set-up.

Max Lift:  0.625"

Installed Height:  1.800"

Coil Bind Height:  1.100"

O.D. of Outer:  1.290"

I.D. of Outer:  0.630

Spring Style: Beehive

Spring Rate:  384" lbs/in

Seat Pressure:  130lbs @ 1.800"

Damper:  No
