SKU: PAC-1905-16

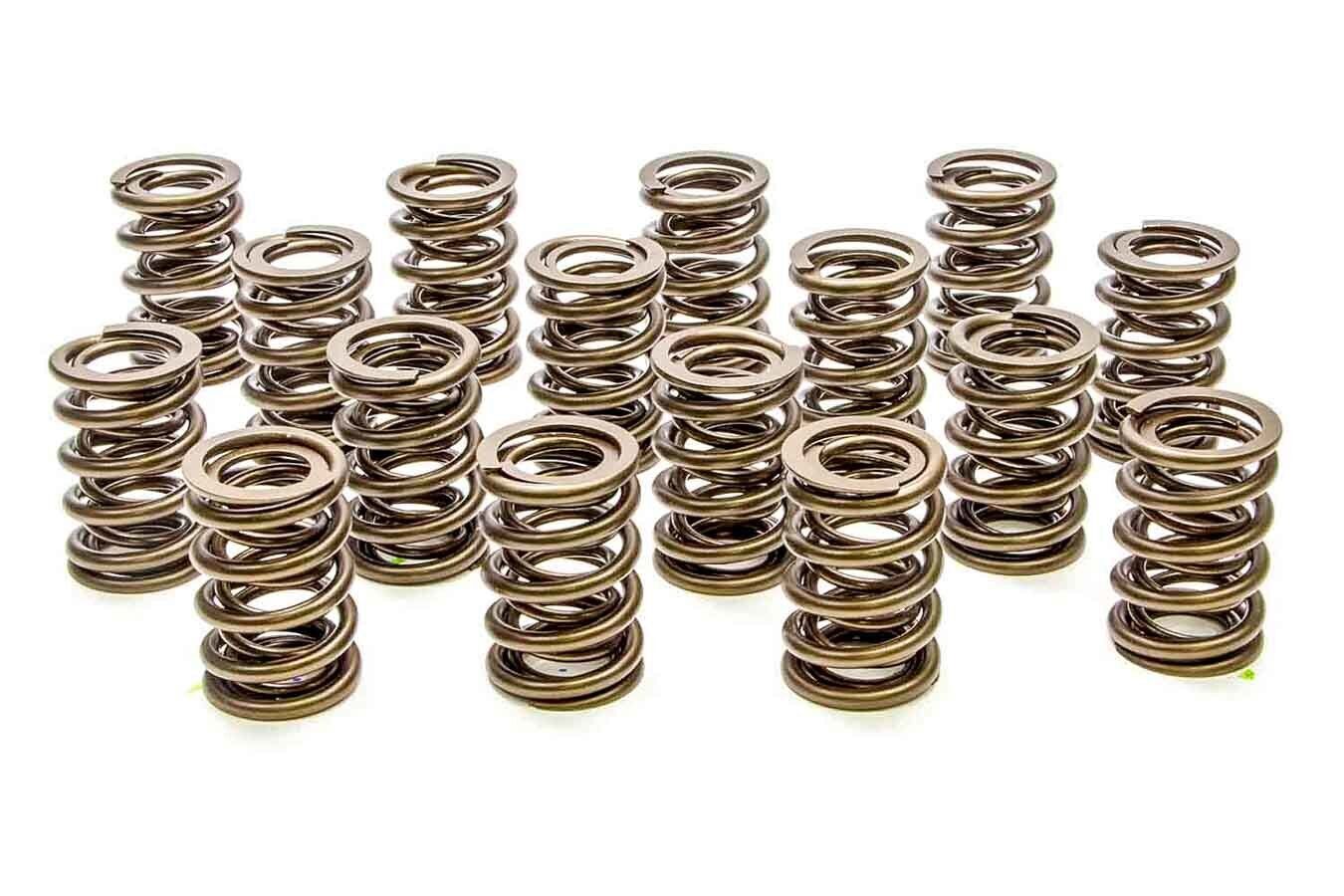

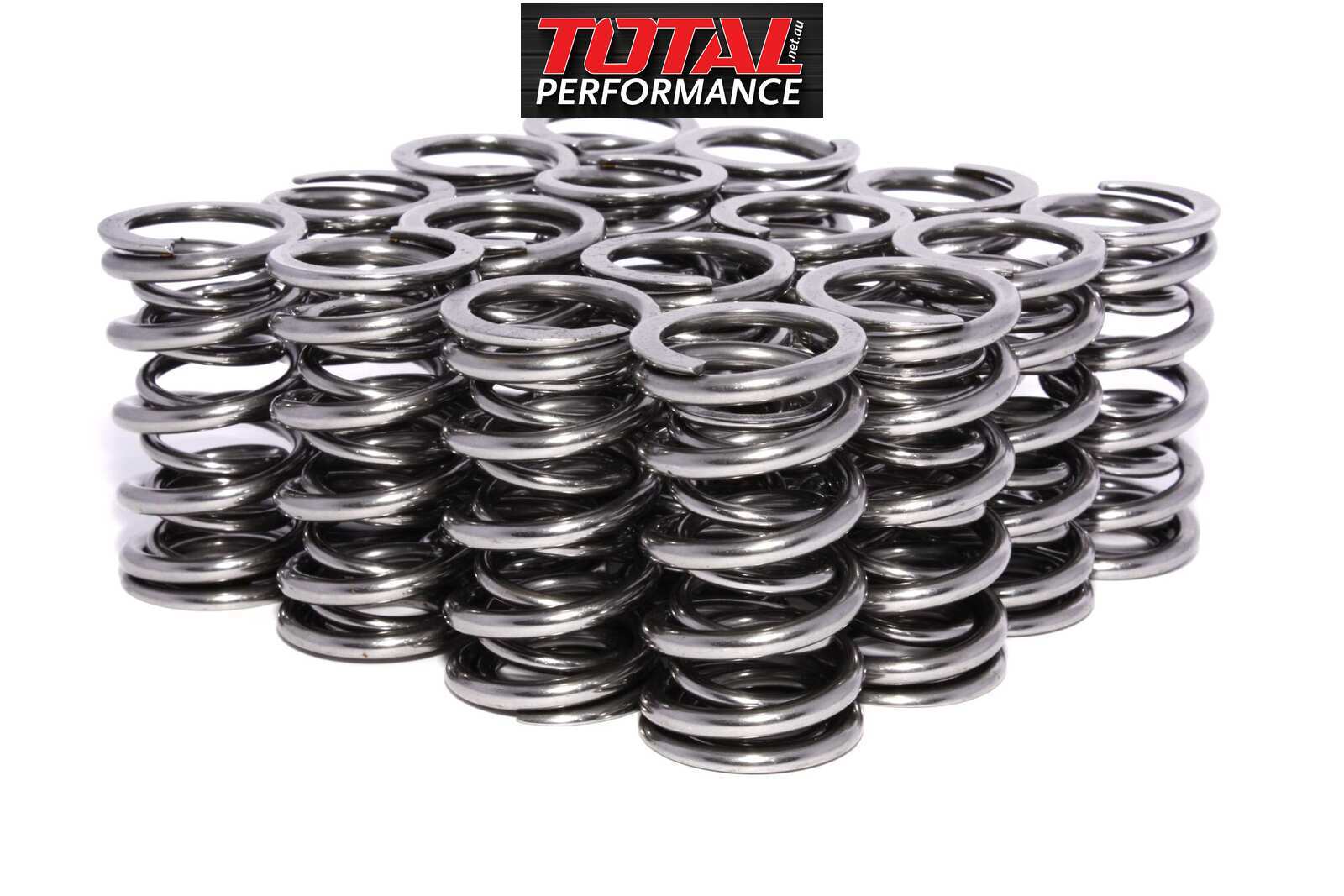

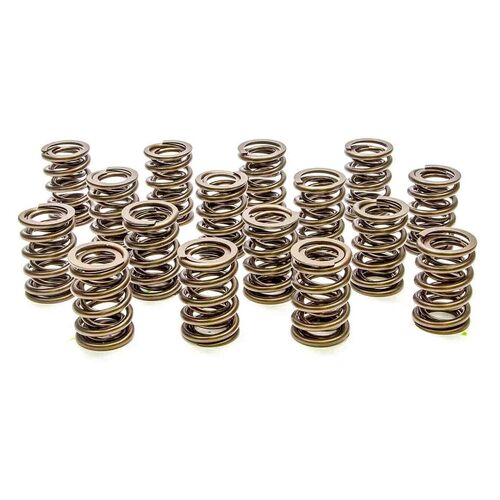

LS1 LS2 LS3 LS Race Street 1.320" OD Dual Springs; 1.800" Installed Height; 16 Springs

Upgrade LS Dual Valve Springs

$357.50

or 4 payments of $89.38 with Info

SOLD OUT

Description

PAC Dual Valve Springs - LS1 LS2 LS3

Specifications:

  • Part Number:        PAC-1905
  • Description:        LS Dual Spring
  • Spring Type:        Dual
  • Lift Max (in)”        0.650”
  • O.D. (in):        1.304
  • I.D. (in)    :        0.950
  • Inside Spring I.D. (in):    0.694
  • Install Load (LB):    160
  • Install Height (in):    1.800
  • Open Load (LB):    425
  • Open Height (in):    1.125
  • Coil Bind Max (in):    1.020
  • Damper:        No
  • Rate:            392

Specifications

SKU PAC-1905-16
Brand PAC
Spring Rate 400
Inner Spring Inside Diameter 0.68
Outer Spring Outside Diameter 1.32
Seat Height 1.81
Coil Bind Height 1.07
Number Of Springs 2
Seat Pressure 141
Valve Spring Series Race/Street
Outer Spring Inside Diameter 0.958
Damper No
