SKU: 146204

LSXHR 103mm Intake Inlet Manifold for Raised Rectangular Port LS7 Hi Ram

$2,137.42

IN STOCK  FREE SHIPPING

Description

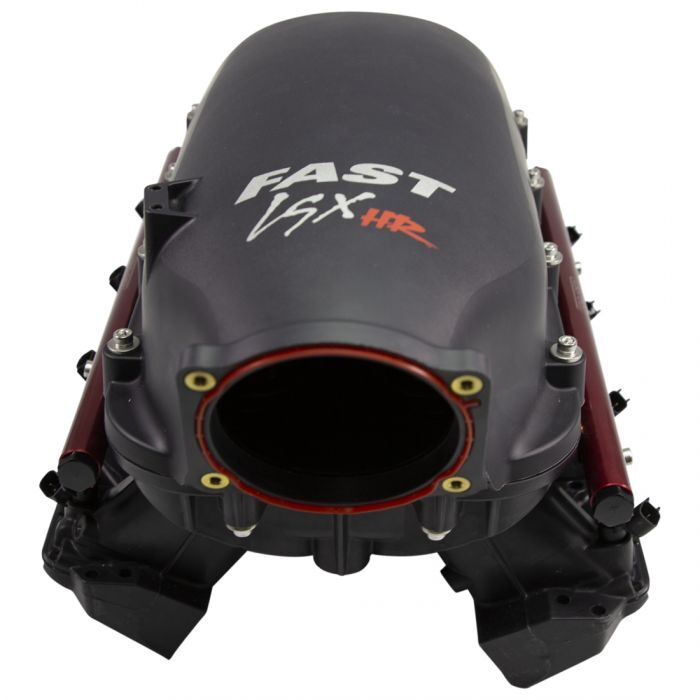

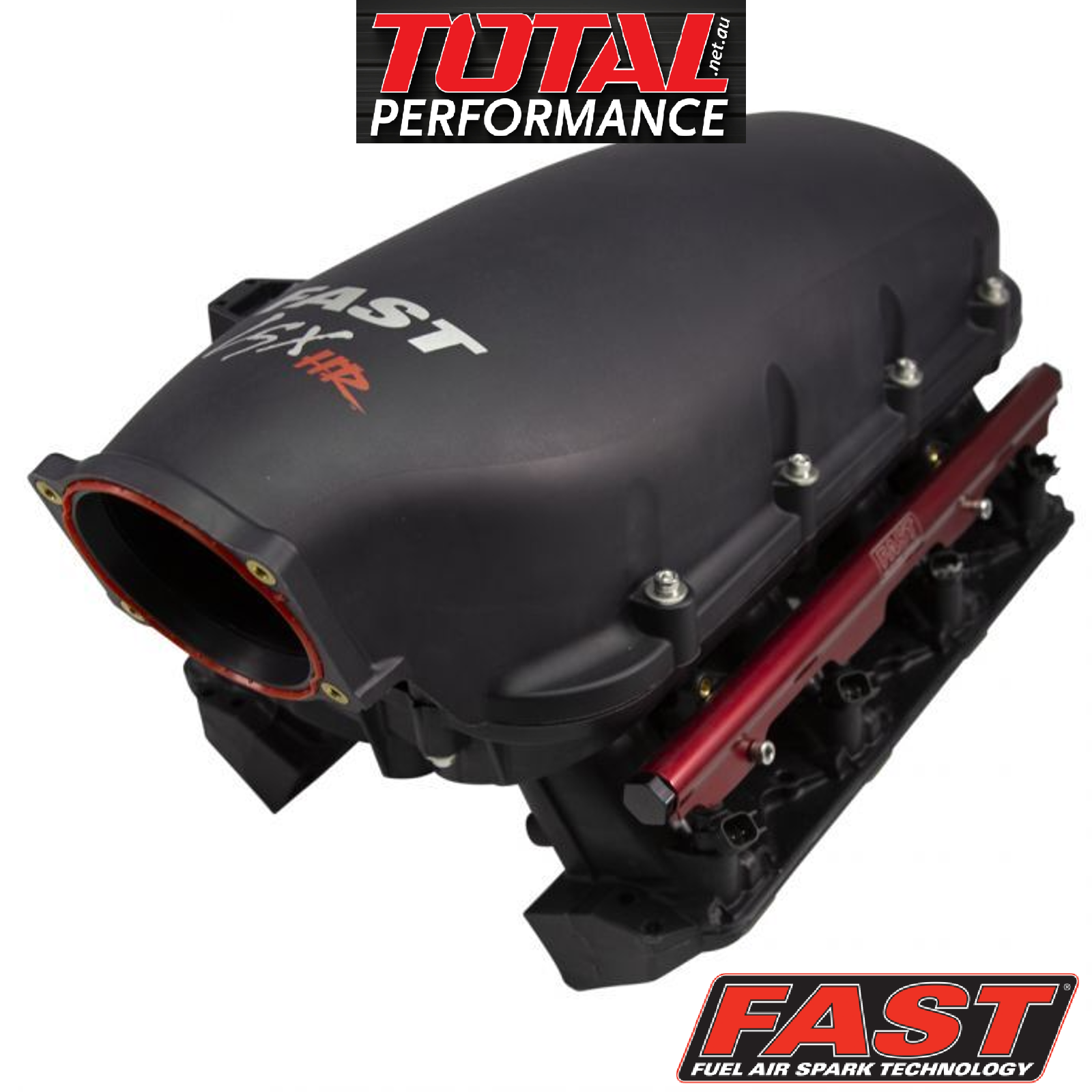

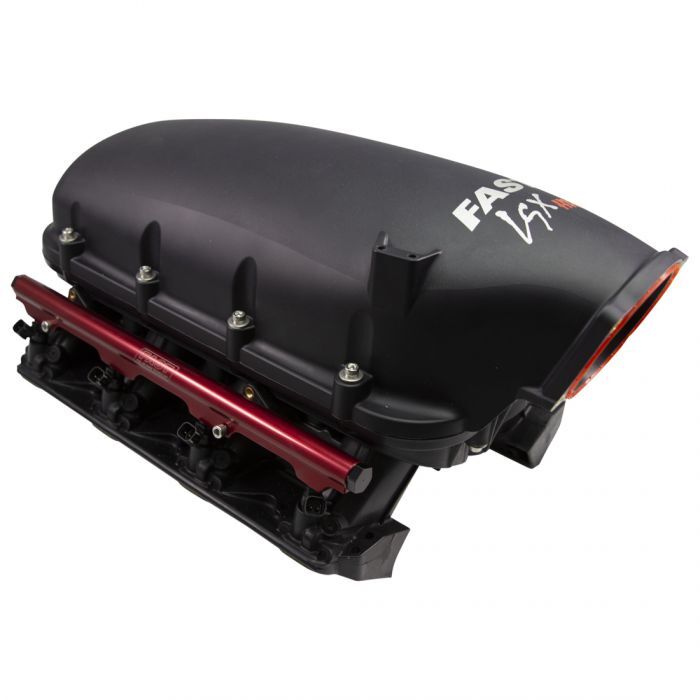

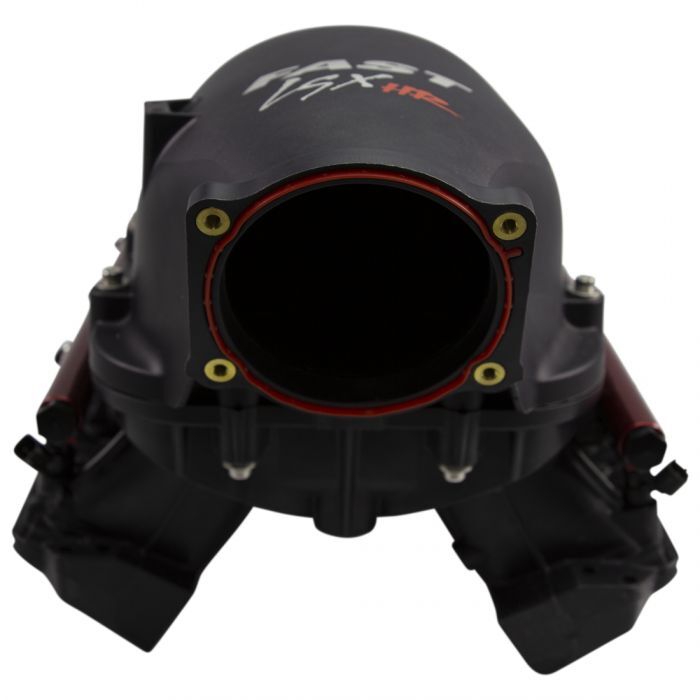

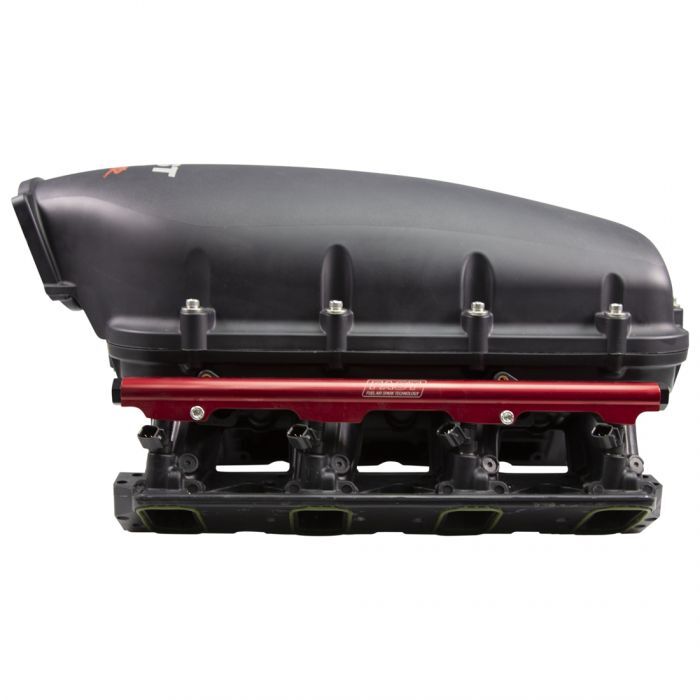

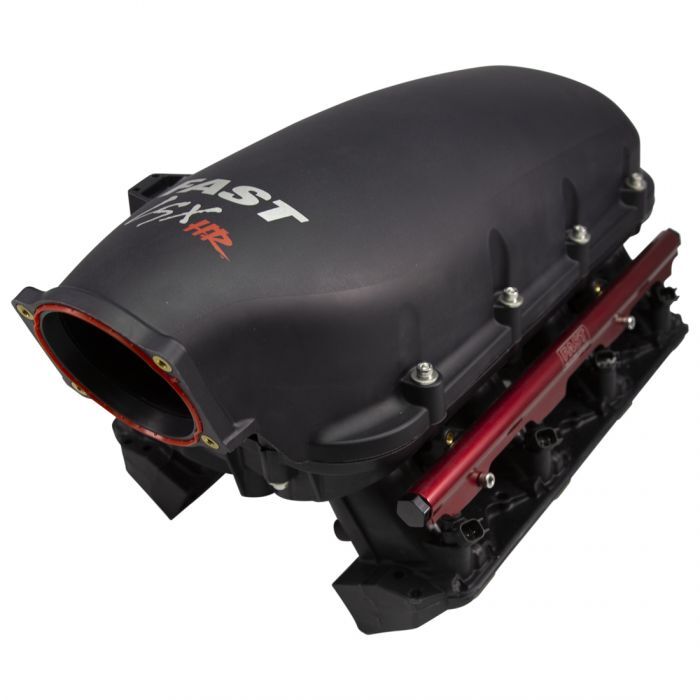

FAST 146204 LSXHR 103mm Intake Manifold for LS7 Raised Rectangular Ports

  • Fuel Rails included

The LSXHR™ 103mm Intake Manifold for LS7 Raised Rectangular Port Applications is the industry's first polymer tunnel ram-style intake manifold, designed for generating maximum power in boosted and naturally aspirated engines. The FAST LSXHR FAST-RAM Intake Manifold is designed specifically with boosted applications in mind and is rated for up to 45psi of continuous pressure. Compound fuel injector angle aims the spray pattern for ideal atomization, resulting in maximum power production and superior drivability. A reversible top allows for forward- or firewall-facing throttle body installations. The intake manifold also features two nitrous nozzle bosses per runner for clean and easy direct port system installations. Its 103mm throttle body opening can be port matched to 105mm.

The LSXHR™ 103mm Intake Manifold for LS7 Raised Rectangular Port Applications features:

  • Standard "tall" stacks are interchangeable with separately purchased "medium" and "short" stacks to find the most powerful combination
  • Polymer construction is lightweight and high-strength to eliminate power-robbing heat soak commonly found in aluminum intake manifolds
  • Average 30 HP gain between 5,000 and 7,500 RPM over competitors' versions
  • Rated for up to 45psi of continuous pressure
  • Compound fuel injector angle aims spray pattern for ideal atomization, resulting in maximum power production and superior drivability
  • Reversible top allows for forward- or firewall-facing throttle body installations
  • Two nitrous nozzle bosses per runner for clean and easy direct port system installations
  • 103mm Throttle body opening can be ported to 105mm
  • Cylinder Head Configuration:   Raised Rectangular Port LS7

    Fuel Injection Style:  Multi-port

    Basic Operating RPM Range:  5,000-7,500

    Intake Section Included:  Complete

    Throttle Body Bore Size:  103mm

    Engine Block Deck Height:  Standard deck

    Injectors Included:  No

    Multi-Port Fuel Rails Included:  Yes

    EGR:  No

    Aftermarket Fuel Rail Required:  No

    Throttle Body Included:  No

    Supplemental Bosses Cast-In:  No

    Supplemental Bosses Machined:  Yes

    Supplemental Boss Quantity:  Sixteen

    Runners Included:  Yes

    Runners Removable:  Yes

    Plenum Material:  Polymer

    Plenum Finish:  Black

    Base Material:  Polymer

    Base Colour:  Black

    Quantity:  Sold as a kit.

Warranty

12

Features

Lightweight and strong polymer construction;Virtually eliminates heat soak;Average 30 HP gain over competitor tunnel ram manifolds;Rated for up to 45psi of boost pressure;Forward- or firewall-facing throttle body installation;Available for rectangular LS3 and raised port LS7 engines

Specifications

SKU 146204
Barcode # 036584122326
Brand FAST
Title LSXHR 103mm Intake Manifold for Raised Rectangular Port LS7
