SKU: 730-0040

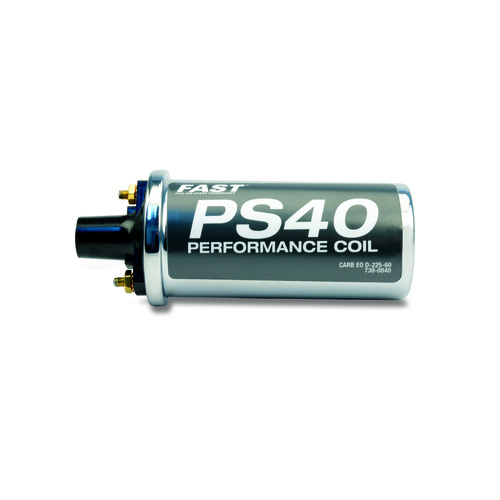

730-0040 PS40 Premium Canister Street Ignition Coil

$97.36

or 4 payments of $24.34 with Info

SOLD OUT

Description

Warranty

12

Features

PS20 Canister Style coil; Black; 20-50% higher energy at spark plug than typical stockcoils; Oil filled for maximum cooling of internal windings and high reliability; Windings optimized with computer aided design for maximum spark gap current and high available voltage; Alkyd coil towers eliminate failure from flash over and carbon tracking.; 50 state legal CARB E.O. D-225-60

Specifications

SKU 730-0040
Barcode # 021174163216
Brand FAST
Turns Ratio 60:1
Diameter 2.125
Coil Wire Attachment Female/Socket
Coil Wire Terminal Quantity 1
Leakage Inductance 1.3 mH
Mount Type Bracket
Mounting Bracket Included No
Oil Filled Yes
Secondary Inductance 26 H
Terminal Quantity 2
Mounting Position Upright
Ballast Resistor Included Yes
Height 5.75
Title PS40 Premium Street Coil
Weight 1.75 lbs
Spark Duration 385 uS
Secondary Resistance 5.2K ohms
Primary Resistance 1.4 ohms
Primary Inductance 7.5 mH
Peak Current 145 mA
Meets Or Exceeds Oem Specs Yes
Maximum Voltage 46,000 V
Coil Style Canister
Coil Internal Construction Oil-Filled
Coil Color Nickel Plated
Coil Shape Round
Coil Wire Included No
Quantity Sold individually
