Description

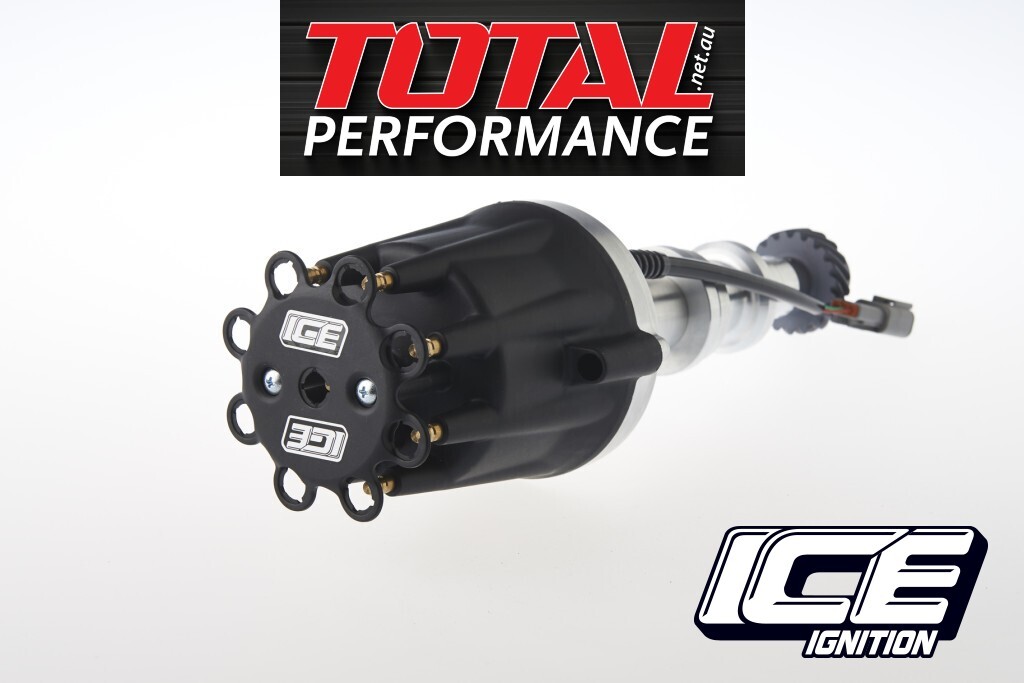

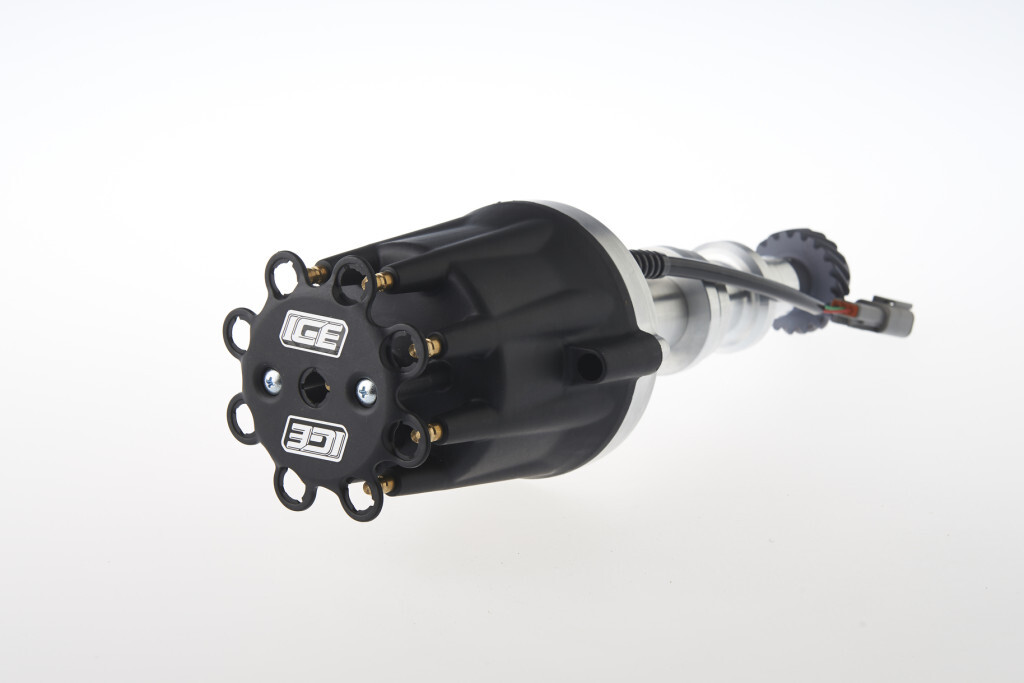

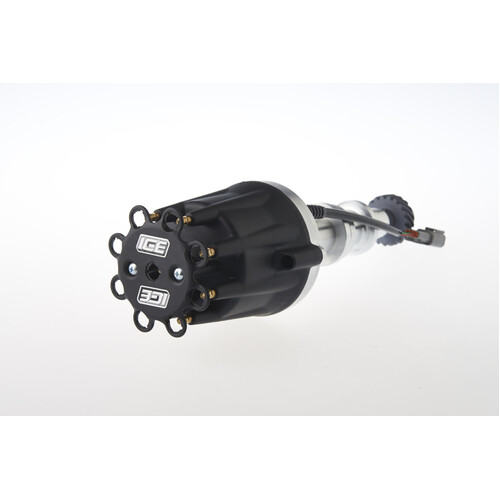

SMALL CAP DISTRIBUTOR
SUITS FORD SMALL BLOCK WINDSORS 289 -302W. USES HEI TERMINALS
INC: TREATED STEEL GEAR
NEEDS A CONTROL BOX :
- 7060MV - 7AMP STREET SERIES CONTROLLER (NO LIMITER)
- 7061MV - 1 LIMITER X 7 AMP STREET SERIES CONTROLLER
- 7062MC - 2 LIMITERS X 7AMP STREET/RACE CONTROLLER
ICE 8200 Series small cap billet distributors feature a compact cap design with screw on plug wire retainer and choice of distributor gears. Available for all popular V8 and 6cyl engine types and used when distributor clearance is tight or the look of a small distributor is preferred
ICE distributors are available for all popular V8 and 6 cylinder engines. Every ICE distributor features a CNC machined 6061 aircraft grade aluminium body, a hardened and precision centreless ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush. Triggering is via accurate and reliable Hall Effect vane sensor/sensors, unaffected by dirt, moisture or vibration.
HEI style distributor caps are used featuring brass terminals for long service life under extreme operating conditions.
Most distributors are available in a choice of large or small cap and with either Spheroidal Graphite Iron, Silicon Impregnated Bronze or Treated Steel drive gears.
.
Warranty
12
Features
Compact inductive ignition produces up to 70% more spark energy than stock;Multi-strike spark series below 2,000 RPM for crisp low RPM operation;Long duration spark with max output through 8,000 RPM;Built-in rev limiter is adjustable in 100 RPM increments;Circuitry is encased in soft urethane for protection against moisture and vibration
Specifications
SKU | ICE-8366S-S |
Brand | ICE IGNITION |
