SKU: DRP-SBC200-S-HFT

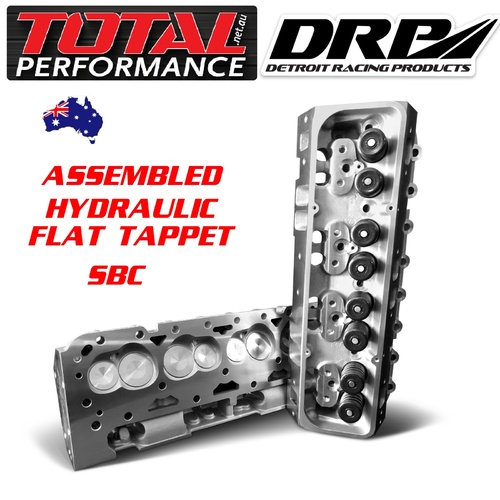

SBC Small Block Chev 350 23° Heads Straight Plug, Assembled using Comp Cams suit HYDRAULIC FLAT TAPPET

STRAIGHT PLUG

$2,098.13

IN STOCK  FREE SHIPPING

Description

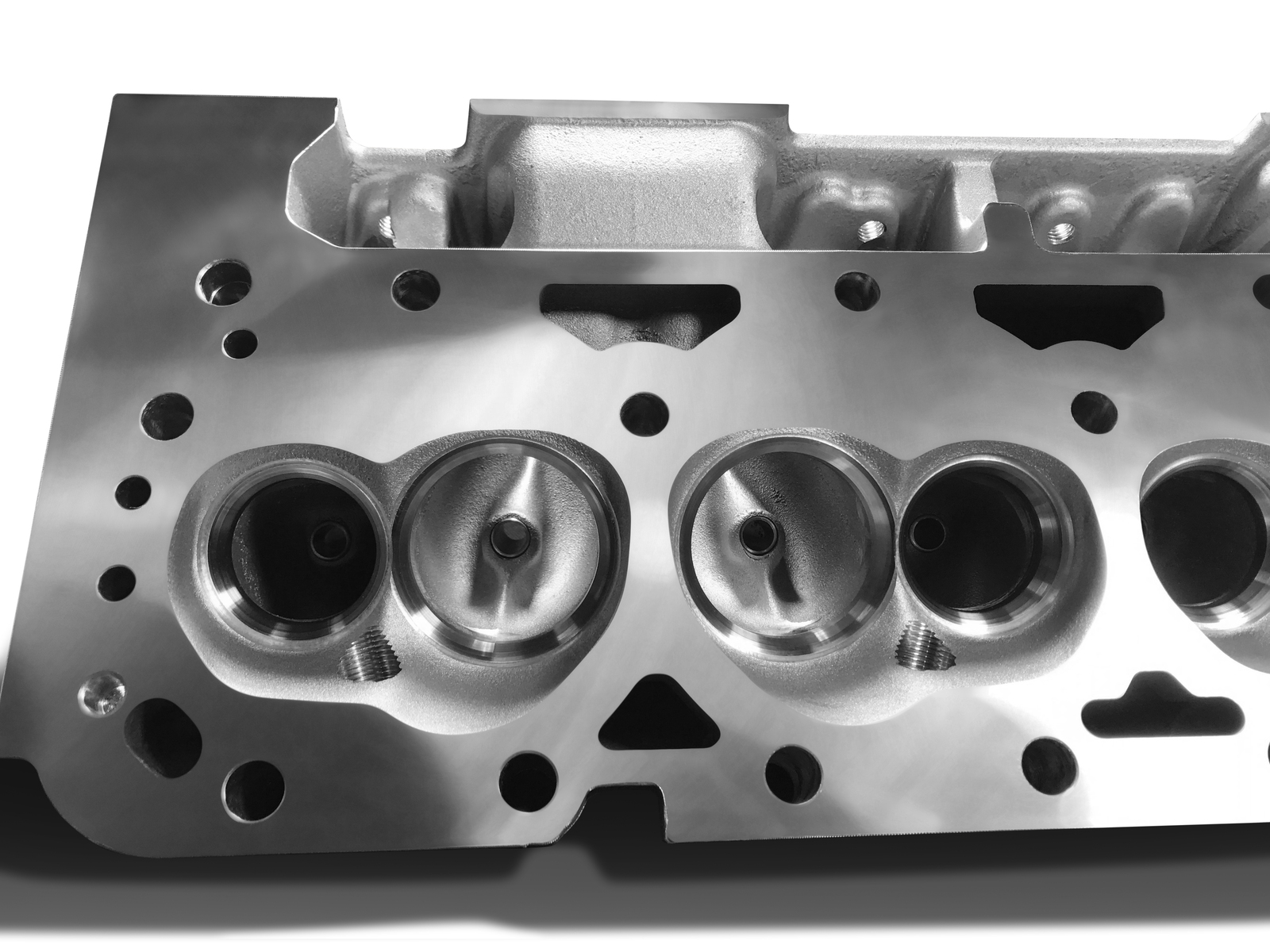

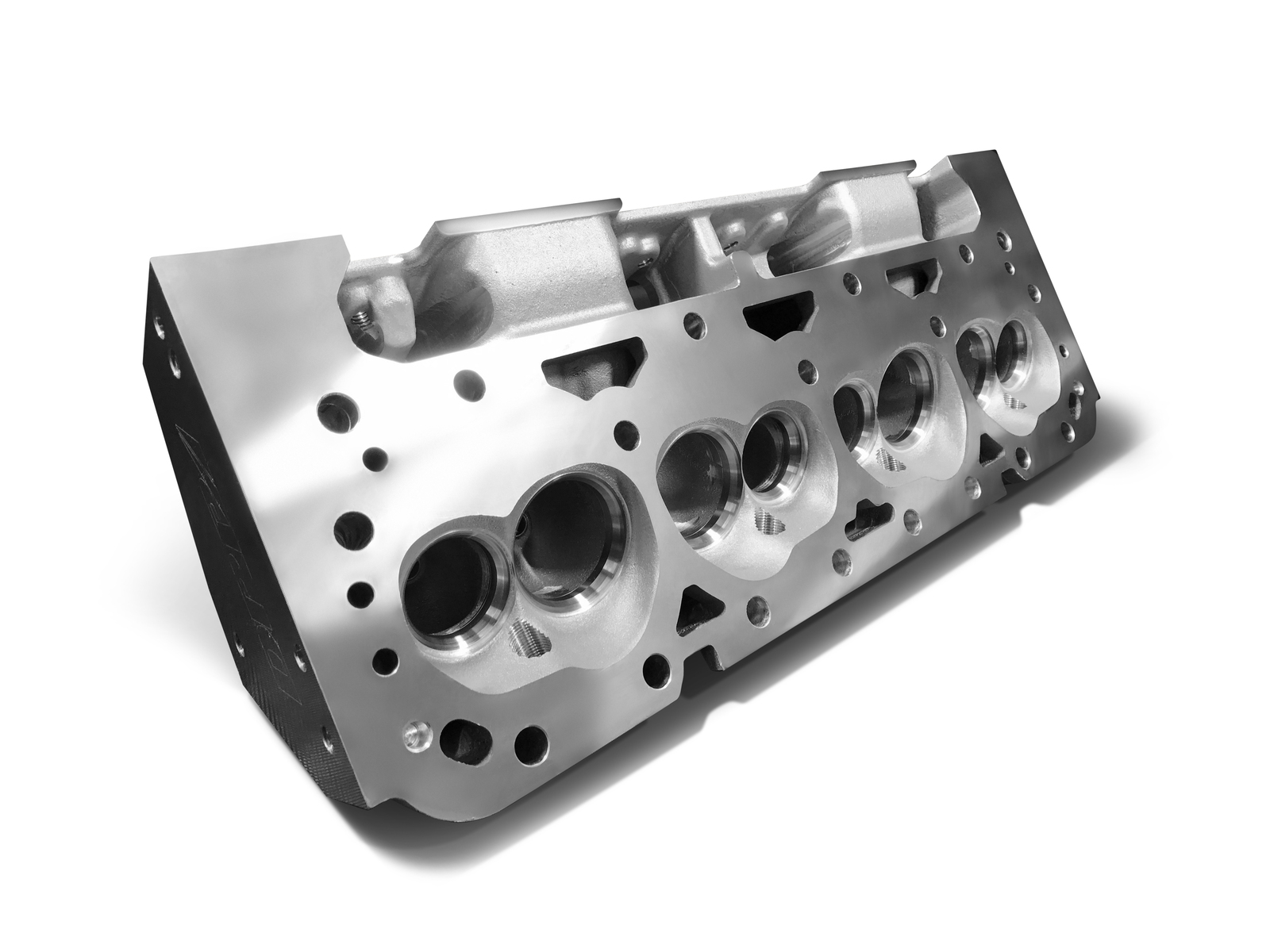

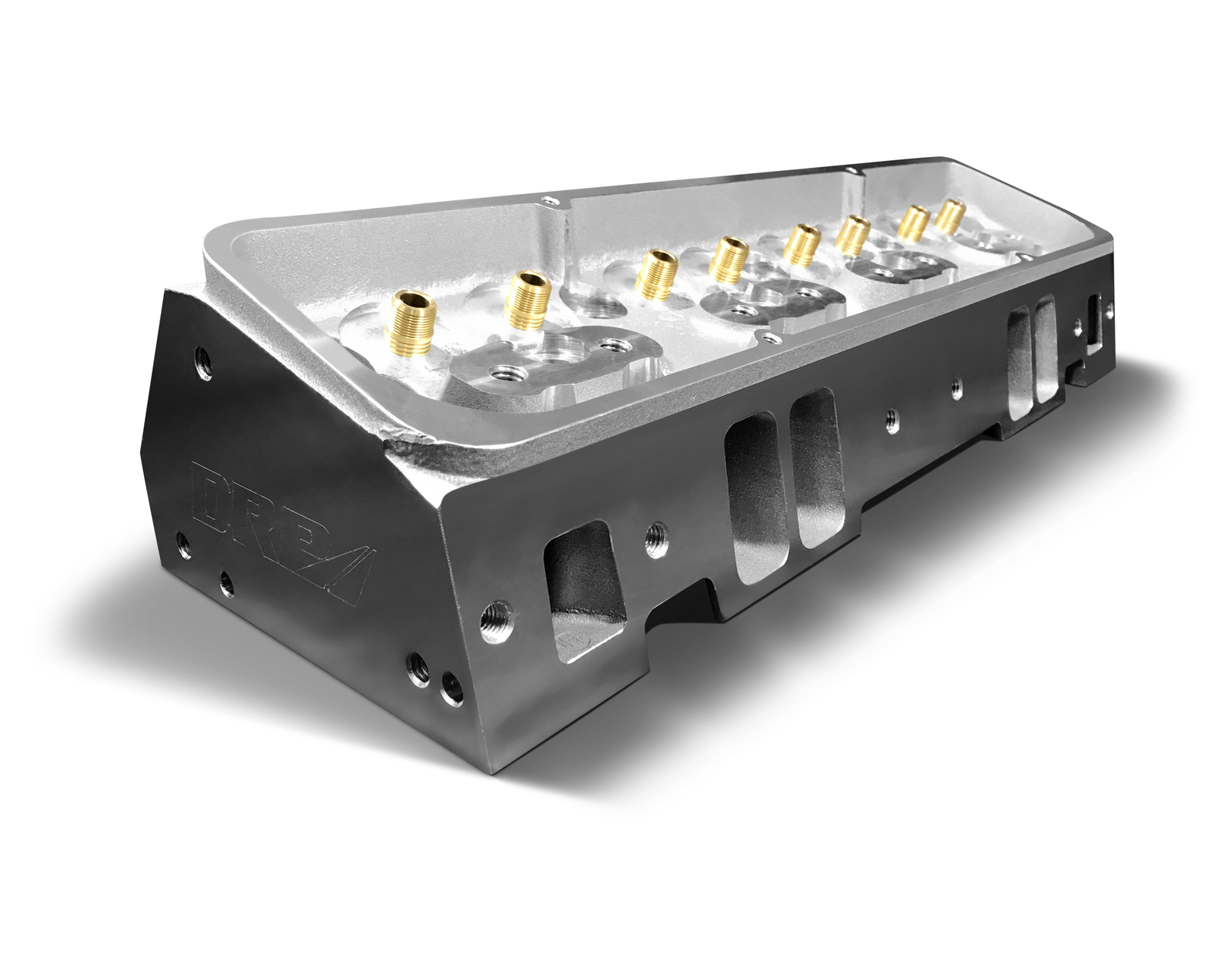

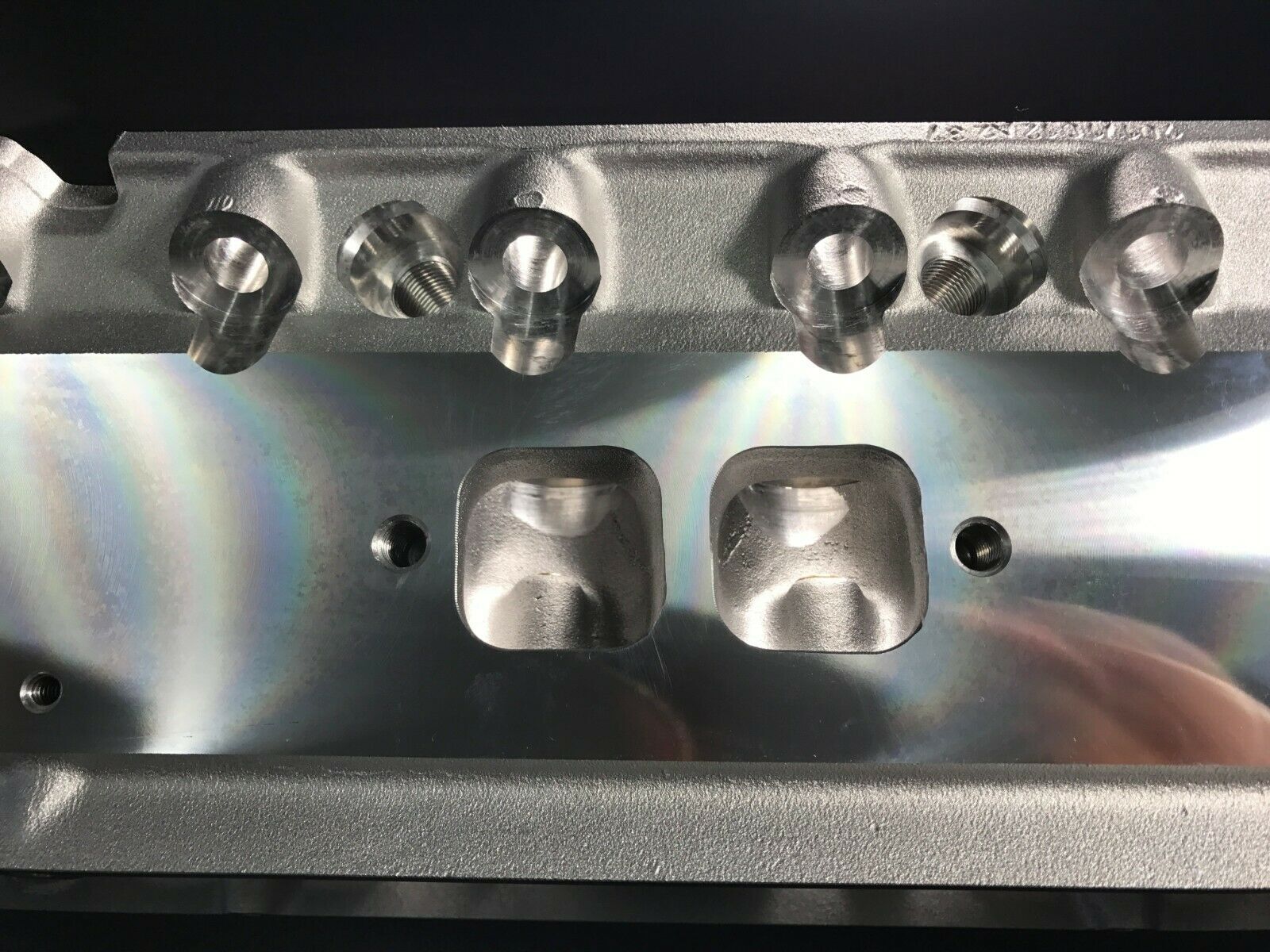

DRP SBC Chevy 350 Cylinder Heads  - STRAIGHT PLUG HEADS

Assembled Complete & suit Hydraulic Flat Tappet Camshafts

500HP and 460ft/lb of Torque from a 350 Small Block Chev*

Wow of a price for such a great Horsepower and Torque!!

*Dyno results are from a 350 Chev with a Solid Flat Tappet.

Heads are assembled for HYDRAULIC FLAT TAPPET & includes:

      °DRP Cylinder Heads - Hand assembled by US using Comp Cams hardware and Ferrea Valves (hand assembled in Melbourne)

      °Comp Cams - Springs 985-16 (Dual).

                  Intake: 148LBS Seat & 349LBS Open @ 0.550" Lift.

                  Exhaust: 142lbs Seat & 343lbs  Open @ 0.550' Lift

      °Comp Cams - Retainers, Locks, Spring Seats, Seals

      °Ferrea - 5000 Series valves

REQUIRES:

  • Adjustable guide plates  - see listing part # 4835-8 Comp Cams
  • Rocker Studs  -  see listing part # 4512-16 Comp Cams

These heads flow 530hp @ 0.550" lift

Flow Figures*:

Lift          Intake          Exhaust

200          145             106

300          192             135

400          232             160

450          242             168   503hp

500          250             178

550          257             179   530hp

600          261             181   537hp

650          260             187

700          255             190



Please allow 5 days to assemble the heads. * If you need these sooner, just ask.

* Results will vary depending on your build and combination of other items.

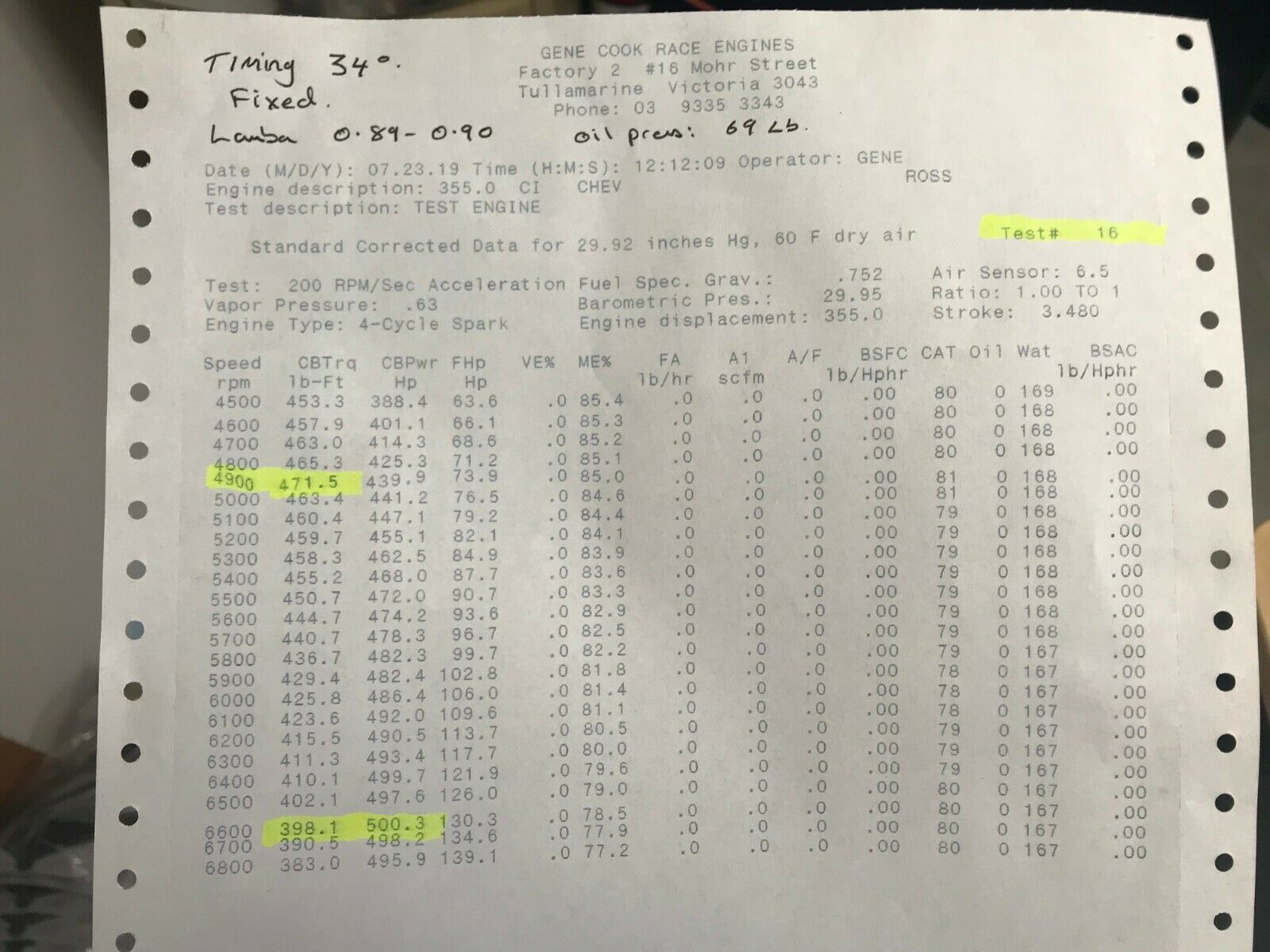

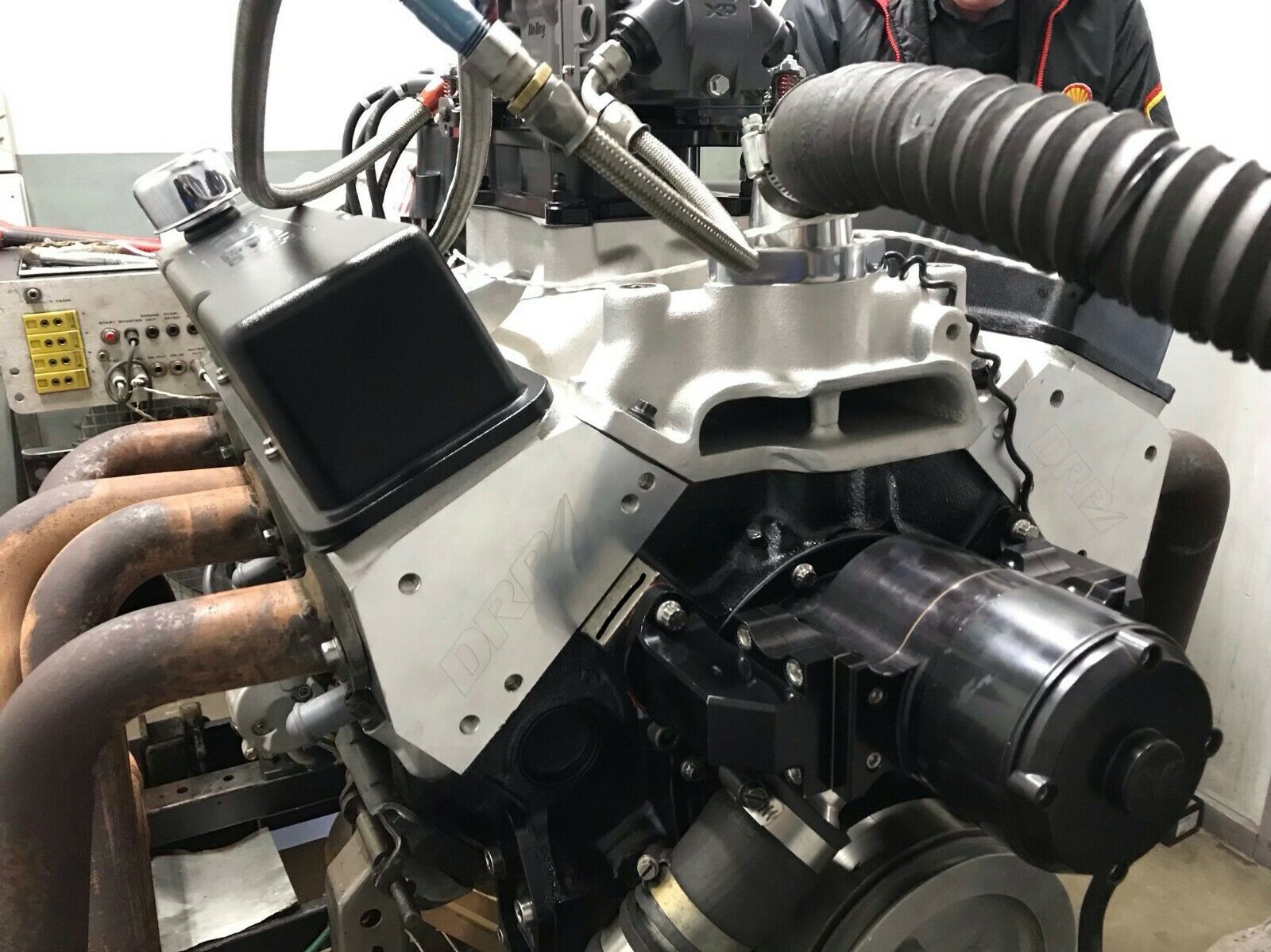

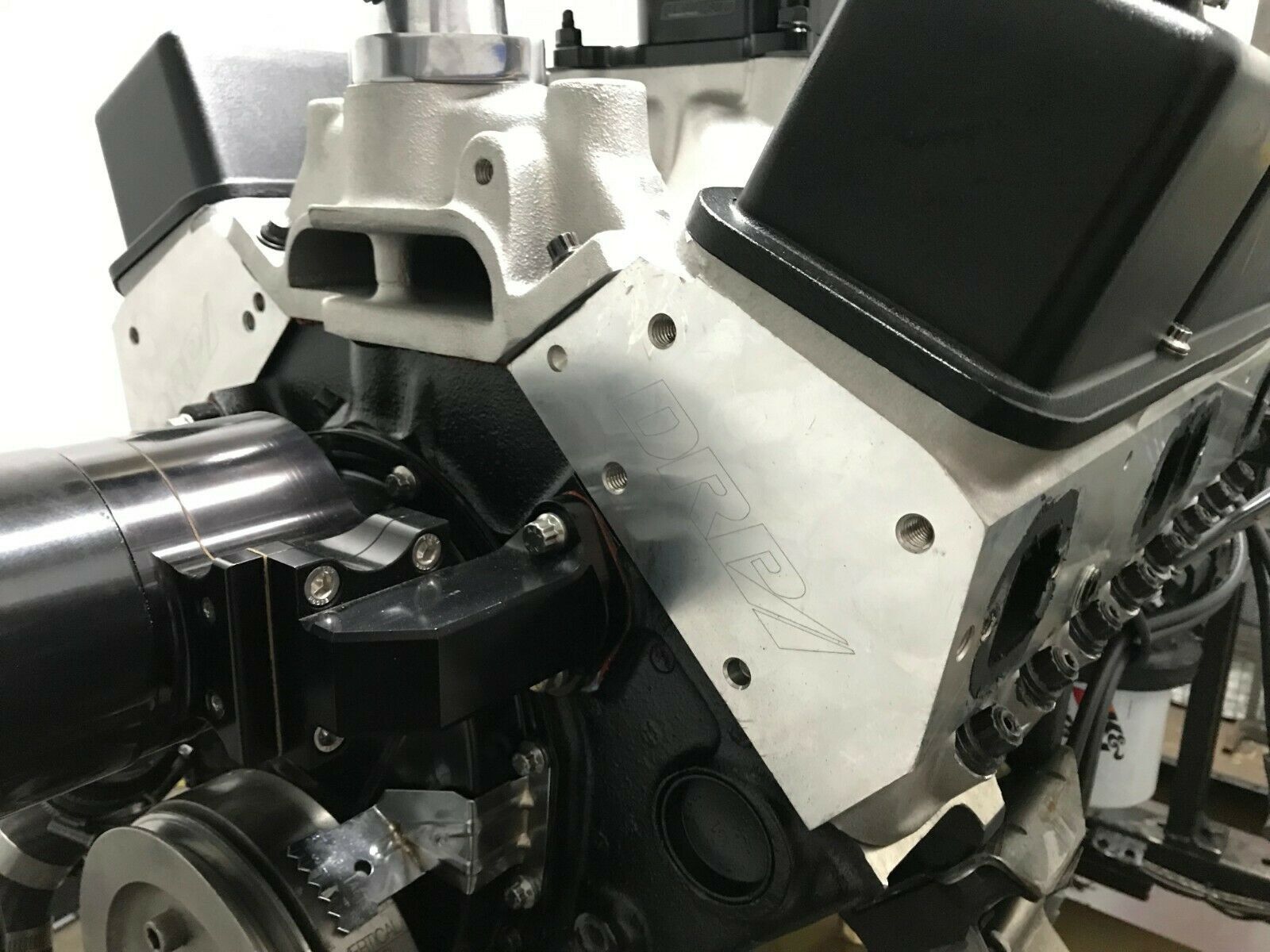

This Dyno test was carried out with a Solid Flat Tappet Camshaft,255/256 Duration and 0.540/0.534" valve lift with a 106 LSA. 1 3/4 Headers, Electrical Water pump, Edelbrock Victor Jnr Single plane intake (we feel you will achieve similar results with an air gap dual plane. 11:1 Compression with a domed Piston. 34°

350 CHEVY DYNO RUN - 500HP  https://www.youtube.com/watch?v=vpwIgJIN5X8

383 CHEVY DYNO RUN - LOW COMP 95 OCTANE  https://www.youtube.com/watch?v=iAEie9M4fz8



Specifications

SKU DRP-SBC200-S-HFT
Brand DRP
Unit Of Measure ea
Warranty Manufacturers Warranty
