V8 Dual Valve Spring Kits Titanium Retainer, suit SBC 350 SBF 302W 351W 0.740" Max Lift 11/32" valve
Titanium Retainer Suits 11/32" valve - RPM KIT
Description
DRP V8 DUAL SPRING KIT 0.740" Max LIFT
SUITS MAJORITY OF AFTER MARKET V8 ALLOY HEADS USING THE 11/32" VALVE.
Chevy 350, Ford Windsor 302W and 351W aftermarket heads.
STEEL RETAINERS KIT
High Quality Polished Spring kit

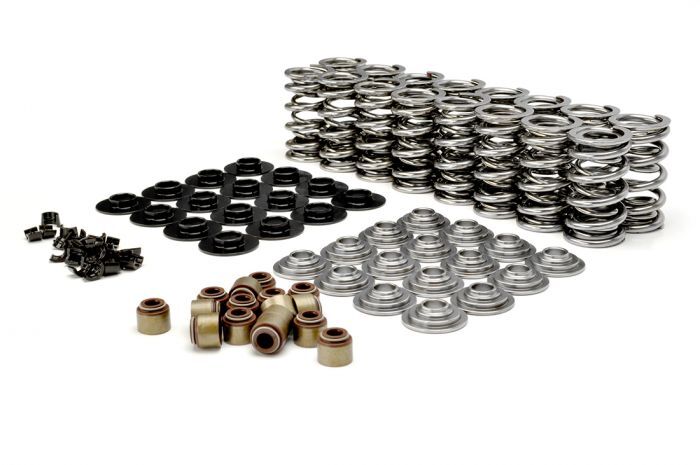

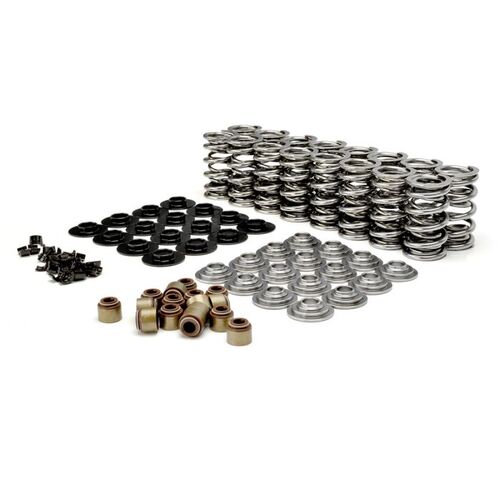

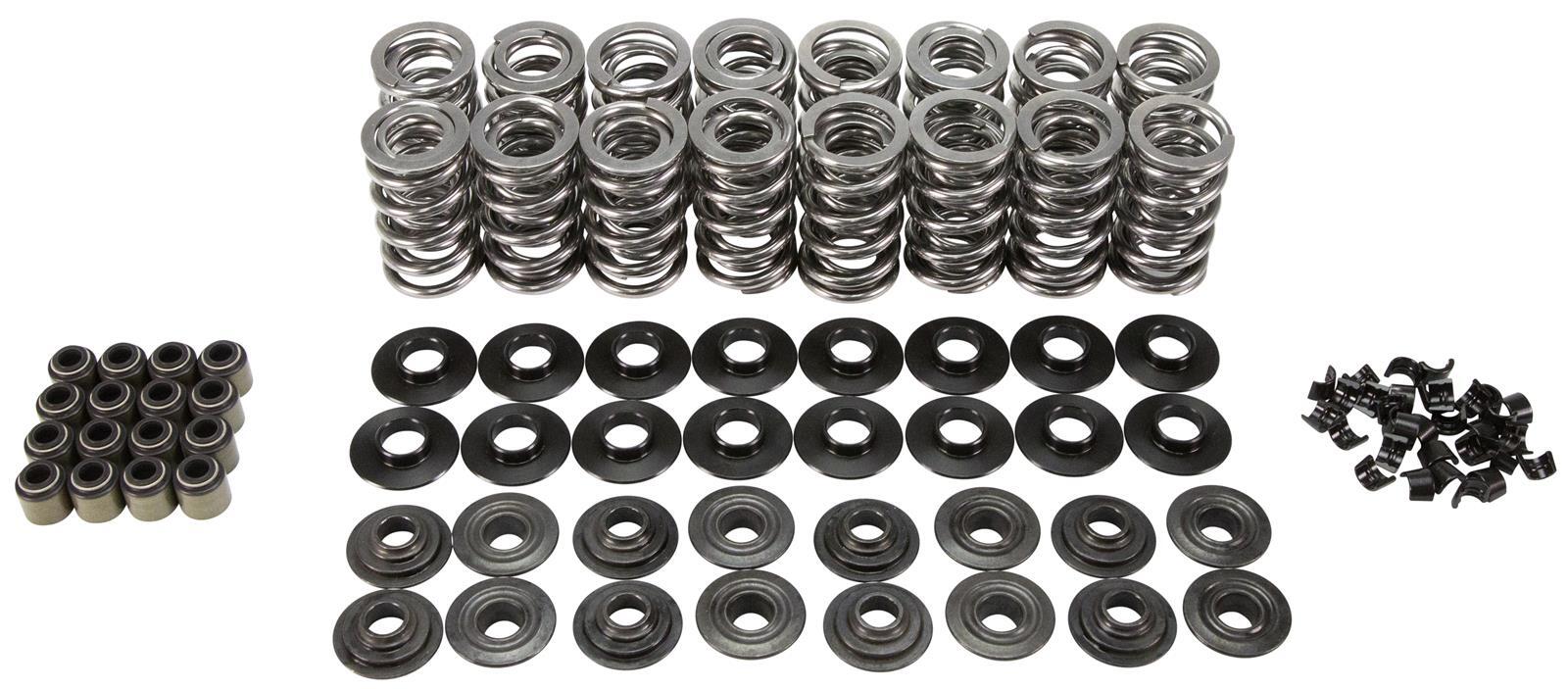

The kit includes - all items made in USA.
- Dual Springs - PAC SPRINGS - made in USA
- Comp Cams Retainers suit 7° locks and 11/32" traditional valve stem
- Comp Cams Locators for Aftermarket guides 0.570" OD
- DRP Valve seals - Viton - suit 11/32" traditional valve stem and 0.530 top of guide - metal body.
- Comp Cams Locks - 7° Machined (not cast) suit 11/32" valve stem - single groove.
Spring specs are as follows:
170 lbs @ 1.800”
450 lbs @ 1.115”
Coil bind @ 1.000”
Max Lift 0.740" @ 060" to coil bind.
408 lbs spring rate
BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
Specifications
| SKU | DRP-DSKIT-V8RPM-T |
| Brand | DRP |
| Seat Height | 1.835 |
| Seat Pressure | 129 |
| Coil Bind Height | 1.1 |
