Chevy Low Mount Dual Quad Carby Intake Manifold, Dual-Plane. Small Block Chevy 350 SBF

SKU: ED5425

Chevy Low Mount Dual Quad Carby Intake Manifold, Dual-Plane. Small Block Chevy 350 SBF

RPM Range: 2500-6500

$886.00

or 4 payments of $221.50 with Info

IN STOCK  FREE SHIPPING

Description

Chevy 350 Dual-Quad Carburettor Intake Manifold for Small block 262-400 V8.

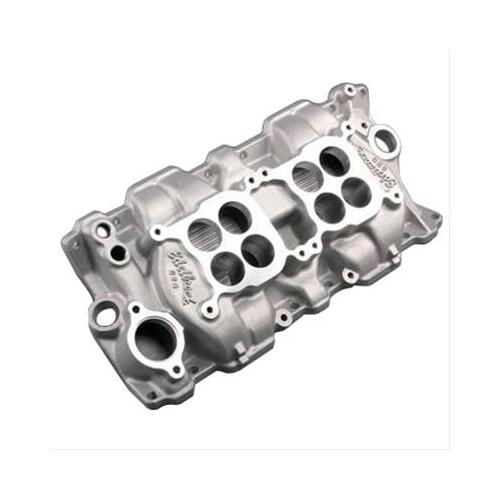

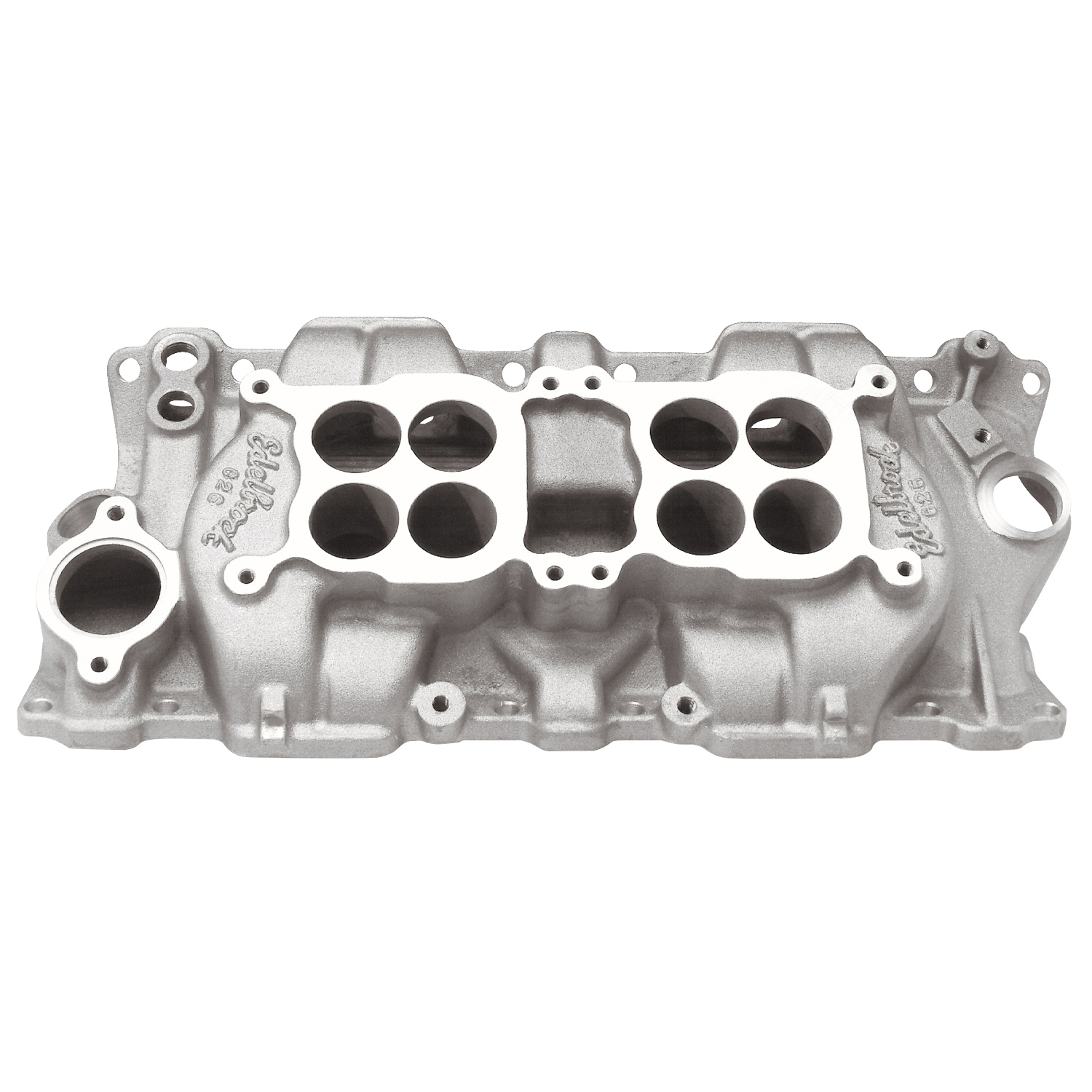

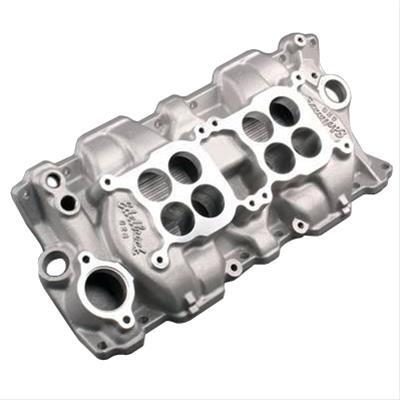

Edelbrock part #5425 C-26 Dual-Quad intake manifold is for 1955-86 262-400 c.i.d. Small Block Chevys. This dual-quad has a low profile for hood clearance on most vehicles. Air-conditioning bosses and front oil filler tube boss included. Stock alternator brackets do not fit Carb center to carb center: 6-7/16".

Note: Accepts oil fill tube and breather #4803. Use with Performer-Plus cam #2103 for low-end torque or Torker-Plus cam/kit #5002 for top-end power.

Notes:   Manifold ht: A-2.95", B-3.55"; Carb pad height: 3.25"; Carb recommendations: EdelbrockAVS2 Series #1903 and #1904 500 cfm.; Port exit dimensions: 1.18" x 1.90"; Recommended intake gasket: Edelbrock #7201.

Specifications

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

SKU ED5425
Barcode # 00085347054251
Brand Edelbrock
