Description
Edelbrock supercharger part #15347 Universal Chrysler HEMI 5.7 Supercharger systems without tuners are not eligible for supplemental warranty.
NOTE: This is a universal kit for the USA Cars, modifications will be required for the Australian vehicles.

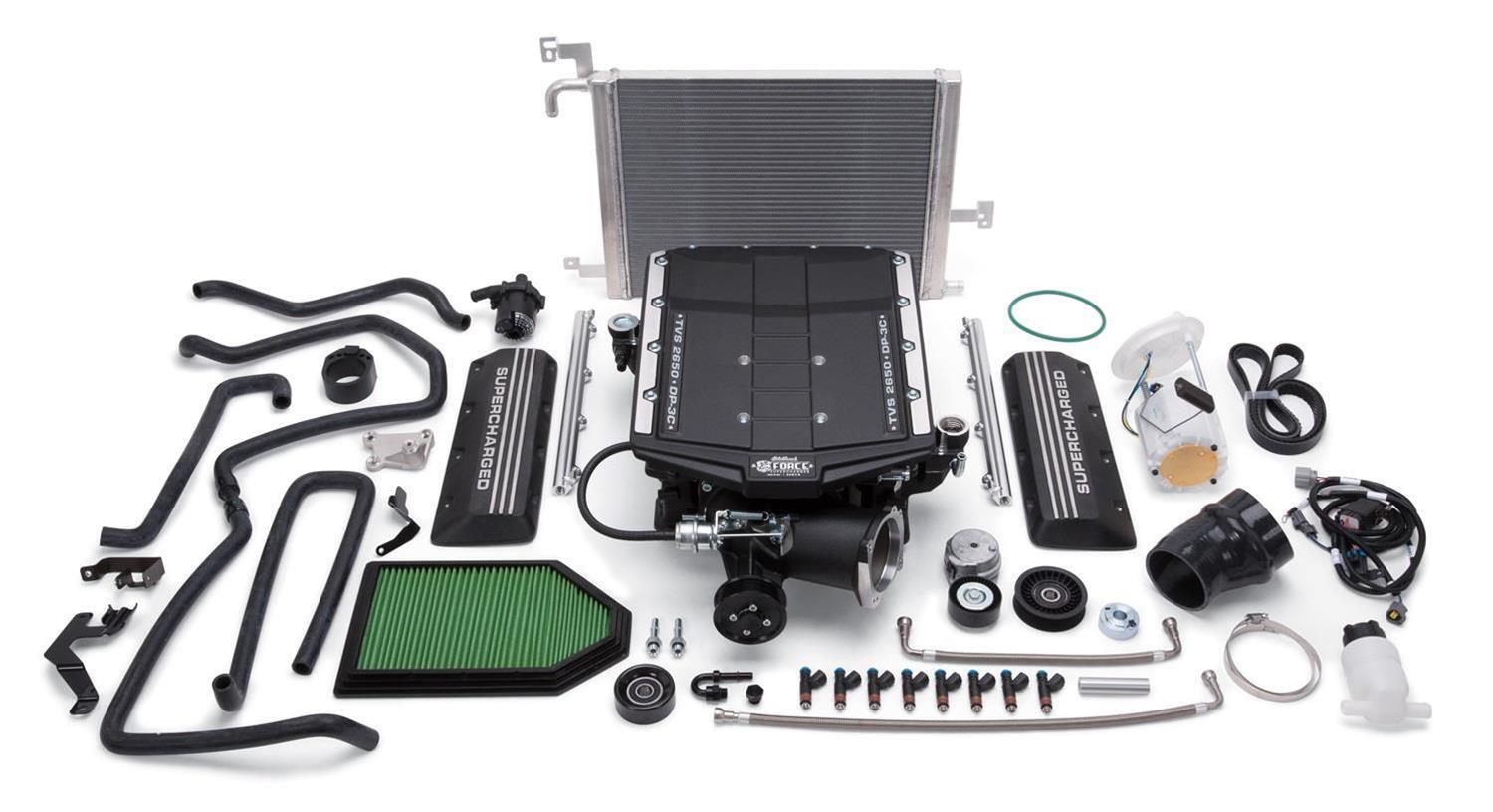

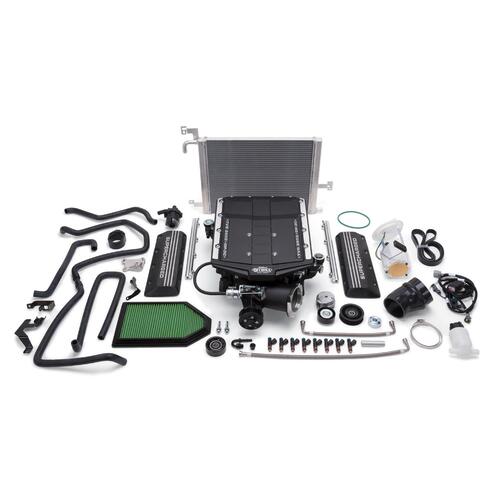

The Edelbrock Supercharger System part #15347 is a UNIVERSAL kit that delivers excellent horsepower and torque for your 2011-17 5.7L or 6.4L HEMI Chrysler 300, Dodge Charger or Challenger. The part #15347 gives you all the essential components needed to build a custom supercharged race setup. This gives you the flexibility in pulley selection, cold air intake, and more. The part #15347 is for competition racing use ONLY! Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI R2650 Supercharger rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. This unit features our DUAL PASS, 3 CORE (DP-3C) intercooler system. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. Customer MUST purchase a heat exchanger SEPARATELY.
System Type Universal System
Vehicle Model Universal
Housing Material Cast Aluminum
Gasket Or Seal Included Yes
Quantity Kit
Oil Capacity 150 mL
Center Housing Cooling Type Intercooler
Internal Step Up Yes
Mounting Bracket Included Yes
Outside Pulley Diameter 3.50 in
Fuel Injector Type 46 lb/hr
Finish Black Powder Coated
Pulley Belt Width 6-Rib
Universal Or Specific Fit Universal
Installation Notes
ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. NO HANDHELD PROGRAMMER INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
Specifications
Chrysler:Gen III HEMI:345 (5.7L)
SKU | ED15347 |
Barcode # | 00085347153473 |
Brand | Edelbrock |
