SKU: ED1536

Stage 1 Supercharger Kit, Chrysler, Dodge, Magnum, 5.7L, 6.1l HEMI, LX, LC. 300C

$15,199.80

SOLD OUT

Description

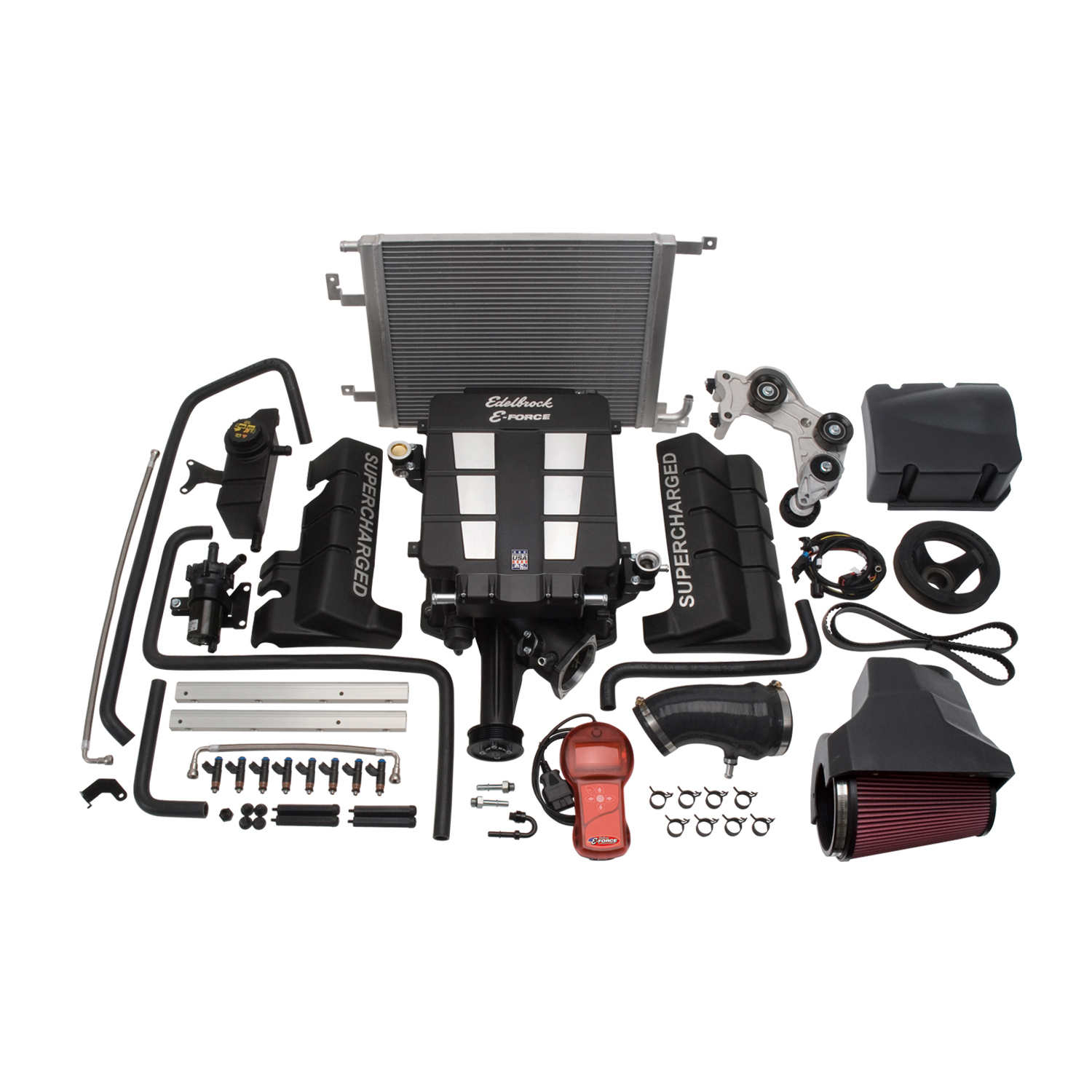

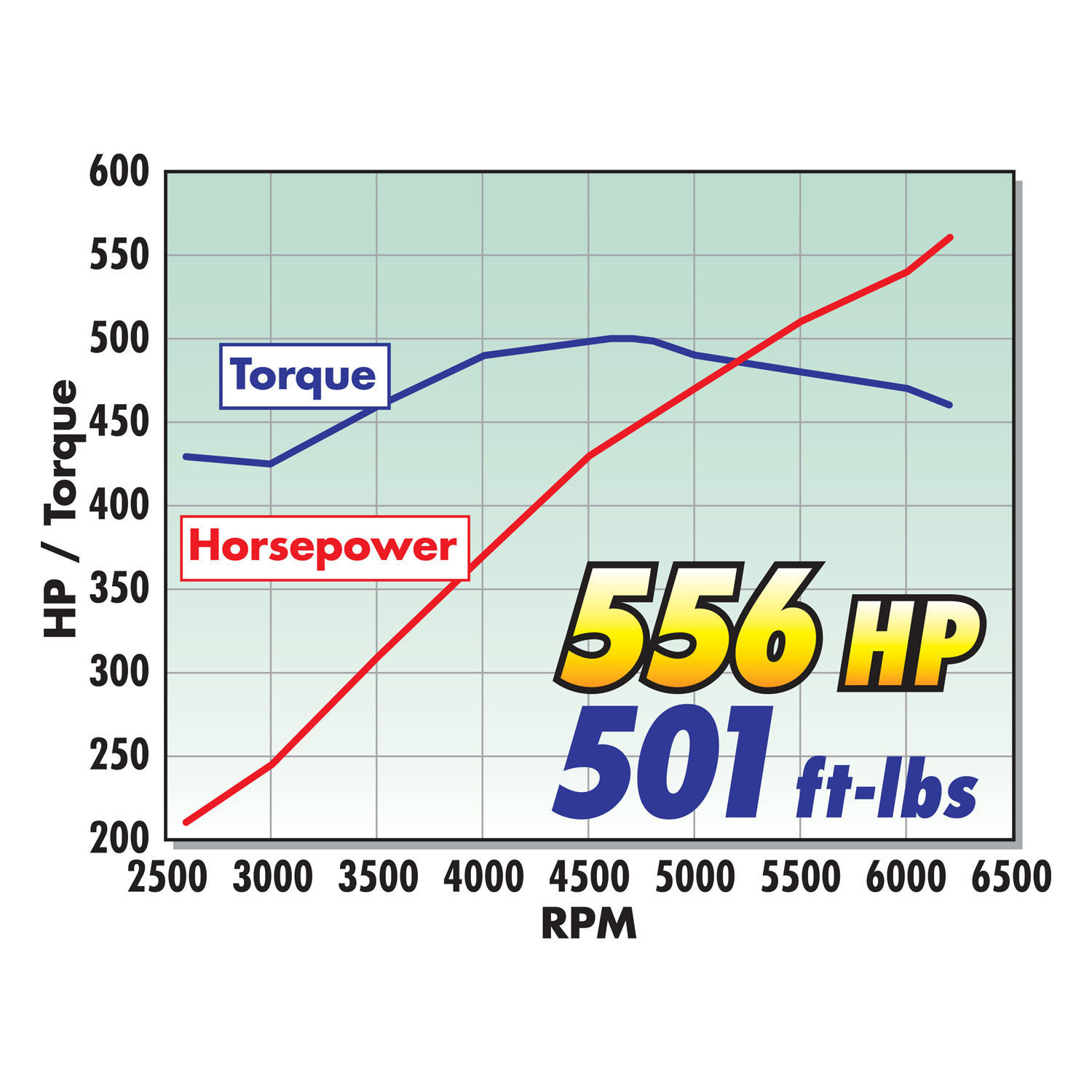

Edelbrock Supercharger System part #1536 HEMI V8 6.1 LX and LC 2005-10 Chrysler 300C, Dodge Charger or Challenger, produced 556 horsepower and 501 ft-lbs of torque.

NOTE: These kits are for the USA cars, modifications will be required to suit the Australian cars.

The Edelbrock Supercharger System part #1536 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger producing 556 horsepower and 501 ft-lbs of torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

System Type       Stage 1 - Street System

Vehicle Model    Challenger

Housing Material              Cast Aluminum

Gasket Or Seal Included Yes

Quantity              Kit

Oil Capacity        150 mL

Center Housing Cooling Type       Intercooler

Internal Step Up               Yes

Mounting Bracket Included          Yes

Outside Pulley Diameter                3.875 in

Maximum Torque             501 ft-lb

Fuel Injector Type            46 lb/hr

Maximum Horsepower  556

Emissions Code EO Number: D-215-89

Finish    Black Powder Coated

Maximum Boost Pressure             6 PSI

Pulley Belt Width              6-Rib

Universal Or Specific Fit Specific

Installation Notes

Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.

Specifications

Chrysler:Gen III HEMI:370 (6.1L)

SKU ED1536
Barcode # 00085347015368
Brand Edelbrock
