SKU: 20-224-4

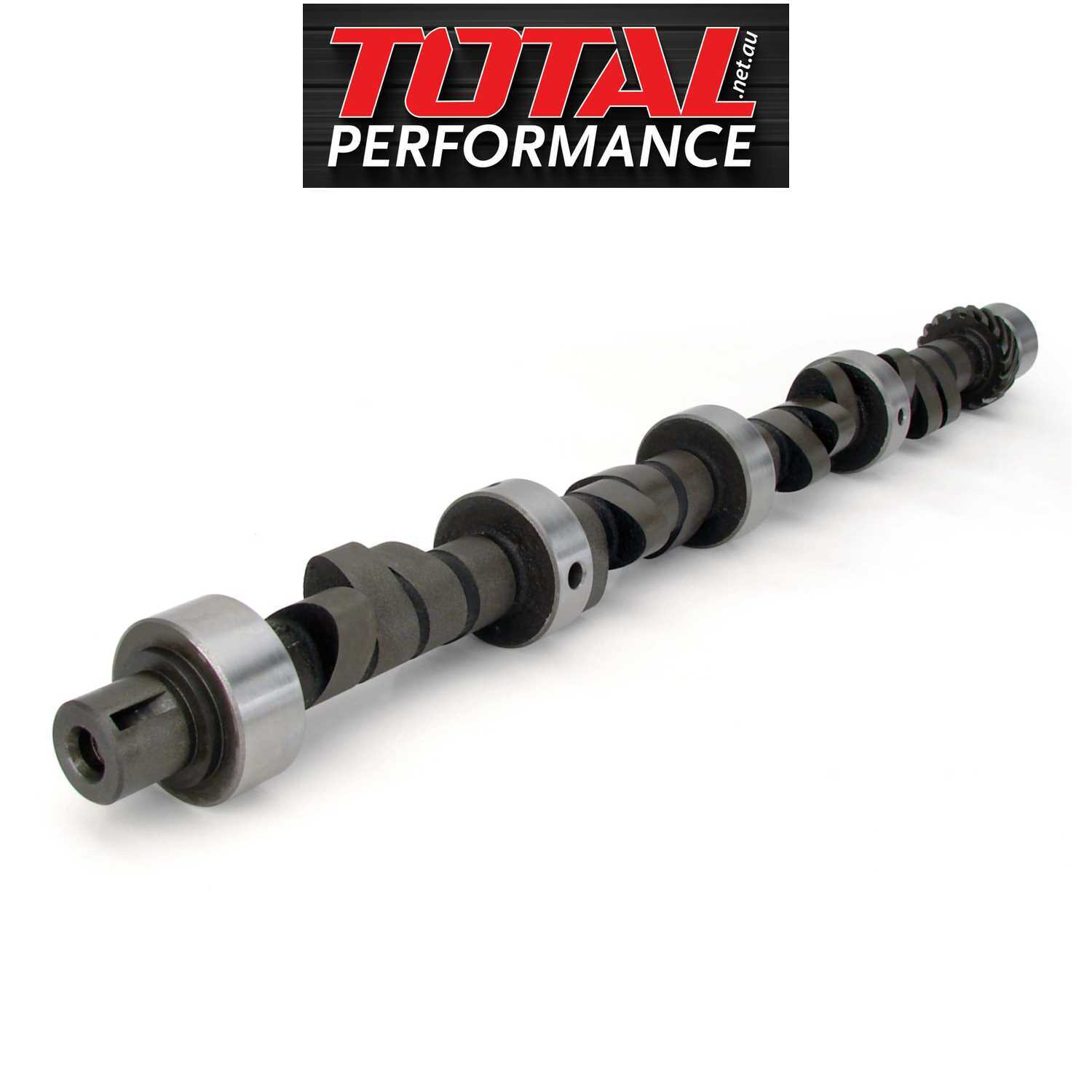

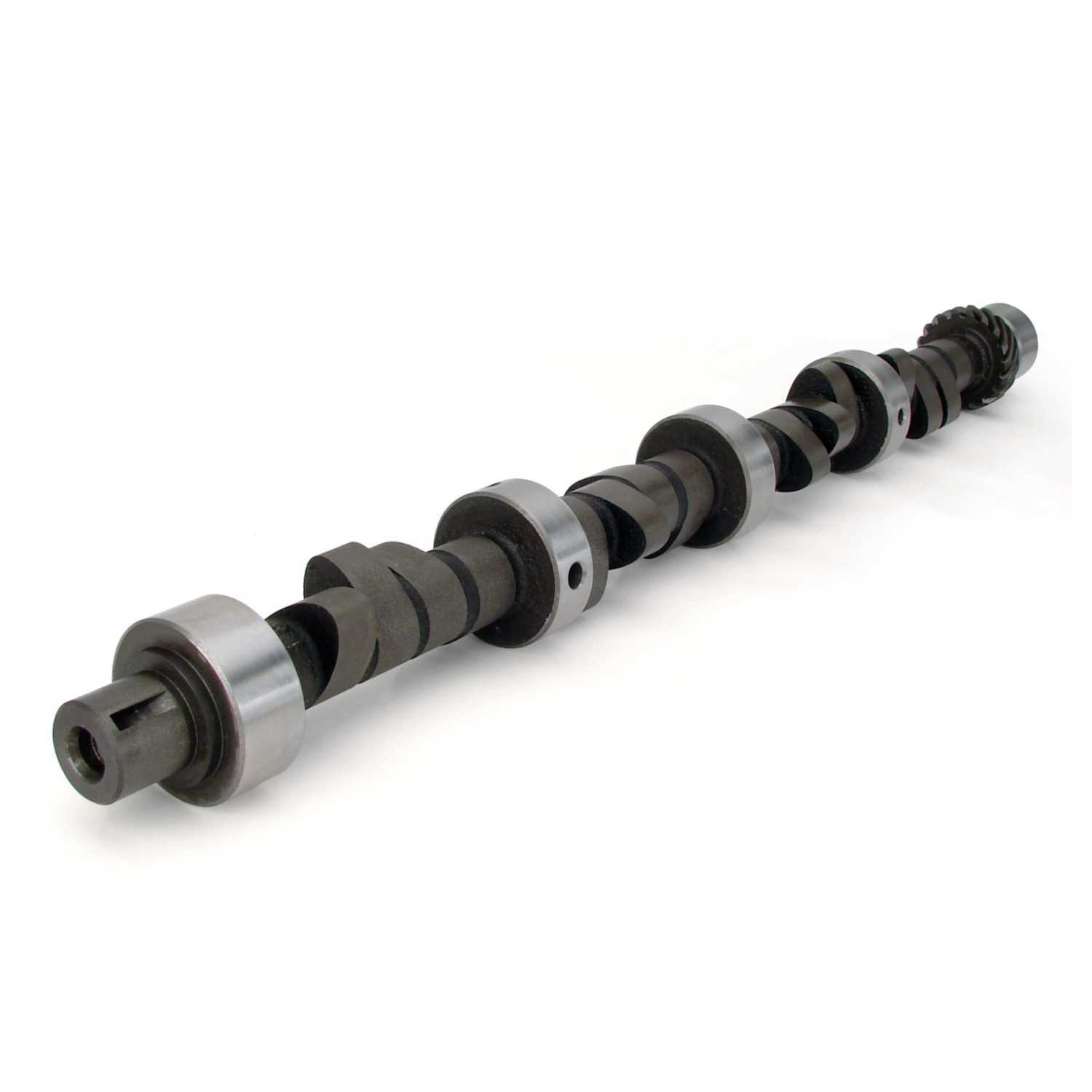

XE274H Xtreme Energy 230/236 Hydraulic Flat Tappet Camshaft Chrysler 318 340 360

RPM Range: 1800-6000

$458.39

or 4 payments of $114.60 with Info

SOLD OUT

Description

Very strong torque and throttle response, 2200+ stall.

Specifications

SKU 20-224-4
Barcode # 036584046967
Brand COMP CAMS
intake valve lift 0.488
Exhaust Valve Lift 0.491
Lifter Type Hydraulic Flat Tappet
Advertised Exhaust Duration 286
Advertised Intake Duration 276
Cam Type Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift 236
Intake Duration At .050 Inch Lift 230
Lobe Separation 110
Camshaft Series Xtreme Energy
Grind Number XE274H
Basic Operating Rpm Range 1,800-6,000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 1-Bolt
Camshaft Material Cast Iron
