SKU: 20-244-4

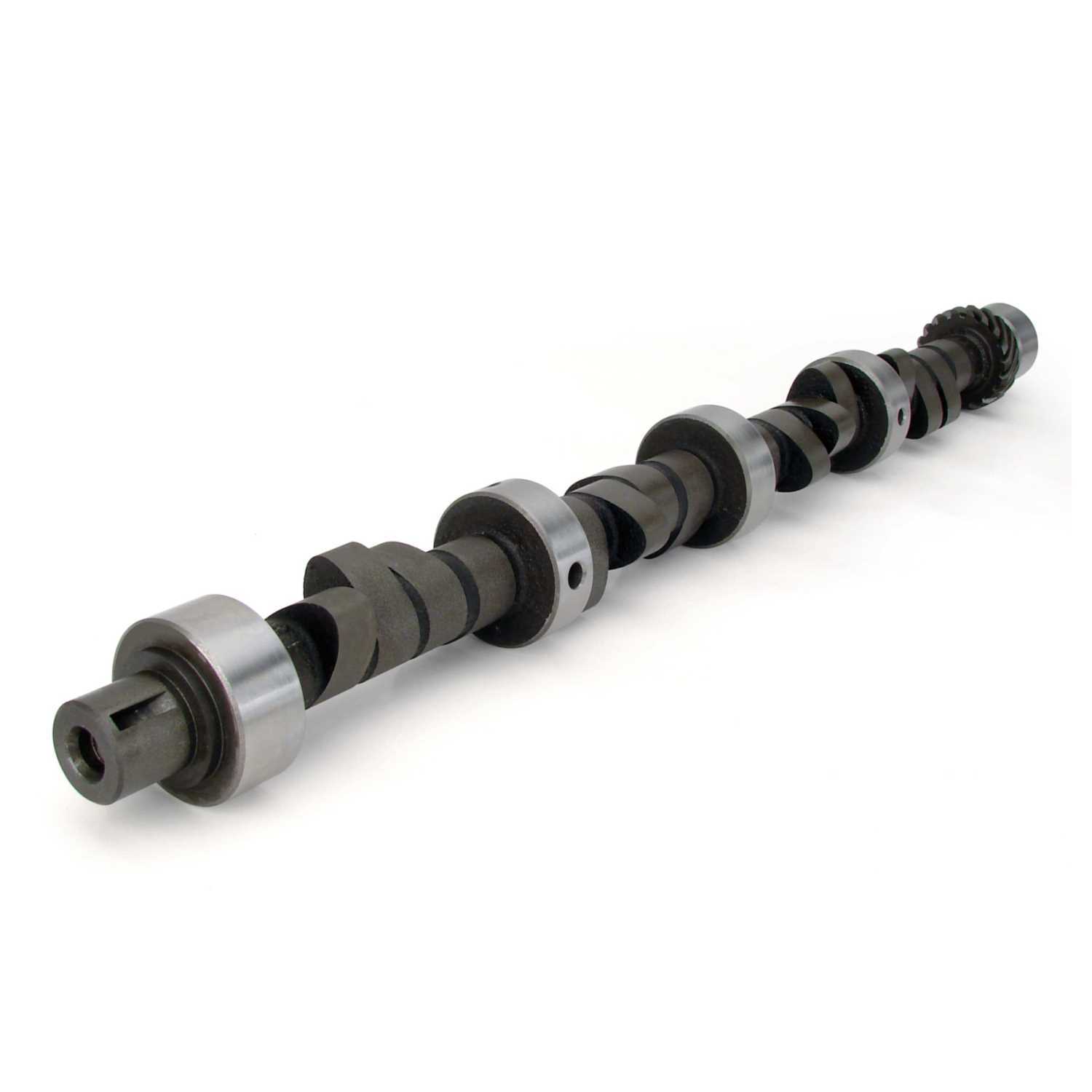

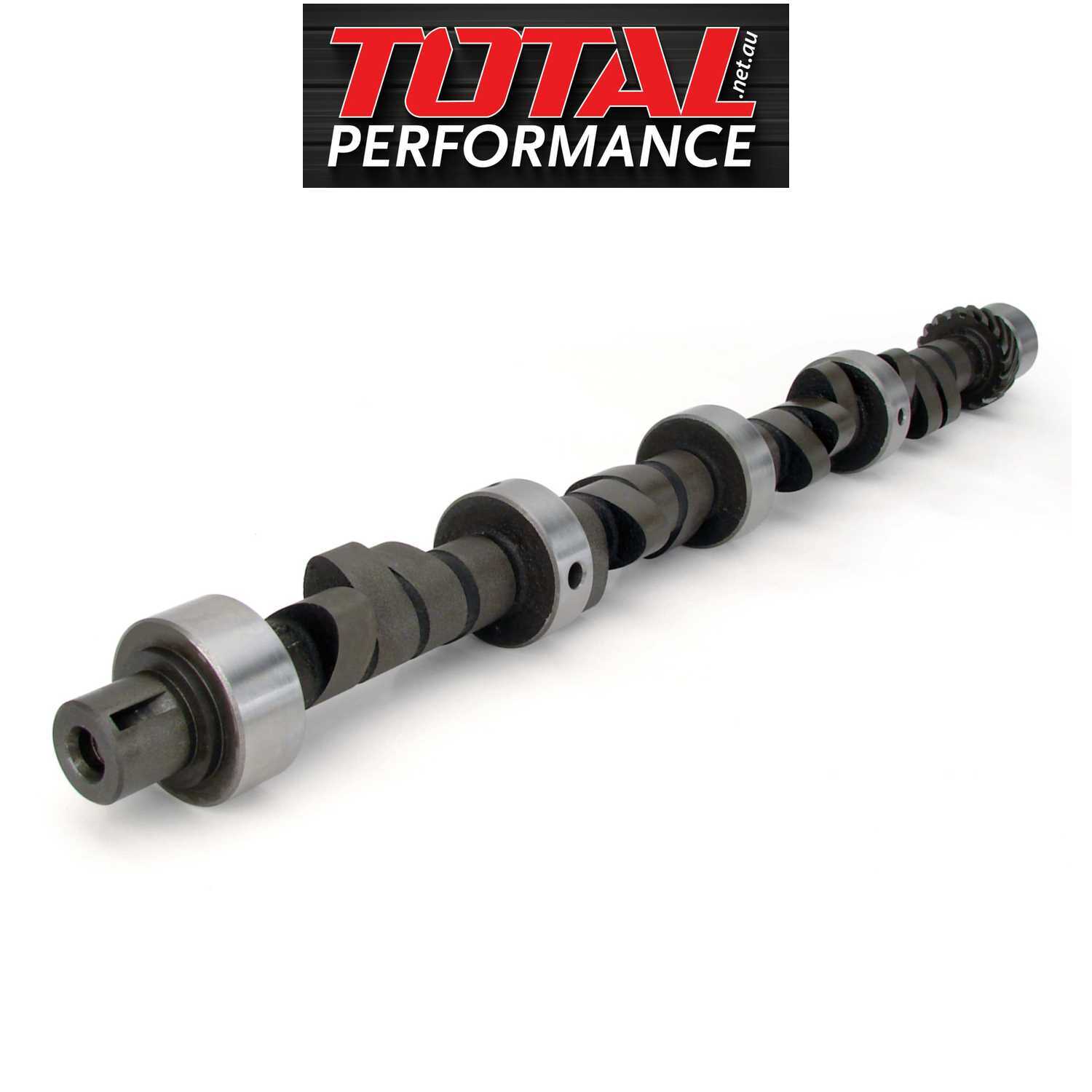

20-244-4 Magnum 253/253 Hydraulic Flat Cam for Chrysler 273-360

$510.72

or 4 payments of $127.68 with Info

SOLD OUT

Description

Pro Street/all out bracket racing. 3500 to 4000 stall, 10:1 to 11:1 compression. Aftermarket manifold with 750 CFM carb.

Specifications

SKU 20-244-4
Barcode # 036584610762
Brand COMP CAMS
intake valve lift 0.525
Exhaust Valve Lift 0.525
Lifter Type Hydraulic Flat Tappet
Advertised Exhaust Duration 305
Advertised Intake Duration 305
Cam Type Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift 253
Intake Duration At .050 Inch Lift 253
Lobe Separation 110
Camshaft Series Magnum
Grind Number 305H
Basic Operating Rpm Range 3,500-6,800
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 1-Bolt
Camshaft Material Cast Iron
