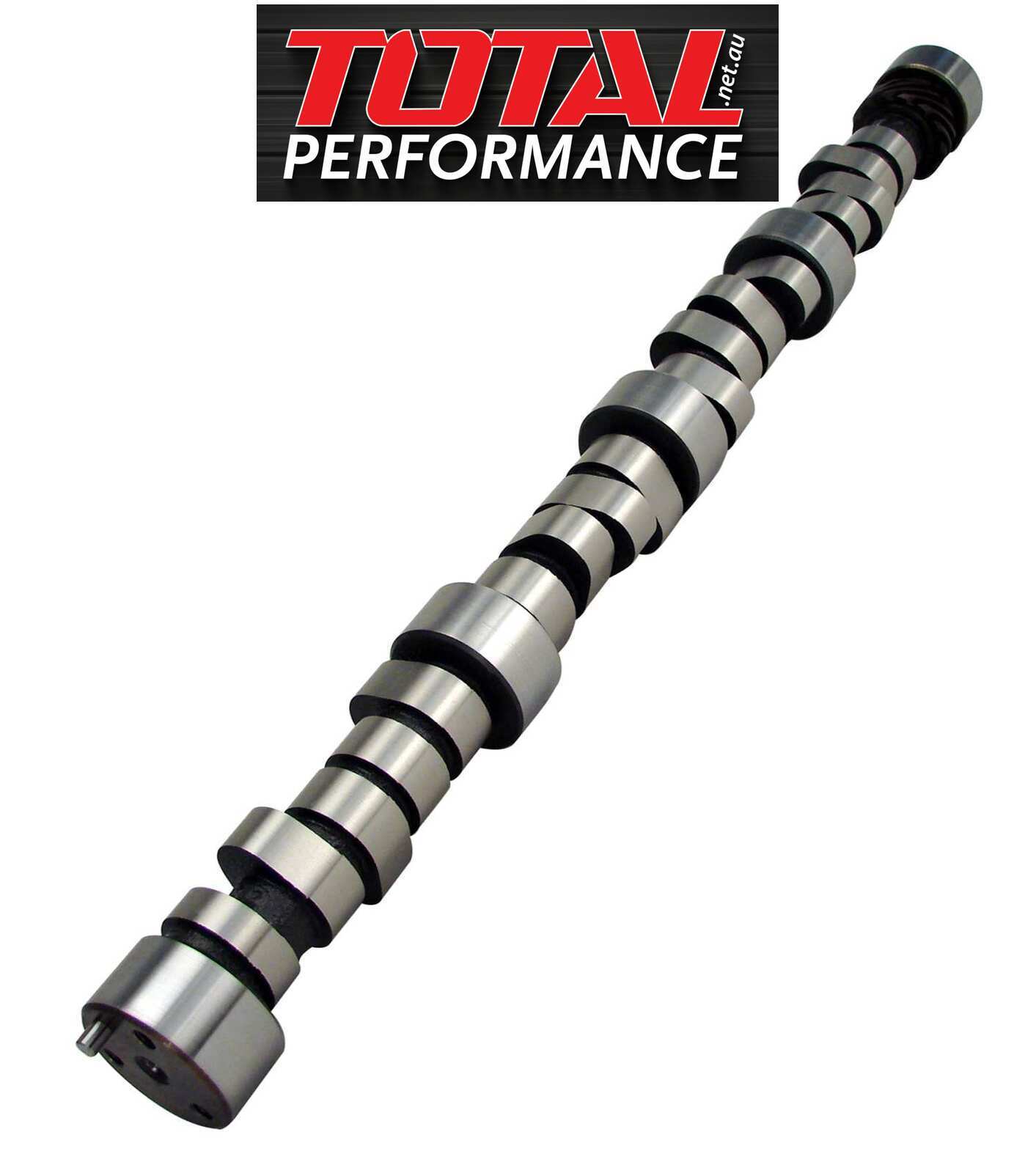

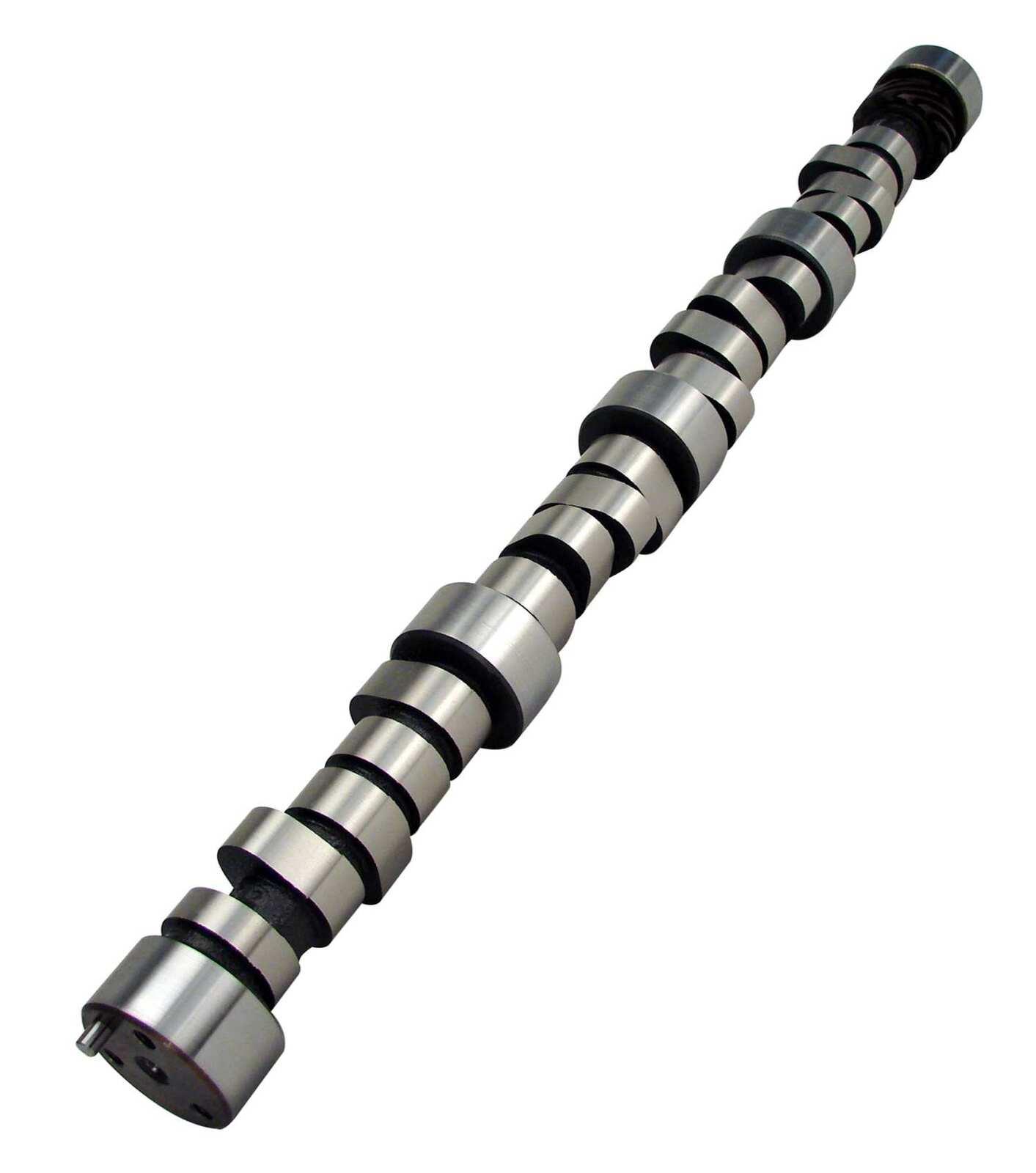

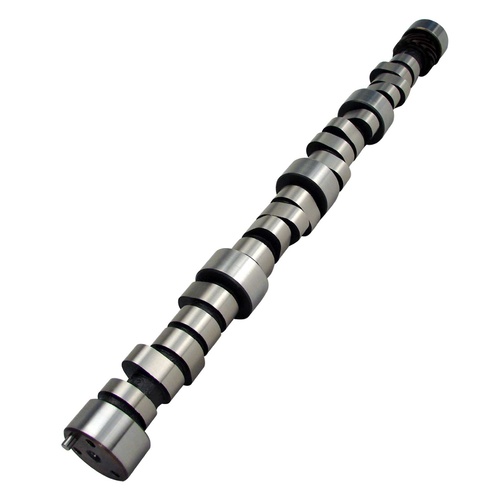

Comp Cams 12-423-8 Xtreme Energy 224/230 SBC Hydraulic Roller Cam Retrofit Chevrolet Small Block

**We are closed from 20th December to 14th January 2025**

SBC Xtreme Energy 224/230 LSA 110 Hydraulic Roller Camshaft Chevy Small Block

Description

COMP Cams 12-423-8 Xtreme Energy 224/230 Hydraulic Roller Cam for Chevrolet Small Block
High performance street machines, 2000+ stall, gears, choppy idle.

Cam Specs:
Advertised Duration: 276/282

Duration @ .050 Inch Lift: 224/230

Valve Lift: 0.502/0.51

Lobe Separation:110

Exhaust Close ATDC:27

Intake Open BTDC:32

Exhaust Open BBDC:75

Intake Close ABDC:64

Specifications

SKU	12-423-8
Barcode #	036584025160
Brand	COMP CAMS
intake valve lift	0.502
Exhaust Valve Lift	0.51
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	282
Advertised Intake Duration	276
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	230
Intake Duration At .050 Inch Lift	224
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR276HR
Basic Operating Rpm Range	1,900-5,600
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Austempered Ductile Iron
